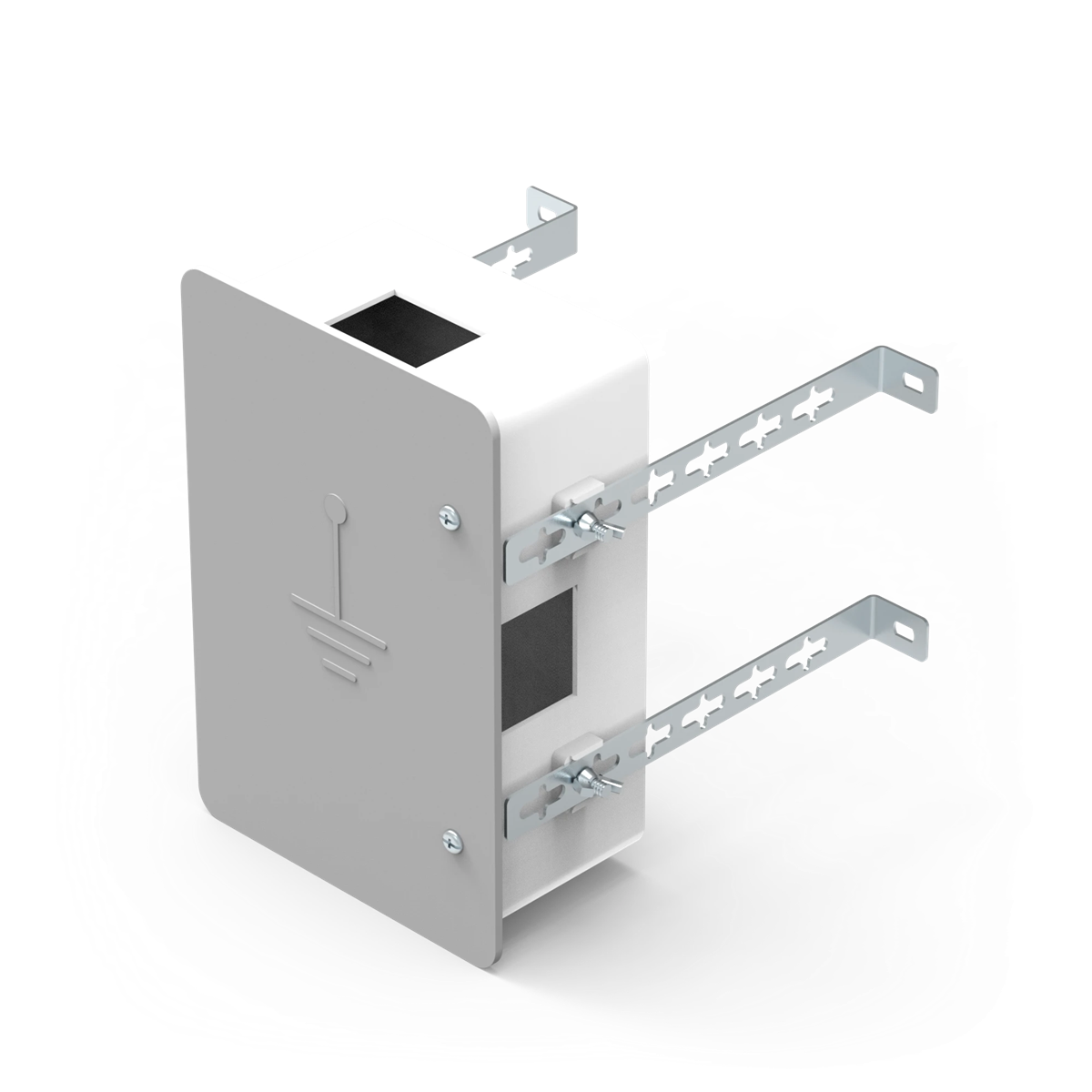

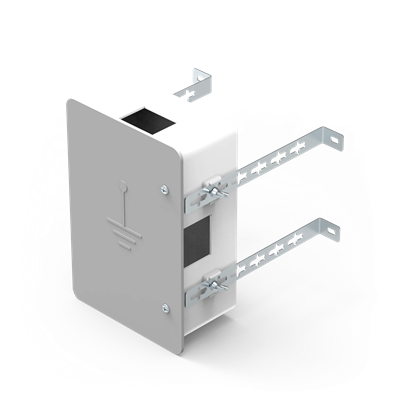

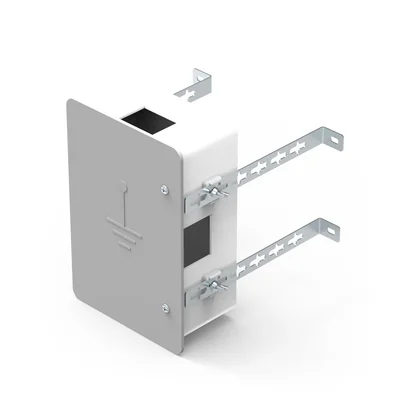

Control box for façade 168x250mm 85-142mm grey 96802408

local index:
AON032ELKO
Catalog No:
96802408
EAN code:
5907676700096
Manufacturer: ELKO-BIS
Length [mm]: 250
Depth [mm]: 85-142
Color: Gray
Price:
14,56 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 13 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

It serves as a housing for control joints placed under the façade or in the thermal insulation layer. Installation by screwing to the wall of the building on adjustable holders. Made of plastic with flammability class V0 according to UL94. UV-resistant housing. The mounting kit includes 4 sets of brackets that allow installation in insulation with a thickness of up to 20 cm.

Technical data

  • Length [mm]
    250
  • Color
    Gray
  • Width [mm]
    168
  • Depth [mm]
    85-142
  • Material
    PVC
  • PKWIU
    22.23.19.0

Other technical data

  • Model
    Inspection housing
  • Surface protection
    Other
  • Material
    Plastic
