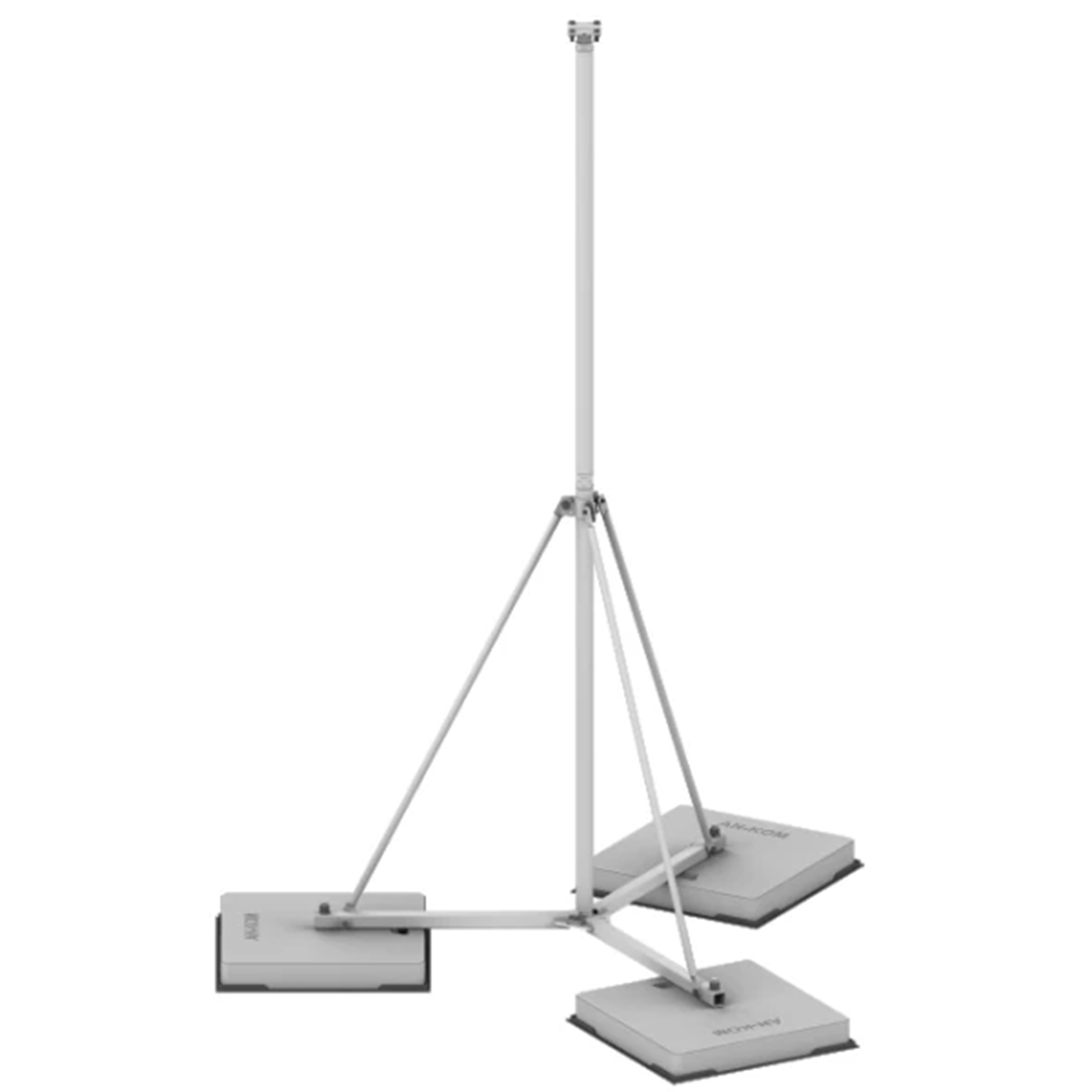

Free-standing cage mast on a triple weight (tripod). It is used to build elevated horizontal air terminals (protective cages). Cable span between two masts of the same construction: 10m. WE RECOMMEND: Using the AN-81R mast base - tripod leveling screws in the range of up to 6°.
Technical data
Material
Hot-dip galvanized steel
Mast diameter [mm]
42.4/16
Height [mm]
6000
Wind zone of the Republic of Poland
I, III
Cable dimensions [mm]
8-10
PKWIU
27.12.10.0
Other technical data
Długość/wysokość
6000 mm
Model
Interception rod with tripod
Surface protection
Hot-dip galvanized
High-voltage-proof insulated model
Yes
Diameter
42.4 ... 42.4 mm
Material
Steel
Connection
Round conductor
Manufacturer details
Manufacturer
AN-KOM 2 SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ
Address
34-120 INWAŁD, ul. ks. Władysława Bukowińskiego 15
