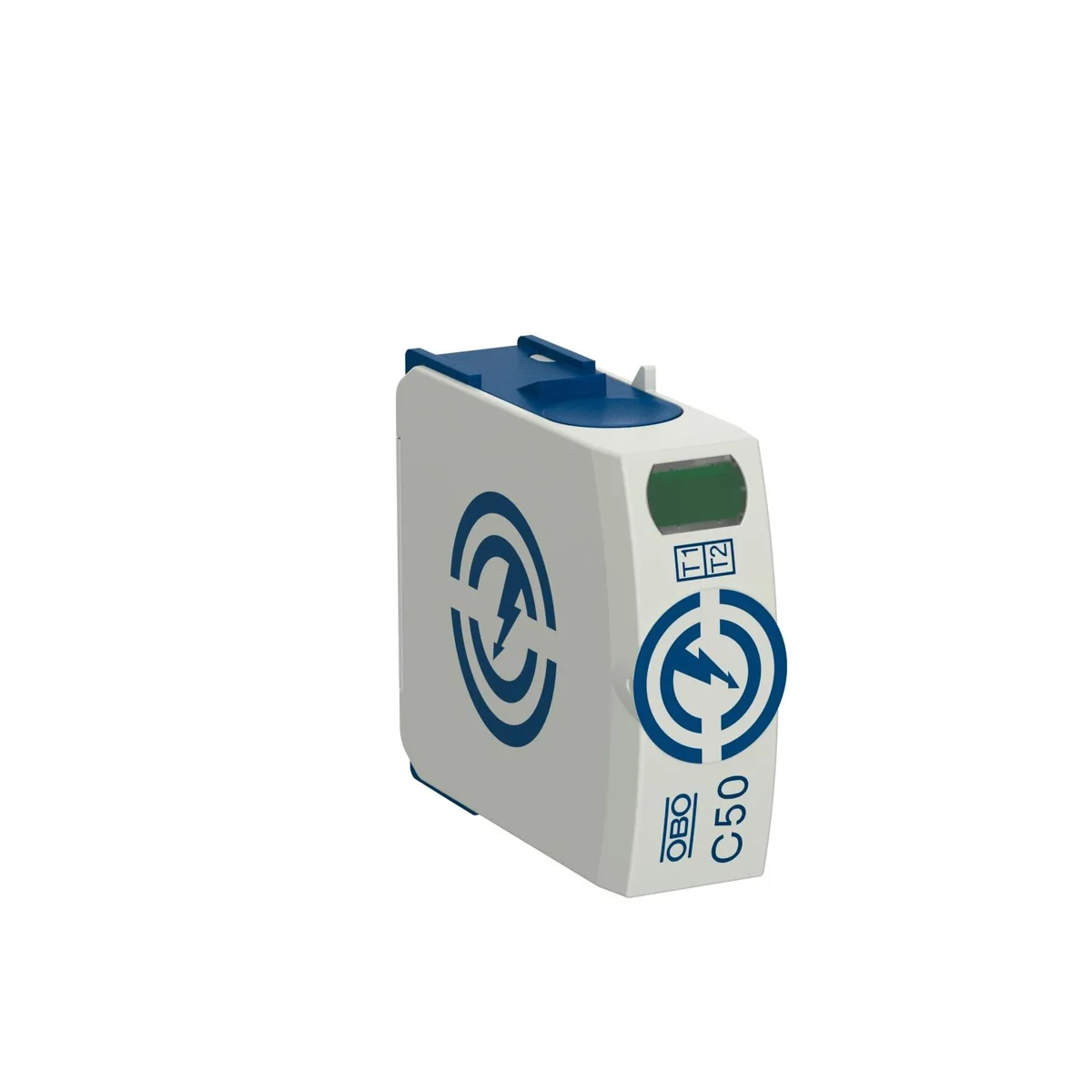

C50-0-255 Spark gap insert 5095609
local index:
AOC005OBOB
Catalog number:
5095609
EAN code:
4012196337620
Manufacturer:
OBO BETTERMANN
Price:
255,15 zł
gross / pcs.
(including VAT 23%)
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Technical data
Other technical data
-
System configuration TN-C-SYes
-
System configuration TTYes
-
Max. continuous voltage AC255 V
-
Follow current extinguishing capability0.1 kA
-
Construction size1 modular spacing
-
Max. conductor cross section flexible (fine-strand)35 mm²
-
Signalling at the deviceOptical
-
Degree of protection (IP)IP20
-
System configuration TN-SYes
-
Number of poles1
-
Voltage protection level N-PE1.5 kV
-
Mounting methodDIN rail (top hat rail) 35 mm
-
Max. conductor cross section solid (solid, stranded)35 mm²
-
Remote signallingNo
-
Integrated backup fuseNo
Manufacturer details
-
ManufacturerOBO Bettermann Holding GmbH & Co. KG
-
Address58710 Menden Hüingser Ring 52 Niemcy
-
E-mail
Bulk packaging
| A kind of package | Skrzynia | Karton | Paleta |
| Quantity | 1 pcs. | 30 pcs. | 4320 pcs. |
| Weight (kg) | 0,082 | 2,611 | 415,984 |
| Volume (m3) | 0,000 | 0,003 | 0,912 |
| Width (m) | 0,023 | 0,130 | 0,800 |
| Length (m) | 0,050 | 0,330 | 1,200 |
| Depth (m) | 0,076 | 0,080 | 0,950 |
