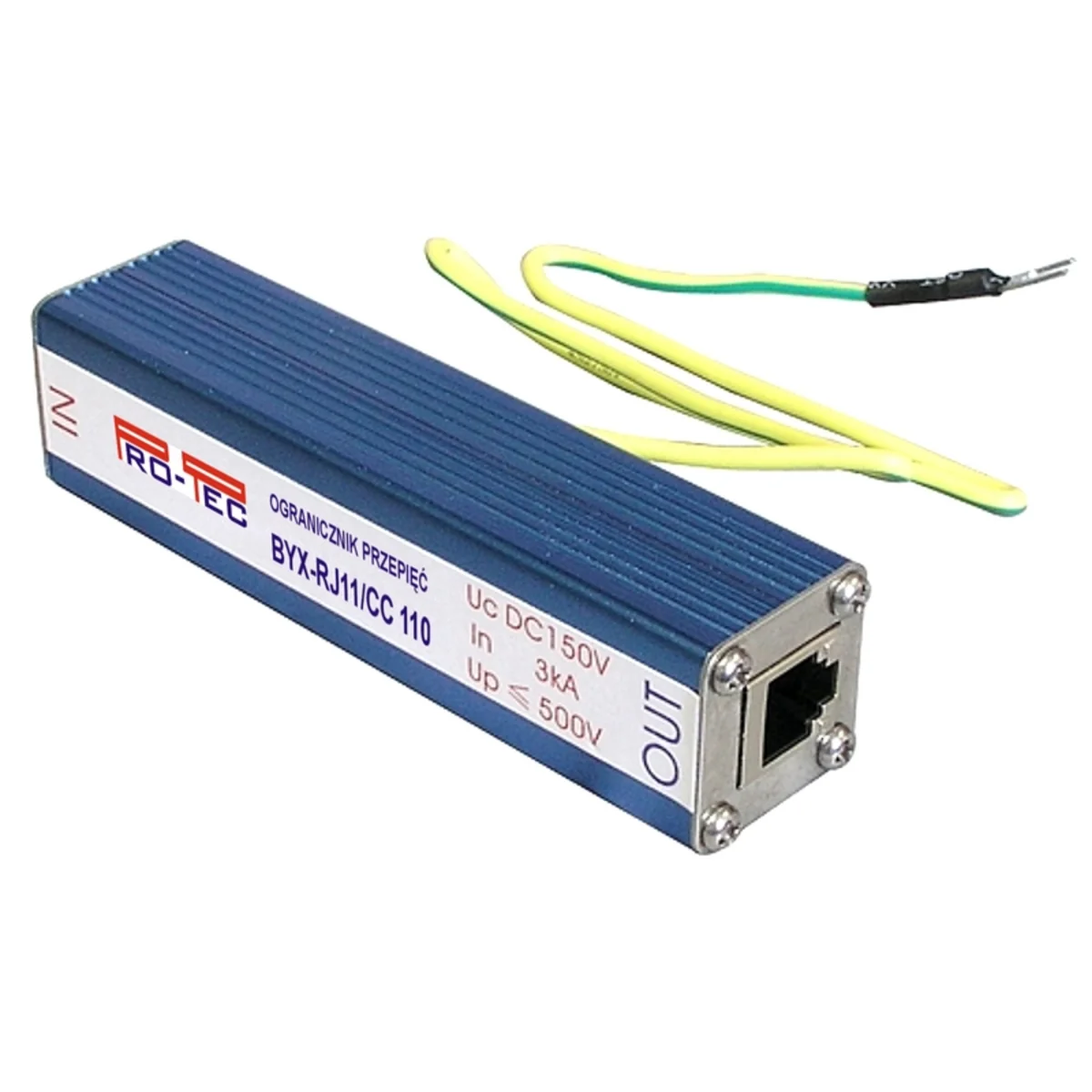

BYX-RJ11/CC 110 surge arrester 3250001

local index:
AOC027PROT
Catalog No:
3250001
EAN code:
5907589160246
Manufacturer: PRO-TEC
Protected veins: 2,3,4,5
Reduced voltage [V]: 500
Rated voltage [V]: 110
Price:
27,52 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Combined surge arresters for protection of analog telephone lines, digital telephone lines (ISDN), and Ethernet 10(0)Mbps computer networks. Inputs and outputs equipped with RJ type connectors enable simple and easy installation of the arrester. The grounding conductor should be connected to the elements connected to the PE conductor. Most often, such an element is the metal housing of the device, or a grounded patch cabinet. One arrester is used to protect one line. The limiter housing is made of aluminum profile.

Technical data

  • Protected veins
    2,3,4,5
  • Rated voltage [V]
    110
  • connection
    RJ11
  • Frequency [MHz]
    2
  • Reduced voltage [V]
    500
  • Test current [kA]
    3
  • Attenuation [dB]
    0.5
