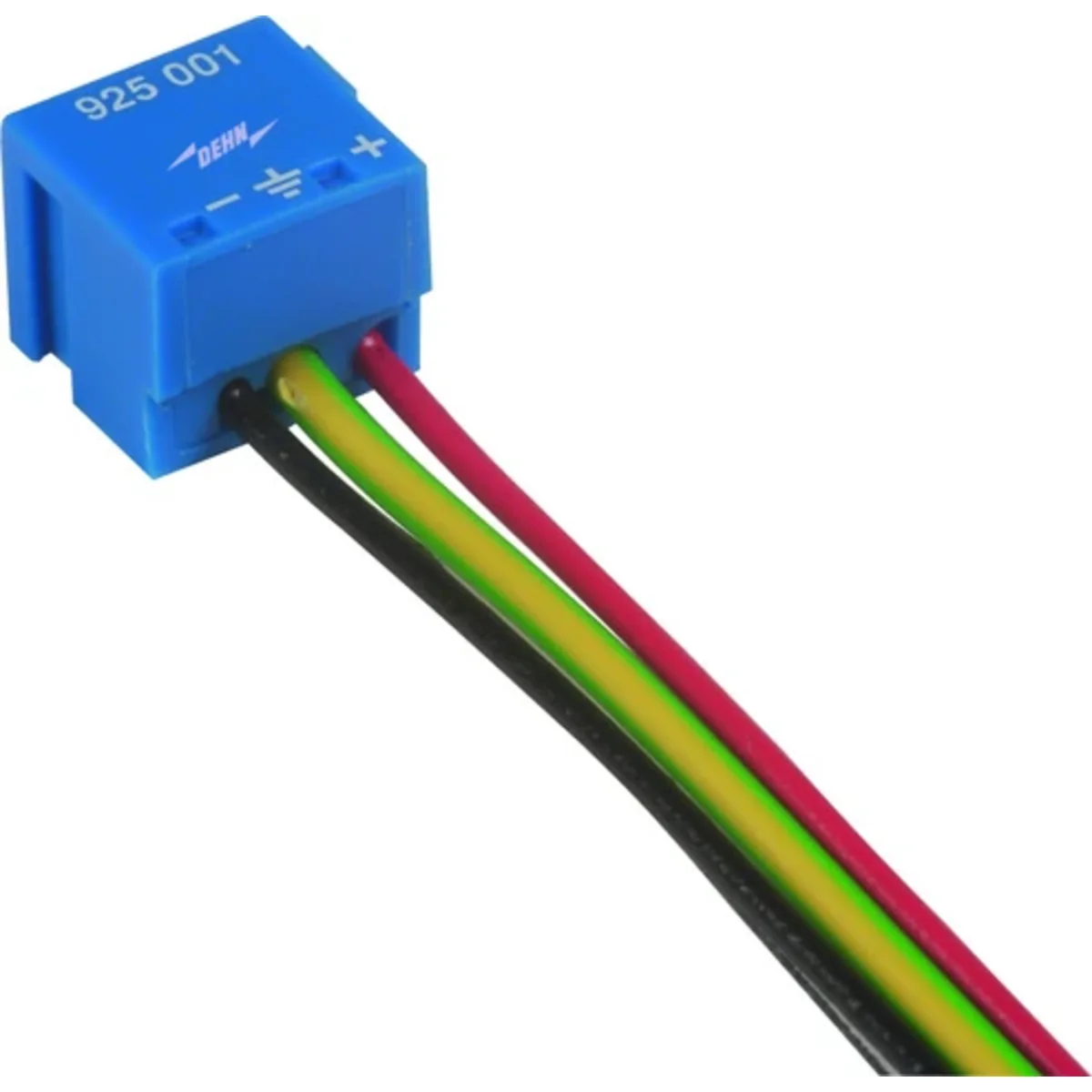

BUStector surge arrester for EIB/KNX BT 24 systems 925001

Lokaler Index:
AOC089DEHN
Katalognummer:
925001
EAN-Code:
4013364047365
Hersteller: DEHN
Preis:
430,12 zł
gross / stk.
(inklusive MwSt 23%)
2 Wochen
Auf Bestellung
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken

Technische Daten

Weitere technische Daten

  • Nominal voltage DC
    24.0 ... 24.0 V
  • Nominal discharge surge current (8/20)
    5 kA
  • Voltage protection level core/core
    750 V
  • Limiting frequency
    70 MHz
  • Connection 1
    Connection cable
  • With remote signalling contact
    No
  • Signal disconnection
    No
  • Earthing via
    Separate conductor
  • Degree of protection (IP)
    IP20
  • Max. continuous voltage DC
    45 V
  • Nominal load current
    6 A
  • Voltage protection level core/earth
    500 V
  • Mounting method
    Duct installation
  • Pro-active thermo-control
    No
  • Explosion-tested version
    No
  • Number of conductors (without earthing)
    2
  • Assembly width
    12 mm

Hersteller-Details

  • Hersteller
    DEHN SE
  • Adresse
    92318 Neumarkt Hans-Dehn-Str 1 Niemcy
  • E-Mail

Großpackungen

Eine Art Paket Paczka
Menge 1 stk.
Gewicht (kg) 0,010
Volumen (m3) 0,000
Breite (m) 0,012
Länge (m) 0,200
Tiefe (m) 0,011
