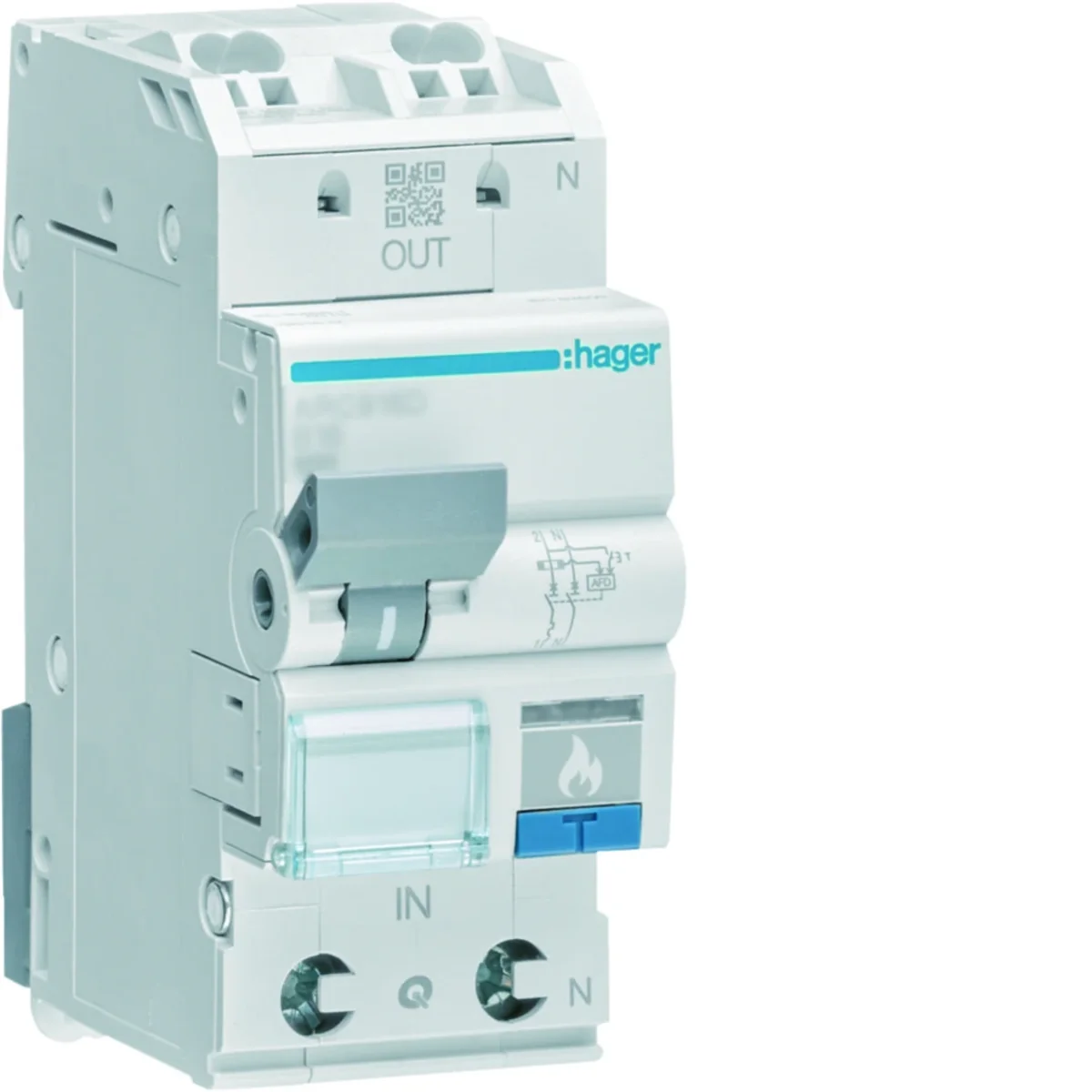

AFDD spark detector with overcurrent element 1P+N 6kA B 16A ARC916D
local index:
AOC060HAGE
Catalog No:
ARC916D
EAN code:
3250611012665
Manufacturer:
HAGER
Price:
163,47 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
AFDD spark detector with overcurrent element 1P+N 6kA B 16A
Technical data
Other technical data
-
Release characteristicB
-
Rated current16 A
-
Rated short-circuit breaking capacity according to EN 608986 kA
-
Current limiting class3
-
Concurrently switching neutral conductorYes
-
Pollution degree2
-
Built-in depth70 mm
-
Degree of protection (IP)IP20
-
Number of poles2
-
Rated voltage230 V
-
Voltage typeAC
-
Frequency50 ... 50 Hz
-
Over voltage category3
-
Width in number of modular spacings2
-
Additional equipment attached at deliveryFire protection switch
-
Construction size according to DIN 438801
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 60 pcs. | 1440 pcs. |
| Weight (kg) | 0,200 | 0,215 | 13,280 | 341,720 |
| Width (m) | 0,035 | 0,080 | 0,320 | 0,800 |
| Length (m) | 0,096 | 0,040 | 0,215 | 1,030 |
| Depth (m) | 0,075 | 0,100 | 0,360 | 1,200 |
