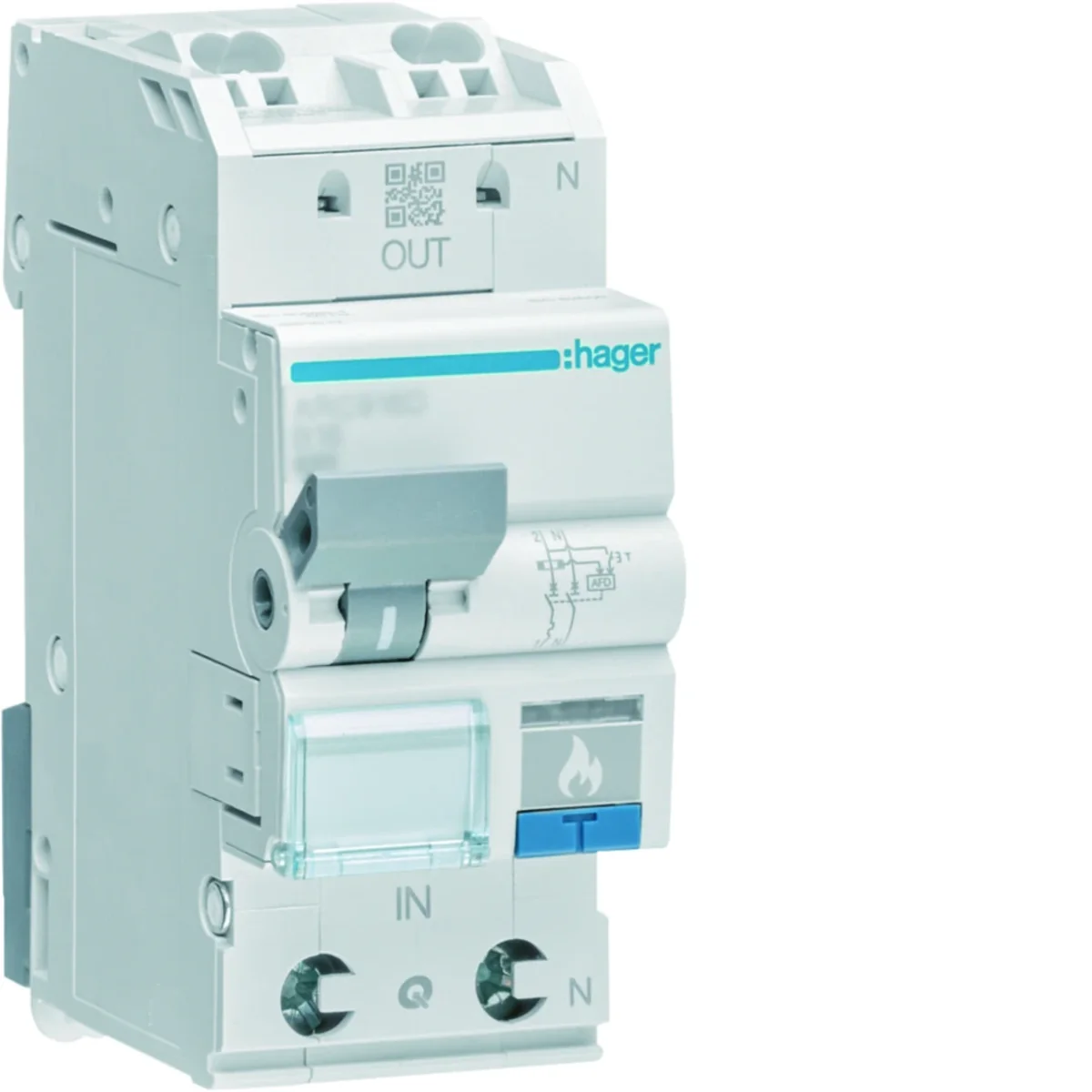

AFDD spark detector with overcurrent element 1P+N 6kA B 13A ARC913D

local index:
AOC059HAGE
Catalog No:
ARC913D
EAN code:
3250611010111
Price:
165,31 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

AFDD spark detector with overcurrent element 1P+N 6kA B 13A

Technical data

Other technical data

  • Release characteristic
    B
  • Rated current
    13 A
  • Rated short-circuit breaking capacity according to EN 60898
    6 kA
  • Current limiting class
    3
  • Concurrently switching neutral conductor
    Yes
  • Pollution degree
    2
  • Built-in depth
    70 mm
  • Degree of protection (IP)
    IP20
  • Number of poles
    2
  • Rated voltage
    230 V
  • Voltage type
    AC
  • Frequency
    50 ... 50 Hz
  • Over voltage category
    3
  • Width in number of modular spacings
    2
  • Additional equipment attached at delivery
    Fire protection switch
  • Construction size according to DIN 43880
    1

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 60 pcs. 1440 pcs.
Weight (kg) 0,200 0,217 13,360 343,640
Width (m) 0,035 0,080 0,314 0,800
Length (m) 0,096 0,040 0,210 0,990
Depth (m) 0,075 0,098 0,360 1,200
