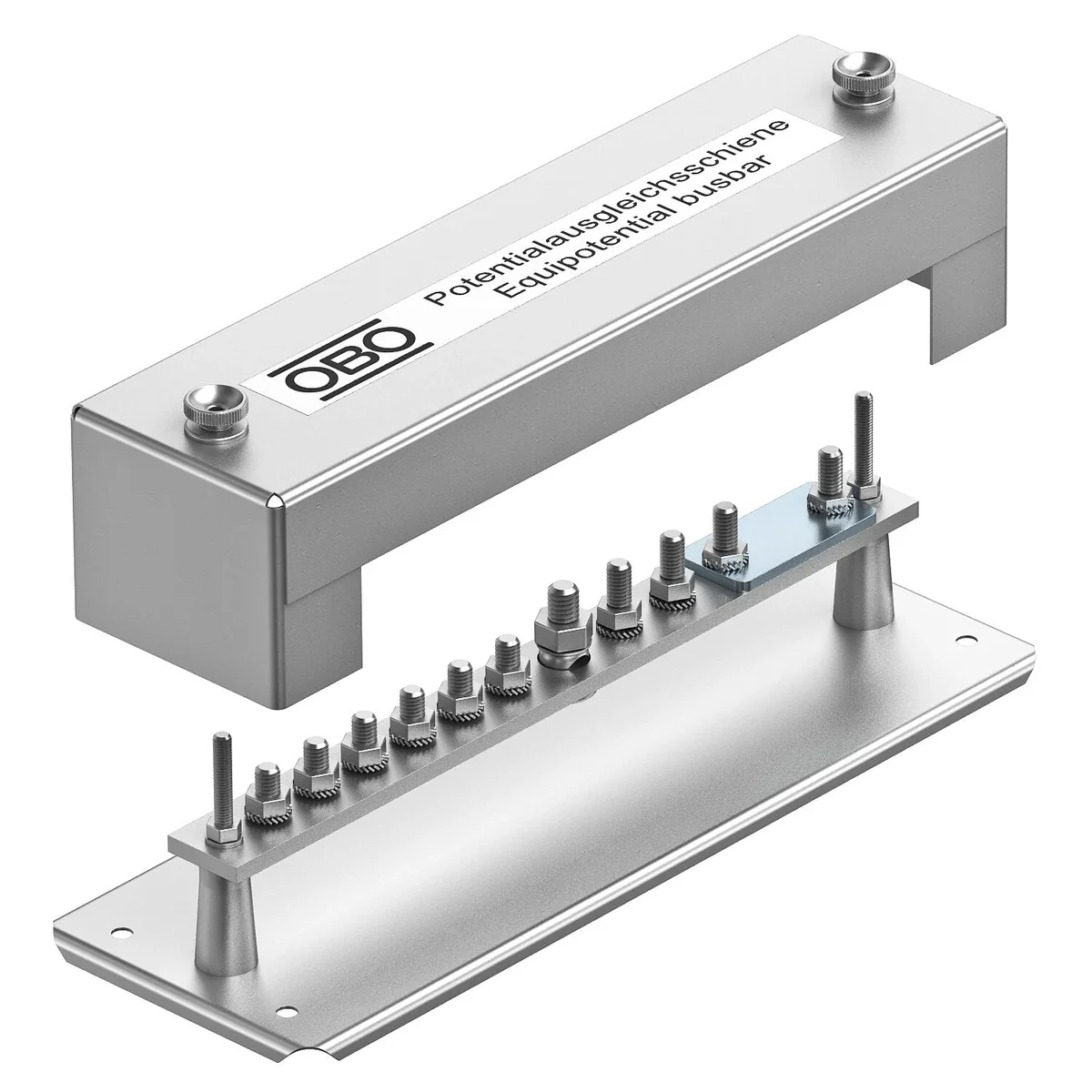

1810 Potential equalization rail 5015057

local index:
AON015OBOB
Catalog number:
5015057
EAN code:
4012195378136
Manufacturer: OBO BETTERMANN
Price:
317,39 zł
gross / pcs.
(including VAT 23%)
2 weeks
On request
Quantity pcs.
(multiplicity:
4
)
Add to inquiry
Add to clipboard
Print

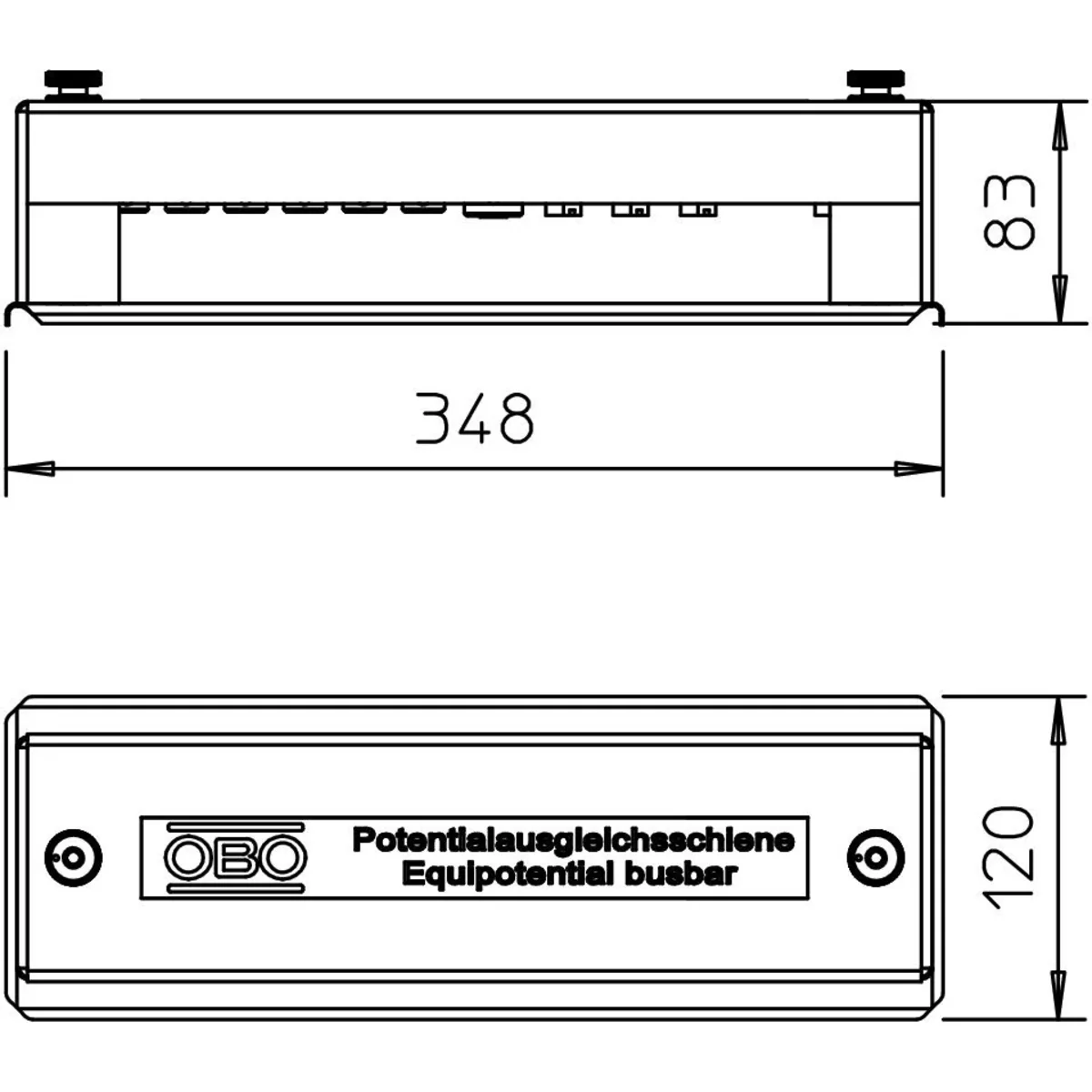

Technical data

Other technical data

  • Construction type
    Surface mounting fix
  • Insulator
    No
  • Width
    120 mm
  • Number of connections round conductor total
    1
  • Number of connections round conductor 10 mm
    0
  • Number of connections flat conductor 30 mm
    0
  • Number of connections conductor to 6 mm² fixed
    0
  • Number of connections conductor to 25 mm² fixed
    0
  • Material of contact rail
    Brass
  • Material of clamp
    Steel
  • Model
    With covering cap
  • Height
    83 mm
  • Length
    348 mm
  • Number of connections round conductor 8 mm
    0
  • Number of connections round conductor 8-10 mm
    1
  • Number of connections flat conductor 40 mm
    1
  • Number of connections conductor to 16 mm² fixed
    6
  • Number of connections conductor to 95 mm² fixed
    0
  • Surface of the contact rail
    Nickel-plated
  • Surface of the clamp
    Galvanic/electrolytic zinc plated

Manufacturer details

  • Manufacturer
    OBO Bettermann Holding GmbH & Co. KG
  • Address
    58710 Menden Hüingser Ring 52 Niemcy
  • E-mail

Bulk packaging

A kind of package Sztuka Karton Paleta
Quantity 1 pcs. 4 pcs. 144 pcs.
Weight (kg) 1,701 7,227 282,672
Volume (m3) 0,004 0,016 0,912
Width (m) 0,120 0,223 0,800
Length (m) 0,350 0,390 1,200
Depth (m) 0,095 0,180 0,950
