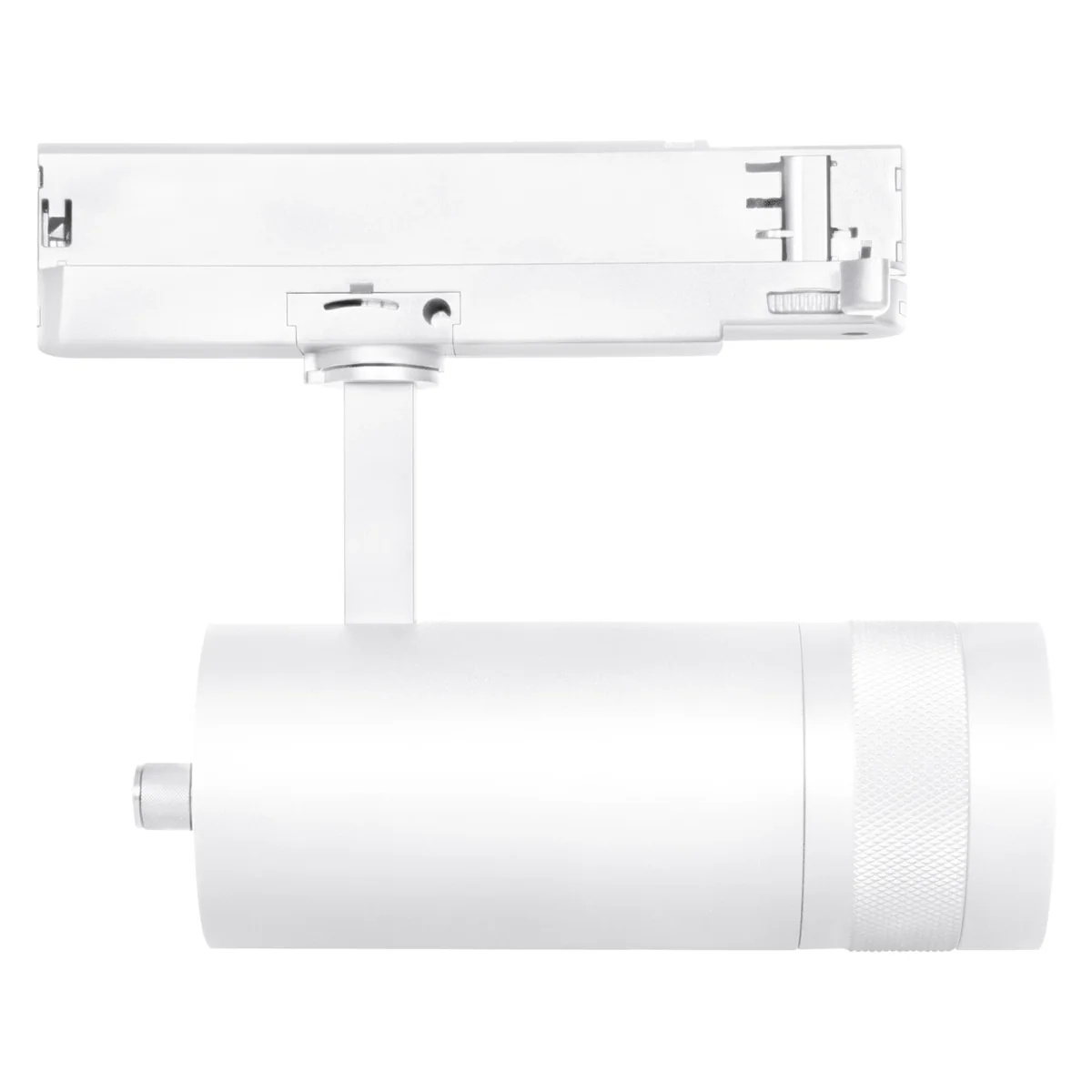

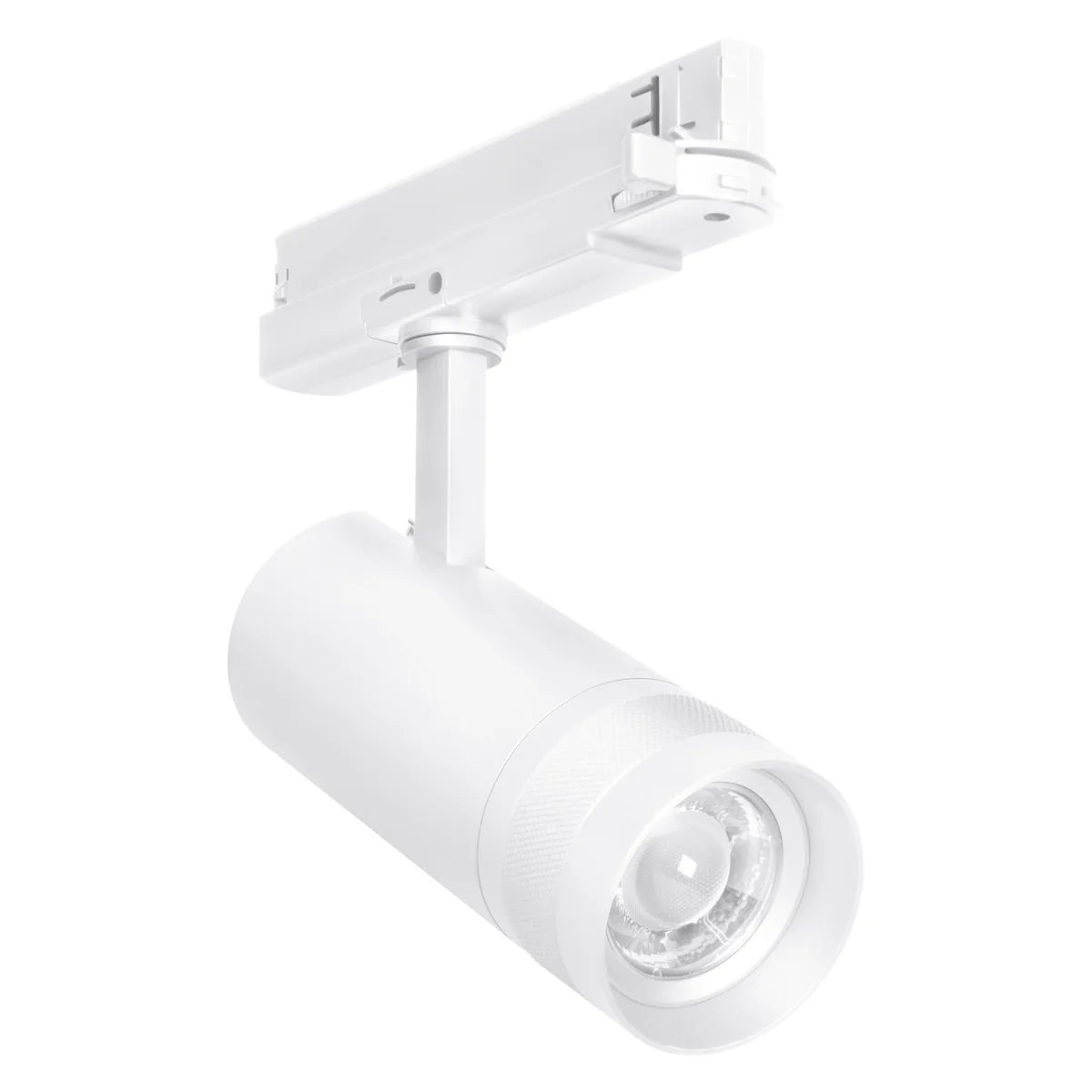

TRACKLIGHT SPOT ZOOM DIM 30W 940 WT luminaire 4099854616129

local index:
OWP004LEDV
Catalog number:
4099854616129
EAN code:
4099854616129
TRACKLIGHT SPOT ZOOM DIM 30W 940 WT luminaire
TRACKLIGHT SPOT ZOOM DIM 30W 940 WT luminaire
TRACKLIGHT SPOT ZOOM DIM 30W 940 WT luminaire
TRACKLIGHT SPOT ZOOM DIM 30W 940 WT luminaire
TRACKLIGHT SPOT ZOOM DIM 30W 940 WT luminaire
TRACKLIGHT SPOT ZOOM DIM 30W 940 WT luminaire
TRACKLIGHT SPOT ZOOM DIM 30W 940 WT luminaire
TRACKLIGHT SPOT ZOOM DIM 30W 940 WT luminaire
TRACKLIGHT SPOT ZOOM DIM 30W 940 WT luminaire
TRACKLIGHT SPOT ZOOM DIM 30W 940 WT luminaire
TRACKLIGHT SPOT ZOOM DIM 30W 940 WT luminaire
TRACKLIGHT SPOT ZOOM DIM 30W 940 WT luminaire
TRACKLIGHT SPOT ZOOM DIM 30W 940 WT luminaire
TRACKLIGHT SPOT ZOOM DIM 30W 940 WT luminaire
TRACKLIGHT SPOT ZOOM DIM 30W 940 WT luminaire
TRACKLIGHT SPOT ZOOM DIM 30W 940 WT luminaire
TRACKLIGHT SPOT ZOOM DIM 30W 940 WT luminaire
TRACKLIGHT SPOT ZOOM DIM 30W 940 WT luminaire
TRACKLIGHT SPOT ZOOM DIM 30W 940 WT luminaire
TRACKLIGHT SPOT ZOOM DIM 30W 940 WT luminaire
TRACKLIGHT SPOT ZOOM DIM 30W 940 WT luminaire
TRACKLIGHT SPOT ZOOM DIM 30W 940 WT luminaire
TRACKLIGHT SPOT ZOOM DIM 30W 940 WT luminaire
TRACKLIGHT SPOT ZOOM DIM 30W 940 WT luminaire
TRACKLIGHT SPOT ZOOM DIM 30W 940 WT luminaire
TRACKLIGHT SPOT ZOOM DIM 30W 940 WT luminaire
TRACKLIGHT SPOT ZOOM DIM 30W 940 WT luminaire
TRACKLIGHT SPOT ZOOM DIM 30W 940 WT luminaire
TRACKLIGHT SPOT ZOOM DIM 30W 940 WT luminaire
TRACKLIGHT SPOT ZOOM DIM 30W 940 WT luminaire
TRACKLIGHT SPOT ZOOM DIM 30W 940 WT luminaire
TRACKLIGHT SPOT ZOOM DIM 30W 940 WT luminaire
TRACKLIGHT SPOT ZOOM DIM 30W 940 WT luminaire
TRACKLIGHT SPOT ZOOM DIM 30W 940 WT luminaire

Click on the photo to enlarge

Manufacturer: LEDVANCE
Price:
415,74 zł
gross / pcs.
(including VAT 23%)
2 weeks
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Technical data Manufacturer details Bulk packaging Files to download

Technical data

Other technical data

  • Suitable for surface mounting
    Yes
  • Suitable for wall mounting
    Yes
  • Suitable for ceiling mounting
    No
  • Suitable for pedestal/floor mounting
    No
  • Suitable for clamp-mounting
    No

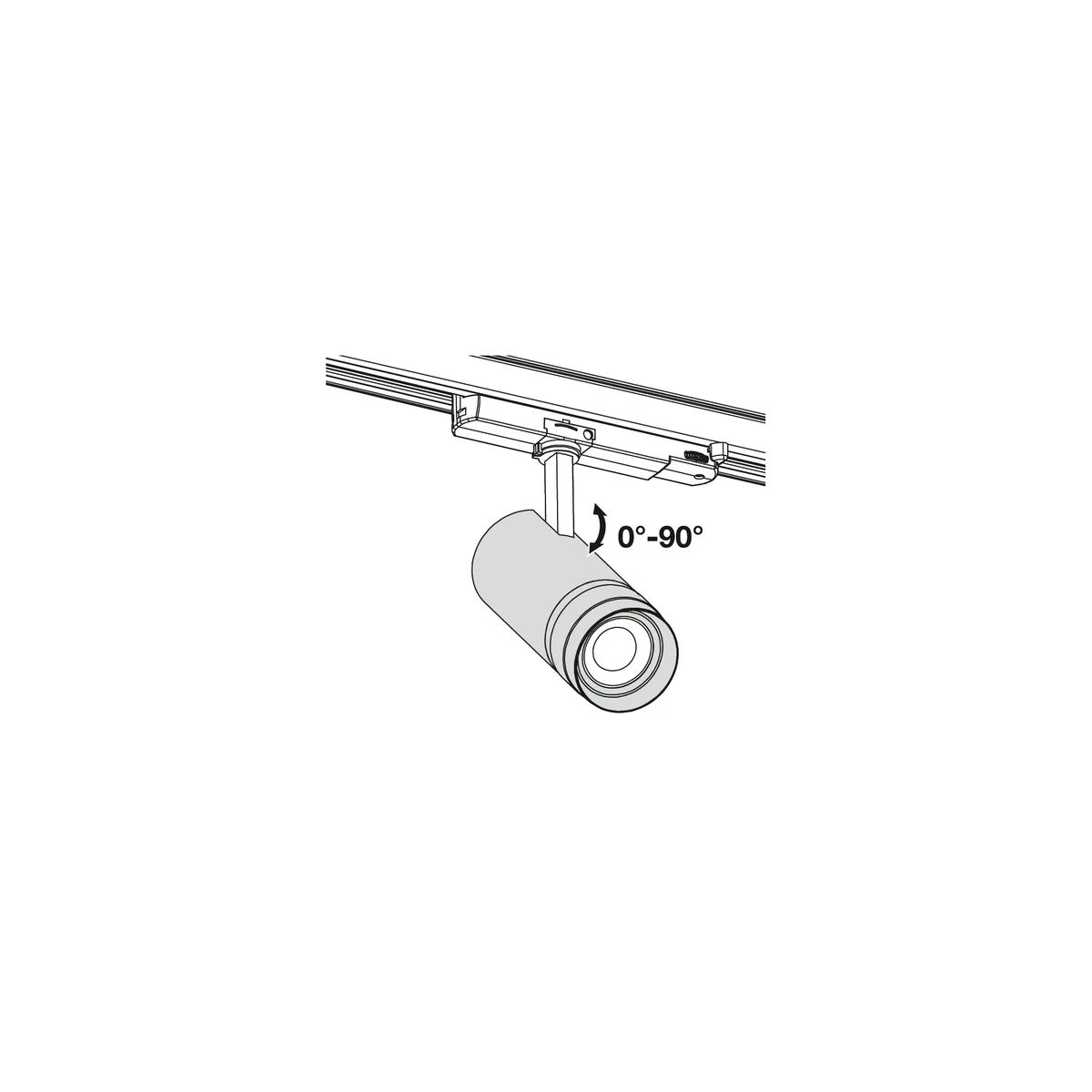

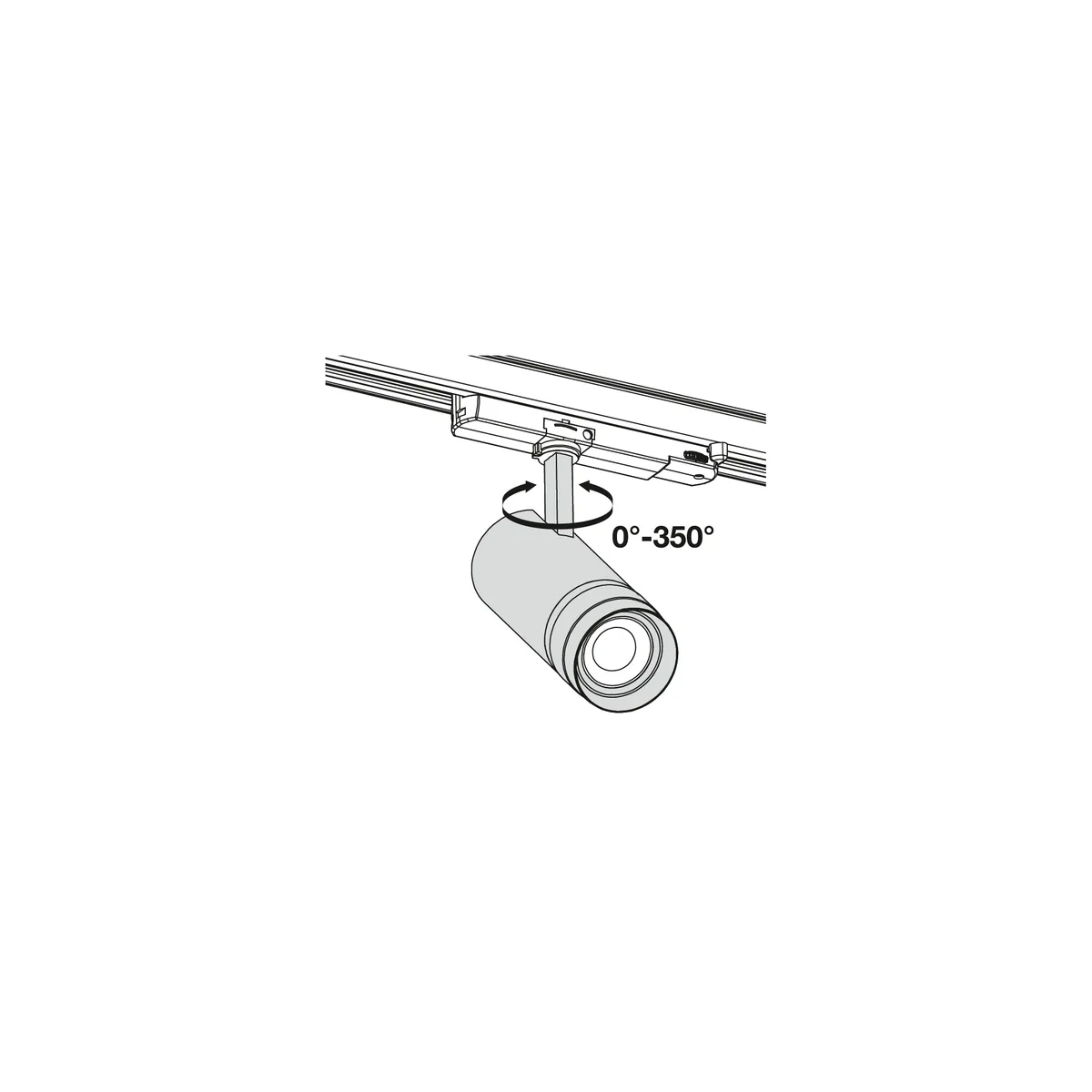

  • Adjustability
    Rotating and swivelling
  • With presence indicator
    No
  • Lamp type
    LED not exchangeable
  • Suitable for number of light sources
    0
  • Surface protection
    Powder coating
  • Surface brushed
    No
  • Nominal voltage
    220 ... 240 V
  • Type of control gear
    LED operating device current-controlled

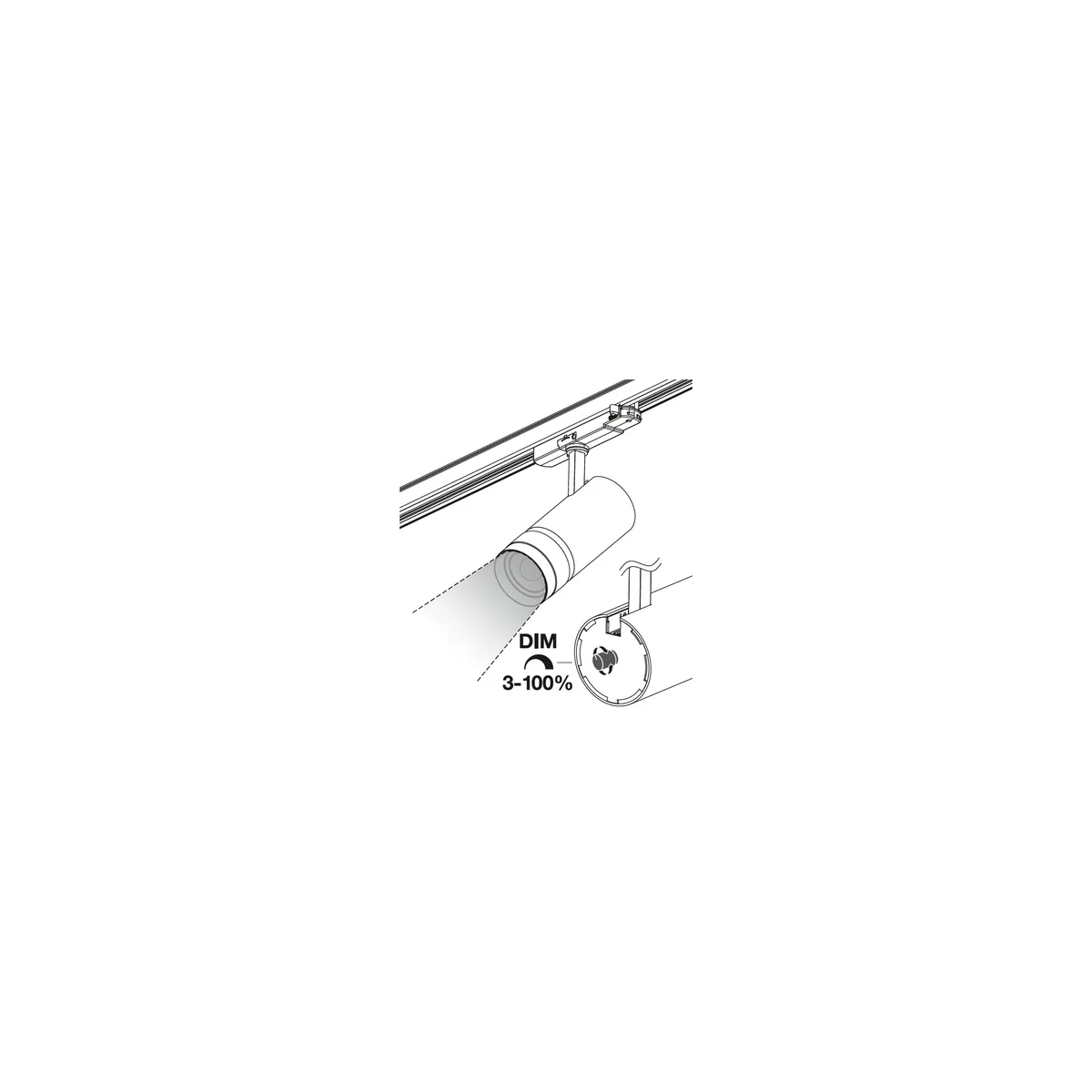

  • Dimmable
    Yes
  • Dimming 0-10 V
    No
  • Dimming DALI-2
    No
  • Dimming DMX
    No
  • Dimming potentiometer (integrated)
    No
  • Dimming manufacturer's proprietary system
    No
  • Dimming phase cut-off
    No
  • Dimming programmable
    No
  • Dimming Sine Wave Reduction
    No
  • Dimming Zigbee
    No
  • Reflector
    High-gloss

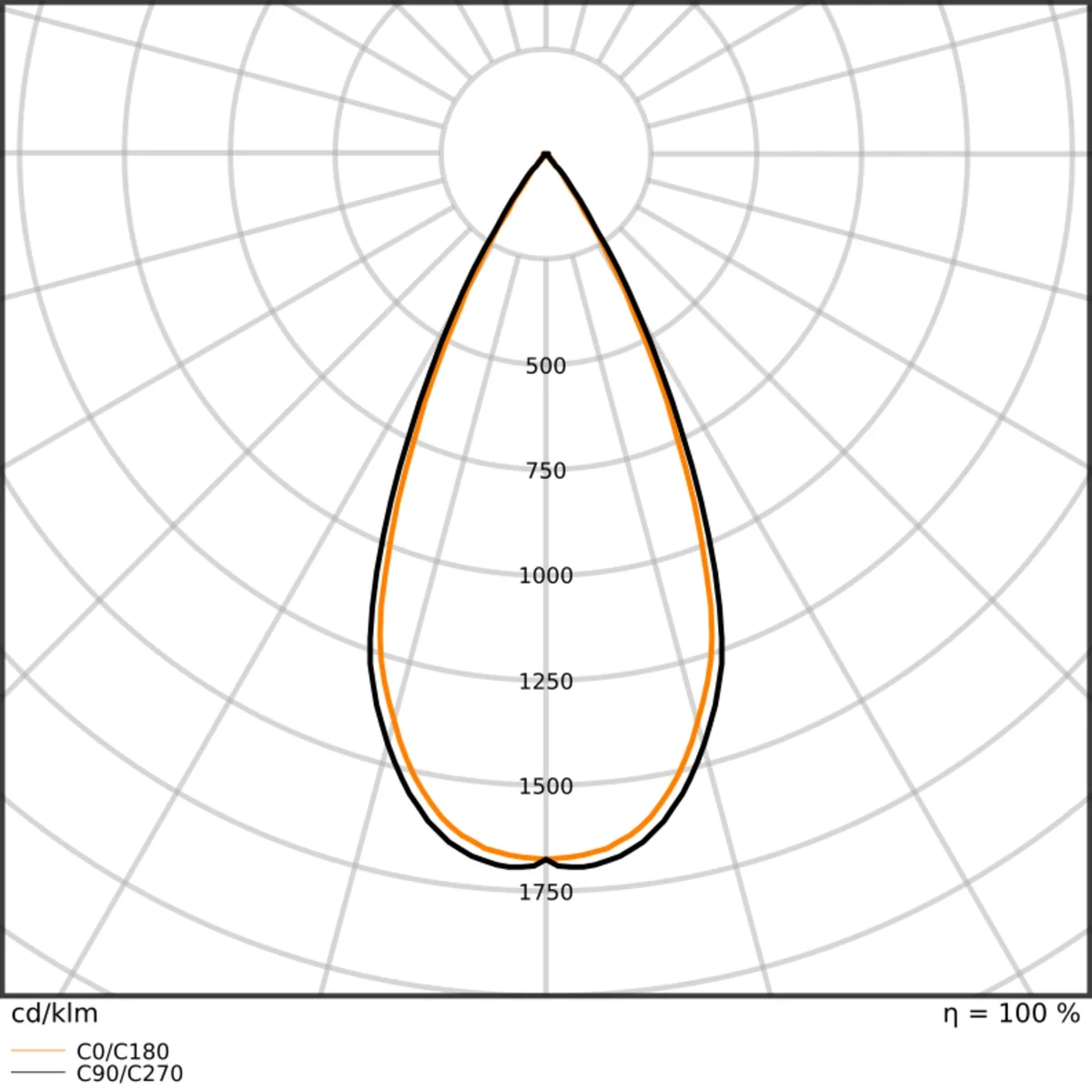

  • Light sharing
    Symmetric

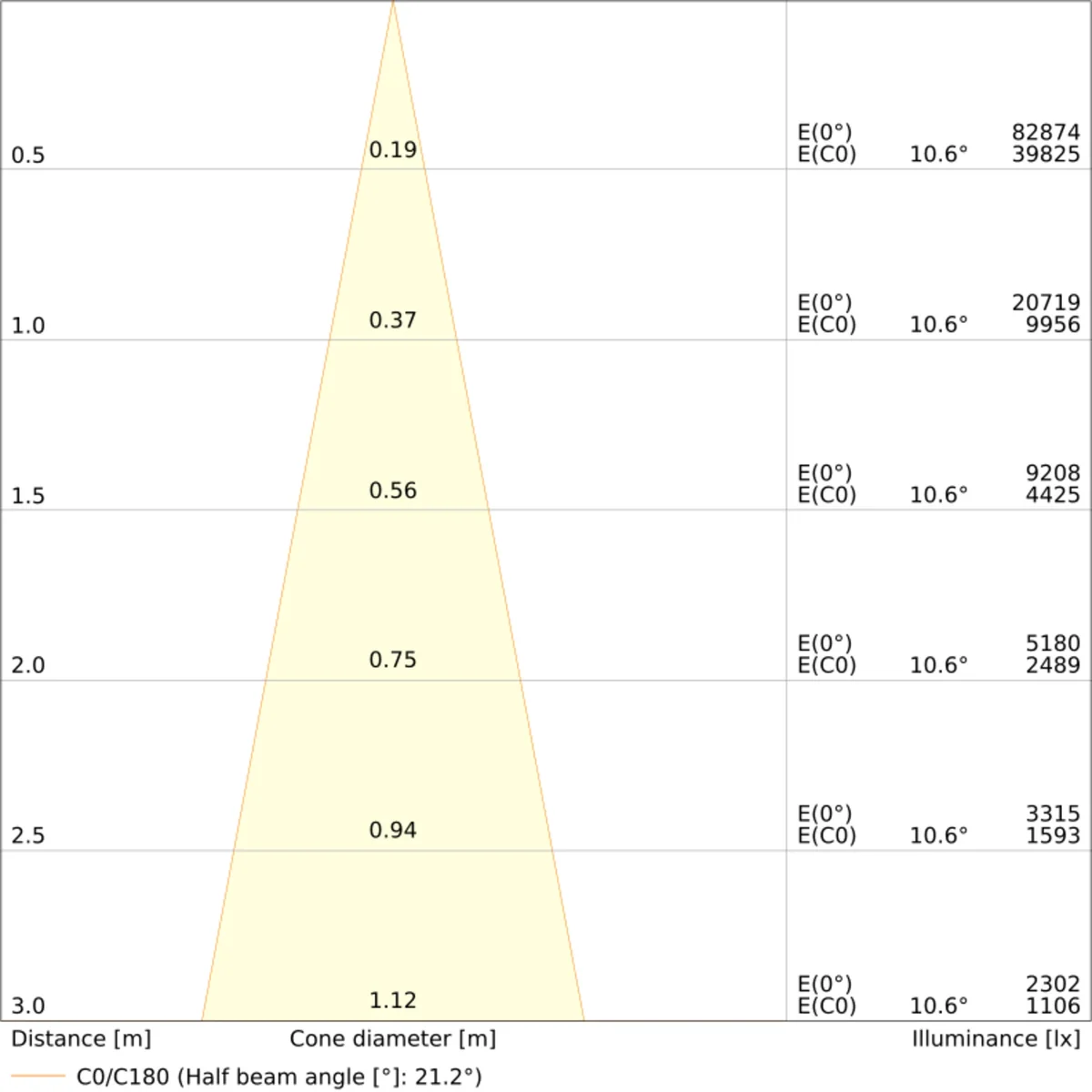

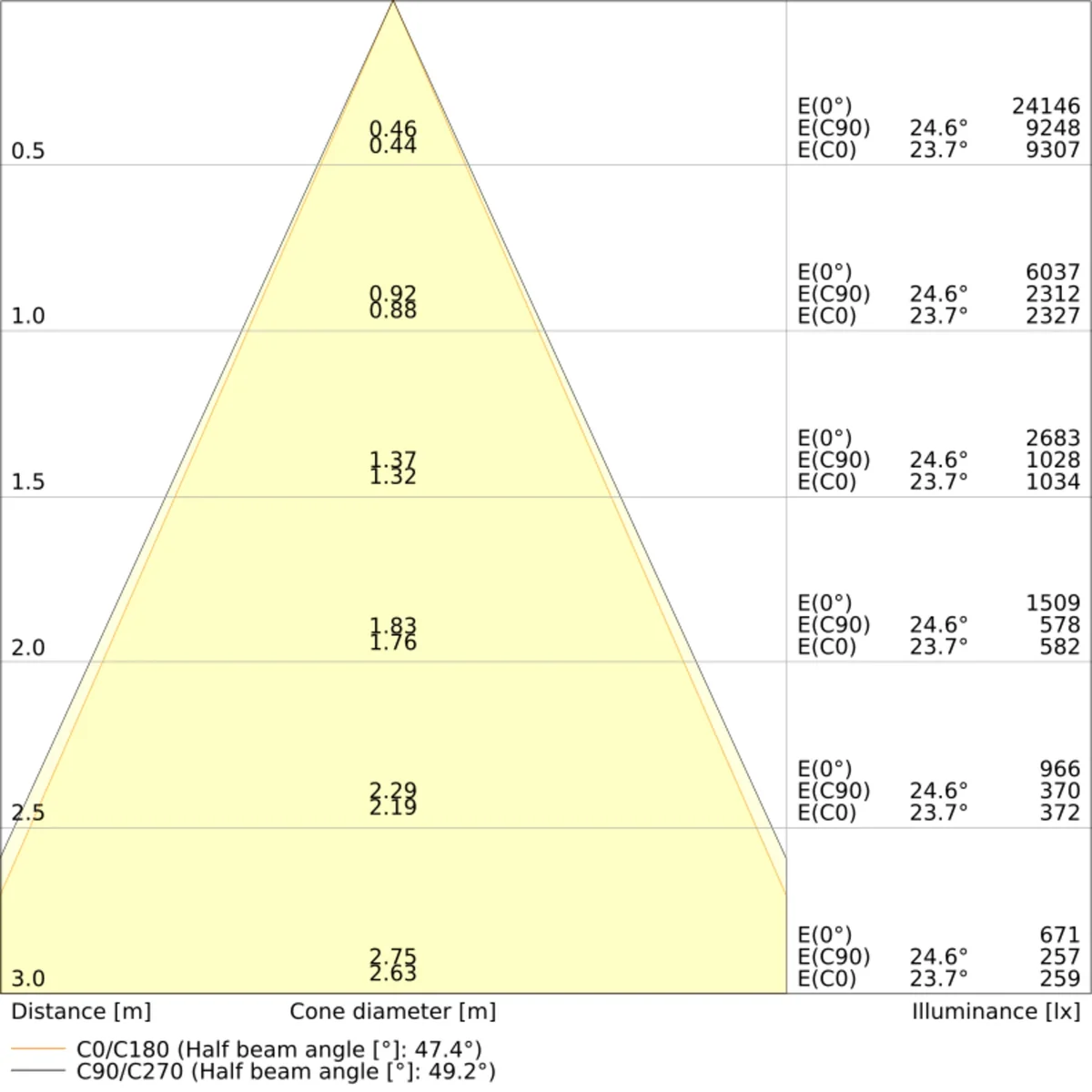

  • Beam angle
    Extreme wide beam >80°
  • Energy efficiency class of the light source according to EU regulation 2019/2015
    F
  • Rated life time L70/B50 at 25 °C
    50000 h
  • Degree of protection (IP), rear side
    IP20
  • Impact strength
    IK03
  • Rated ambient temperature according to IEC 62722-2-1
    -20 ... 40 °C
  • System zasilania awaryjnego
    None
  • Colour of light
    White
  • Colour of light adjustable
    No
  • Znamionowy strumień świetlny zgodnie z normą IEC 62722-2-1
    3000 ... 3600 lm
  • Skuteczność świetlna oprawy
    120 ... 100 lm/W
  • Power factor
    0.9
  • Length
    189 mm
  • Height/depth
    260 mm
  • Number of poles
    2
  • Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
    No
  • Max. number of luminaires per miniature circuit breaker C16 (MCB)
    94
  • Photobiological safety according to EN 62471
    RG1
  • Covering of the luminaire with thermally insulating material possible
    No
  • Colour consistency (McAdam ellipse)
    SDCM3
  • Operation by Bluetooth
    No
  • Compatible with Casambi
    No
  • Suitable for built-in mounting
    No
  • Suitable for suspended mounting
    Yes
  • Suitable for traverse mounting
    No
  • Suitable for light-track mounting
    No
  • Suitable for low voltage cable system
    No
  • With movement sensor
    No
  • With light sensor
    No
  • With light source
    Yes
  • Housing material
    Aluminium
  • Housing colour
    White
  • Voltage type
    AC
  • Nominal current
    136 ... 136 mA
  • With control gear
    Yes
  • Exchangeable control gear
    No
  • Dimming 1-10 V
    Yes
  • Dimming DALI
    No
  • Dimming DSI
    No
  • Dimming LineSwitch
    No
  • Dimming mains voltage modulation
    No
  • Dimming phase cut-on
    No
  • Dimming RF
    No
  • Dimming Touch and Dim
    No
  • Dimming with push-button
    Yes
  • Light distributor
    Focal lens
  • Reflector colour
    Silver
  • Light outlet
    Direct
  • Współczynnik harmonicznych (THD)
    15 %
  • Constant light output (CLO)
    Yes
  • Degree of protection (NEMA)
    1
  • Protection class
    I
  • Max. system power
    30 W
  • System monitorowania funkcji awaryjnych
    None
  • Colour temperature
    4000 ... 4000 K
  • Colour rendering index CRI
    90-100
  • Luminous flux adjustable
    No

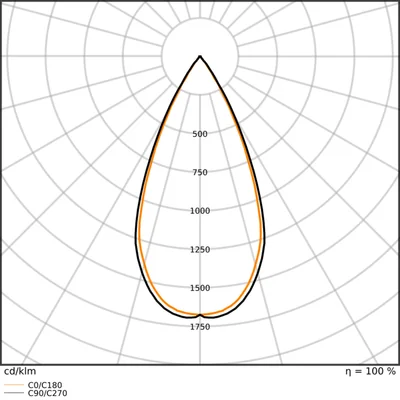

  • Luminous intensity
    4500 ... 4500 cd

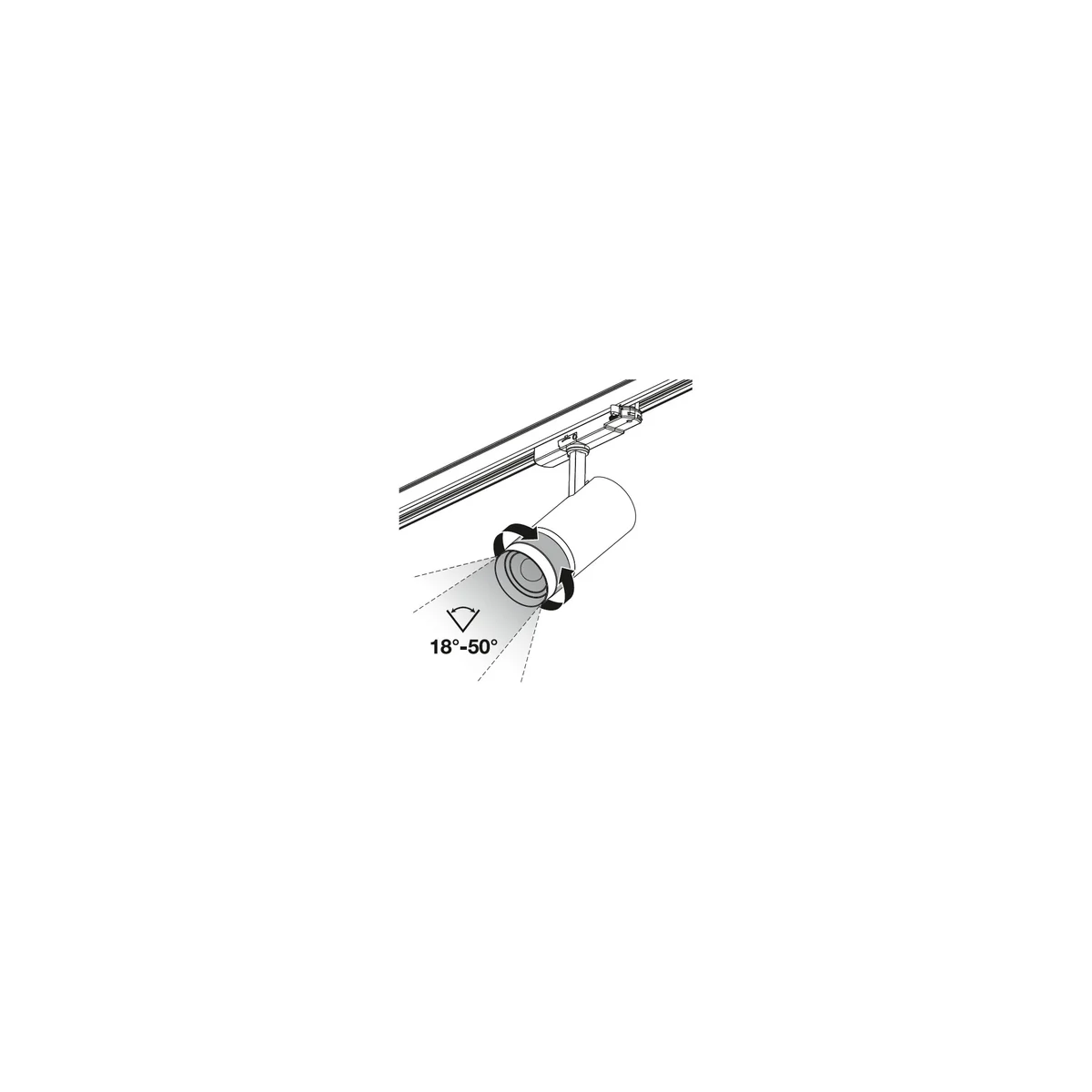

  • Beam angle adjustable
    Continuously variable
  • Width
    80 mm
  • Outer diameter
    80 mm

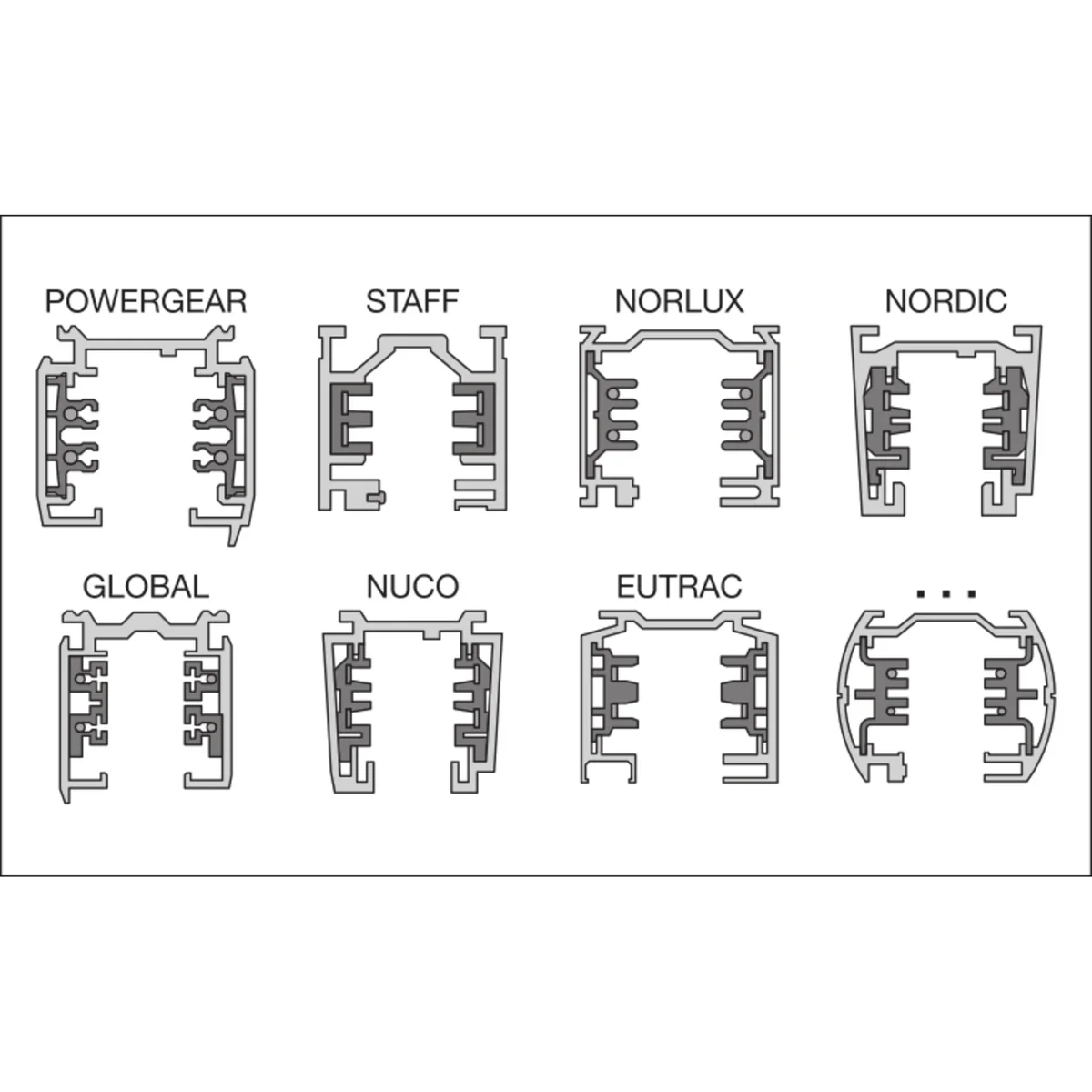

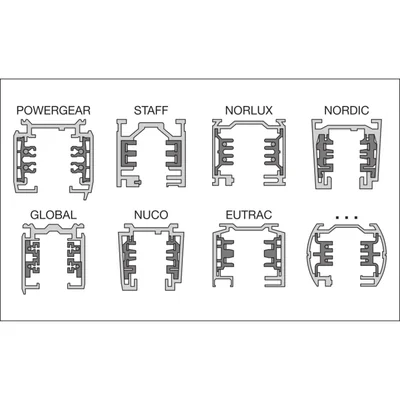

  • Connection type
    Busbar adapter
  • Max. number of luminaires per miniature circuit breaker B16 (MCB)
    94
  • Filament test according to IEC 60695-2-11
    650 °C - 30 s
  • Suitable for workplace according to EN 12464-1
    Yes
  • IFTTT support available
    No
  • Compatible with Apple HomeKit
    No
  • Compatible with Google Assistant
    No
  • Compatible with Amazon Alexa
    No

Manufacturer details

  • Manufacturer
    LEDVANCE GmbH
  • Address
    85748 Garching Parkring 29-33 Niemcy
  • E-mail
    InfoPL@ledvance.com

Bulk packaging

A kind of package Skrzynia Karton
Quantity 1 pcs. 4 pcs.
Weight (kg) 1,021 4,620
Volume (m3) 0,005 0,027
Width (m) 0,250 0,270
Length (m) 0,210 0,440
Depth (m) 0,100 0,230
