el12 Lighting Light fixtures Indoor luminaires For busbars

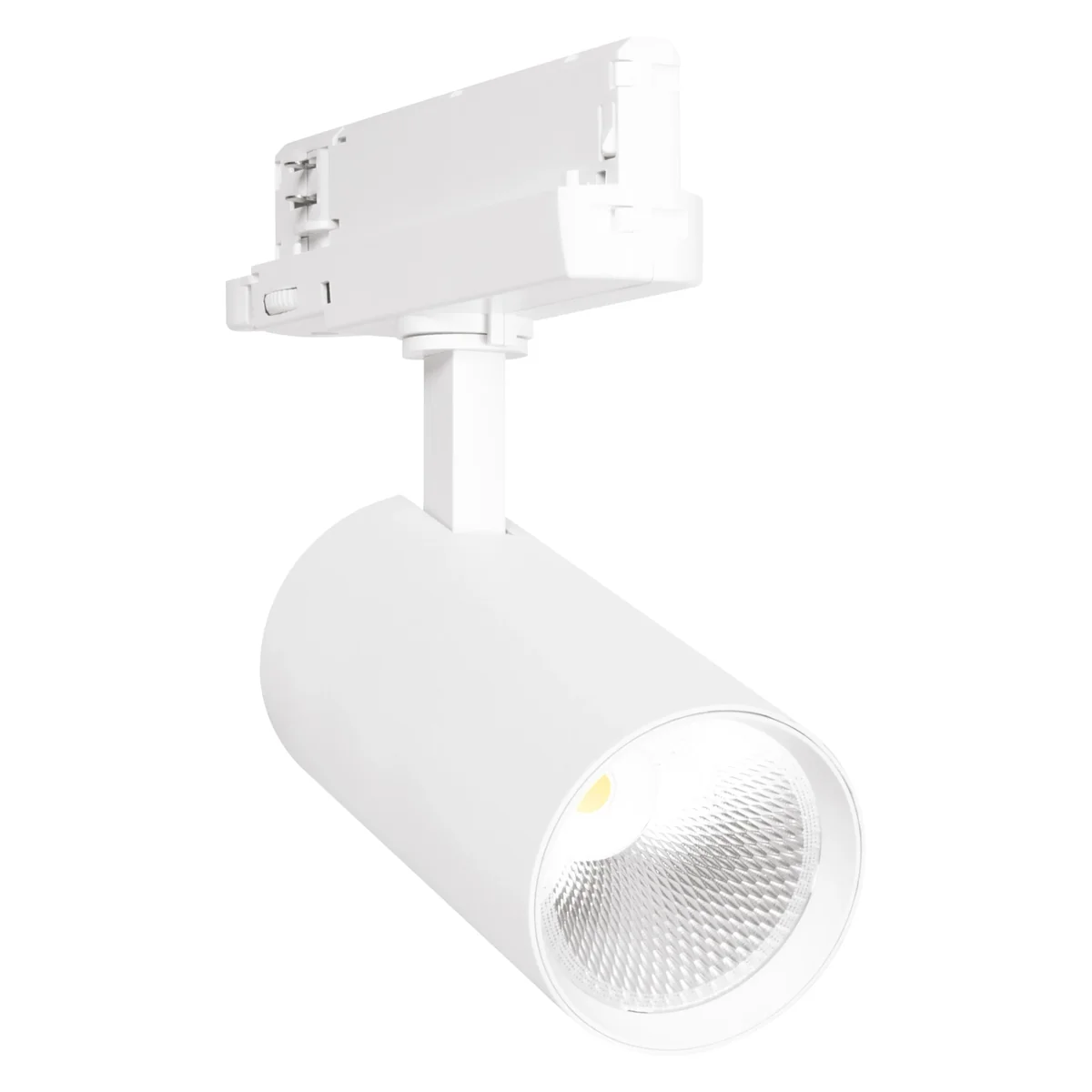

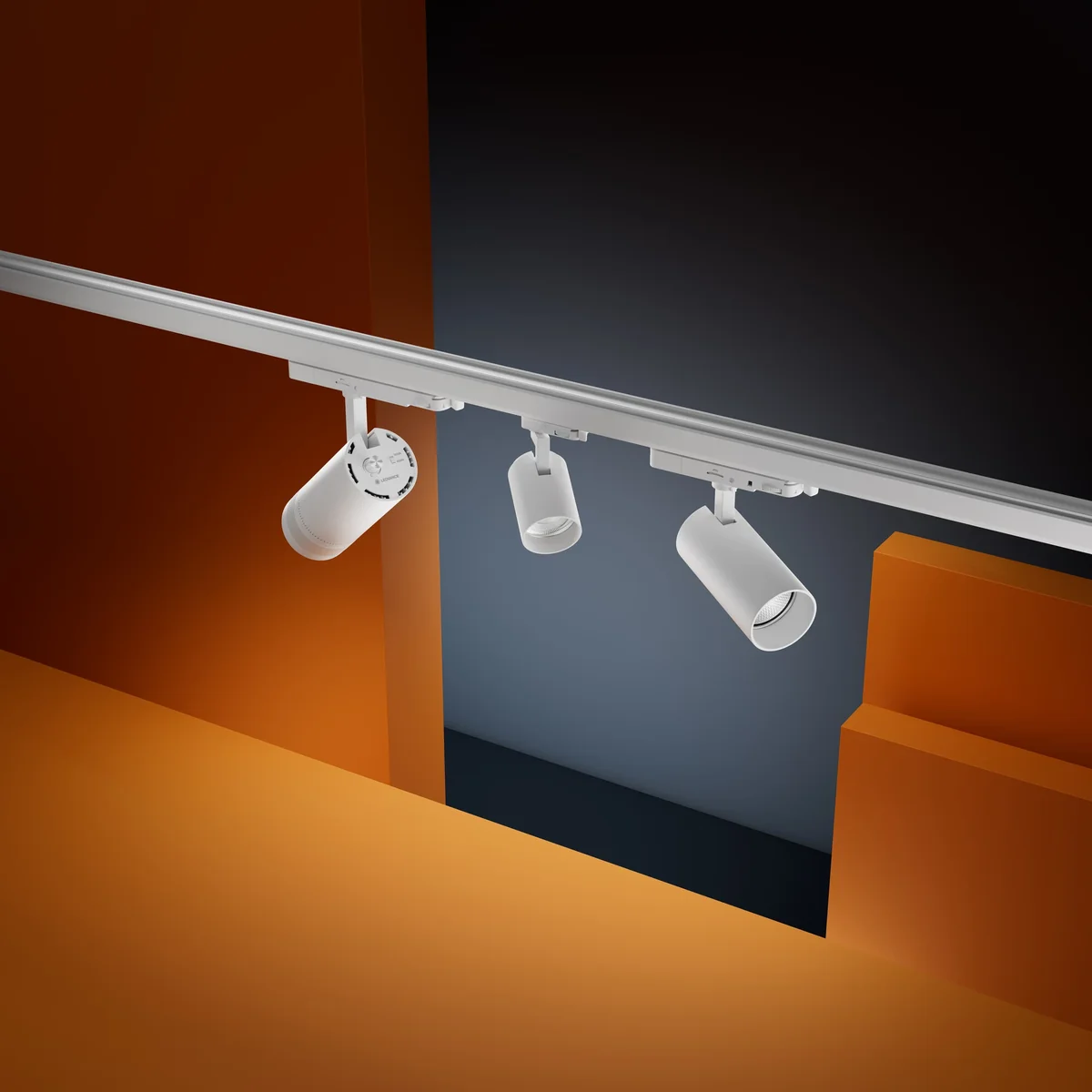

TRACKLIGHT SPOT XR DALI 30W 940 24DEG WT 4099854616723

local index:
OWP005LEDV
Catalog number:
4099854616723
EAN code:
4099854616723
Manufacturer: LEDVANCE
Price:
463,71 zł
gross / pcs.
(including VAT 23%)
2 weeks
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Technical data Manufacturer details Bulk packaging Files to download

Technical data

Other technical data

  • Suitable for surface mounting
    Yes
  • Suitable for wall mounting
    Yes
  • Suitable for ceiling mounting
    No
  • Suitable for pedestal/floor mounting
    No
  • Suitable for clamp-mounting
    No

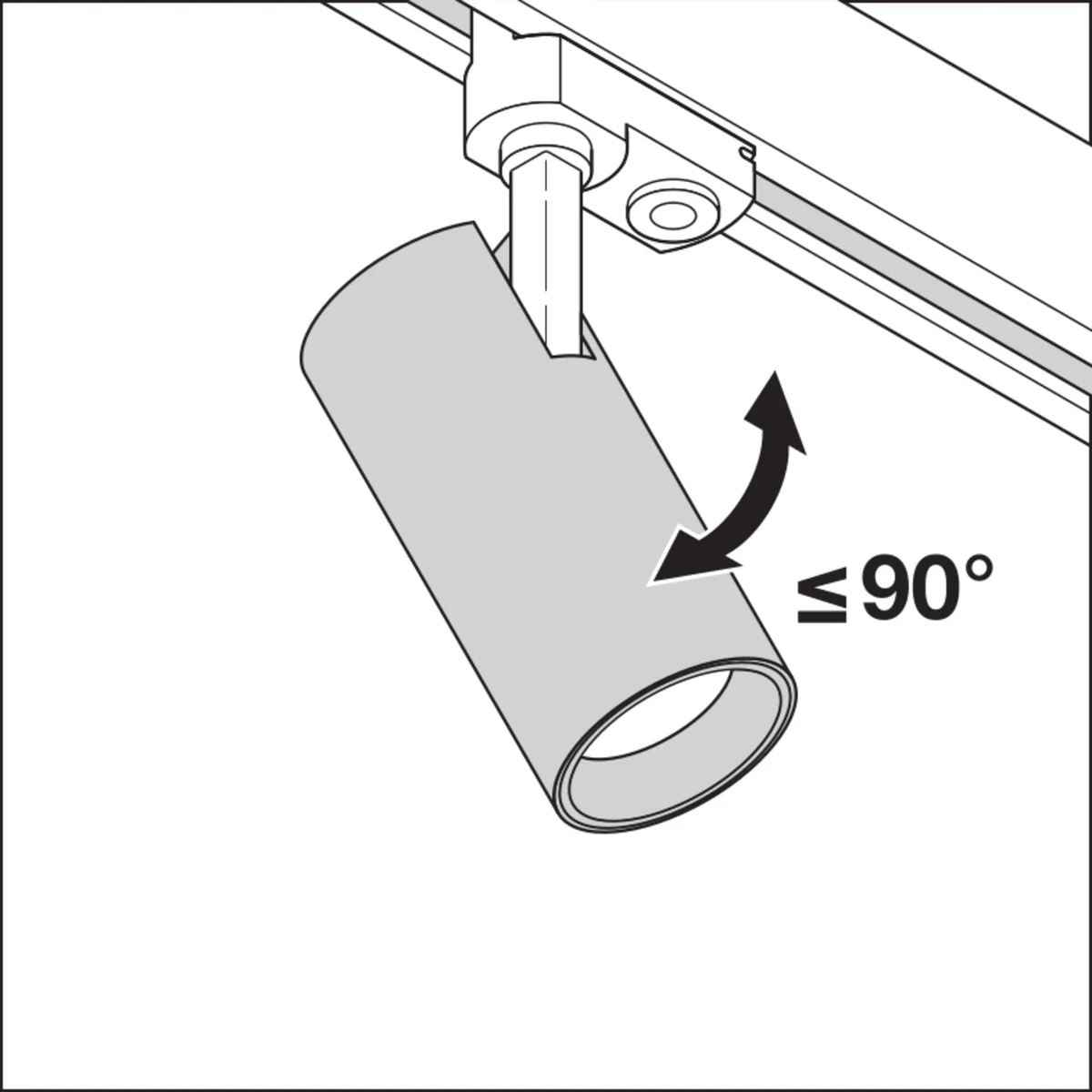

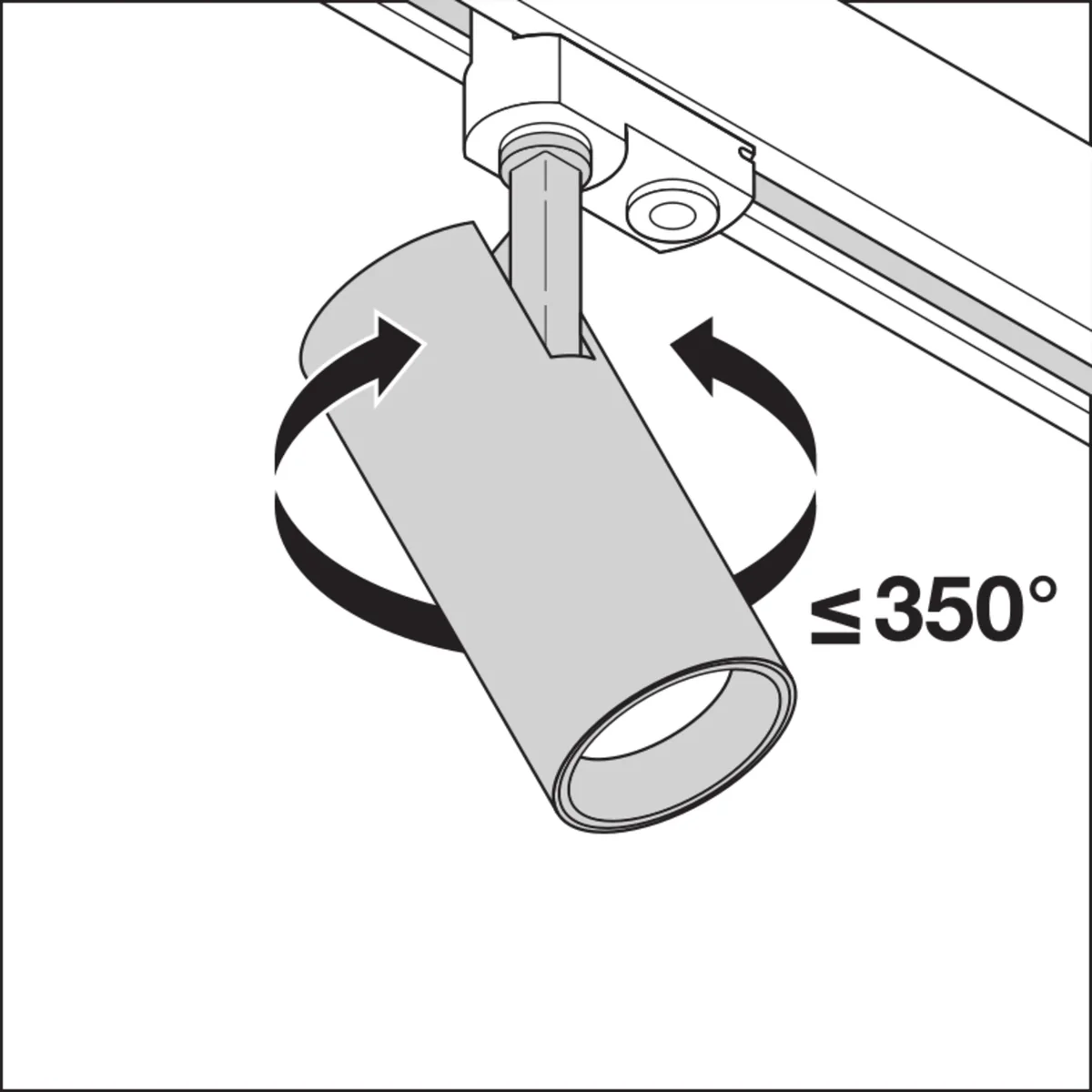

  • Adjustability
    Rotating and swivelling
  • With presence indicator
    No
  • Lamp type
    LED not exchangeable
  • Suitable for number of light sources
    0
  • Surface protection
    Powder coating
  • Surface brushed
    No
  • Nominal voltage
    220 ... 240 V
  • Type of control gear
    LED operating device current-controlled
  • Dimmable
    Yes
  • Dimming 0-10 V
    No
  • Dimming DALI-2
    No
  • Dimming DMX
    No
  • Dimming potentiometer (integrated)
    No
  • Dimming manufacturer's proprietary system
    No
  • Dimming phase cut-off
    No
  • Dimming programmable
    No
  • Dimming Sine Wave Reduction
    No
  • Dimming Zigbee
    No
  • Reflector
    High-gloss
  • Light sharing
    Symmetric

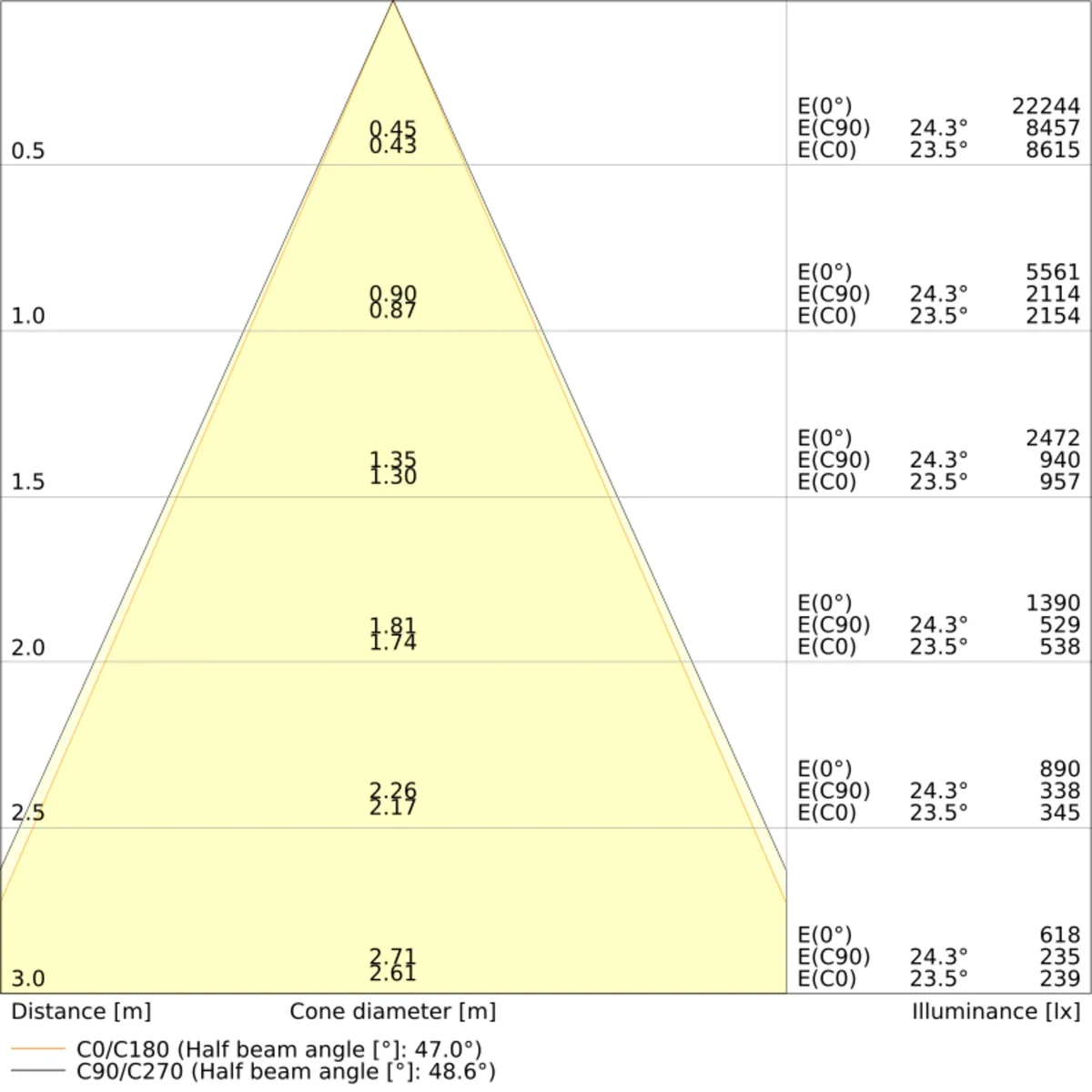

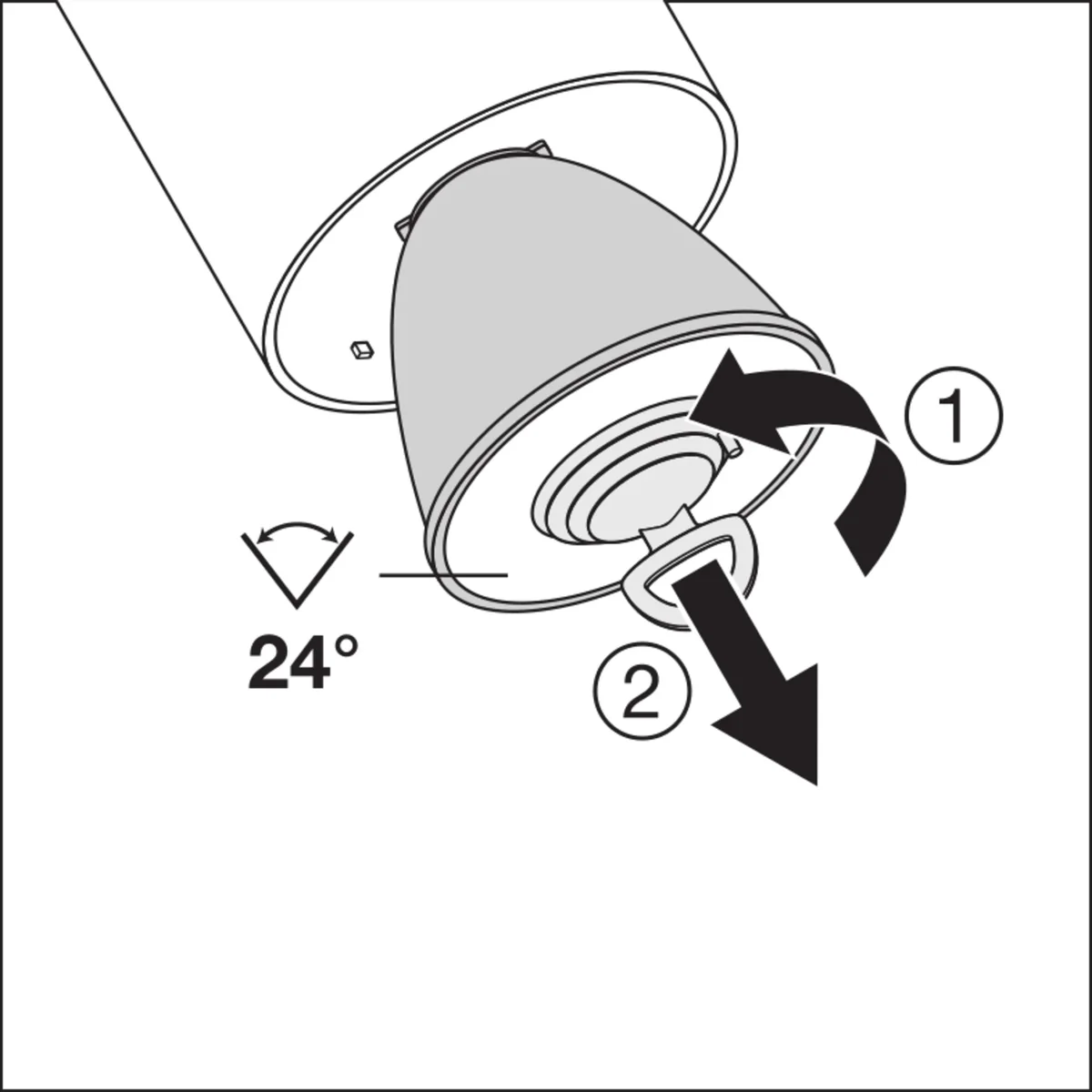

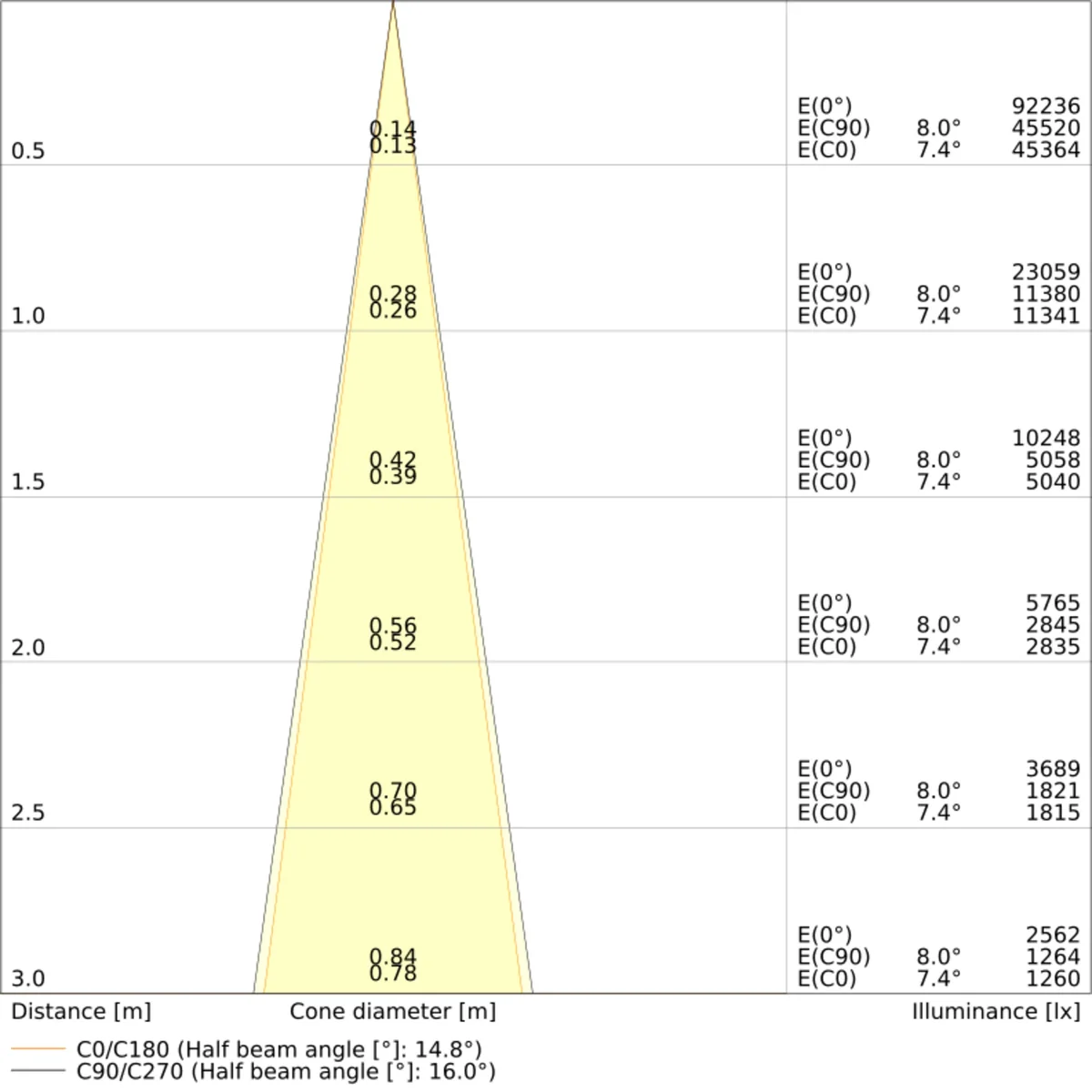

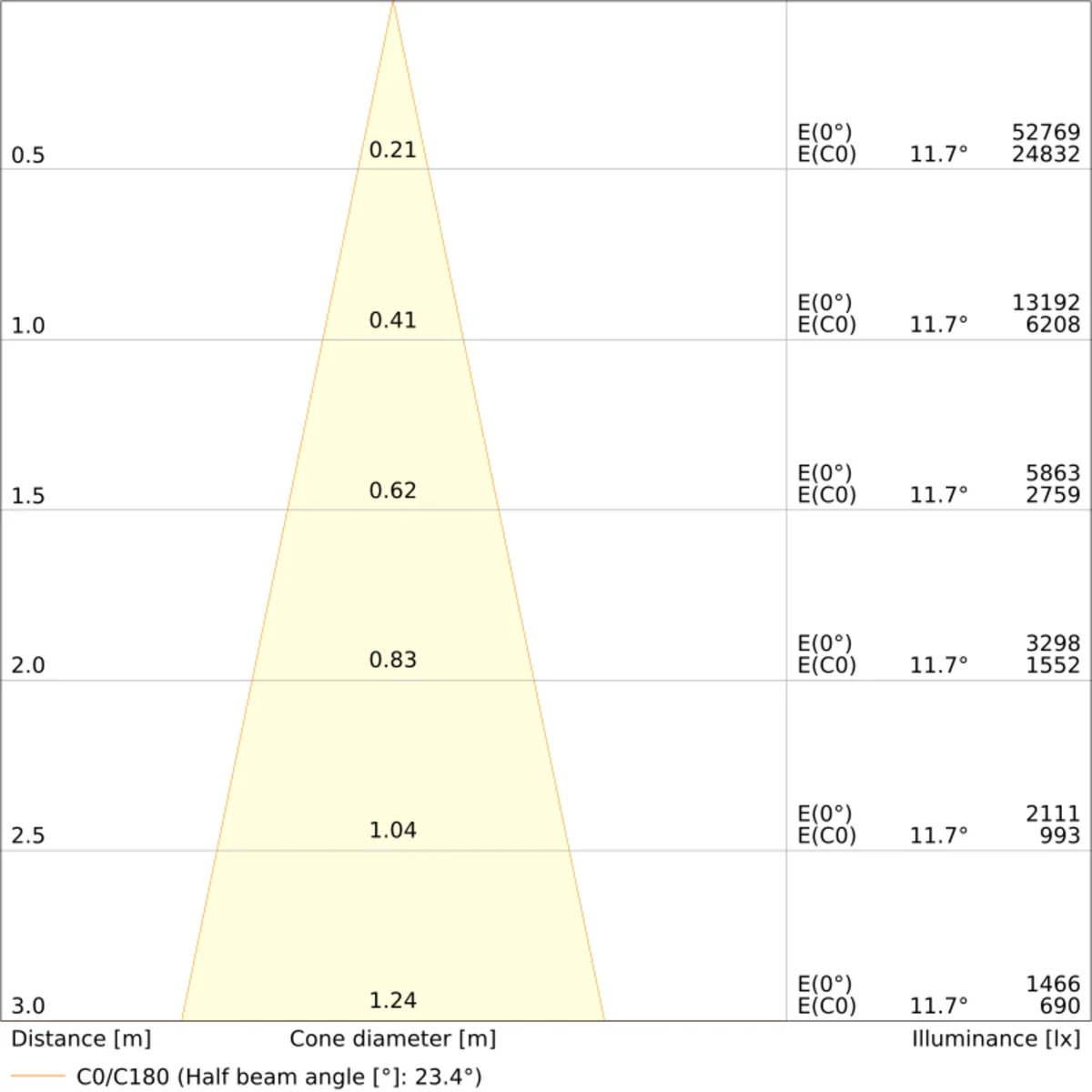

  • Beam angle
    Medium beam 21-40°
  • Energy efficiency class of the light source according to EU regulation 2019/2015
    F
  • Rated life time L70/B50 at 25 °C
    50000 h
  • Degree of protection (IP), rear side
    IP20
  • Impact strength
    IK02
  • Rated ambient temperature according to IEC 62722-2-1
    -20 ... 40 °C
  • System zasilania awaryjnego
    None
  • Colour of light
    White
  • Colour of light adjustable
    No
  • Znamionowy strumień świetlny zgodnie z normą IEC 62722-2-1
    3600 ... 3600 lm
  • Skuteczność świetlna oprawy
    120 ... 120 lm/W
  • Power factor
    0.9
  • Length
    245 mm
  • Height/depth
    240 mm
  • Number of poles
    4
  • Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
    No
  • Max. number of luminaires per miniature circuit breaker C16 (MCB)
    94
  • Photobiological safety according to EN 62471
    RG1
  • Covering of the luminaire with thermally insulating material possible
    No
  • Colour consistency (McAdam ellipse)
    SDCM3
  • Operation by Bluetooth
    No
  • Compatible with Casambi
    No
  • Suitable for built-in mounting
    No
  • Suitable for suspended mounting
    Yes
  • Suitable for traverse mounting
    No
  • Suitable for light-track mounting
    No
  • Suitable for low voltage cable system
    No
  • With movement sensor
    No
  • With light sensor
    No
  • With light source
    Yes
  • Housing material
    Aluminium
  • Housing colour
    White
  • Voltage type
    AC
  • Nominal current
    136 ... 136 mA
  • With control gear
    Yes
  • Exchangeable control gear
    No
  • Dimming 1-10 V
    No
  • Dimming DALI
    Yes
  • Dimming DSI
    No
  • Dimming LineSwitch
    No
  • Dimming mains voltage modulation
    No
  • Dimming phase cut-on
    No
  • Dimming RF
    No
  • Dimming Touch and Dim
    No
  • Dimming with push-button
    No
  • Light distributor
    Reflector
  • Reflector colour
    Silver
  • Light outlet
    Direct
  • Współczynnik harmonicznych (THD)
    15 %
  • Constant light output (CLO)
    No
  • Degree of protection (NEMA)
    1
  • Protection class
    I
  • Max. system power
    30 W
  • System monitorowania funkcji awaryjnych
    None
  • Colour temperature
    4000 ... 4000 K
  • Colour rendering index CRI
    90-100
  • Luminous flux adjustable
    No

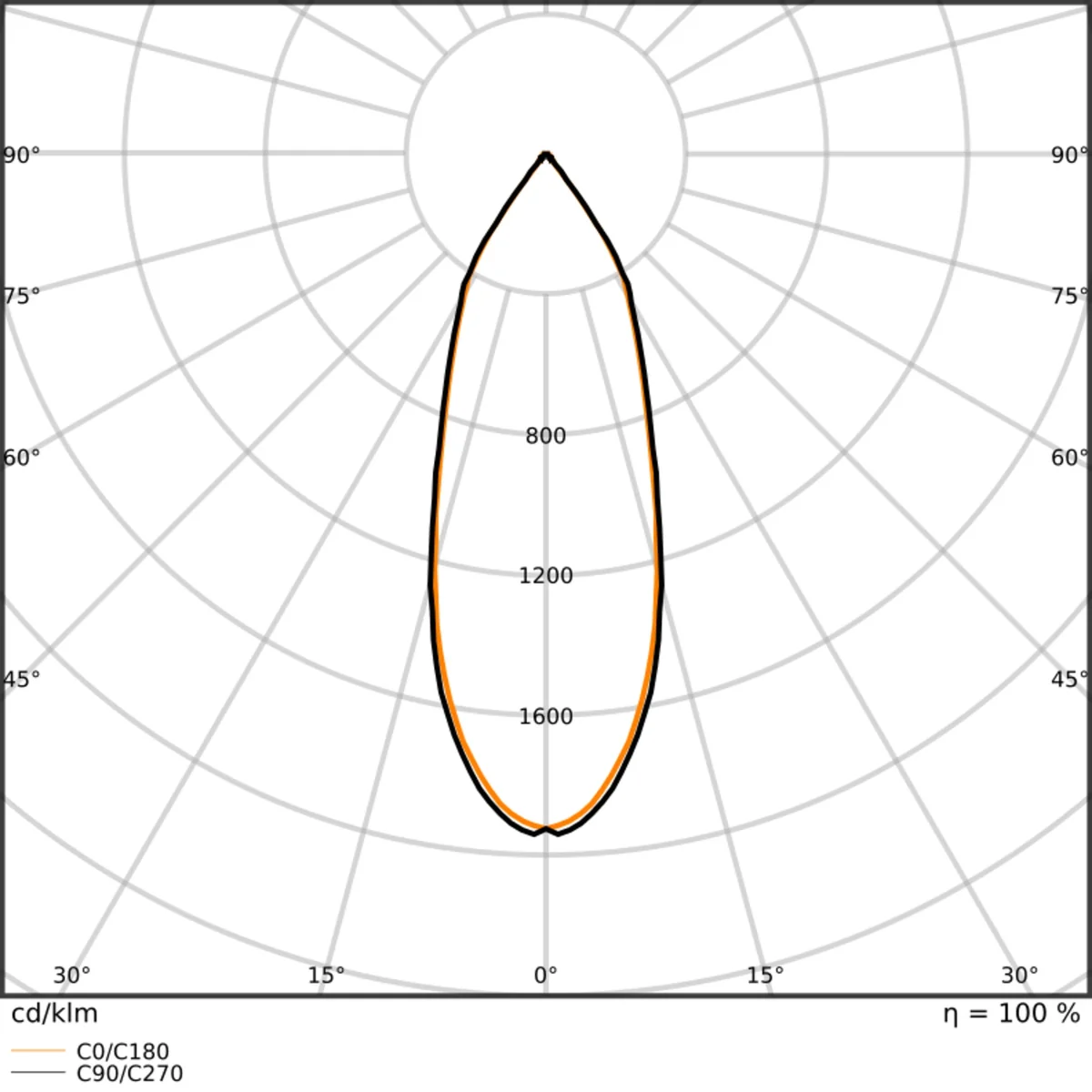

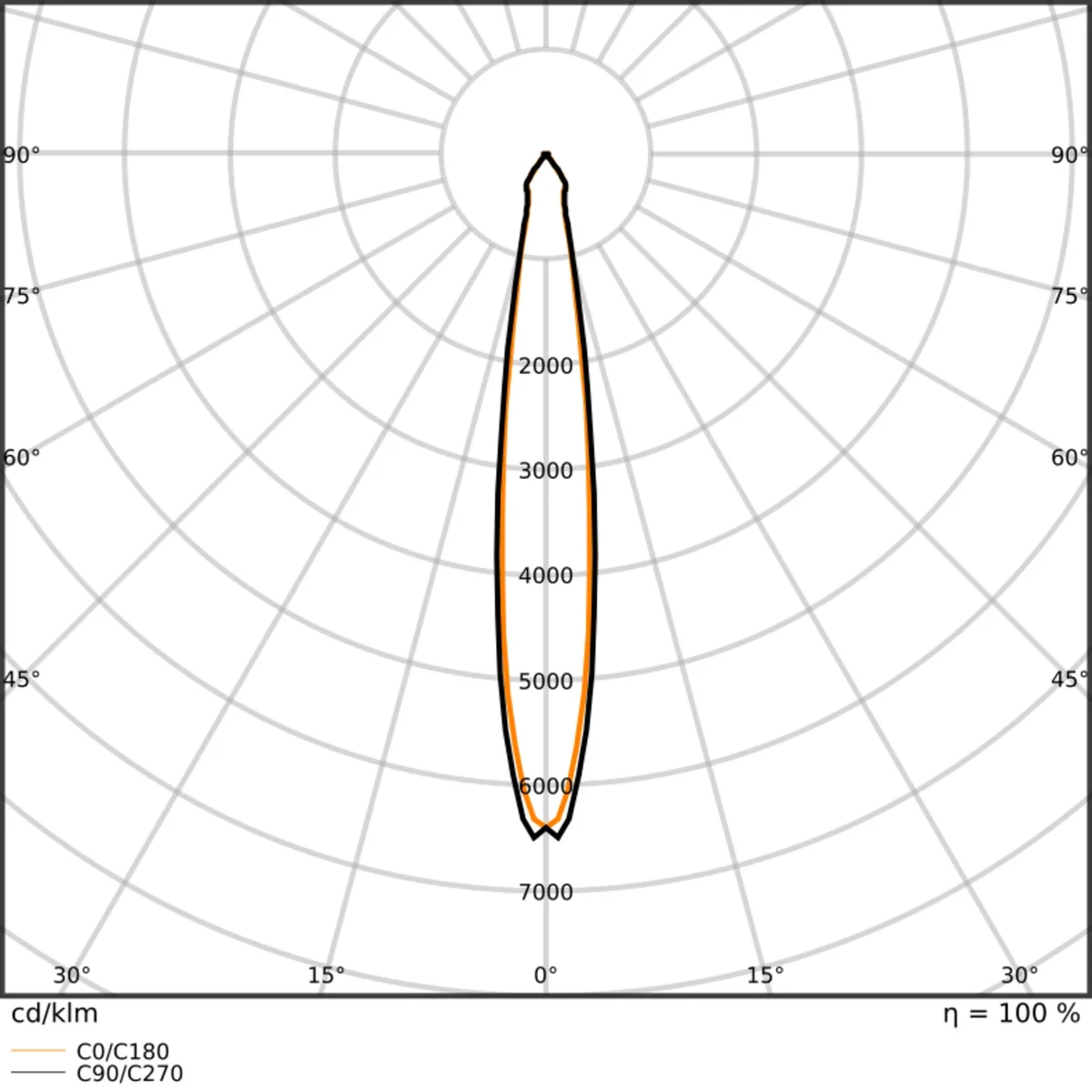

  • Luminous intensity
    4100 ... 4100 cd
  • Beam angle adjustable
    No
  • Width
    80 mm
  • Outer diameter
    80 mm

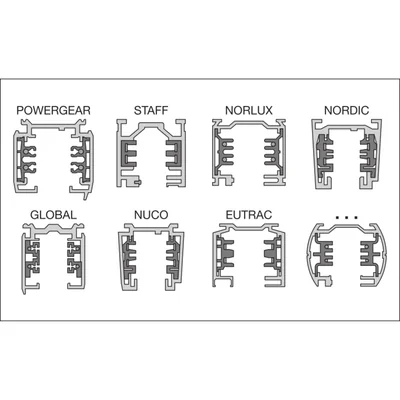

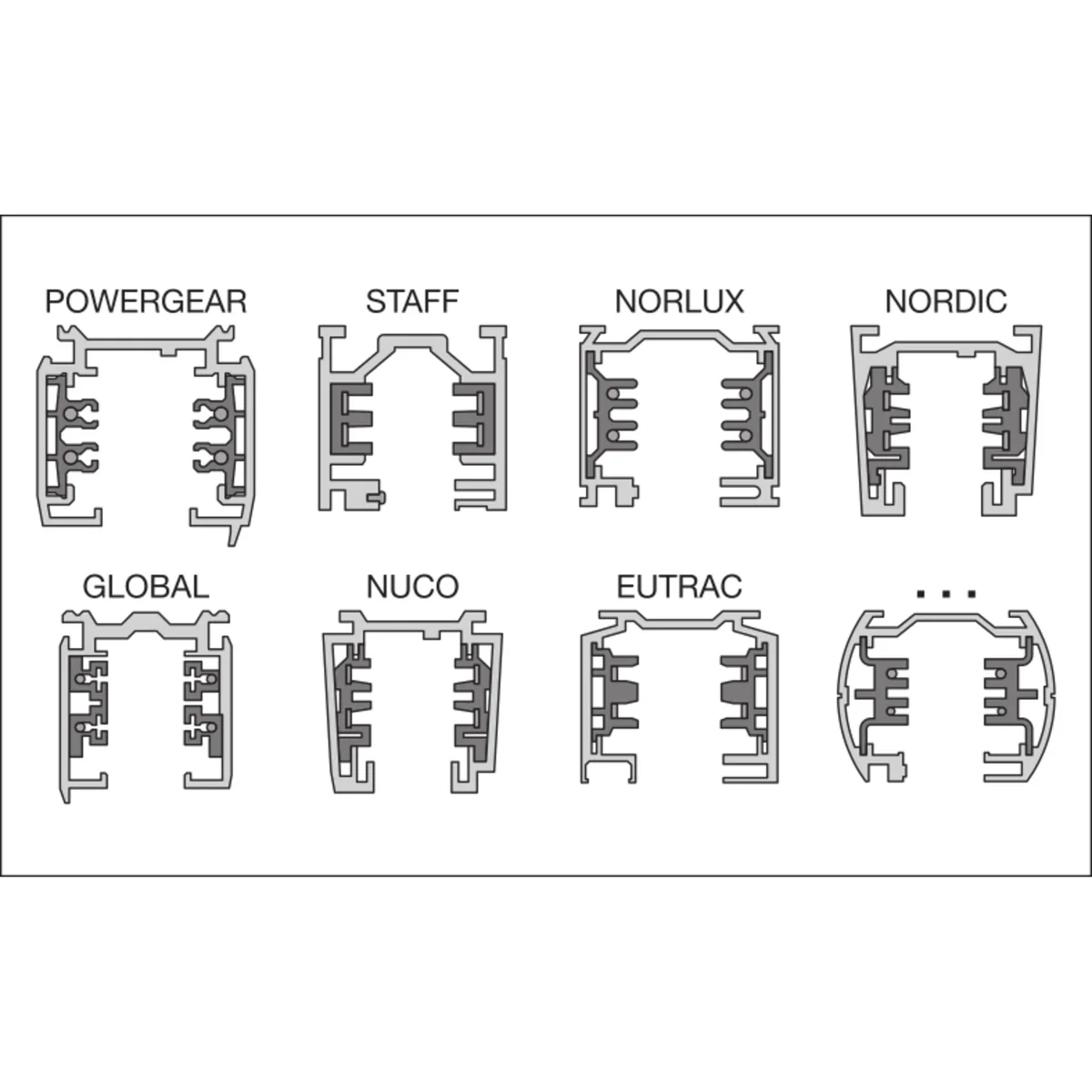

  • Connection type
    Busbar adapter
  • Max. number of luminaires per miniature circuit breaker B16 (MCB)
    94
  • Filament test according to IEC 60695-2-11
    650 °C - 30 s
  • Suitable for workplace according to EN 12464-1
    No
  • IFTTT support available
    No
  • Compatible with Apple HomeKit
    No
  • Compatible with Google Assistant
    No
  • Compatible with Amazon Alexa
    No

Manufacturer details

  • Manufacturer
    LEDVANCE GmbH
  • Address
    85748 Garching Parkring 29-33 Niemcy
  • E-mail
    InfoPL@ledvance.com

Bulk packaging

A kind of package Skrzynia Karton
Quantity 1 pcs. 4 pcs.
Weight (kg) 0,806 3,720
Volume (m3) 0,005 0,024
Width (m) 0,240 0,260
Length (m) 0,190 0,400
Depth (m) 0,100 0,230
