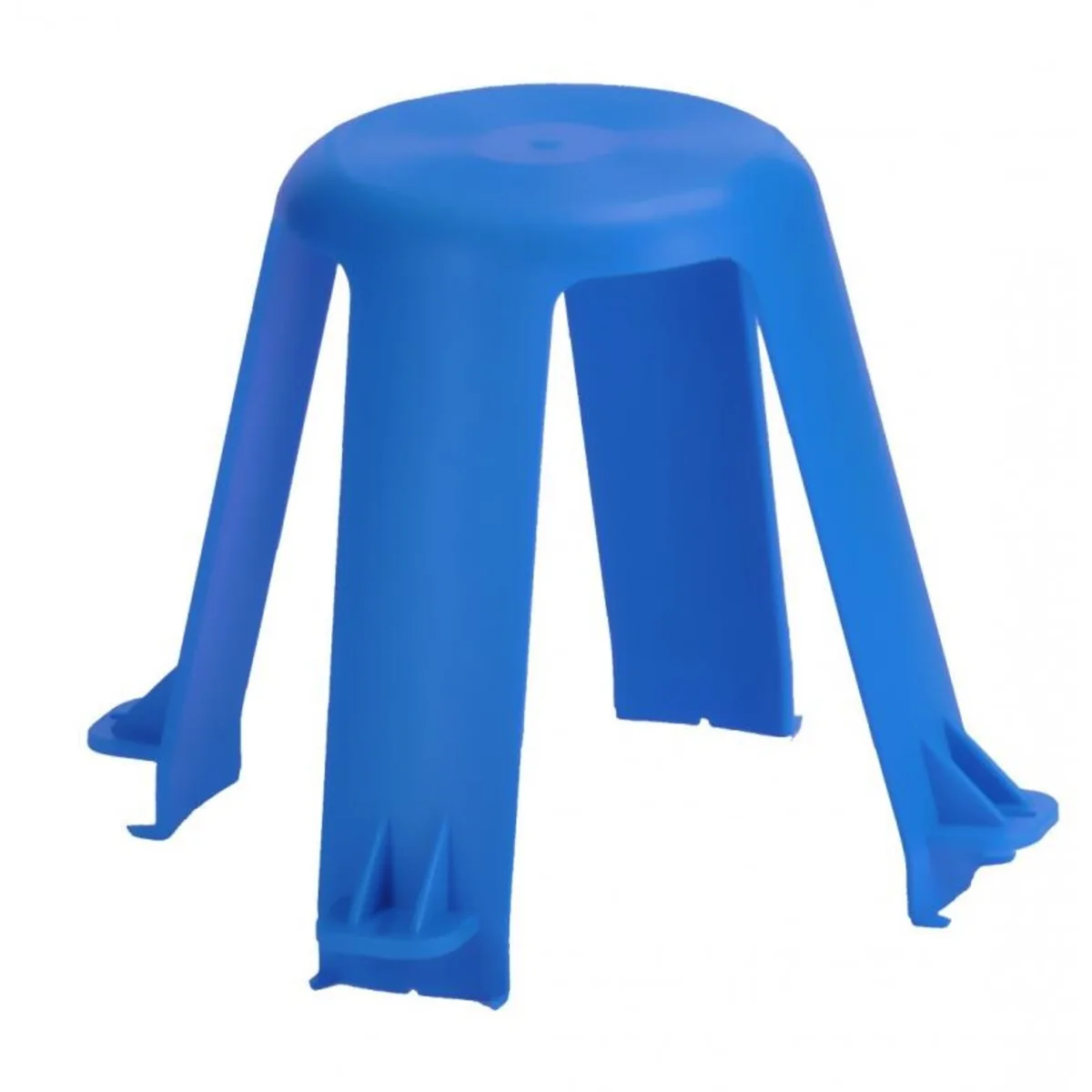

Spacer, protective cap for halogen and LED lamps, holes 60-85mm / D60 83300002

local index:
OCE001SIME
Catalog No:
83300002
EAN code:
5907813226540
Manufacturer: SIMET
Depth [mm]: 80
Color: Blue
Outer diameter [mm]: 60-85
Price:
2,20 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 89 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Protective distance cap for halogen and LED lamps, holes 60-85mm / D60

Specialized spacer cap made of self-extinguishing, halogen-free polyamide safe in terms of electrical installation.
The product is designed to create a safe distance between the insulation and the light source in the wall.
Mounted LED and halogen bulbs need to dissipate the heat that is generated from the inside of the wall. If a layer of insulation is used, it must be "pushed" away from the light source for fire safety as well as to extend the life of the light source.

Assembly:


  • Drill a mounting hole with a diameter of 60-85mm.


  • Insert the cap into the hole and spread it with your fingers so that the teeth in its arms stick into the side walls of the opening.


  • Insert the lighting fixture and embed the traditional one with spring wings between the ribs of the cap.




Technical data

  • Depth [mm]
    80
  • Outer diameter [mm]
    60-85
  • Color
    Blue
  • PKWIU
    27.33.13.0

Other technical data

  • Suitable for built-in installation box
    Yes
  • Model
    Other
  • Suitable for central conduit box
    No
