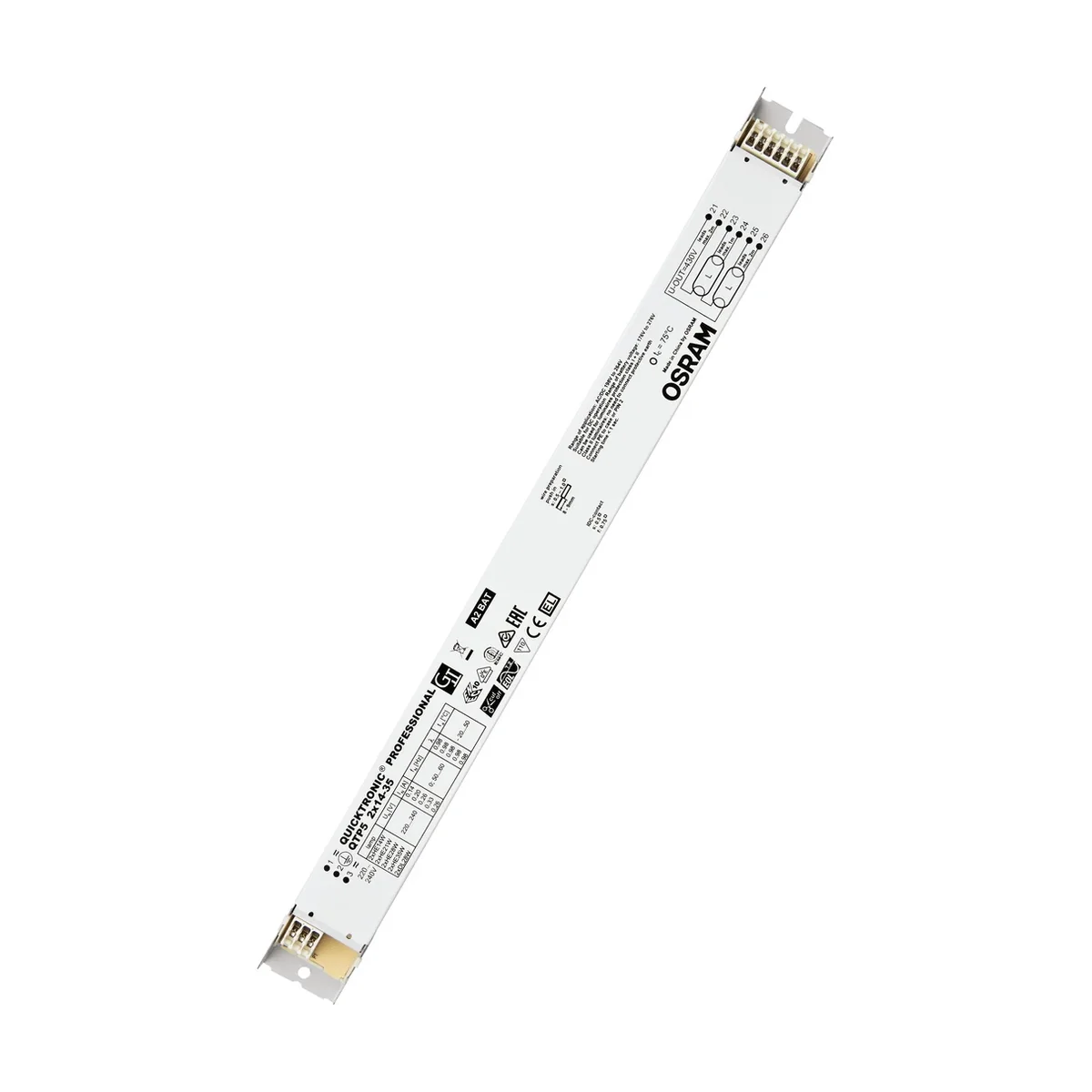

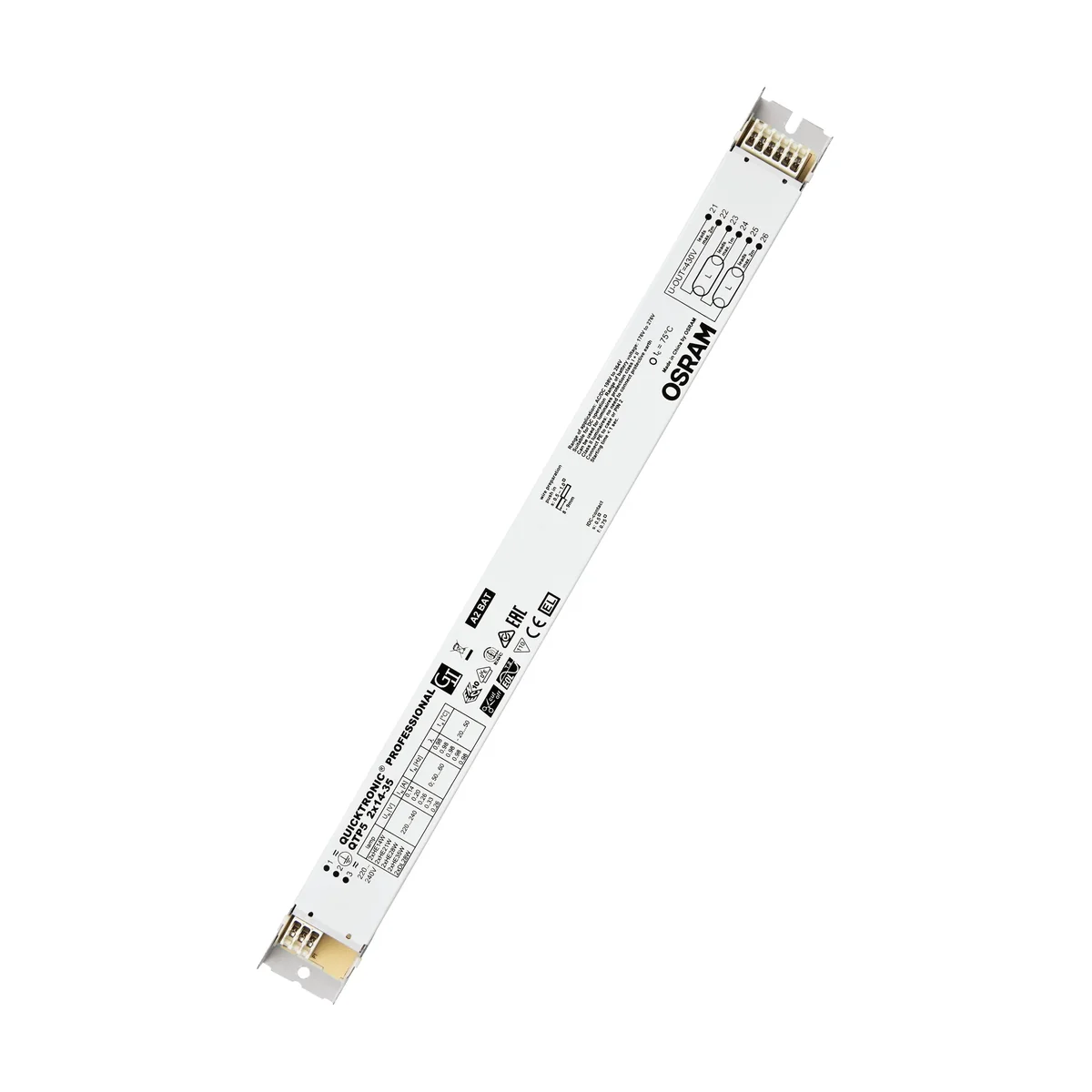

QTP5 2X14-35 electronic ballast 4008321329073
local index:
OCS050LEDV
Catalog No:
4008321329073
EAN code:
4008321329073
Price:
30,82 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Electronic ballast QTP5 2X14-35 2xFH 14W, 21W, 28W,35W W
Technical data
-
Rated voltage [V]230
-
PKWIU27.11.50
-
Initial starting current [A]24
Other technical data
-
ModelElectronic
-
Dimming 0-10 VNo
-
Dimming DALINo
-
Dimming DMXNo
-
Ściemniacz GPRSNo
-
Dimming manufacturer's proprietary systemNo
-
Dimming phase cut-offNo
-
Dimming programmableNo
-
Dimming Sine Wave ReductionNo
-
Dimming ZigbeeNo
-
No dim functionYes
-
For lamp type HMNo
-
For lamp type LSNo
-
For lamp type T16Yes
-
For lamp type T26No
-
For lamp type T-RNo
-
For lamp type TC-DNo
-
For lamp type TC-DELNo
-
For lamp type TC-LNo
-
For lamp type TC-SNo
-
For lamp type TC-TNo
-
Suitable for number of lamps2 ... 2
-
Nominal voltage220 ... 240 V
-
Degree of protection (IP)IP20
-
Height21.0 mm
-
Multiwatt modelYes
-
Dimming 1-10 VNo
-
Dimming DSINo
-
Dimming potentiometer (integrated)No
-
Dimming LineSwitchNo
-
Dimming mains voltage modulationNo
-
Dimming phase cut-onNo
-
Dimming RFNo
-
Dimming Touch and DimNo
-
Dimming with push-buttonNo
-
For lamp type HINo
-
For lamp type HSNo
-
For lamp type T7No
-
For lamp type T16-RNo
-
For lamp type T38No
-
For lamp type T-UNo
-
For lamp type TC-DDNo
-
For lamp type TC-FNo
-
For lamp type TC-QELNo
-
For lamp type TC-SELNo
-
For lamp type TC-TELNo
-
Suitable for lamp power14 ... 35 W
-
HousingMetal housing
-
Length360.0 mm
Bulk packaging
| A kind of package | Torebka | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 20 pcs. |
| Weight (kg) | 0,234 | 0,234 | 4,900 |
| Volume (m3) | - | - | 0,006 |
| Width (m) | - | - | 0,100 |
| Length (m) | - | - | 0,370 |
| Depth (m) | - | - | 0,170 |
