112157
0
QTP5 1X49 electronic ballast 4008321329370
local index:
OCS033LEDV
Catalog No:
4008321329370
EAN code:
4008321329370
Price:
27,75 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

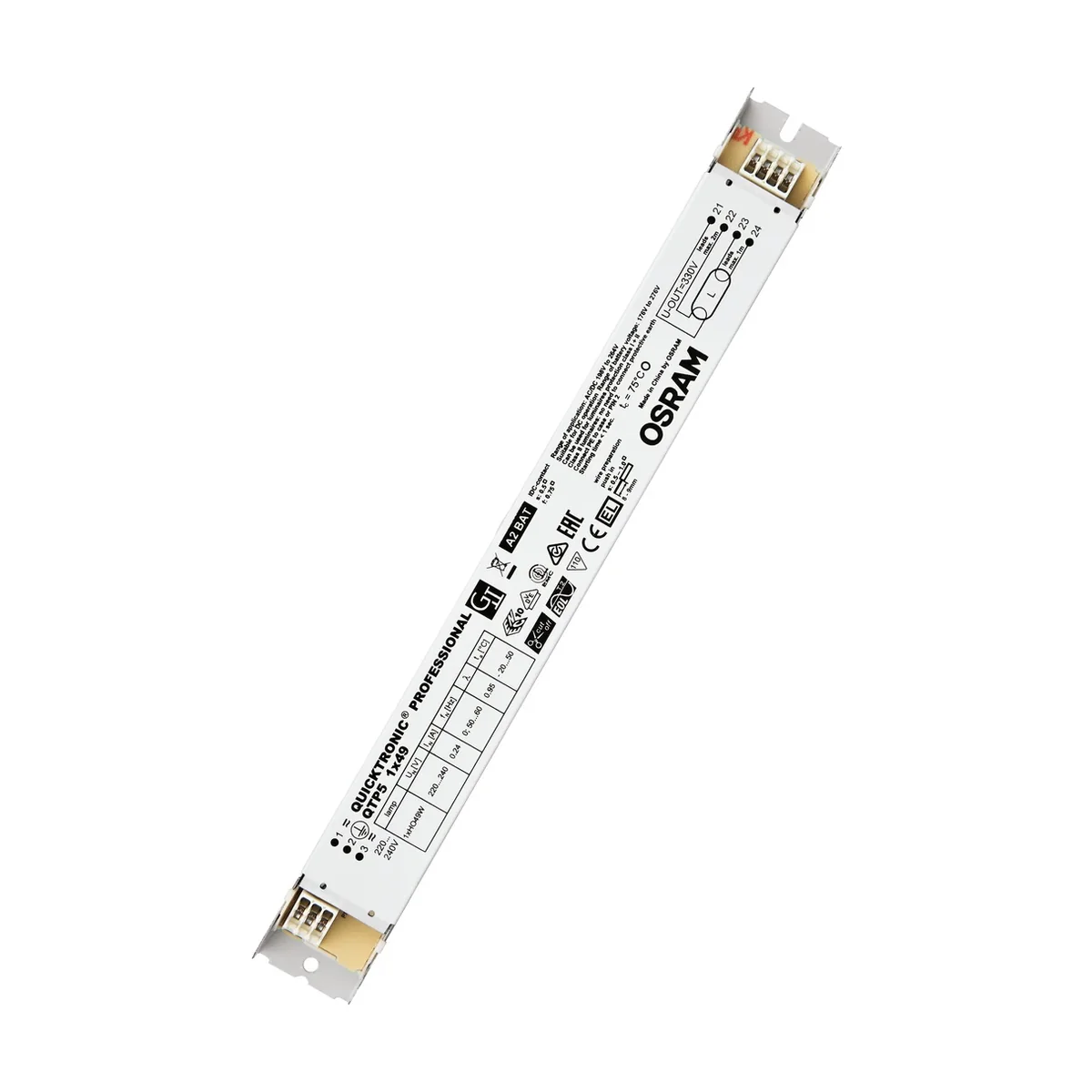

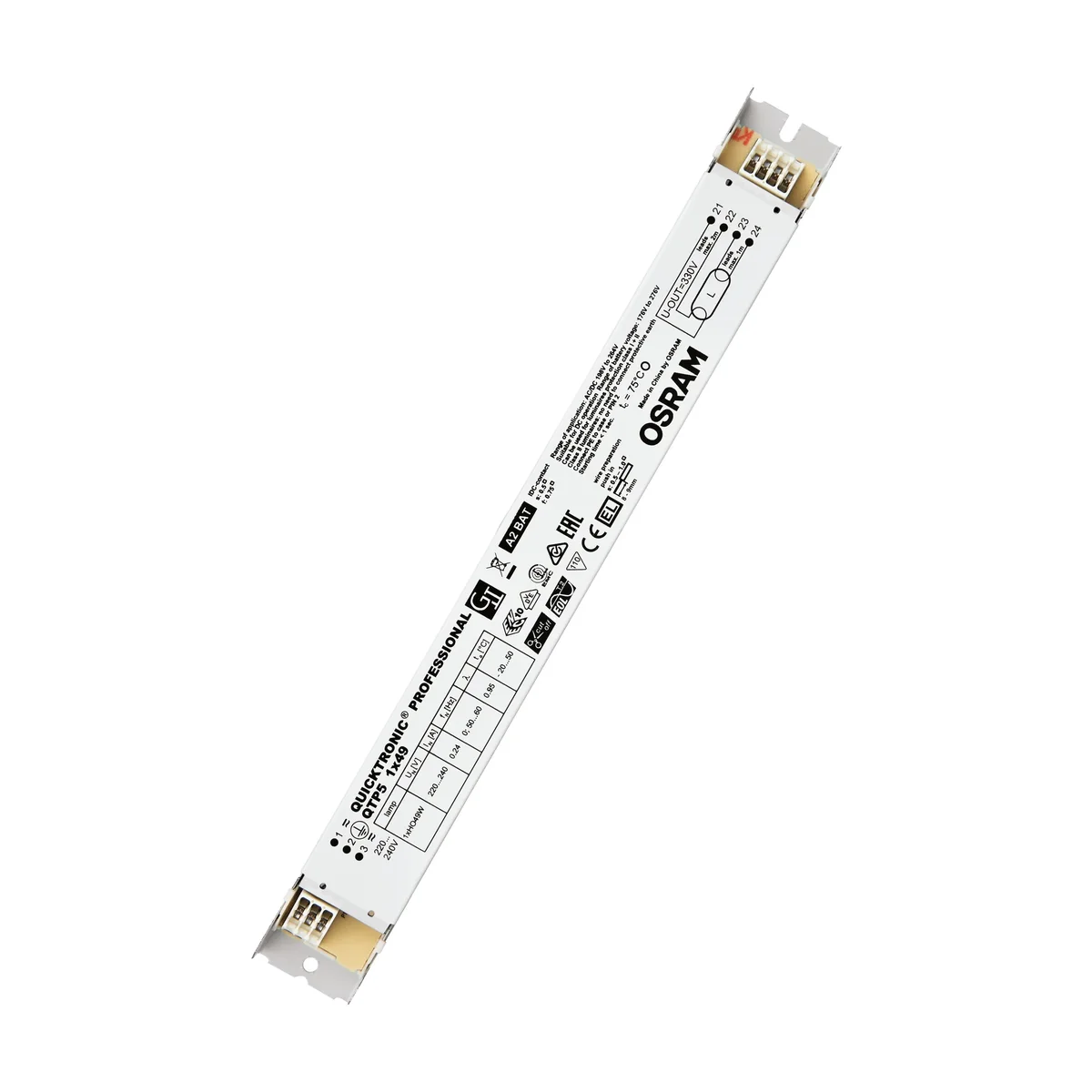

Electronic Ballast QTP5 1X49 1xFQ 49W W
Technical data
-
Start time [s]1
-
Input voltage [V]198-264
-

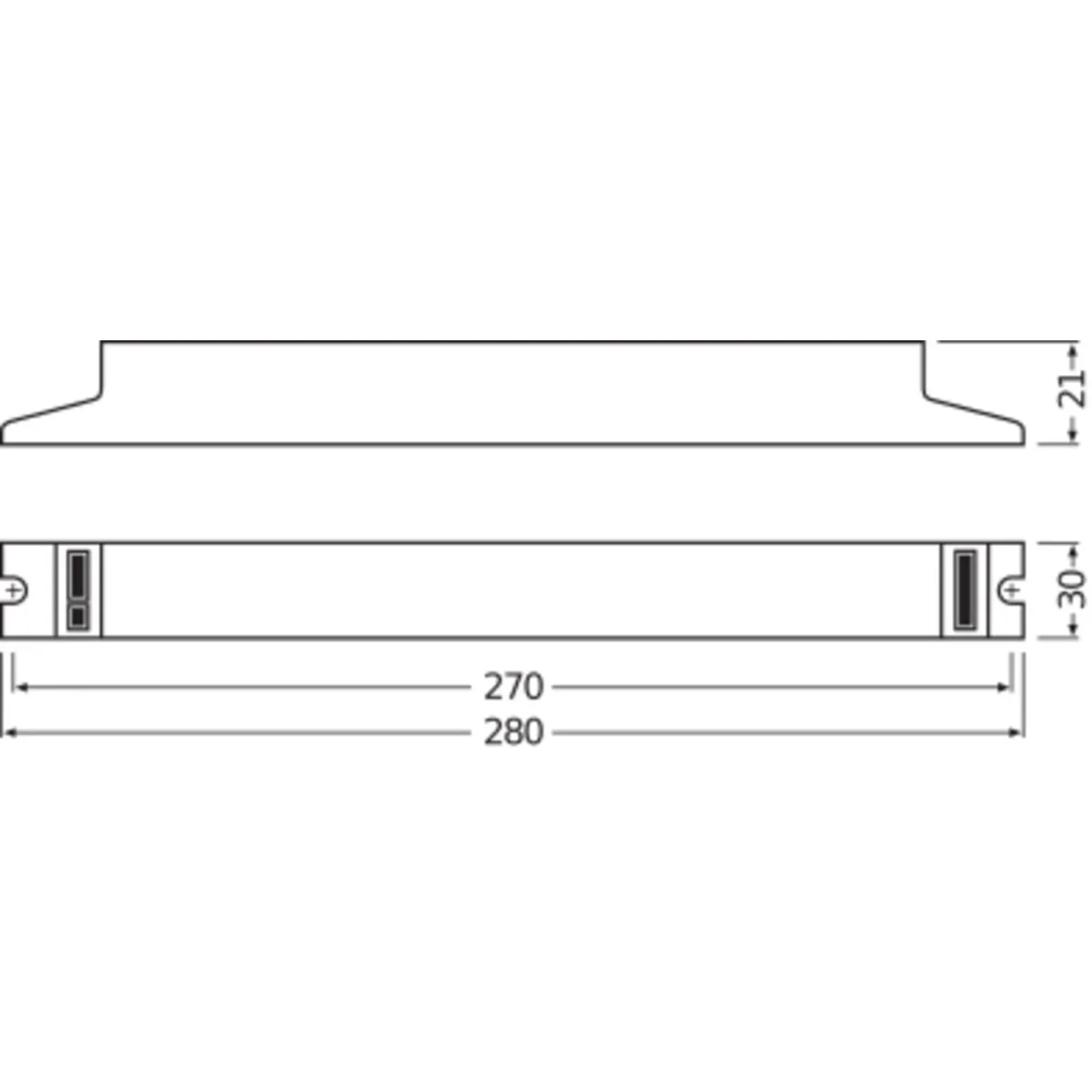

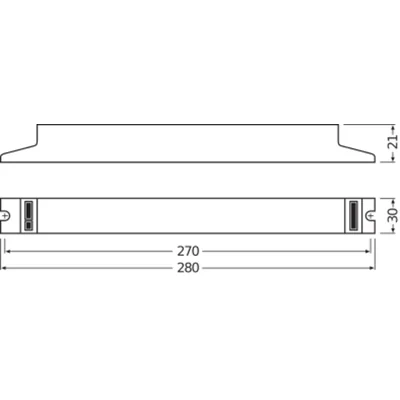

Distance of mounting holes, length [mm]270
-
DarkeningNO
-
Height [mm]21
-
Maximum number of SEs (10A)17
-
Length [mm]280
-
DC rated voltage [V]176-276
-
Width [mm]thirty
-
Durability [h]100000
-
Maximum number of SEs (16A)28
-
PKWIU27.11.50
Other technical data
-
ModelElectronic
-
Dimming 0-10 VNo
-
Dimming DALINo
-
Dimming DMXNo
-
Ściemniacz GPRSNo
-
Dimming manufacturer's proprietary systemNo
-
Dimming phase cut-offNo
-
Dimming programmableNo
-
Dimming Sine Wave ReductionNo
-
Dimming ZigbeeNo
-
No dim functionYes
-
For lamp type HMNo
-
For lamp type LSNo
-
For lamp type T16Yes
-
For lamp type T26No
-
For lamp type T-RNo
-
For lamp type TC-DNo
-
For lamp type TC-DELNo
-
For lamp type TC-LNo
-
For lamp type TC-SNo
-
For lamp type TC-TNo
-
Suitable for lamp power (1 lamp)49 ... 49 W
-
Suitable for lamp power49 ... 49 W
-
HousingMetal housing
-
Length280.0 mm
-
Multiwatt modelNo
-
Dimming 1-10 VNo
-
Dimming DSINo
-
Dimming potentiometer (integrated)No
-
Dimming LineSwitchNo
-
Dimming mains voltage modulationNo
-
Dimming phase cut-onNo
-
Dimming RFNo
-
Dimming Touch and DimNo
-
Dimming with push-buttonNo
-
For lamp type HINo
-
For lamp type HSNo
-
For lamp type T7No
-
For lamp type T16-RNo
-
For lamp type T38No
-
For lamp type T-UNo
-
For lamp type TC-DDNo
-
For lamp type TC-FNo
-
For lamp type TC-QELNo
-
For lamp type TC-SELNo
-
For lamp type TC-TELNo
-
Suitable for number of lamps1 ... 1
-
Nominal voltage220 ... 240 V
-
Degree of protection (IP)IP20
-
Height21.0 mm
Bulk packaging
| A kind of package | Torebka | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 20 pcs. |
| Weight (kg) | 0,169 | 0,169 | 3,949 |
| Volume (m3) | - | - | 0,005 |
| Width (m) | - | - | 0,100 |
| Length (m) | - | - | 0,320 |
| Depth (m) | - | - | 0,170 |
