QTP-M electronic ballast 4008321329158
local index:
OCS029LEDV
Catalog No:
4008321329158
EAN code:
4008321329158
Manufacturer:
LEDVANCE
Rated voltage [V]: 230
Price:
35,92 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

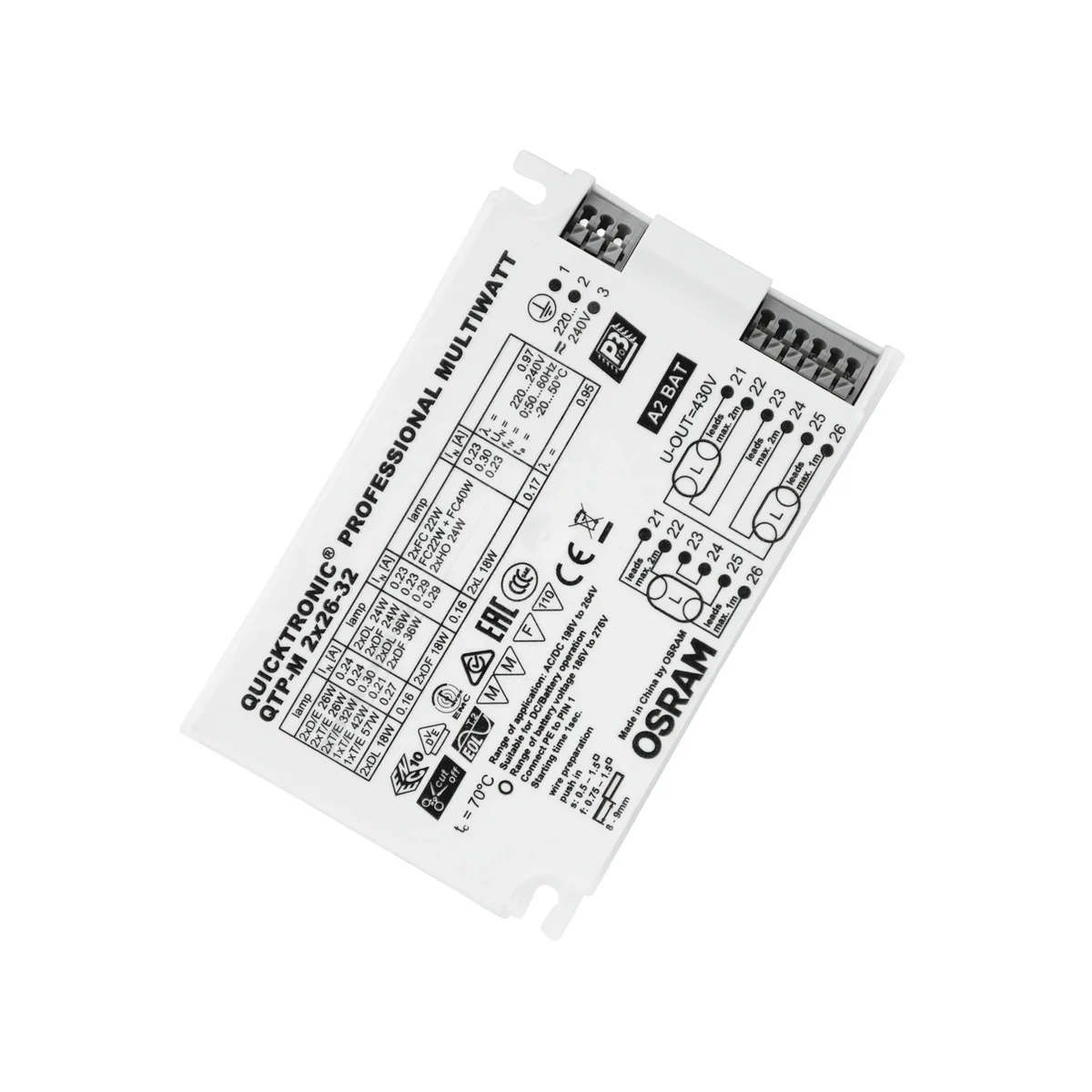

Electronic ballast QTP-M 2x26-32/230-240 2xD/E 26W, 2xDT/E 26W, 2xDT/E 32W, 2xDL 18W, 2xDF 18W, 2xDL 24W,2xDF 24W,2xDL 36W, 2xDF 36W, 2xL18W (26mm), 2xFC 22W, 2xFQ 24W, 1xFC 22W+1xFC 40W, 1xD T/E 42W, 1xD T/E 57W W,
Technical data
-
Rated voltage [V]230
-
PKWIU27.11.50
Other technical data
-
ModelElectronic
-
Dimming 0-10 VNo
-
Dimming DALINo
-
Dimming DMXNo
-
Ściemniacz GPRSNo
-
Dimming manufacturer's proprietary systemNo
-
Dimming phase cut-offNo
-
Dimming programmableNo
-
Dimming Sine Wave ReductionNo
-
Dimming ZigbeeNo
-
No dim functionYes
-
For lamp type HMNo
-
For lamp type LSNo
-
For lamp type T16Yes
-
For lamp type T26No
-
For lamp type T-RNo
-
For lamp type TC-DNo
-
For lamp type TC-DELYes
-
For lamp type TC-LYes
-
For lamp type TC-SNo
-
For lamp type TC-TNo
-
Suitable for number of lamps2 ... 2
-
Nominal voltage220 ... 240 V
-
Degree of protection (IP)IP20
-

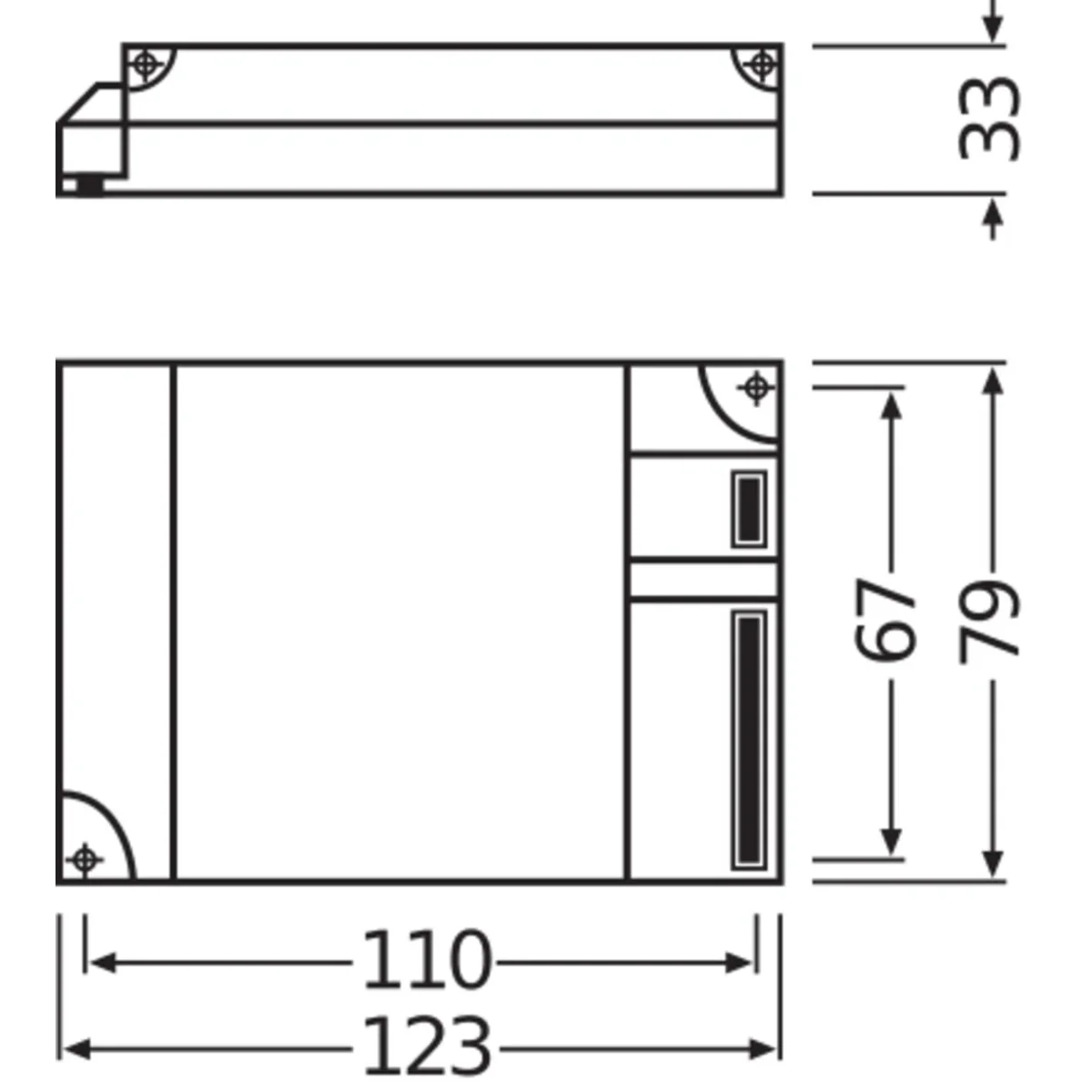

Height33.0 mm
-
Multiwatt modelYes
-
Dimming 1-10 VNo
-
Dimming DSINo
-
Dimming potentiometer (integrated)No
-
Dimming LineSwitchNo
-
Dimming mains voltage modulationNo
-
Dimming phase cut-onNo
-
Dimming RFNo
-
Dimming Touch and DimNo
-
Dimming with push-buttonNo
-
For lamp type HINo
-
For lamp type HSNo
-
For lamp type T7No
-
For lamp type T16-RYes
-
For lamp type T38No
-
For lamp type T-UNo
-
For lamp type TC-DDNo
-
For lamp type TC-FYes
-
For lamp type TC-QELNo
-
For lamp type TC-SELNo
-
For lamp type TC-TELYes
-
Suitable for lamp power26 ... 32 W
-
HousingPlastic housing
-
Length123.0 mm
Manufacturer details
-
ManufacturerLEDVANCE GmbH
-
Address85748 Garching Parkring 29-33 Niemcy
-
E-mail
Bulk packaging
| A kind of package | Torebka | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 20 pcs. |
| Weight (kg) | 0,180 | 0,180 | 3,860 |
| Volume (m3) | - | - | 0,010 |
| Width (m) | - | - | 0,090 |
| Length (m) | - | - | 0,430 |
| Depth (m) | - | - | 0,260 |
