Lighting
Light fixtures
Parts for lighting fixtures
Ballasts, igniters, electronic power systems

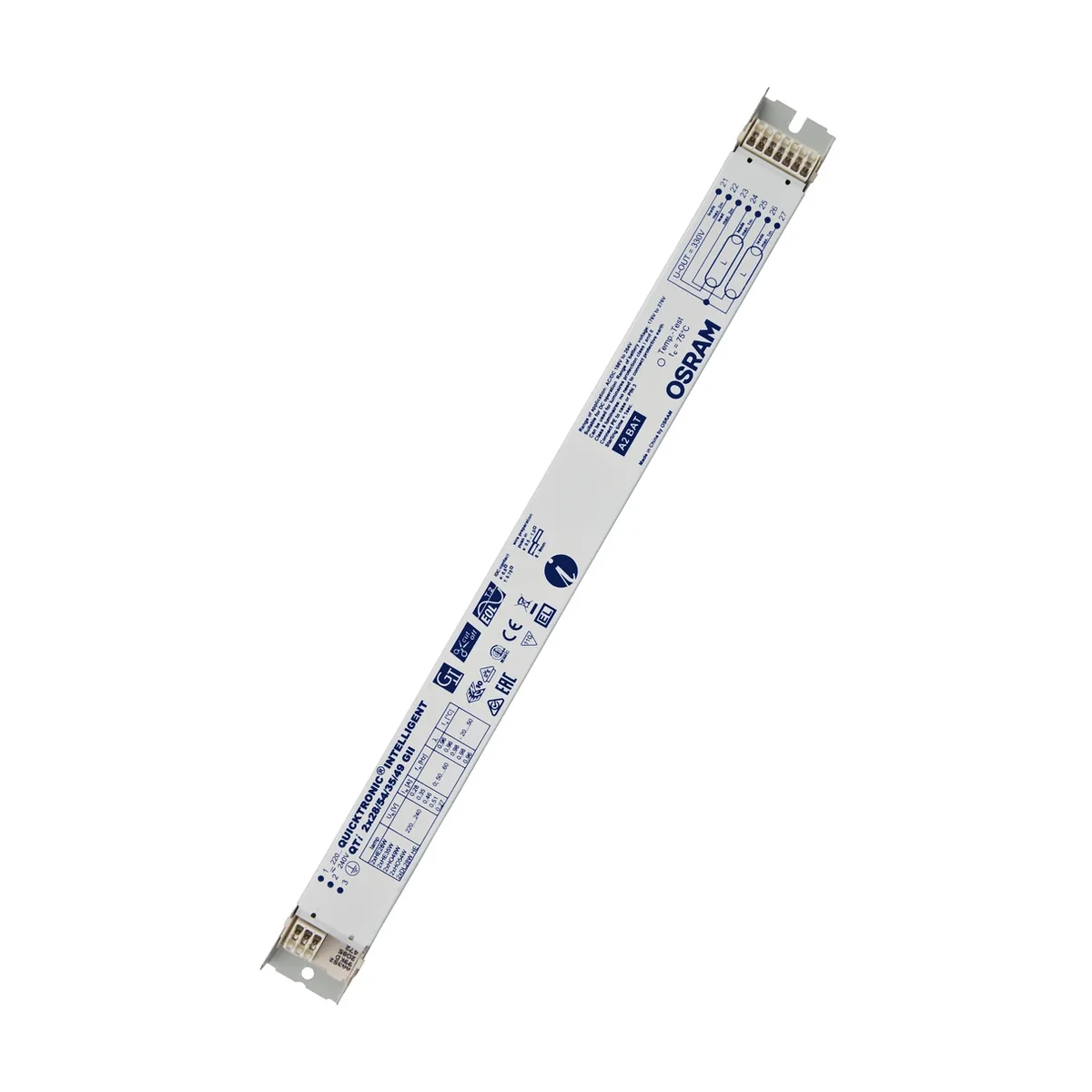

QTi electronic ballast 4008321383419
local index:
OCS090LEDV
Catalog No:
4008321383419
EAN code:
4008321383419
Click on the photo to enlarge
Manufacturer:
LEDVANCE
Start time [s]:
1
Length [mm]:
360
Input voltage [V]:
198-264
See full description
Price:
50,25 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Bulk packaging
Files to download
Product description
QUICTRONIC INTELIGENT enables powering many types of linear and single-capped fluorescent lamps. It ensures high durability and operational reliability of fluorescent lamps. 2xL58W; 2xFH 14W; 2xFH 21W; 2xFH 28W; 2xFH 35W; 2xFQ 49W; 2xFQ 54W
Technical data
Start time [s]
1
Input voltage [V]
198-264
Distance of mounting holes, length [mm]
350
Darkening
NO
Height [mm]
21
Maximum number of SEs (10A)
8
Length [mm]
360
DC rated voltage [V]
176-276
Width [mm]
thirty
Service life [h]
100000
Maximum number of SEs (16A)
13
PKWIU
27.11.50
Other technical data
Model
Electronic
Dimming 0-10 V
No
Dimming DALI
No
Dimming DMX
No
Ściemniacz GPRS
No
Dimming manufacturer's proprietary system
No
Dimming phase cut-off
No
Dimming programmable
No
Dimming Sine Wave Reduction
No
Dimming Zigbee
No
No dim function
Yes
For lamp type HM
No
For lamp type LS
No
For lamp type T16
No
For lamp type T26
No
For lamp type T-R
No
For lamp type TC-D
No
For lamp type TC-DEL
No
For lamp type TC-L
No
For lamp type TC-S
No
For lamp type TC-T
No
Suitable for number of lamps
2 ... 2
Nominal voltage
220 ... 240 V
Degree of protection (IP)
IP20
Length
360.0 mm
Multiwatt model
Yes
Dimming 1-10 V
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming phase cut-on
No
Dimming RF
No
Dimming Touch and Dim
No
Dimming with push-button
No
For lamp type HI
No
For lamp type HS
No
For lamp type T7
No
For lamp type T16-R
No
For lamp type T38
No
For lamp type T-U
No
For lamp type TC-DD
No
For lamp type TC-F
No
For lamp type TC-QEL
No
For lamp type TC-SEL
No
For lamp type TC-TEL
No
Suitable for lamp power
28 ... 54 W
Housing
Metal housing
Protection class
II
Height
21.0 mm
Bulk packaging
A kind of package
Torebka
Karton
Quantity
1 pcs.
1 pcs.
20 pcs.
Weight (kg)
0,270
0,270
5,620
Volume (m3)
-
-
0,006
Width (m)
-
-
0,100
Length (m)
-
-
0,390
Depth (m)
-
-
0,170
Files to download
asset-300710.pdf
