QTi electronic ballast 4008321383396

local index:
OCS034LEDV
Catalog No:
4008321383396
EAN code:
4008321383396

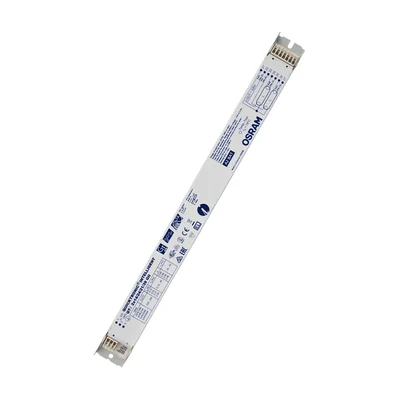

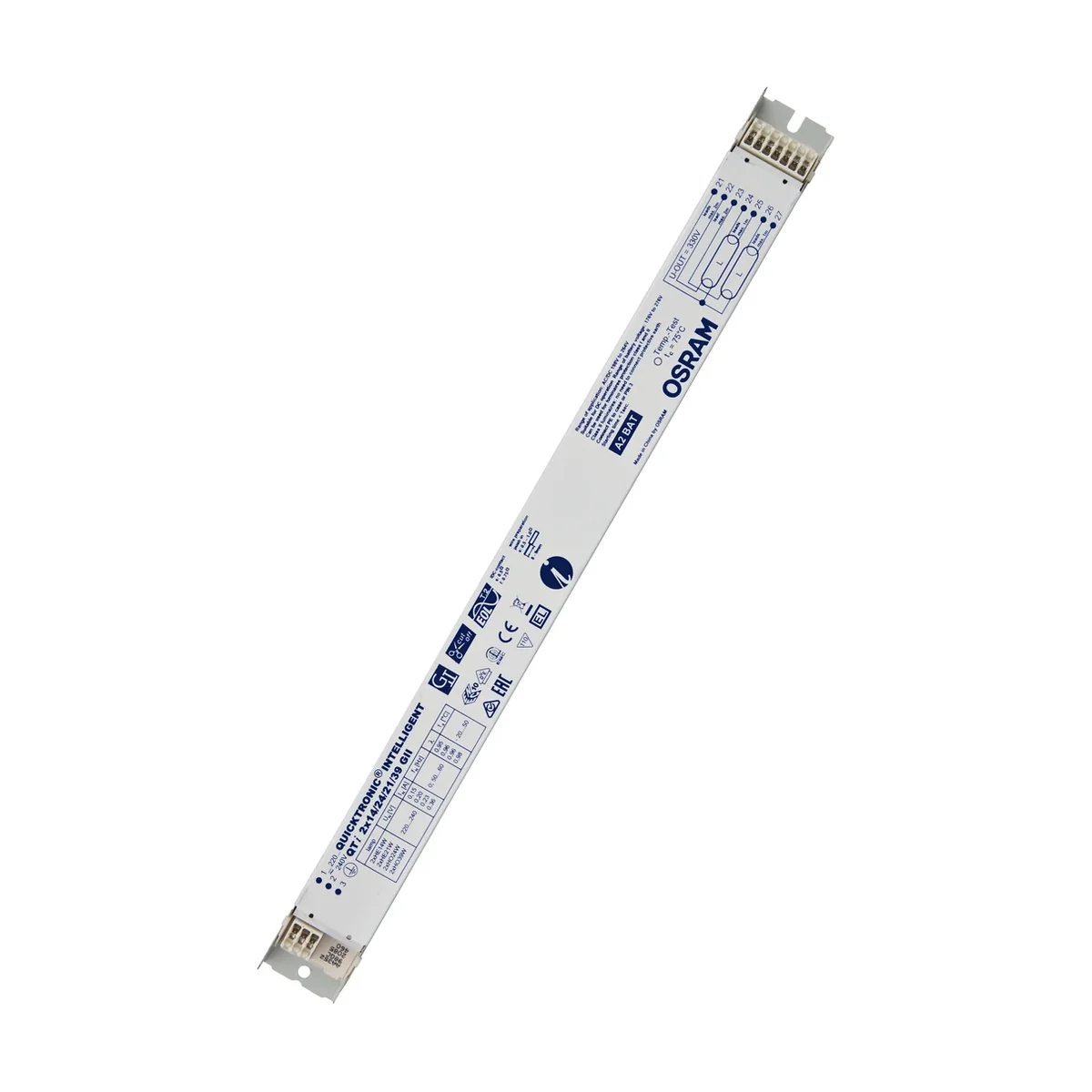

QTi electronic ballast
QTi electronic ballast

Click on the photo to enlarge

Manufacturer: LEDVANCE
Start time [s]: 1
Length [mm]: 360
Input voltage [V]: 198-264
See full description
Price:
52,00 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Electronic ballast QTi 2x14/24/21/39 GII 2xL18; 2xL30; 2xL36; 2xFH 14W; 2xFH 21W; 2xFH 28W; 2xFH 35W; 2xFQ 24W; 2xFQ 39W; 2xFC 22W; 2xFC 40W; 2xD-L18W; 2xD-L 24W; 2xD-L 36W; 2xD-L 40W; 2xD-F 18W; 2xD-F 24W; 2xD-F 36W W,

Technical data

  • Start time [s]
    1
  • Input voltage [V]
    198-264

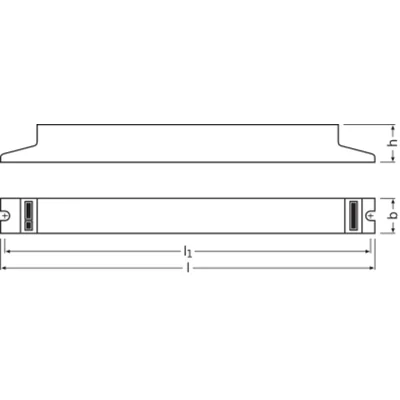

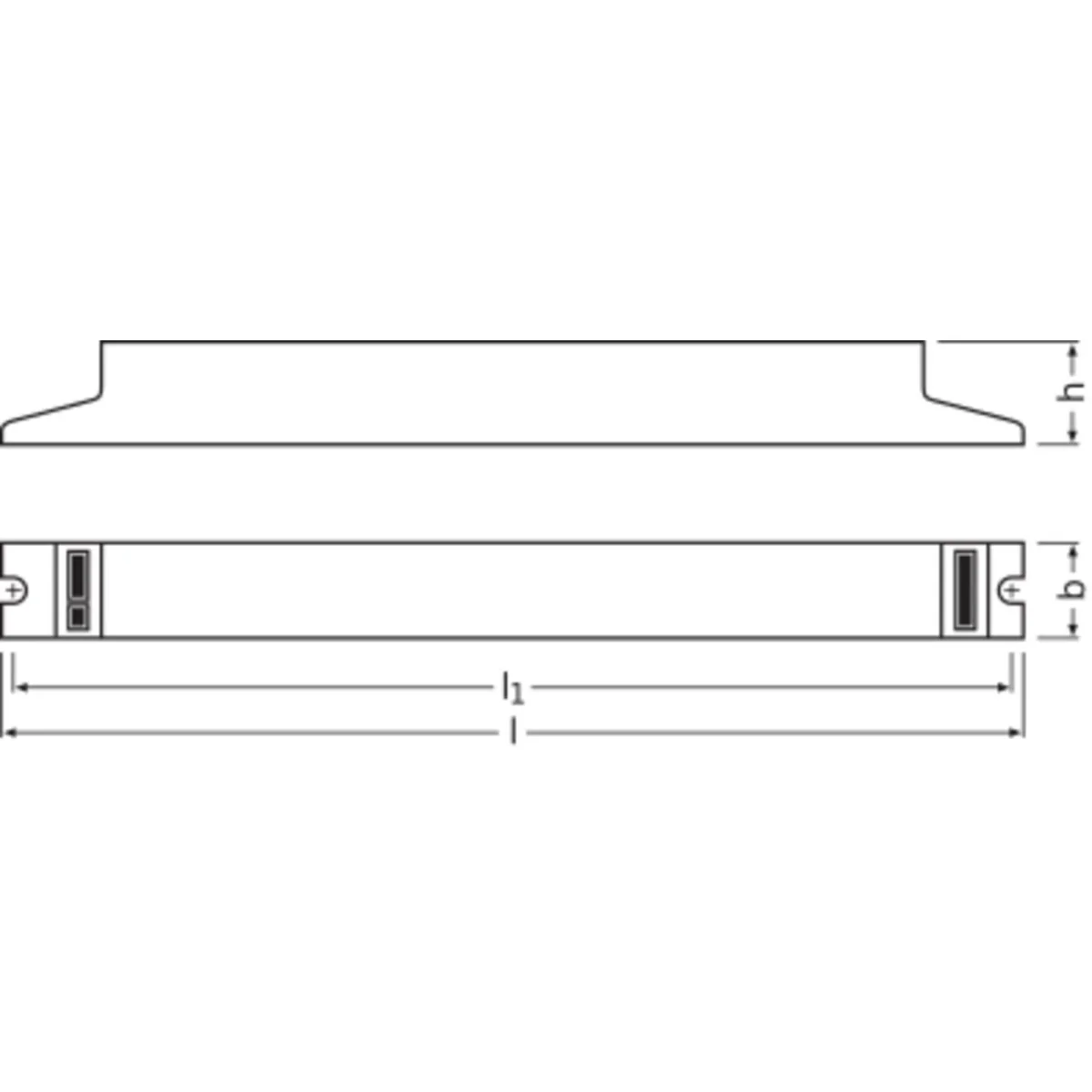

  • Distance of mounting holes, length [mm]
    350
  • Darkening
    NO
  • Height [mm]
    21
  • Maximum number of SEs (10A)
    8
  • Length [mm]
    360
  • DC rated voltage [V]
    176-276
  • Width [mm]
    thirty
  • Service life [h]
    100000
  • Maximum number of SEs (16A)
    13
  • PKWIU
    27.11.50

Other technical data

  • Model
    Electronic
  • Dimming 0-10 V
    No
  • Dimming DALI
    No
  • Dimming DMX
    No
  • Ściemniacz GPRS
    No
  • Dimming manufacturer's proprietary system
    No
  • Dimming phase cut-off
    No
  • Dimming programmable
    No
  • Dimming Sine Wave Reduction
    No
  • Dimming Zigbee
    No
  • No dim function
    Yes
  • For lamp type HM
    No
  • For lamp type LS
    No
  • For lamp type T16
    No
  • For lamp type T26
    No
  • For lamp type T-R
    No
  • For lamp type TC-D
    No
  • For lamp type TC-DEL
    No
  • For lamp type TC-L
    No
  • For lamp type TC-S
    No
  • For lamp type TC-T
    No
  • Suitable for number of lamps
    2 ... 2
  • Nominal voltage
    220 ... 240 V
  • Degree of protection (IP)
    IP20
  • Length
    360.0 mm
  • Multiwatt model
    Yes
  • Dimming 1-10 V
    No
  • Dimming DSI
    No
  • Dimming potentiometer (integrated)
    No
  • Dimming LineSwitch
    No
  • Dimming mains voltage modulation
    No
  • Dimming phase cut-on
    No
  • Dimming RF
    No
  • Dimming Touch and Dim
    No
  • Dimming with push-button
    No
  • For lamp type HI
    No
  • For lamp type HS
    No
  • For lamp type T7
    No
  • For lamp type T16-R
    No
  • For lamp type T38
    No
  • For lamp type T-U
    No
  • For lamp type TC-DD
    No
  • For lamp type TC-F
    No
  • For lamp type TC-QEL
    No
  • For lamp type TC-SEL
    No
  • For lamp type TC-TEL
    No
  • Suitable for lamp power
    14 ... 39 W
  • Housing
    Metal housing
  • Protection class
    II
  • Height
    21.0 mm

Manufacturer details

  • Manufacturer
    LEDVANCE GmbH
  • Address
    85748 Garching Parkring 29-33 Niemcy
  • E-mail
    InfoPL@ledvance.com

Bulk packaging

A kind of package Torebka Karton
Quantity 1 pcs. 1 pcs. 20 pcs.
Weight (kg) 0,241 0,241 5,042
Volume (m3) - - 0,006
Width (m) - - 0,100
Length (m) - - 0,390
Depth (m) - - 0,170

Files to download

asset-300710.pdf
