el12 Lighting Light fixtures Indoor luminaires Surface-mounted office and decorative

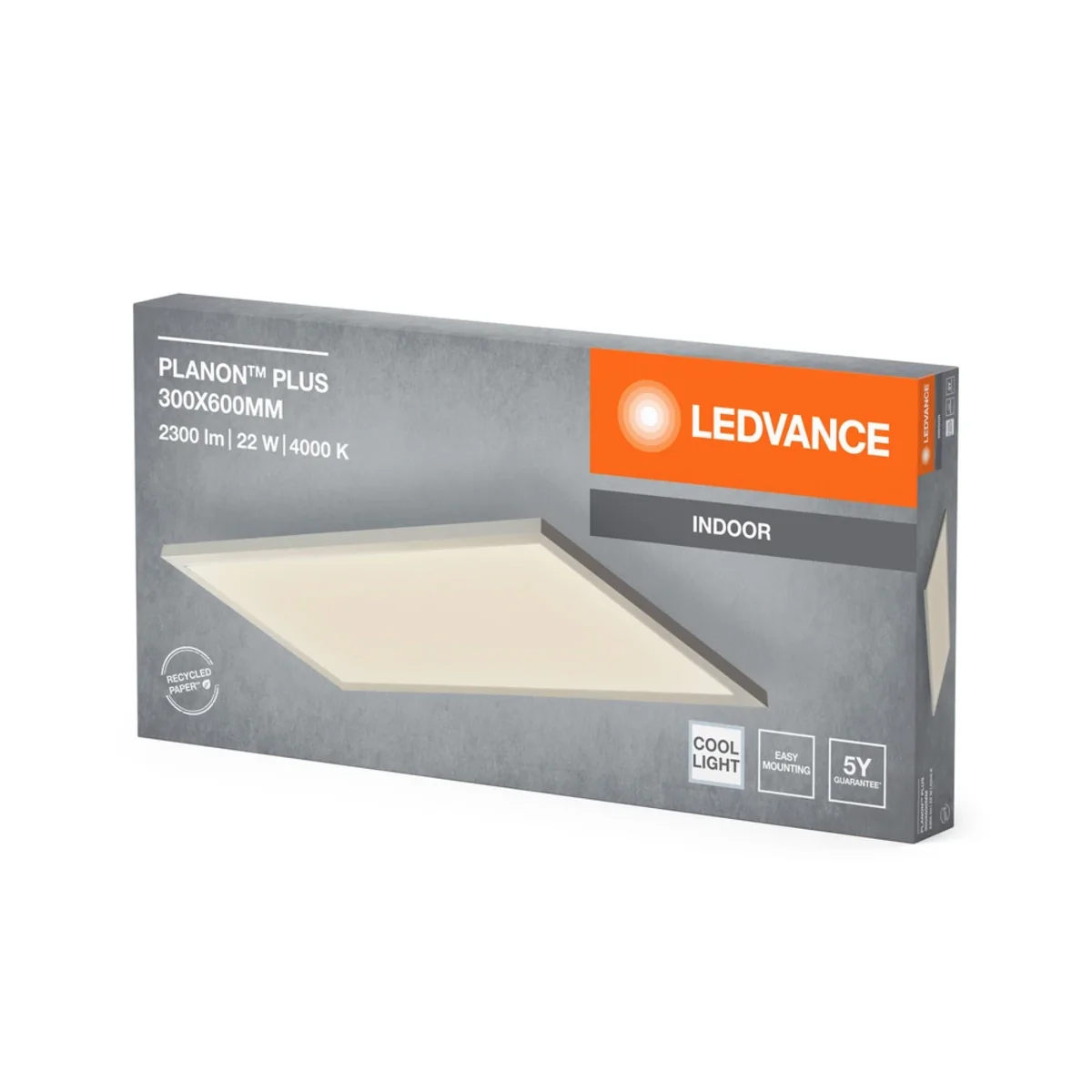

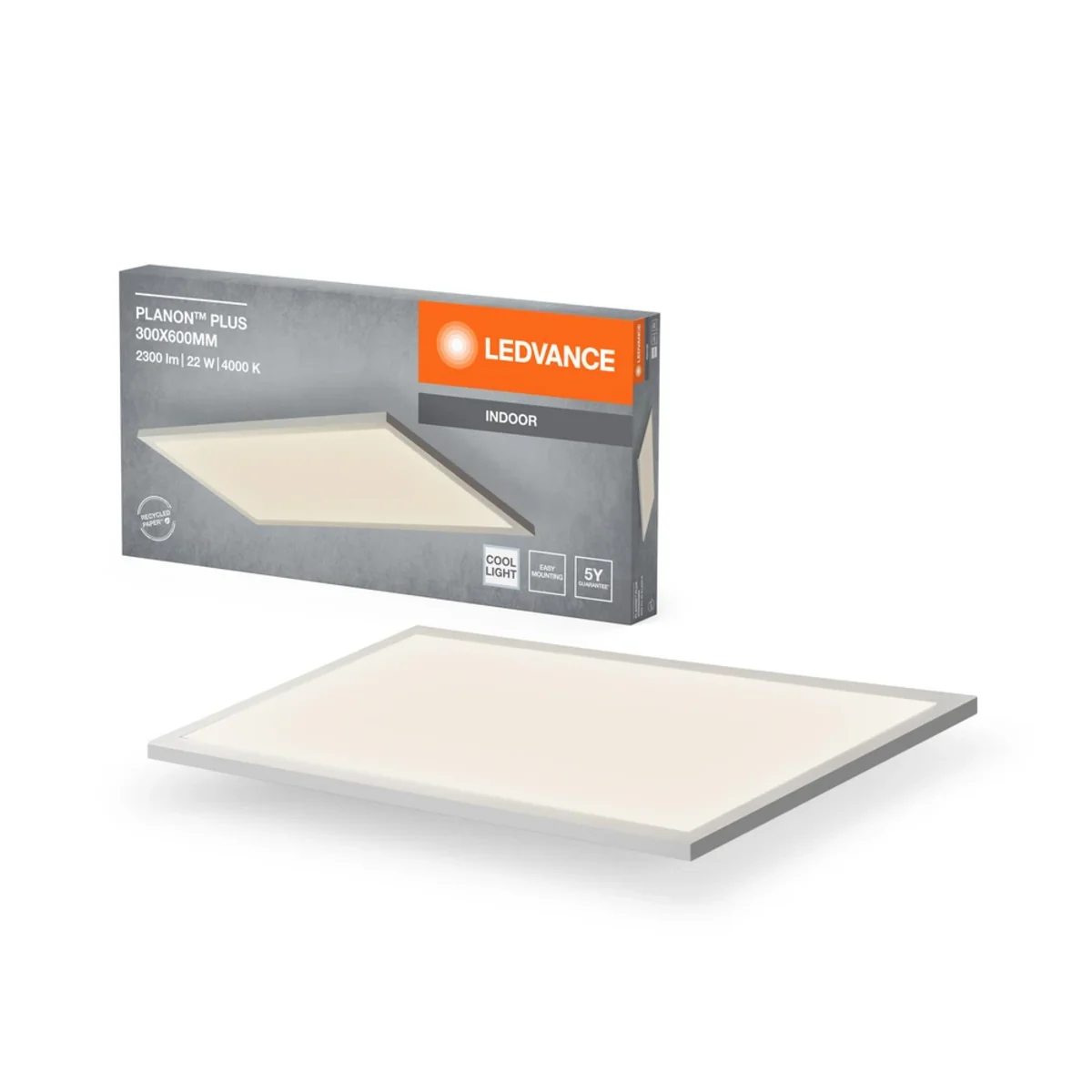

PLANON™ Plus luminaire 300x600mm 22W 840 White 4099854291166

local index:
OWE031LEDV
Catalog number:
4099854291166
EAN code:
4099854291166
PLANON™ Plus luminaire 300x600mm 22W 840 White
PLANON™ Plus luminaire 300x600mm 22W 840 White
PLANON™ Plus luminaire 300x600mm 22W 840 White
PLANON™ Plus luminaire 300x600mm 22W 840 White
PLANON™ Plus luminaire 300x600mm 22W 840 White
PLANON™ Plus luminaire 300x600mm 22W 840 White
PLANON™ Plus luminaire 300x600mm 22W 840 White
PLANON™ Plus luminaire 300x600mm 22W 840 White
PLANON™ Plus luminaire 300x600mm 22W 840 White
PLANON™ Plus luminaire 300x600mm 22W 840 White

Click on the photo to enlarge

Manufacturer: LEDVANCE
Price:
272,21 zł
gross / pcs.
(including VAT 23%)
2 weeks
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Technical data Manufacturer details Bulk packaging Files to download

Technical data

Other technical data

  • Suitable for wall mounting
    Yes
  • Suitable for ceiling mounting
    No
  • Suitable for surface mounting
    Yes
  • Suitable for clamp-mounting
    No
  • Lamp type
    LED not exchangeable
  • Suitable for number of light sources
    0
  • Housing colour
    White
  • Voltage type
    AC
  • Nominal current
    110.000 ... 110.000 mA
  • With control gear
    Yes
  • Dimmable
    No
  • Dimming 1-10 V
    No
  • Dimming DALI-2
    No
  • Dimming DSI
    No
  • Dimming mains voltage modulation
    No
  • Dimming phase cut-on
    No
  • Dimming potentiometer (integrated)
    No
  • Dimming Touch and Dim
    No
  • Dimming with push-button
    No
  • Light sharing
    Symmetric
  • Colour consistency (McAdam ellipse)
    SDCM6
  • Energy efficiency class of the light source according to EU regulation 2019/2015
    F
  • Degree of protection (IP), rear side
    IP20
  • Maks. liczba opraw na wyłącznik nadprądowy C10
    23
  • Max. number of luminaires per miniature circuit breaker C16 (MCB)
    36
  • Protection class
    II
  • Rated ambient temperature according to IEC 62722-2-1
    -20 ... +40 °C
  • With switch
    No
  • With light sensor
    No
  • With air slots
    No
  • Skuteczność świetlna oprawy
    73 ... 73 lm/W
  • Znamionowy strumień świetlny zgodnie z normą IEC 62722-2-1
    1600 ... 1600 lm
  • Colour temperature
    4000 ... 4000 K
  • Power factor
    0.9
  • Width
    295 mm
  • Length
    595 mm
  • Number of poles
    2
  • Photobiological safety according to EN 62471
    RG1
  • Luminous flux adjustable
    No
  • Operation by Bluetooth
    No
  • Compatible with Apple HomeKit
    No
  • Compatible with Amazon Alexa
    No
  • Meets min. EIA service life criterion L90 (at 50,000 hours at tq = 25°C)
    No
  • Suitable for suspended mounting
    No
  • Suitable for built-in mounting
    No
  • Suitable for light line configuration
    No
  • Suitable for workplace according to EN 12464-1
    No
  • With light source
    Yes
  • Housing material
    Aluminium
  • Type of grid
    Other
  • Nominal voltage
    220 ... 240 V
  • Type of control gear
    Electronic ballast
  • Exchangeable control gear
    No
  • Dimming 0-10 V
    No
  • Dimming DALI
    No
  • Dimming DMX
    No
  • Dimming manufacturer's proprietary system
    No
  • Dimming phase cut-off
    No
  • Dimming programmable
    No
  • Dimming RF
    No
  • Dimming Zigbee
    No
  • Light distributor
    Diffuser lens/optic/panel
  • Beam angle
    Extreme wide beam >80°
  • Light outlet
    Direct
  • Rated life time L70/B50 at 25 °C
    25000 h
  • Degree of protection (IP), front side
    IP20
  • Max. number of luminaires per miniature circuit breaker B16 (MCB)
    23
  • Impact strength
    IK02
  • Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
    No
  • Suitable for emergency lighting
    No
  • With movement sensor
    No
  • Covering of the luminaire with thermally insulating material possible
    No
  • Filament test according to IEC 60695-2-11
    650 °C - 30 s
  • Max. system power
    22 W
  • Colour of light
    White
  • Colour rendering index CRI
    80-89
  • Constant light output (CLO)
    No
  • Height/depth
    50 mm
  • Type of wiring
    Ending
  • Connection type
    Push-in clamp
  • Colour of light adjustable
    No
  • Beam angle adjustable
    No
  • Compatible with Casambi
    No
  • Compatible with Google Assistant
    No
  • IFTTT support available
    No

Manufacturer details

  • Manufacturer
    LEDVANCE GmbH
  • Address
    85748 Garching Parkring 29-33 Niemcy
  • E-mail
    InfoPL@ledvance.com

Bulk packaging

A kind of package Skrzynia Karton
Quantity 1 pcs. 4 pcs.
Weight (kg) 1,770 7,841
Volume (m3) 0,010 0,048
Width (m) 0,300 0,240
Length (m) 0,060 0,620
Depth (m) 0,610 0,330
