el12 Lighting Light fixtures Indoor luminaires Hanging office and decorative

Philips Ledinaire SM060C G2 LED ceiling panel 33W 3400; 4000lm all-in 4000K LED34_40S/840 PSU W20L120 NOC 5-year warranty 911401843787

Indeks lokalny:
OWC001FARE
Numer katalogowy:
911401843787
Kod EAN:
8720169764705
Philips Ledinaire SM060C G2 LED ceiling panel 33W 3400; 4000lm all-in 4000K LED34_40S/840 PSU W20L120 NOC 5-year warranty
Philips Ledinaire SM060C G2 LED ceiling panel 33W 3400; 4000lm all-in 4000K LED34_40S/840 PSU W20L120 NOC 5-year warranty
Philips Ledinaire SM060C G2 LED ceiling panel 33W 3400; 4000lm all-in 4000K LED34_40S/840 PSU W20L120 NOC 5-year warranty
Philips Ledinaire SM060C G2 LED ceiling panel 33W 3400; 4000lm all-in 4000K LED34_40S/840 PSU W20L120 NOC 5-year warranty
Philips Ledinaire SM060C G2 LED ceiling panel 33W 3400; 4000lm all-in 4000K LED34_40S/840 PSU W20L120 NOC 5-year warranty
Philips Ledinaire SM060C G2 LED ceiling panel 33W 3400; 4000lm all-in 4000K LED34_40S/840 PSU W20L120 NOC 5-year warranty
Philips Ledinaire SM060C G2 LED ceiling panel 33W 3400; 4000lm all-in 4000K LED34_40S/840 PSU W20L120 NOC 5-year warranty
Philips Ledinaire SM060C G2 LED ceiling panel 33W 3400; 4000lm all-in 4000K LED34_40S/840 PSU W20L120 NOC 5-year warranty
Philips Ledinaire SM060C G2 LED ceiling panel 33W 3400; 4000lm all-in 4000K LED34_40S/840 PSU W20L120 NOC 5-year warranty
Philips Ledinaire SM060C G2 LED ceiling panel 33W 3400; 4000lm all-in 4000K LED34_40S/840 PSU W20L120 NOC 5-year warranty
Philips Ledinaire SM060C G2 LED ceiling panel 33W 3400; 4000lm all-in 4000K LED34_40S/840 PSU W20L120 NOC 5-year warranty
Philips Ledinaire SM060C G2 LED ceiling panel 33W 3400; 4000lm all-in 4000K LED34_40S/840 PSU W20L120 NOC 5-year warranty
Philips Ledinaire SM060C G2 LED ceiling panel 33W 3400; 4000lm all-in 4000K LED34_40S/840 PSU W20L120 NOC 5-year warranty
Philips Ledinaire SM060C G2 LED ceiling panel 33W 3400; 4000lm all-in 4000K LED34_40S/840 PSU W20L120 NOC 5-year warranty
Philips Ledinaire SM060C G2 LED ceiling panel 33W 3400; 4000lm all-in 4000K LED34_40S/840 PSU W20L120 NOC 5-year warranty
Philips Ledinaire SM060C G2 LED ceiling panel 33W 3400; 4000lm all-in 4000K LED34_40S/840 PSU W20L120 NOC 5-year warranty
Philips Ledinaire SM060C G2 LED ceiling panel 33W 3400; 4000lm all-in 4000K LED34_40S/840 PSU W20L120 NOC 5-year warranty
Philips Ledinaire SM060C G2 LED ceiling panel 33W 3400; 4000lm all-in 4000K LED34_40S/840 PSU W20L120 NOC 5-year warranty

Kliknij zdjęcie, aby powiększyć

Cena:
321,74 zł
gross / szt.
(w tym VAT 23%)
Dostępne 44 szt.
Odbiór za 1h
Ilość szt.
(wielokrotność:
1
)
Dodaj do zapytania ofertowego
Dodaj do schowka
Drukuj
Dane techniczne Dane producenta Opakowania zbiorcze Pliki do pobrania

Dane techniczne

Pozostałe dane techniczne

  • Suitable for wall mounting
    Yes
  • Suitable for ceiling mounting
    Yes
  • Suitable for surface mounting
    Yes
  • Suitable for clamp-mounting
    Yes
  • Suitable for workplace according to EN 12464-1
    No
  • With light source
    Yes
  • Housing material
    Steel
  • Housing colour
    White
  • Type of grid
    None
  • Nominal voltage
    220 ... 240 V
  • Type of control gear
    LED operating device current-controlled
  • Exchangeable control gear
    No
  • Dimming 0-10 V
    No
  • Dimming DALI
    No
  • Dimming DMX
    No
  • Dimming manufacturer's proprietary system
    No
  • Dimming phase cut-off
    No
  • Dimming programmable
    No
  • Dimming RF
    No
  • Dimming Zigbee
    No
  • Light distributor
    Diffuser lens/optic/panel
  • Beam angle
    Open beam/diffuse
  • Light outlet
    Direct
  • Produkt wyposażony zgodnie z 2019/2020/UE
    Yes
  • Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)
    80 %
  • Failure rate at median useful life of 50,000 h at 25 °C ambient (tq)
    7.5 %
  • Degree of protection (IP), front side
    IP20
  • Max. number of luminaires per miniature circuit breaker B16 (MCB)
    60
  • Impact strength
    IK03
  • Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
    No
  • Rated ambient temperature according to IEC 62722-2-1
    25 ... 25 °C
  • System monitorowania funkcji awaryjnych
    None
  • With presence indicator
    No
  • With light sensor
    No
  • With air slots
    No
  • Skuteczność świetlna oprawy
    120 ... 120 lm/W
  • Znamionowy strumień świetlny zgodnie z normą IEC 62722-2-1
    3400 ... 4000 lm
  • Colour temperature
    4000 ... 4000 K
  • Colour rendering index CRI
    80-89
  • Stroboscope effect value SVM
    1.6

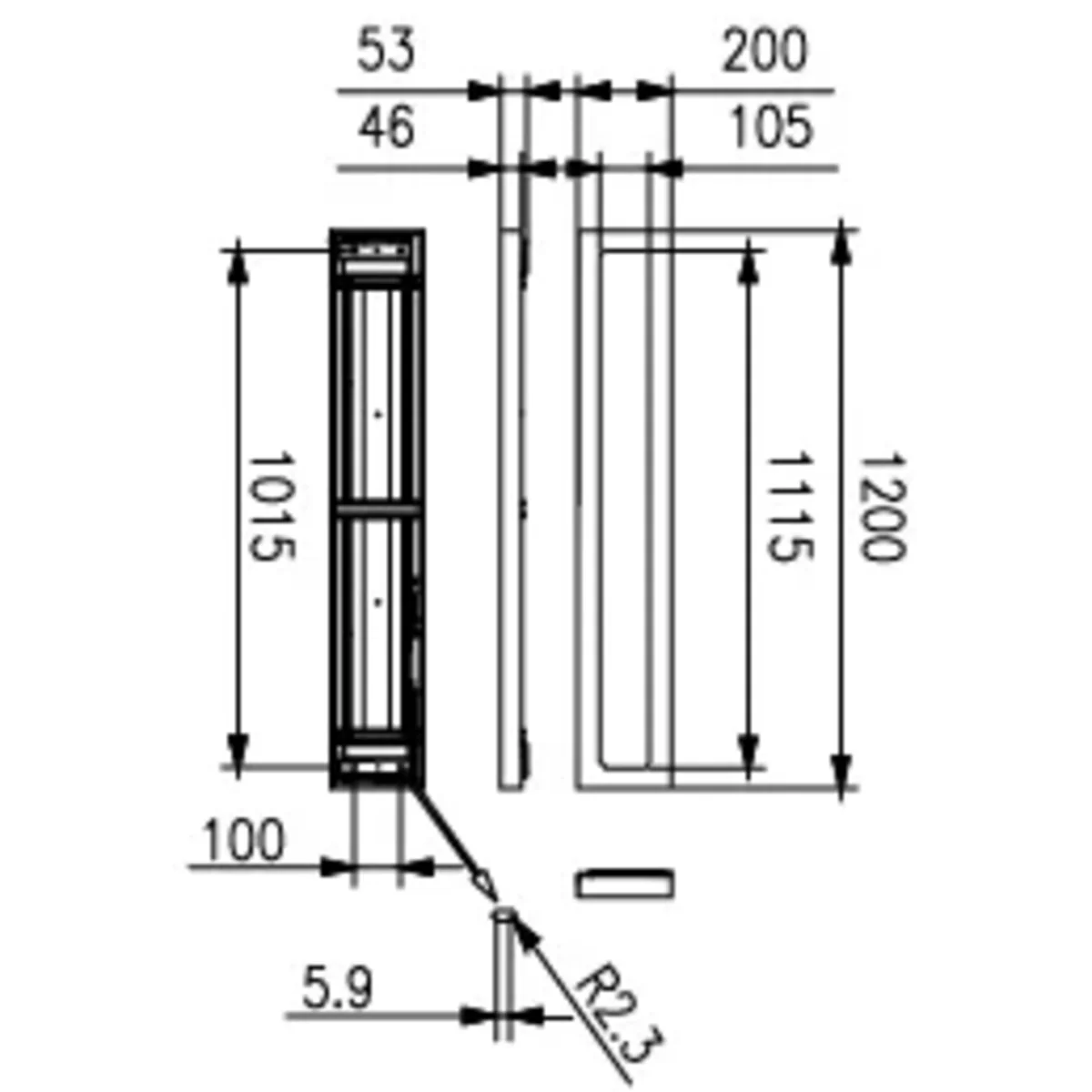

  • Width
    200 mm
  • Length
    1200 mm
  • Number of poles
    3
  • Współczynnik harmonicznych (THD)
    20 %
  • Photobiological safety according to EN 62471
    RG0
  • Unified Glare Ratio (UGR)
    25
  • Luminous flux adjustable
    Positions
  • Operation by Bluetooth
    No
  • Compatible with Apple HomeKit
    No
  • Compatible with Amazon Alexa
    No
  • Kuloodporność zgodnie z DIN 18032-3
    No
  • Suitable for suspended mounting
    Yes
  • Suitable for built-in mounting
    No
  • Suitable for light line configuration
    No
  • With mounting material
    Yes
  • Lamp type
    LED not exchangeable
  • Lamp holder
    Other
  • Surface protection housing
    Powder coating
  • Material cover
    Plastic, opal
  • Voltage type
    AC
  • Nominal current
    135 ... 160 mA
  • With control gear
    Yes
  • Dimmable
    No
  • Dimming 1-10 V
    No
  • Dimming DALI-2
    No
  • Dimming DSI
    No
  • Dimming mains voltage modulation
    No
  • Dimming phase cut-on
    No
  • Dimming potentiometer (integrated)
    No
  • Dimming Touch and Dim
    No
  • Dimming with push-button
    No
  • Light sharing
    Symmetric
  • Colour consistency (McAdam ellipse)
    SDCM5
  • Energy efficiency class of the light source according to EU regulation 2019/2015
    D
  • Rated life time L70/B50 at 25 °C
    75000 h
  • Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq)
    70 %
  • Failure rate at median useful life of 75,000 h at 25 °C ambient (tq)
    10 %
  • Maks. liczba opraw na wyłącznik nadprądowy C10
    45
  • Max. number of luminaires per miniature circuit breaker C16 (MCB)
    70
  • Protection class
    II
  • System zasilania awaryjnego
    None
  • Suitable for emergency lighting
    No
  • With switch
    No
  • With movement sensor
    No
  • Covering of the luminaire with thermally insulating material possible
    No
  • Filament test according to IEC 60695-2-11
    650 °C - 30 s
  • Max. system power
    33 W
  • Colour of light
    White
  • Flickering value Pst LM
    1
  • Power factor
    0.9
  • Constant light output (CLO)
    No
  • Height/depth
    53 mm
  • Type of wiring
    Ending
  • Conductor cross section
    0.75 mm²
  • Connection type
    Push-in clamp
  • Connectable conductor cross section
    0.75 ... 1.5 mm²
  • Colour of light adjustable
    No
  • Beam angle adjustable
    No
  • Compatible with Casambi
    No
  • Compatible with Google Assistant
    No
  • IFTTT support available
    No
  • Meets min. EIA service life criterion L90 (at 50,000 hours at tq = 25°C)
    No

Dane producenta

Opakowania zbiorcze

Rodzaj opakowania Paczka Karton Paleta
Ilość 1 szt. 4 szt. 48 szt.
Waga (kg) 3,603 14,410 197,920
Szerokość (m) 0,205 0,253 0,800
Długość (m) 1,205 1,230 1,230
Głębokość (m) 0,057 0,240 1,110
