el12 Lighting Light fixtures Indoor luminaires Surface-mounted office and decorative

Philips Ledinaire RC065B G5 LED Panel 28W 3400lm 4000K 34S/840 PSU W60L60 NOC CFW 5-Year Warranty 911401875485

Místní index:
OWE055FARE
Katalogové číslo.:
911401875485
EAN kód:
8720169516540
Philips Ledinaire RC065B G5 LED Panel 28W 3400lm 4000K 34S/840 PSU W60L60 NOC CFW 5-Year Warranty
Philips Ledinaire RC065B G5 LED Panel 28W 3400lm 4000K 34S/840 PSU W60L60 NOC CFW 5-Year Warranty
Philips Ledinaire RC065B G5 LED Panel 28W 3400lm 4000K 34S/840 PSU W60L60 NOC CFW 5-Year Warranty
Philips Ledinaire RC065B G5 LED Panel 28W 3400lm 4000K 34S/840 PSU W60L60 NOC CFW 5-Year Warranty
Philips Ledinaire RC065B G5 LED Panel 28W 3400lm 4000K 34S/840 PSU W60L60 NOC CFW 5-Year Warranty
Philips Ledinaire RC065B G5 LED Panel 28W 3400lm 4000K 34S/840 PSU W60L60 NOC CFW 5-Year Warranty
Philips Ledinaire RC065B G5 LED Panel 28W 3400lm 4000K 34S/840 PSU W60L60 NOC CFW 5-Year Warranty
Philips Ledinaire RC065B G5 LED Panel 28W 3400lm 4000K 34S/840 PSU W60L60 NOC CFW 5-Year Warranty
Philips Ledinaire RC065B G5 LED Panel 28W 3400lm 4000K 34S/840 PSU W60L60 NOC CFW 5-Year Warranty
Philips Ledinaire RC065B G5 LED Panel 28W 3400lm 4000K 34S/840 PSU W60L60 NOC CFW 5-Year Warranty
Philips Ledinaire RC065B G5 LED Panel 28W 3400lm 4000K 34S/840 PSU W60L60 NOC CFW 5-Year Warranty
Philips Ledinaire RC065B G5 LED Panel 28W 3400lm 4000K 34S/840 PSU W60L60 NOC CFW 5-Year Warranty
Philips Ledinaire RC065B G5 LED Panel 28W 3400lm 4000K 34S/840 PSU W60L60 NOC CFW 5-Year Warranty
Philips Ledinaire RC065B G5 LED Panel 28W 3400lm 4000K 34S/840 PSU W60L60 NOC CFW 5-Year Warranty
Philips Ledinaire RC065B G5 LED Panel 28W 3400lm 4000K 34S/840 PSU W60L60 NOC CFW 5-Year Warranty
Philips Ledinaire RC065B G5 LED Panel 28W 3400lm 4000K 34S/840 PSU W60L60 NOC CFW 5-Year Warranty
Philips Ledinaire RC065B G5 LED Panel 28W 3400lm 4000K 34S/840 PSU W60L60 NOC CFW 5-Year Warranty
Philips Ledinaire RC065B G5 LED Panel 28W 3400lm 4000K 34S/840 PSU W60L60 NOC CFW 5-Year Warranty

Kliknutím na obrázek jej zvětšíte

Cena:
146,79 zł
gross / kusů.
(včetně DPH 23%)
2 týdnů
Na zakázku
Množství kusů.
(vícenásobné:
1
)
Přidat do žádosti o cenovou nabídku
Přidat do schránky
Vytisknout
Technické údaje Podrobnosti o výrobci Velkoobjemová balení Soubory ke stažení

Technické údaje

Další technické údaje

  • Suitable for wall mounting
    No
  • Suitable for ceiling mounting
    Yes
  • Suitable for surface mounting
    Yes
  • Suitable for clamp-mounting
    Yes
  • Suitable for workplace according to EN 12464-1
    No
  • With light source
    Yes
  • Housing material
    Steel
  • Housing colour
    White
  • Type of grid
    None
  • Nominal voltage
    220 ... 240 V
  • Type of control gear
    LED operating device current-controlled
  • Exchangeable control gear
    No
  • Dimming 0-10 V
    No
  • Dimming DALI
    No
  • Dimming DMX
    No
  • Dimming manufacturer's proprietary system
    No
  • Dimming phase cut-off
    No
  • Dimming programmable
    No
  • Dimming RF
    No
  • Dimming Zigbee
    No
  • Light distributor
    Diffuser lens/optic/panel
  • Beam angle
    Open beam/diffuse
  • Light outlet
    Direct
  • Produkt wyposażony zgodnie z 2019/2020/UE
    Yes
  • Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)
    80 %
  • Failure rate at median useful life of 50,000 h at 25 °C ambient (tq)
    7.5 %
  • Degree of protection (IP), front side
    IP40
  • Max. number of luminaires per miniature circuit breaker B16 (MCB)
    23
  • Impact strength
    IK02
  • Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
    No
  • Rated ambient temperature according to IEC 62722-2-1
    25 ... 25 °C
  • System monitorowania funkcji awaryjnych
    None
  • With presence indicator
    No
  • With light sensor
    No
  • With air slots
    No
  • Skuteczność świetlna oprawy
    120 ... 120 lm/W
  • Znamionowy strumień świetlny zgodnie z normą IEC 62722-2-1
    3400 ... 3400 lm
  • Colour temperature
    4000 ... 4000 K
  • Colour rendering index CRI
    80-89
  • Stroboscope effect value SVM
    0.4

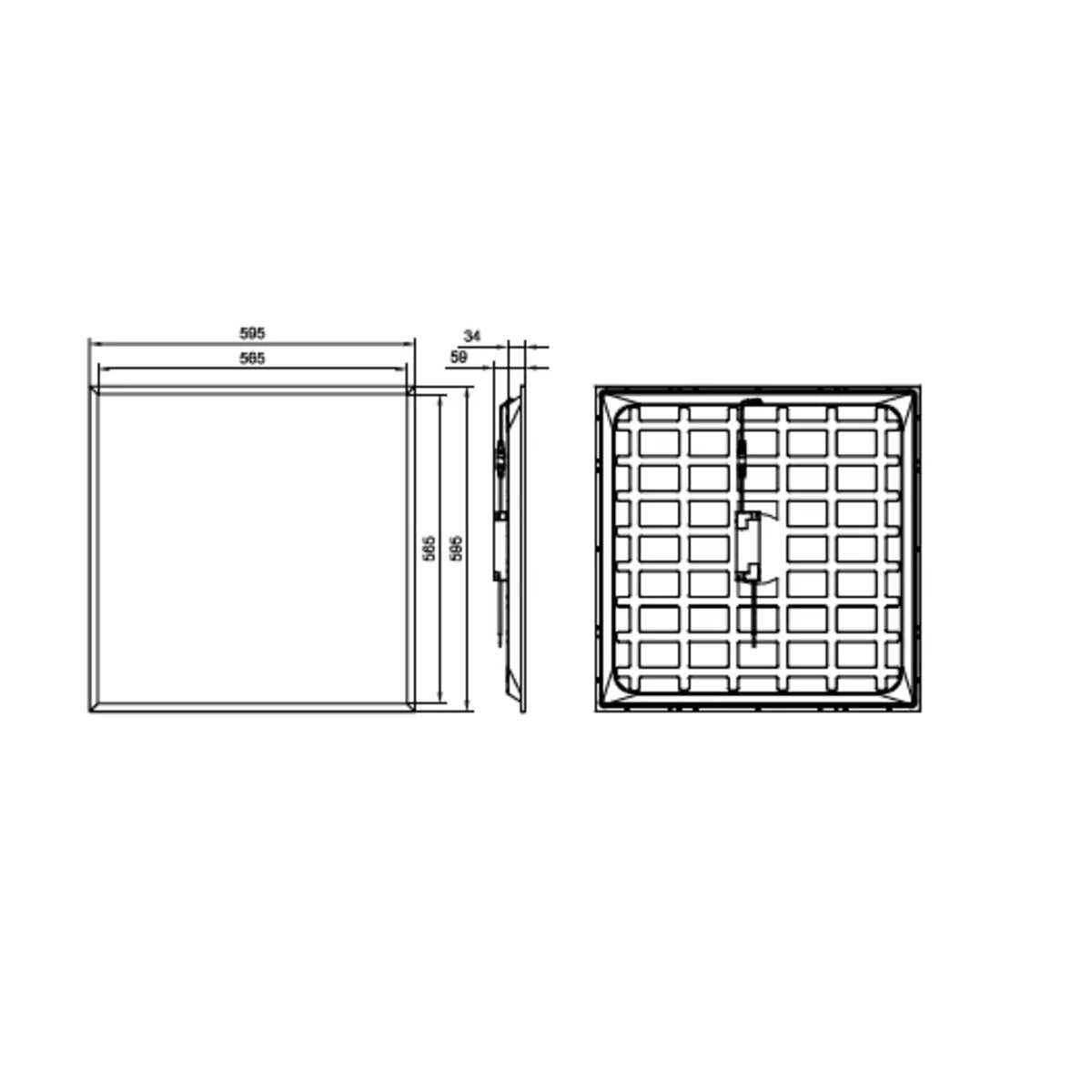

  • Width
    595 mm
  • Length
    595 mm
  • Built-in width
    595 mm
  • Type of wiring
    Ending
  • Conductor cross section
    0.75 mm²
  • Connection type
    Cable
  • Connectable conductor cross section
    0.75 ... 0.75 mm²
  • Colour of light adjustable
    No
  • Beam angle adjustable
    No
  • Compatible with Casambi
    No
  • Compatible with Google Assistant
    No
  • IFTTT support available
    No
  • Meets min. EIA service life criterion L90 (at 50,000 hours at tq = 25°C)
    No
  • Suitable for suspended mounting
    Yes
  • Suitable for built-in mounting
    Yes
  • Suitable for light line configuration
    No
  • With mounting material
    Yes
  • Lamp type
    LED not exchangeable
  • Lamp holder
    Other
  • Surface protection housing
    Powder coating
  • Material cover
    Plastic, opal
  • Voltage type
    AC
  • Nominal current
    160 ... 160 mA
  • With control gear
    Yes
  • Dimmable
    No
  • Dimming 1-10 V
    No
  • Dimming DALI-2
    No
  • Dimming DSI
    No
  • Dimming mains voltage modulation
    No
  • Dimming phase cut-on
    No
  • Dimming potentiometer (integrated)
    No
  • Dimming Touch and Dim
    No
  • Dimming with push-button
    No
  • Light sharing
    Symmetric
  • Colour consistency (McAdam ellipse)
    SDCM5
  • Energy efficiency class of the light source according to EU regulation 2019/2015
    D
  • Rated life time L70/B50 at 25 °C
    75000 h
  • Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq)
    70 %
  • Degree of protection (IP), rear side
    IP20
  • Maks. liczba opraw na wyłącznik nadprądowy C10
    17
  • Max. number of luminaires per miniature circuit breaker C16 (MCB)
    28
  • Protection class
    II
  • System zasilania awaryjnego
    None
  • Suitable for emergency lighting
    No
  • With switch
    No
  • With movement sensor
    No
  • Covering of the luminaire with thermally insulating material possible
    No
  • Filament test according to IEC 60695-2-11
    650 °C - 30 s
  • Max. system power
    28 W
  • Colour of light
    White
  • Flickering value Pst LM
    1
  • Power factor
    0.9
  • Constant light output (CLO)
    No
  • Height/depth
    59 mm
  • Built-in length
    595 mm
  • Built-in height/depth
    120 mm
  • Number of poles
    2
  • Współczynnik harmonicznych (THD)
    20 %
  • Photobiological safety according to EN 62471
    RG0
  • Unified Glare Ratio (UGR)
    22
  • Luminous flux adjustable
    No
  • Operation by Bluetooth
    No
  • Compatible with Apple HomeKit
    No
  • Compatible with Amazon Alexa
    No
  • Kuloodporność zgodnie z DIN 18032-3
    No

Podrobnosti o výrobci

Velkoobjemová balení

Typ obalu Paczka Karton Paleta Tacka
Množství 1 kusů. 4 kusů. 24 kusů. 24 kusů.
Hmotnost (kg) 2,095 8,380 75,280 50,280
Šířka (m) 0,043 0,195 0,890 0,890
Délka (m) 0,635 0,650 1,200 1,200
Hloubka (m) 0,610 0,630 0,780 0,630
