el12 Lighting Light fixtures Indoor luminaires Surface-mounted office and decorative PANEL VALUE 600 LED luminaire 36W 3600lm IP40 4000K NW 595mm square white

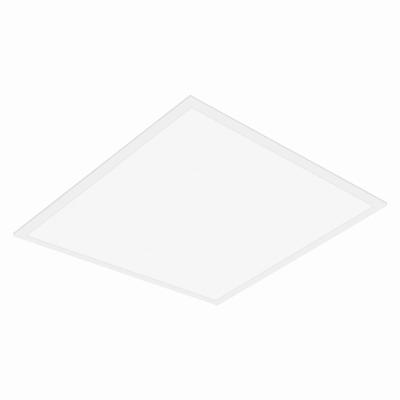

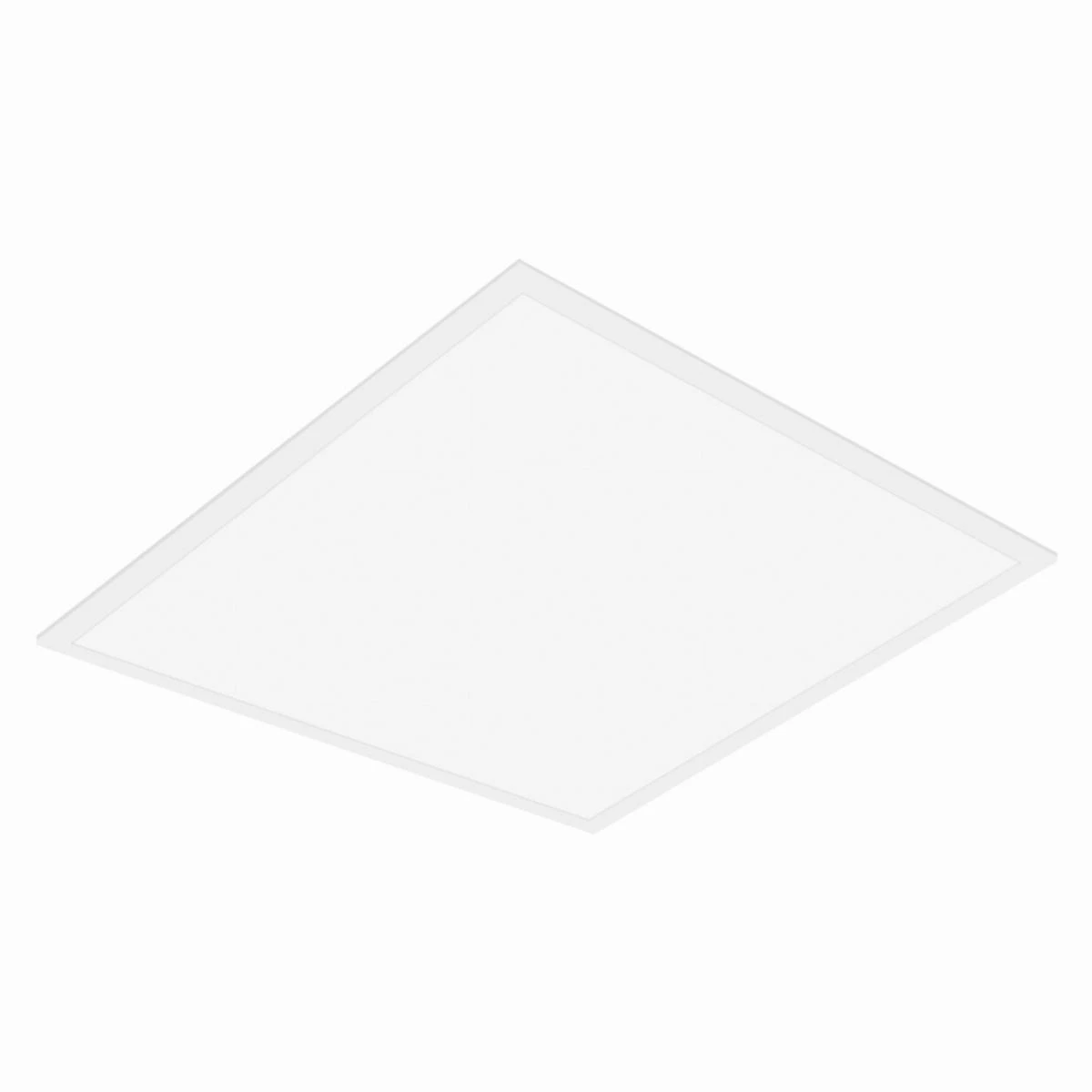

PANEL VALUE 600 LED luminaire 36W 3600lm IP40 4000K NW 595mm square white

Click on the photo to enlarge

PANEL VALUE 600 LED luminaire 36W 3600lm IP40 4000K NW 595mm square white
LEDVANCE

PANEL VALUE 600 LED luminaire 36W 3600lm IP40 4000K NW 595mm square white 4058075392380

local index:
OWE237LEDV
Catalog No:
4058075392380
EAN code:
4058075392380
Price:
41,22 €
gross / pcs.
including VAT 23%
Availability:
Lack
Delivery:
From 3,45 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details
Go to section:
Product description Technical data

Product description

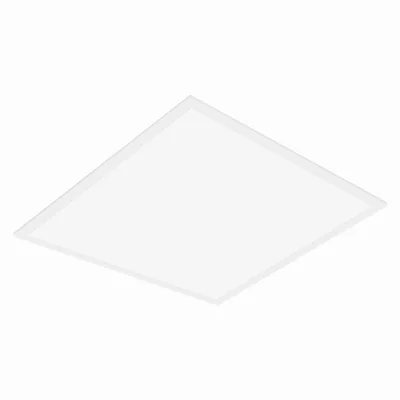

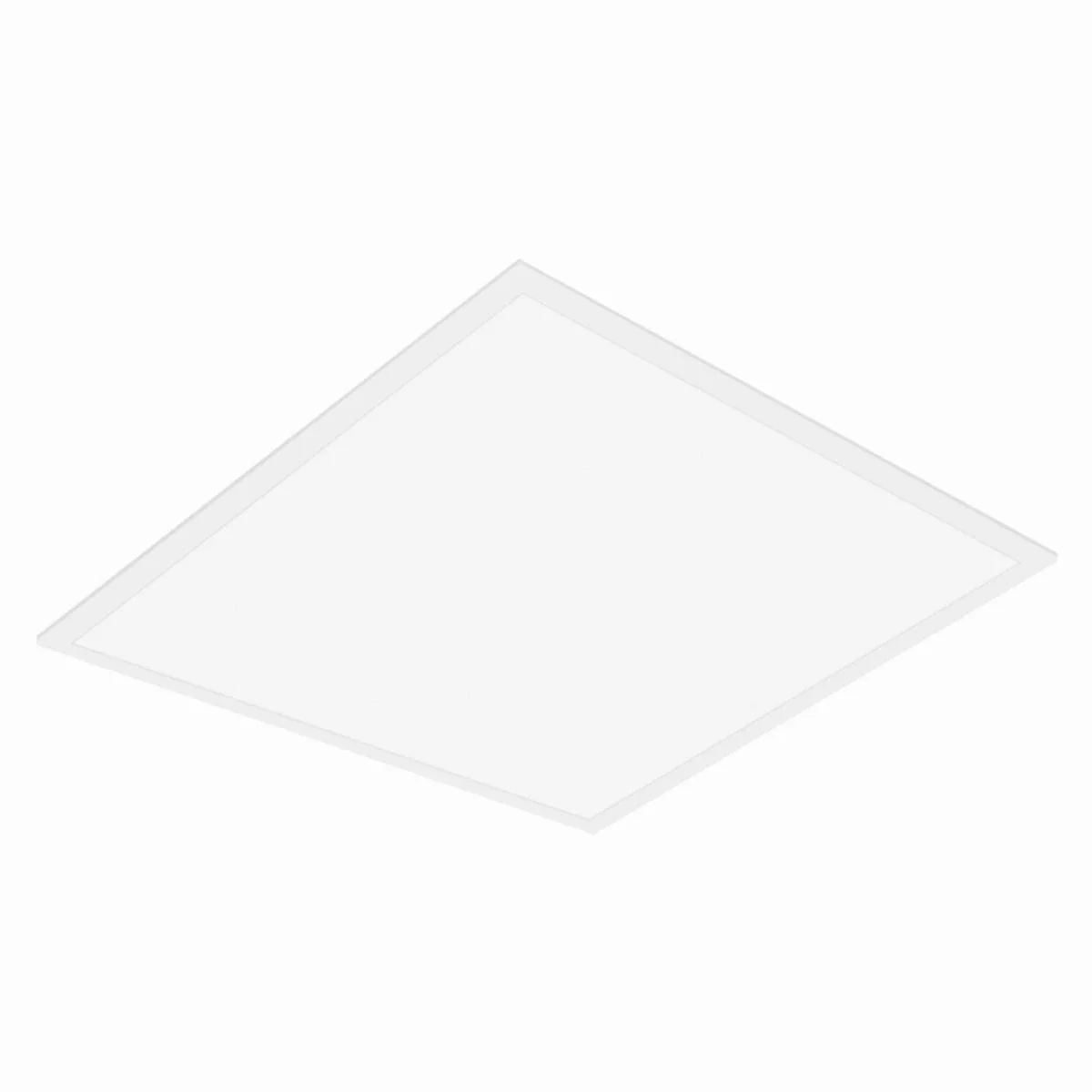

Square panel luminaire, from the PANEL VALUE 600 series.

Product benefits

  • Lamps – low price, high quality
  • Low light flicker thanks to special electronic ballast
  • Energy saving thanks to high luminous efficiency of the system: up to 100 lm/W
  • External power supply increases versatility and ensures easy installation
  • Available versions with EUZ DALI

Area of application

  • Direct replacement for lightsó recessed luminaires

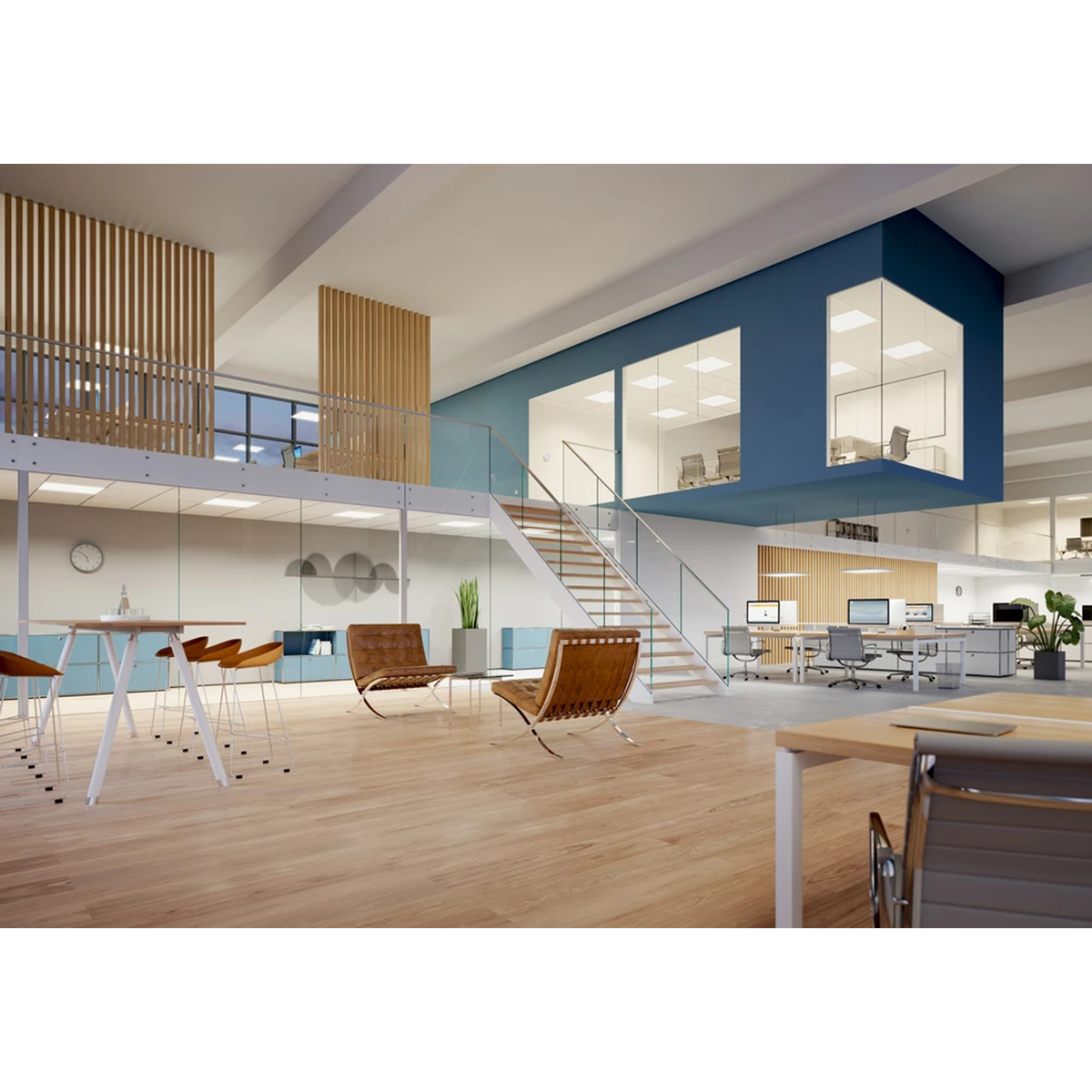

  • Offices, conference rooms
  • Reception desks, lobbies, corridors, elevators
  • Suitable ceiling recessed luminaires, module 600 x 600 mm

Equipment / Accessories

  • Accessories are available for several types of mounting
  • External ballasts included
  • Security brackets included
Print the product sheet Report an error

Technical data

  • Light color [K]
    3500-4800 (natural)

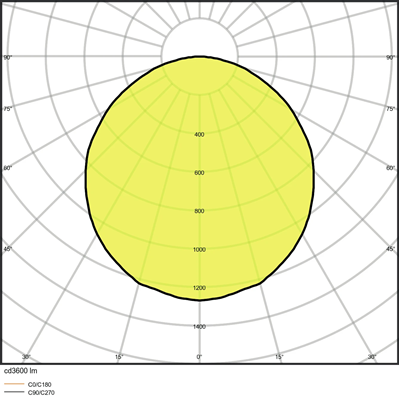

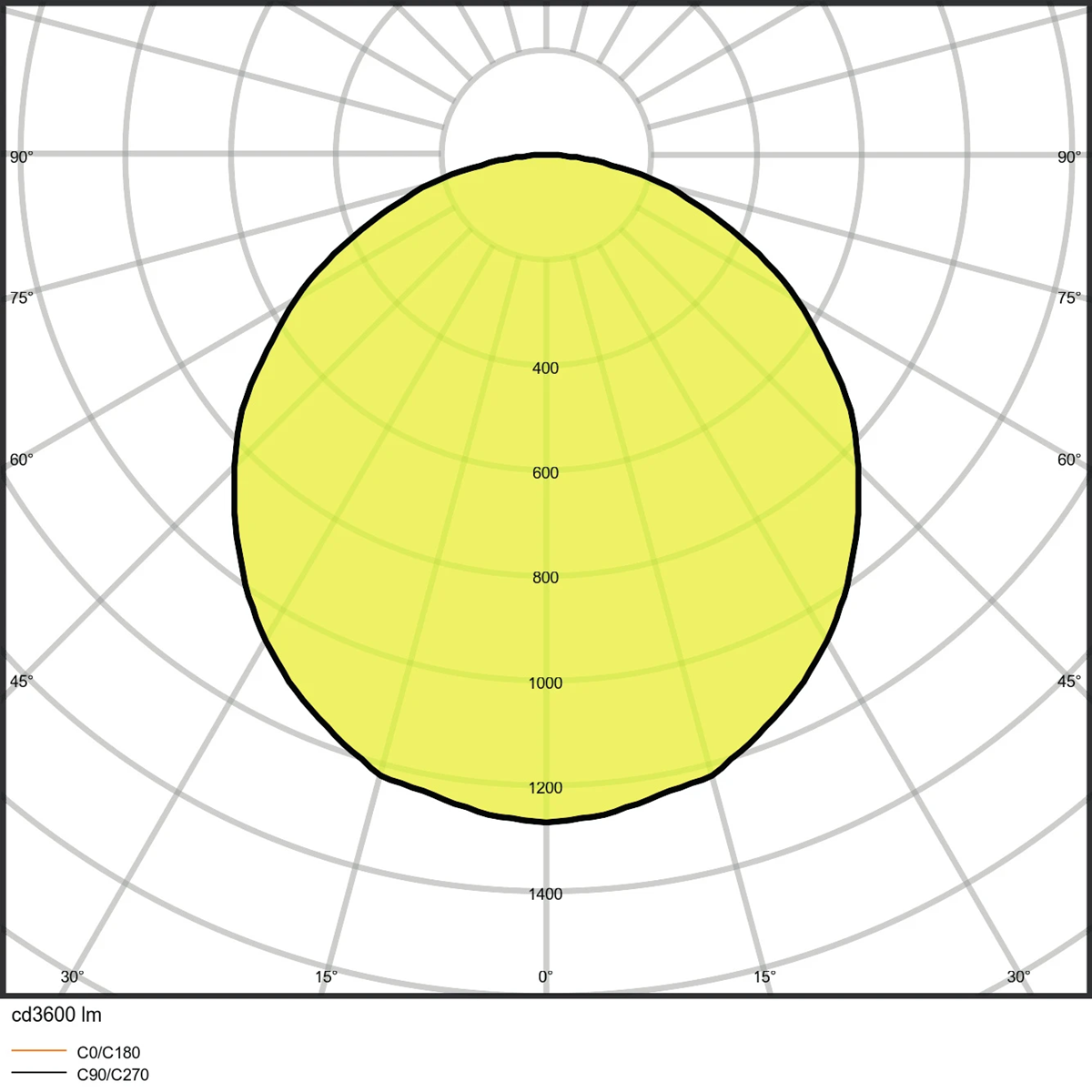

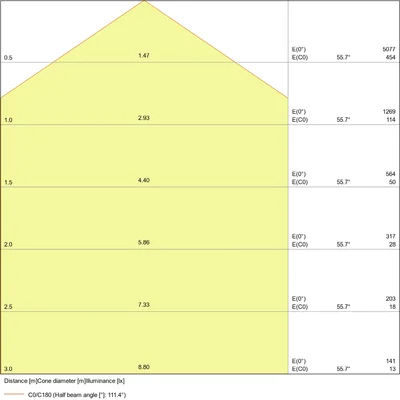

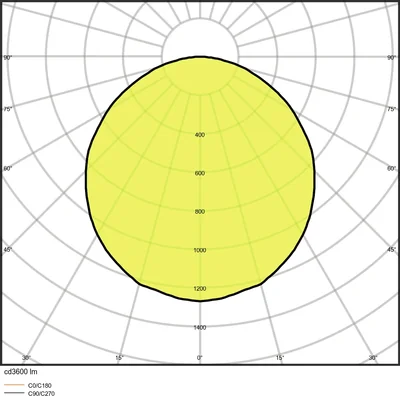

  • beam angle [°]
    120
  • Color
    White
  • Power [W]
    36
  • Rated voltage [V]
    230
  • Family
    PANEL VALUE 600
  • Level of security
    IP40

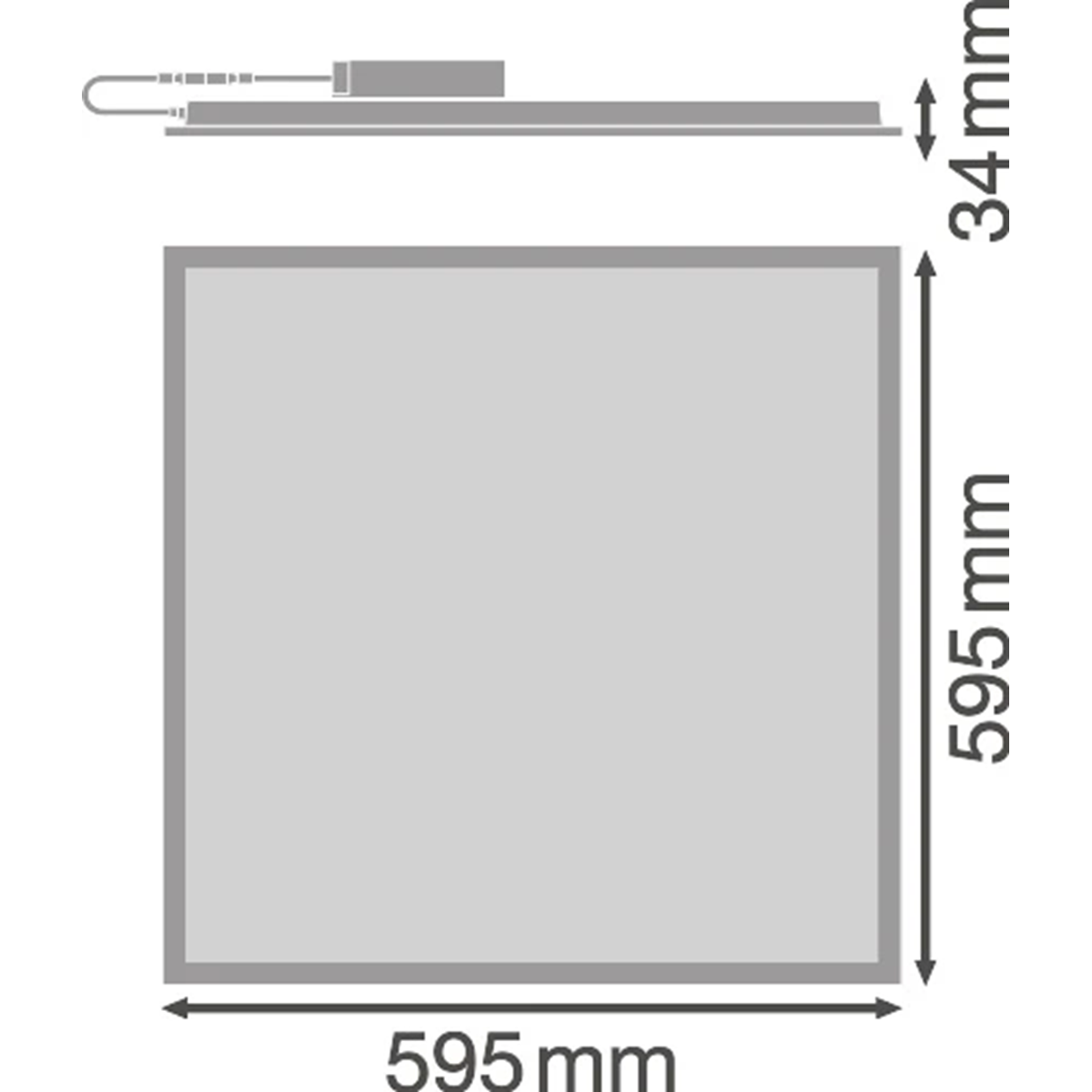

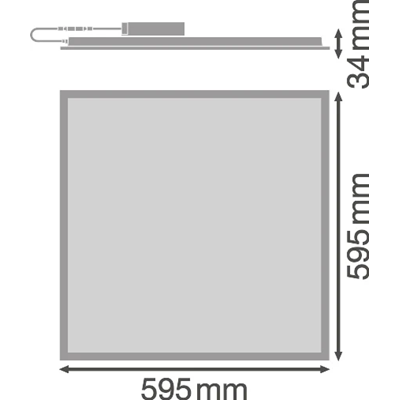

  • Width [mm]
    595
  • Height [mm]
    35
  • Degree of mechanical protection
    IK02
  • Color Temperature [K]
    4000
  • Light-emitting surface material
    Polystyrene
  • Length [mm]
    595
  • Protection class
    II
  • Housing material
    Aluminum
  • Installation
    Surface-mounted
  • Initial starting current [A]
    10.4
  • Luminous efficiency [lm/W]
    100
  • luminous flux [lm]
    3600
  • Durability [h]
    50000
  • Electrical endurance (number of cycles)
    25000
  • Power factor [λ]
    ≥0.90
  • cri (ra)
    >80

Other technical data

  • Suitable for wall mounting
    yes
  • Suitable for ceiling mounting
    yes
  • Suitable for surface mounting
    no
  • Suitable for workplace according to EN 12464-1
    no
  • With light source
    yes
  • Housing colour
    White
  • Type of grid
    Matt
  • Nominal voltage
    220 ... 240 V
  • Type of control gear
    Electronic ballast
  • Dimming 0-10 V
    no
  • Dimming DALI
    no
  • Dimming DSI
    no
  • Ściemniacz GPRS
    no
  • Dimming manufacturer's proprietary system
    no
  • Dimming phase cut-off
    no
  • Dimming programmable
    no
  • Dimming Sine Wave Reduction
    no
  • Dimming Zigbee
    no
  • No dim function
    yes

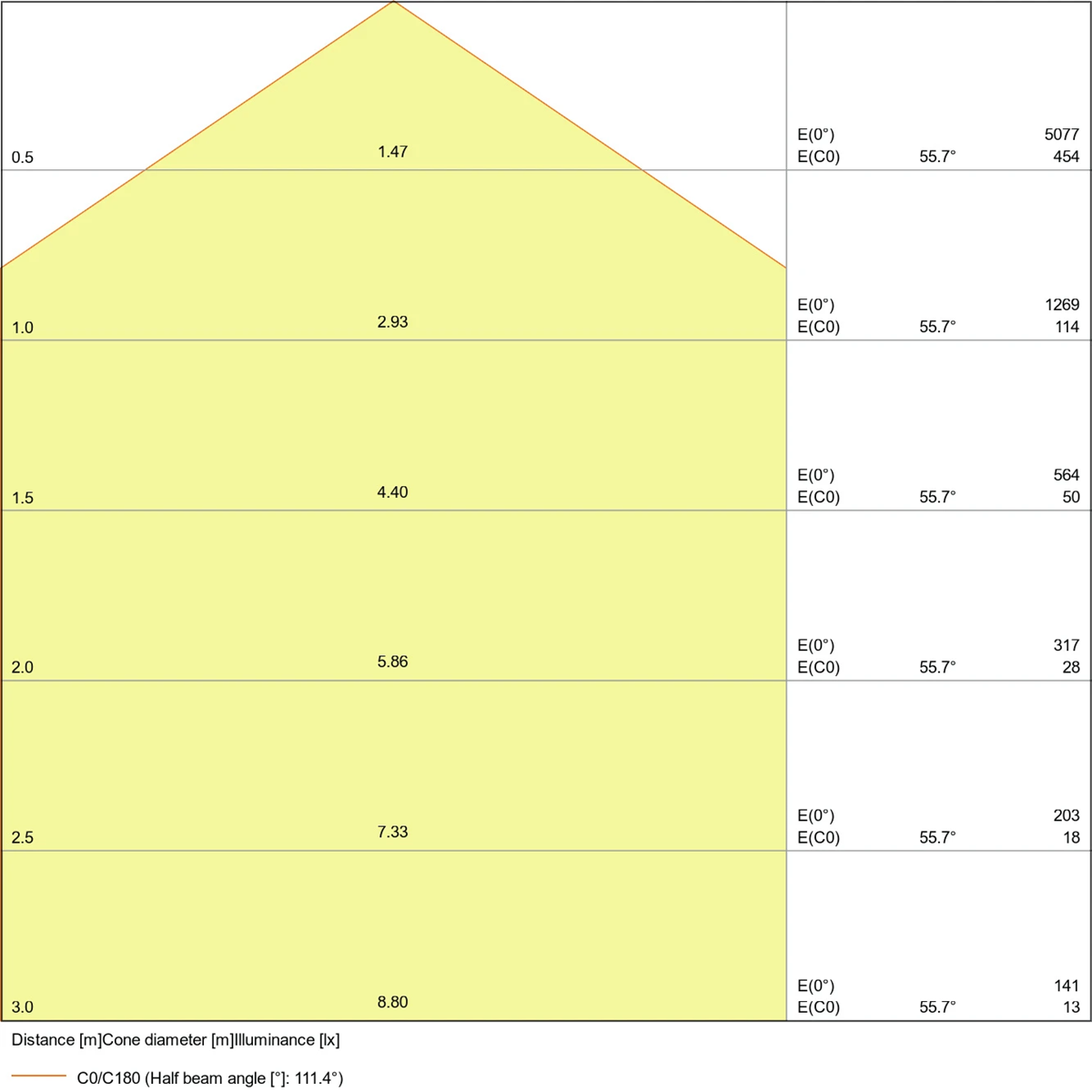

  • Beam angle
    Extreme wide beam >80°
  • Klasa efektywności energetycznej zamontowanego źródła światła
    A++, A+, A (LED)
  • Rated life time L70/B50 at 25 °C
    50000 h
  • Żywotność znamionowa L80/B50 przy 25 °C
    50000 h
  • Żywotność znamionowa L90/B50 przy 25 °C
    50000 h
  • Impact strength
    IK02
  • Suitable for emergency lighting
    yes
  • With light sensor
    no
  • With air slots
    no
  • Max. system power
    36.00 W
  • Colour of light
    White
  • Colour rendering index CRI
    80-89
  • Power factor
    0.90
  • Height/depth
    35.0 mm
  • Built-in length
    580.0 mm
  • Built-in height/depth
    50.0 mm
  • Number of poles
    2
  • Suitable for suspended mounting
    yes
  • Suitable for built-in mounting
    yes
  • Suitable for light line configuration
    no
  • Lamp type
    LED not exchangeable
  • Housing material
    Aluminium
  • Material cover
    Plastic, opal
  • Voltage type
    AC
  • Prąd znamionowy LED przy zasilaniu prądem stałym
    170 ... 170 mA
  • With control gear
    yes
  • Dimming 1-10 V
    no
  • Dimming DMX
    no
  • Dimming potentiometer (integrated)
    no
  • Dimming LineSwitch
    no
  • Dimming mains voltage modulation
    no
  • Dimming phase cut-on
    no
  • Dimming RF
    no
  • Dimming Touch and Dim
    no
  • Dimming with push-button
    no
  • Light distributor
    Diffuser lens/optic/panel
  • Light outlet
    Direct
  • Żywotność znamionowa L70/B10 przy 25 °C
    50000 h
  • Rated life time L80/B10 at 25 °C
    50000 h
  • Żywotność znamionowa L90/B10 przy 25°C
    30000 h
  • Degree of protection (IP)
    IP40
  • Protection class
    II
  • With movement sensor
    no
  • Covering of the luminaire with thermally insulating material possible
    no
  • Filament test according to IEC 60695-2-11
    650 °C - 30 s
  • Rated luminous flux according to IEC 62722-2-1
    3600 lm
  • Colour temperature
    4000 ... 4000 K
  • Luminaire efficacy
    100 lm/W
  • Width
    595.0 mm
  • Length
    595.0 mm
  • Built-in width
    580.0 mm
  • Type of wiring
    Ending
