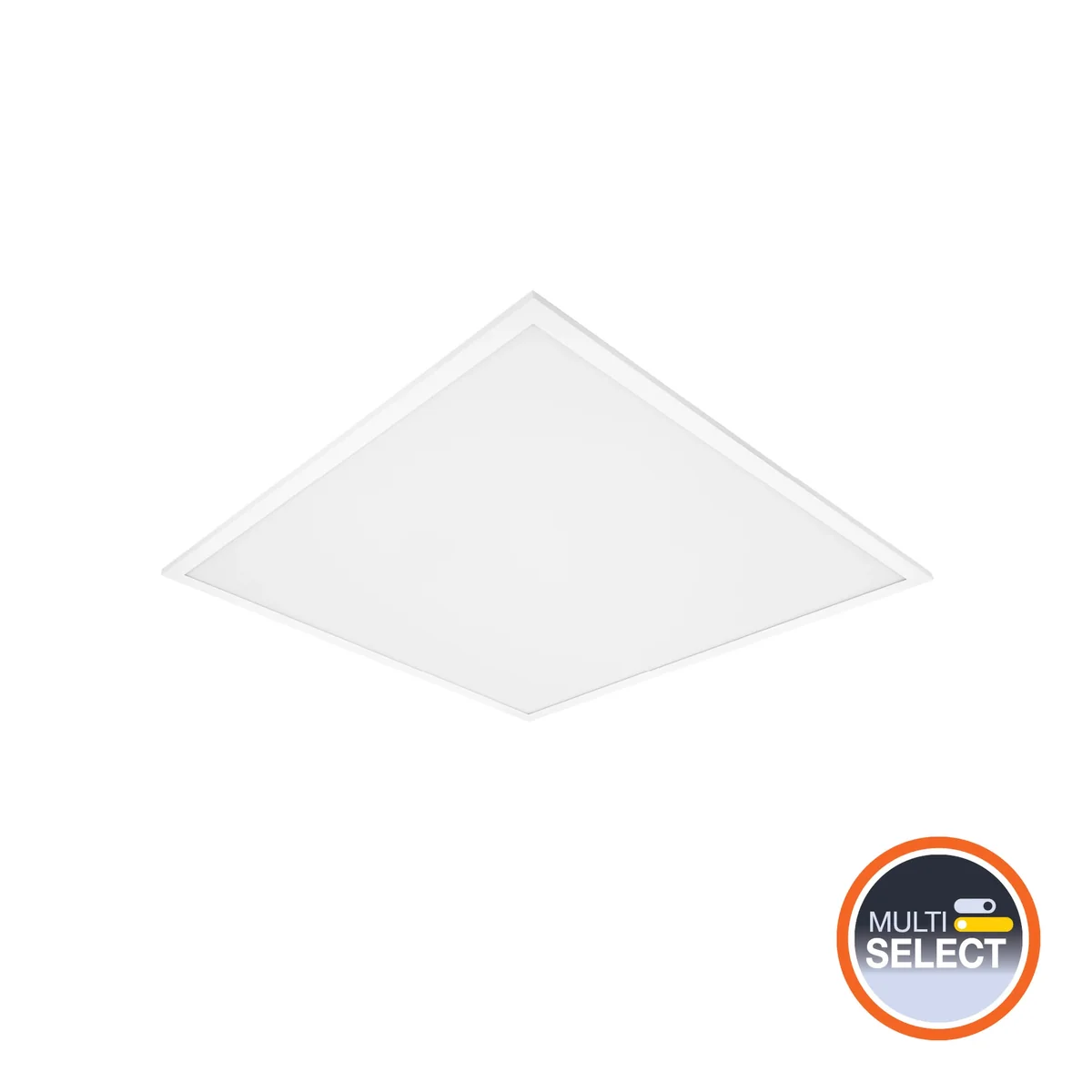

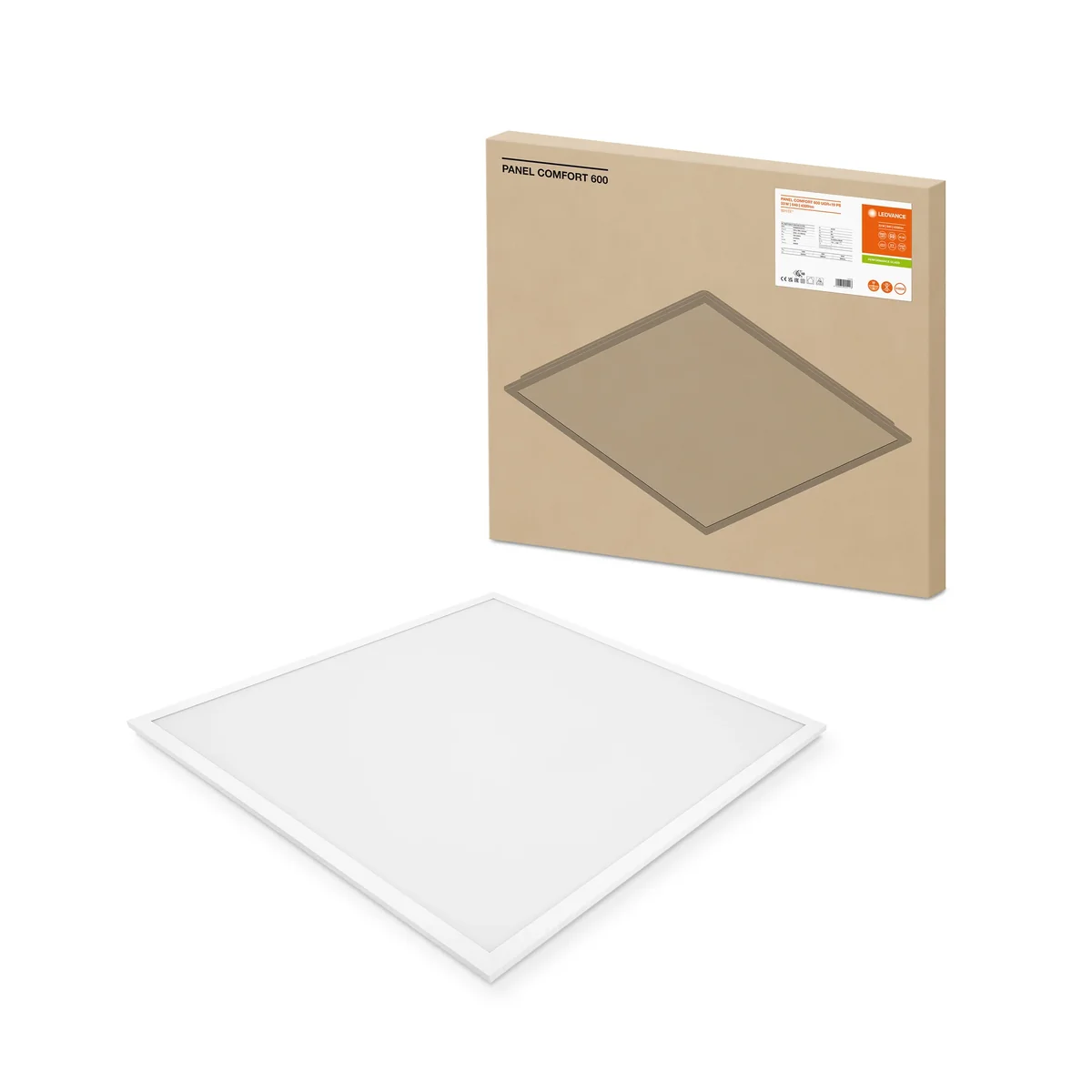

PANEL COMFORT 600 P 33W 840 U19 PS luminaire 4099854015113

Índice local:
OWG024LEDV
Número de catálogo:
4099854015113
Código EAN:
4099854015113
Fabricante: LEDVANCE
Precio:
601,97 zł
gross / uds.
(IVA incluido 23%)
2 semanas
Por encargo
Cantidad uds.
(múltiple:
1
)
Añadir a solicitud de presupuesto
Añadir al portapapeles
Imprimir

Datos técnicos

Otros datos técnicos

  • Suitable for wall mounting
    No
  • Suitable for ceiling mounting
    Yes
  • Suitable for surface mounting
    Yes
  • Suitable for clamp-mounting
    No
  • With light source
    Yes
  • Surface protection housing
    Powder coating
  • Type of grid
    High-gloss
  • Nominal voltage
    220 ... 240 V
  • With control gear
    Yes
  • Dimmable
    No
  • Dimming 1-10 V
    No
  • Dimming DALI-2
    No
  • Dimming DSI
    No
  • Dimming mains voltage modulation
    No
  • Dimming phase cut-on
    No
  • Dimming potentiometer (integrated)
    No
  • Dimming Touch and Dim
    No
  • Dimming with push-button
    No
  • Light sharing
    Symmetric
  • Colour consistency (McAdam ellipse)
    SDCM3
  • Energy efficiency class of the light source according to EU regulation 2019/2015
    D
  • Degree of protection (IP), rear side
    IP20
  • Maks. liczba opraw na wyłącznik nadprądowy C10
    15
  • Max. number of luminaires per miniature circuit breaker C16 (MCB)
    24
  • Protection class
    II
  • Rated ambient temperature according to IEC 62722-2-1
    -10 ... 50 °C
  • With switch
    No
  • With light sensor
    No
  • With air slots
    No
  • Skuteczność świetlna oprawy
    130 ... 130 lm/W
  • Znamionowy strumień świetlny zgodnie z normą IEC 62722-2-1
    3640 ... 4320 lm
  • Colour temperature
    4000 ... 4000 K
  • Power factor
    0.9
  • Width
    595 mm
  • Length
    595 mm
  • Built-in width
    575 mm

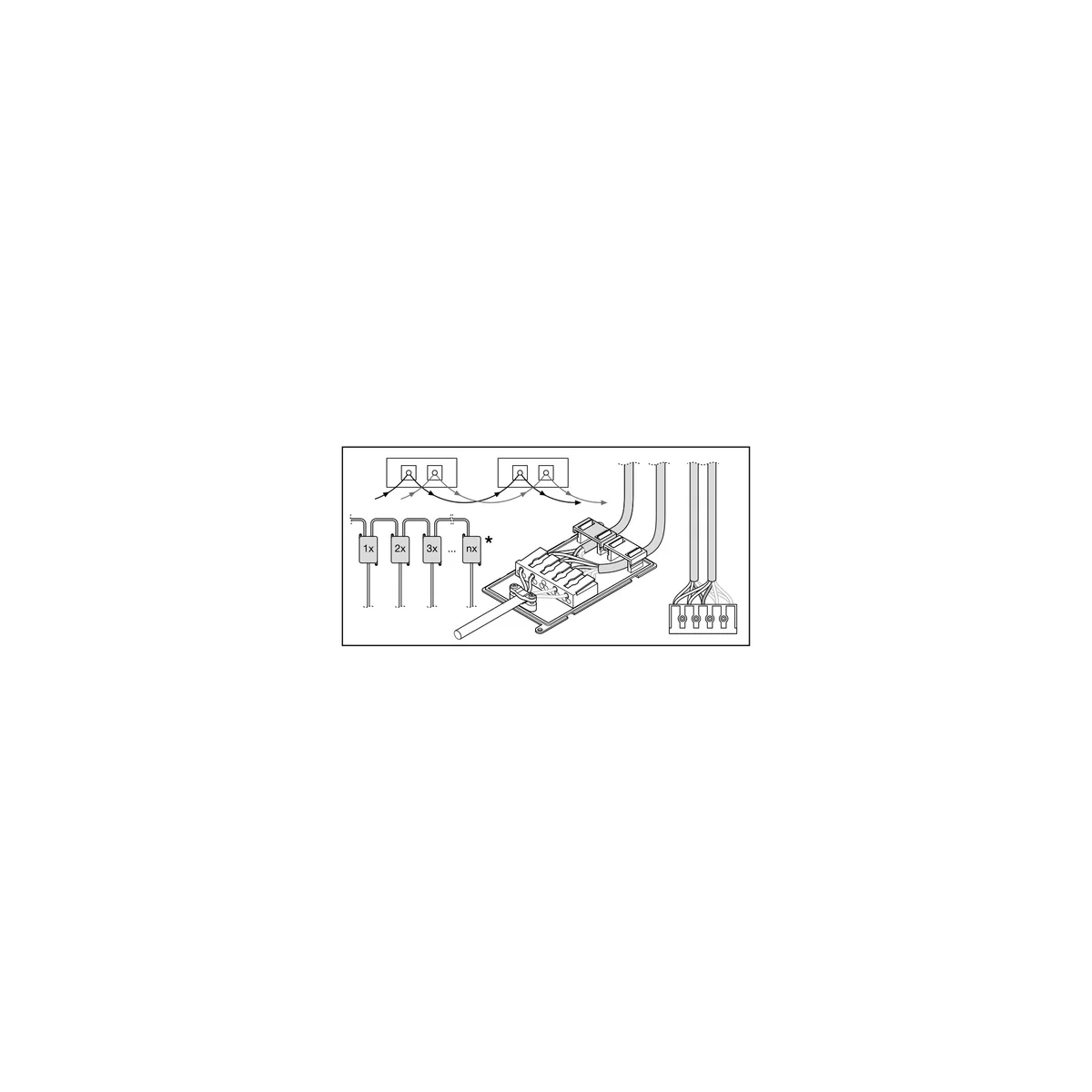

  • Type of wiring
    Suitable for through wiring
  • Współczynnik harmonicznych (THD)
    20 %
  • Photobiological safety according to EN 62471
    RG0

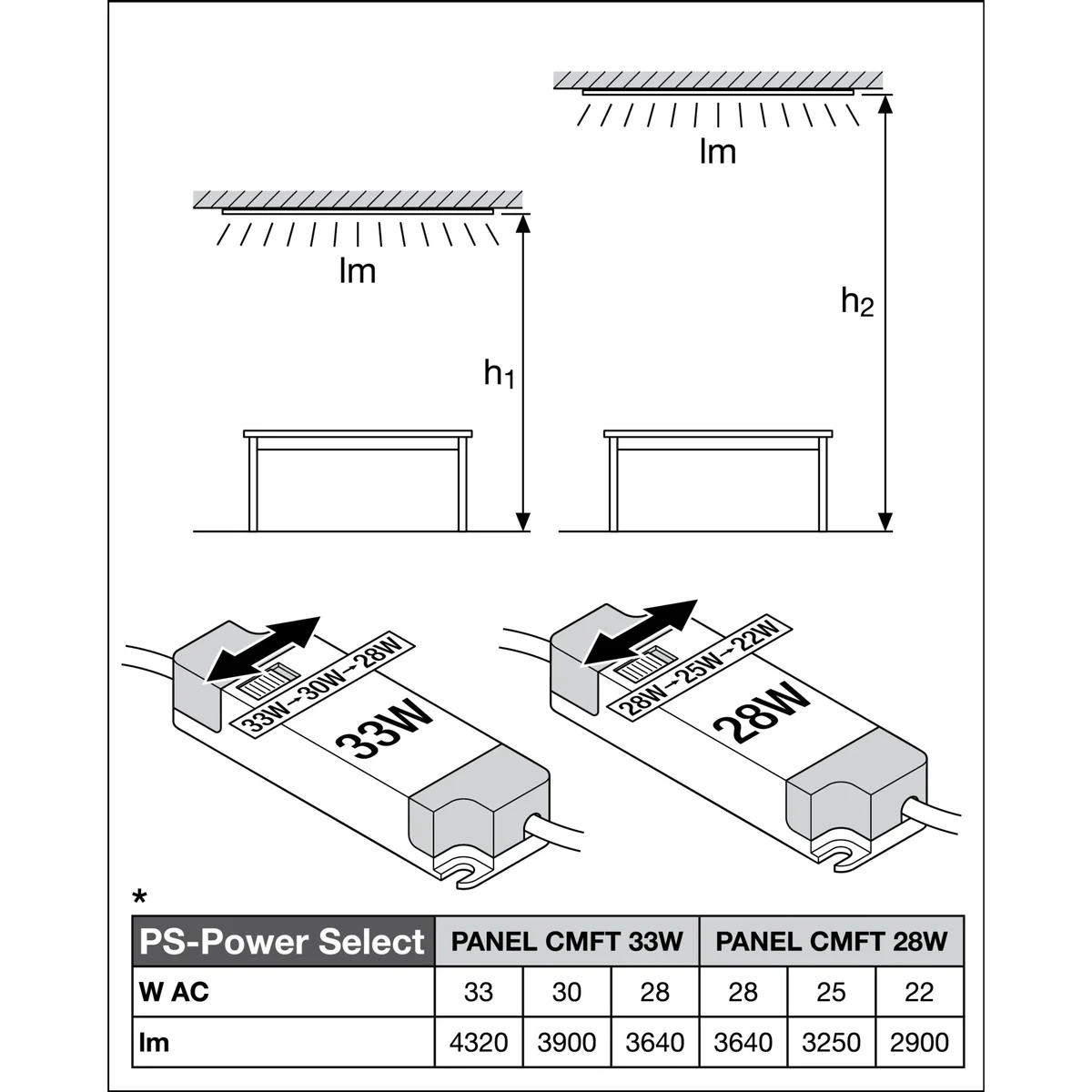

  • Luminous flux adjustable
    Positions
  • Operation by Bluetooth
    No
  • Compatible with Apple HomeKit
    No
  • Compatible with Amazon Alexa
    No
  • Kuloodporność zgodnie z DIN 18032-3
    No
  • Suitable for suspended mounting
    Yes
  • Suitable for built-in mounting
    Yes
  • Suitable for light line configuration
    No
  • Suitable for workplace according to EN 12464-1
    Yes
  • Housing material
    Steel
  • Housing colour
    White
  • Voltage type
    AC
  • Nominal current
    150.000 ... 0 mA
  • Exchangeable control gear
    Yes
  • Dimming 0-10 V
    No
  • Dimming DALI
    No
  • Dimming DMX
    No
  • Dimming manufacturer's proprietary system
    No
  • Dimming phase cut-off
    No
  • Dimming programmable
    No
  • Dimming RF
    No
  • Dimming Zigbee
    No

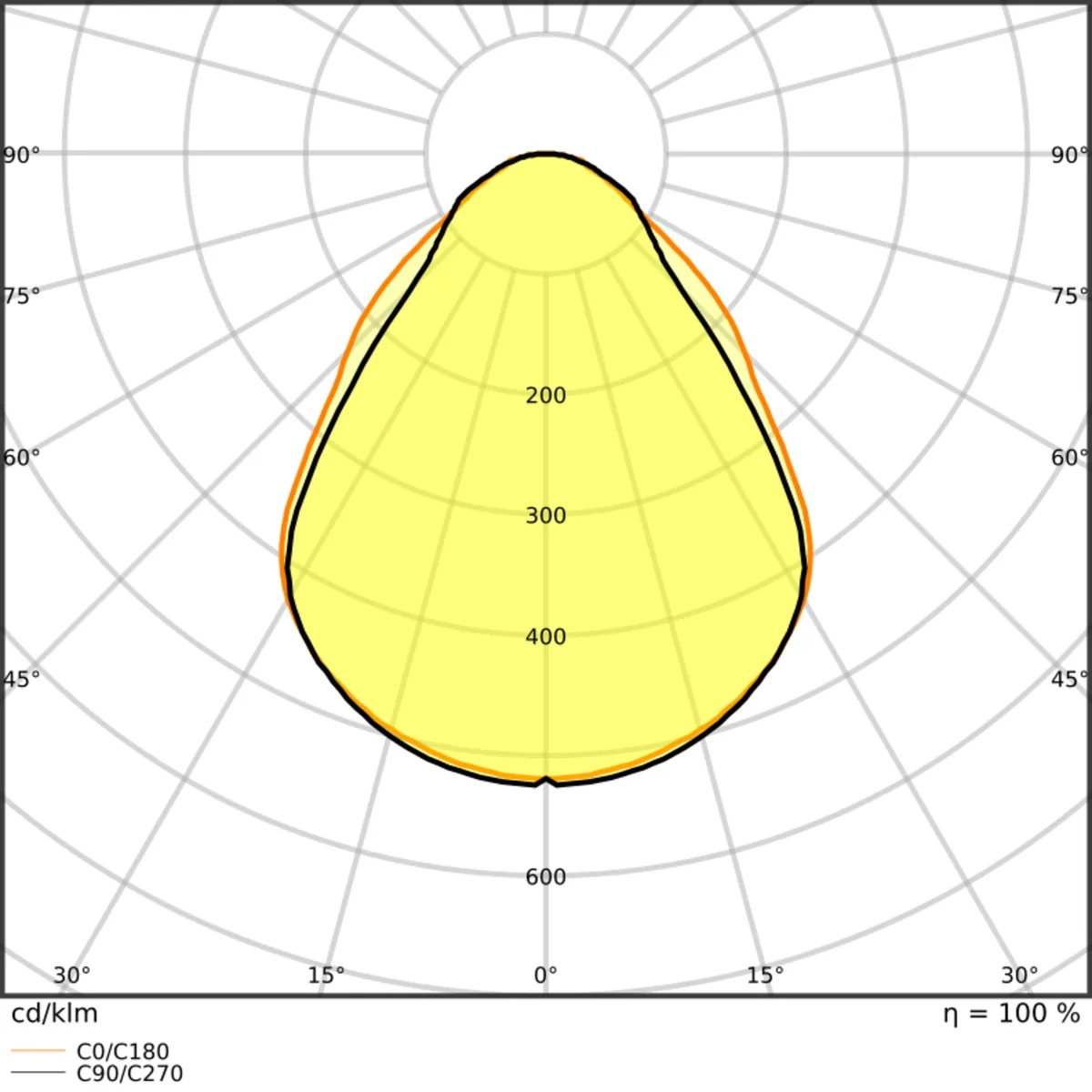

  • Light distributor
    Diffuser lens/optic/panel

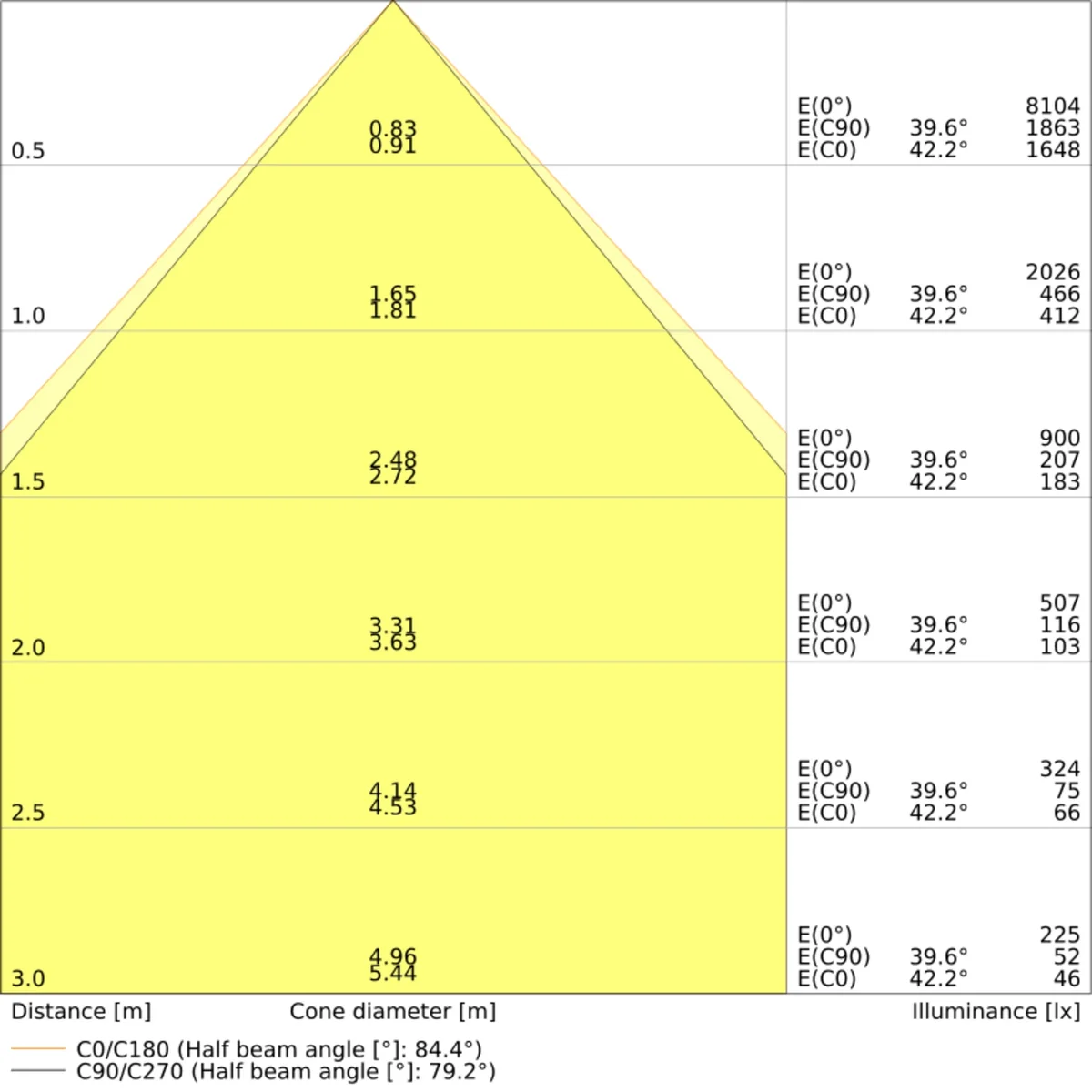

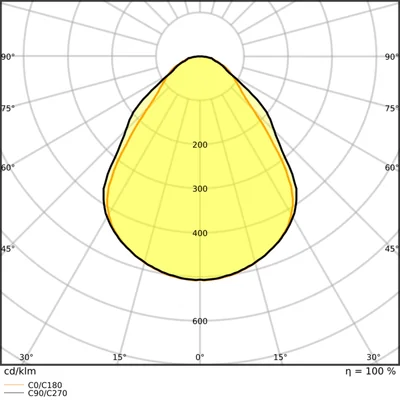

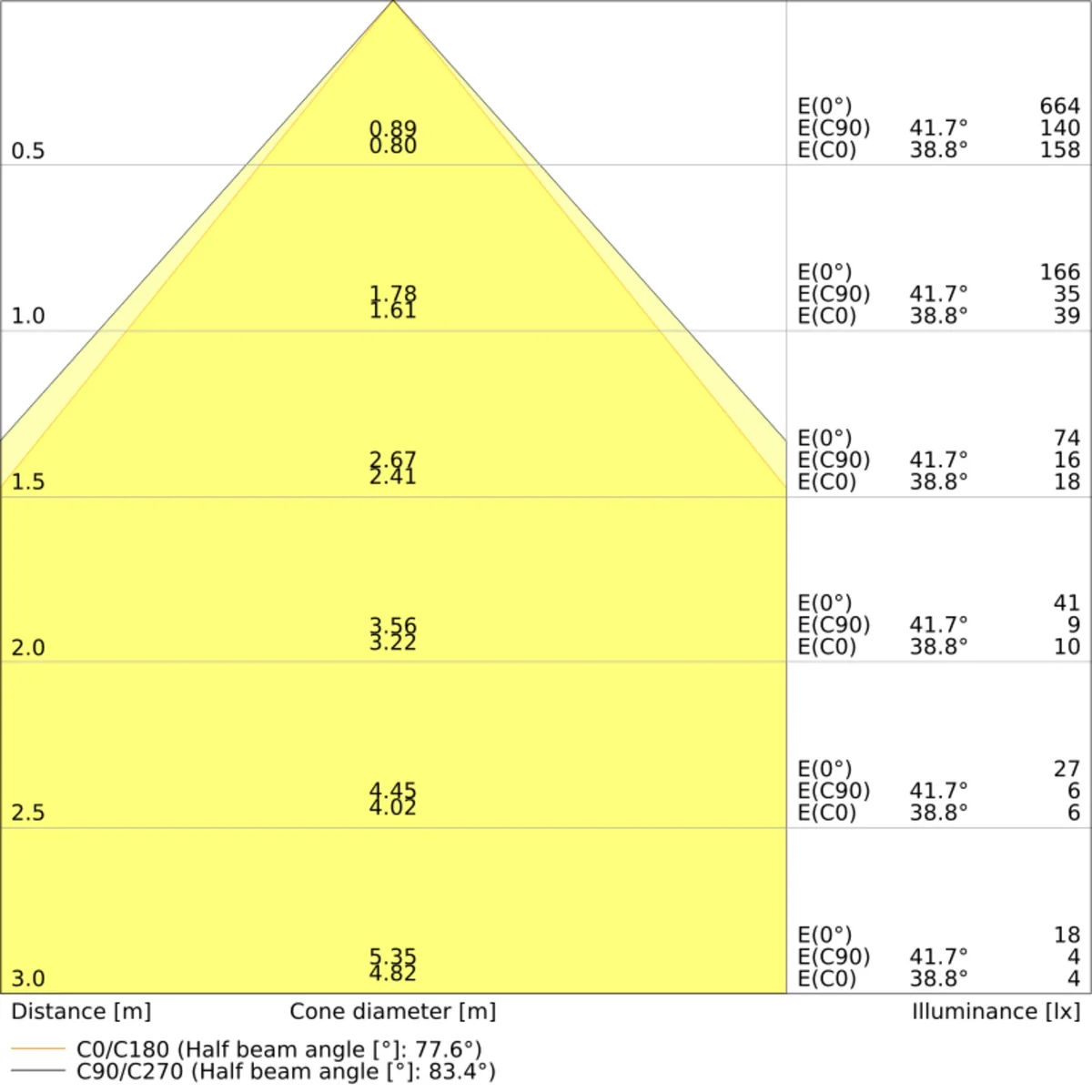

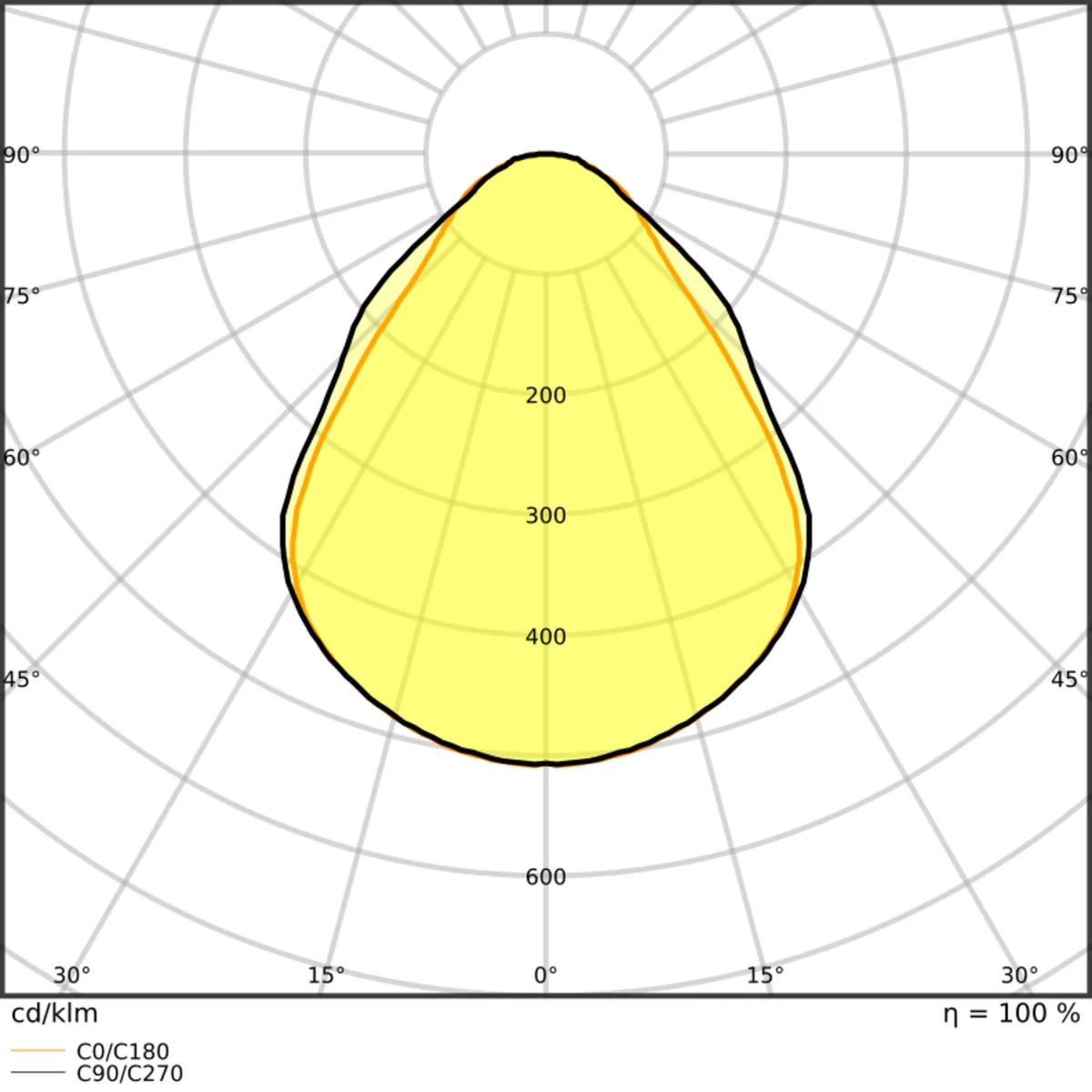

  • Beam angle
    Extreme wide beam >80°
  • Light outlet
    Direct
  • Rated life time L70/B50 at 25 °C
    100000 h
  • Degree of protection (IP), front side
    IP40
  • Max. number of luminaires per miniature circuit breaker B16 (MCB)
    14
  • Impact strength
    IK02
  • Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
    No
  • Suitable for emergency lighting
    Yes
  • With movement sensor
    No
  • Covering of the luminaire with thermally insulating material possible
    No
  • Filament test according to IEC 60695-2-11
    650 °C - 30 s
  • Max. system power
    33 W
  • Colour of light
    White
  • Colour rendering index CRI
    80-89
  • Constant light output (CLO)
    No
  • Height/depth
    32 mm
  • Built-in length
    575 mm
  • Built-in height/depth
    50 mm
  • Number of poles
    2

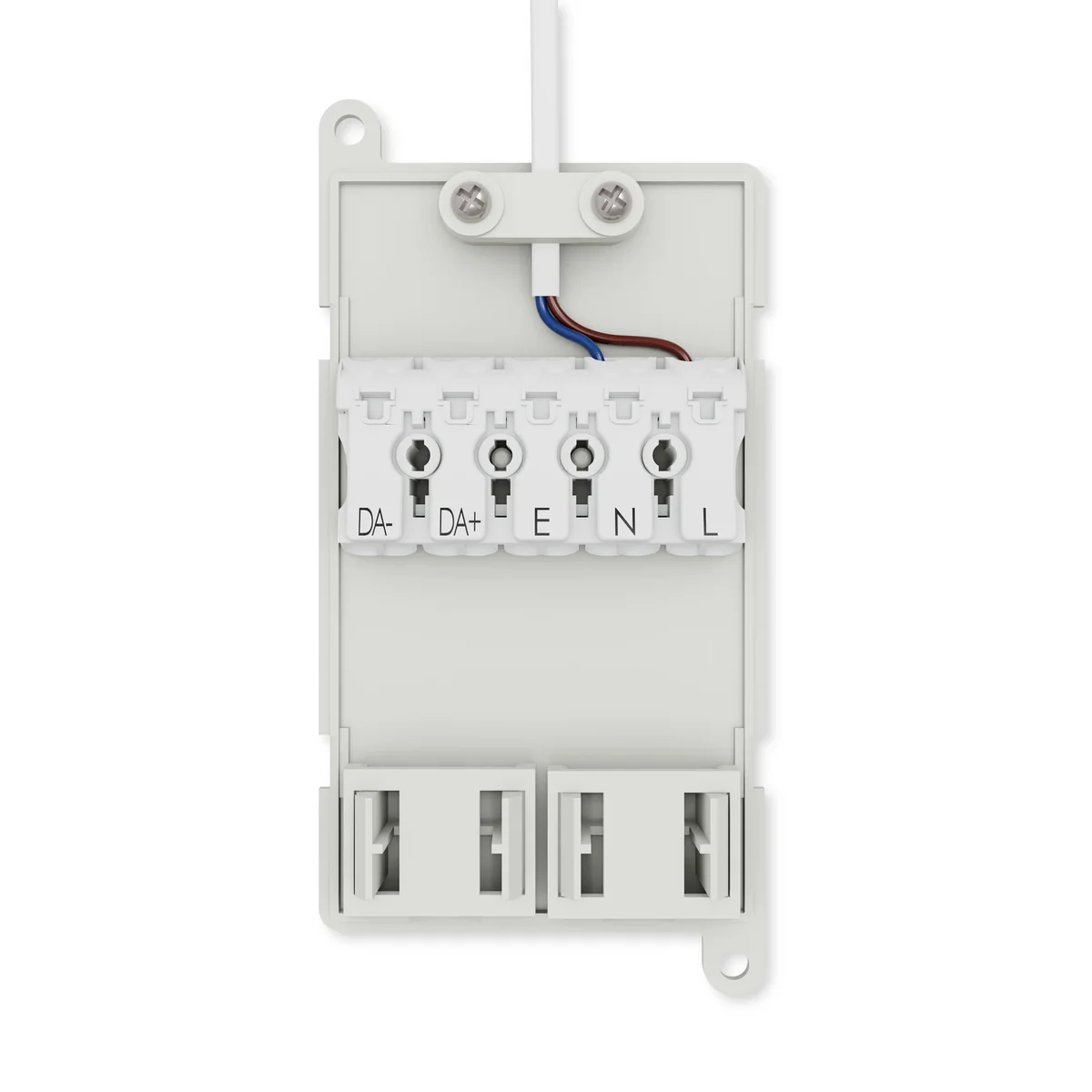

  • Connection type
    Push-in clamp
  • Colour of light adjustable
    No
  • Beam angle adjustable
    No
  • Compatible with Casambi
    No
  • Compatible with Google Assistant
    No
  • IFTTT support available
    No
  • Meets min. EIA service life criterion L90 (at 50,000 hours at tq = 25°C)
    No

Detalles del fabricante

  • Fabricante
    LEDVANCE GmbH
  • Dirección
    85748 Garching Parkring 29-33 Niemcy

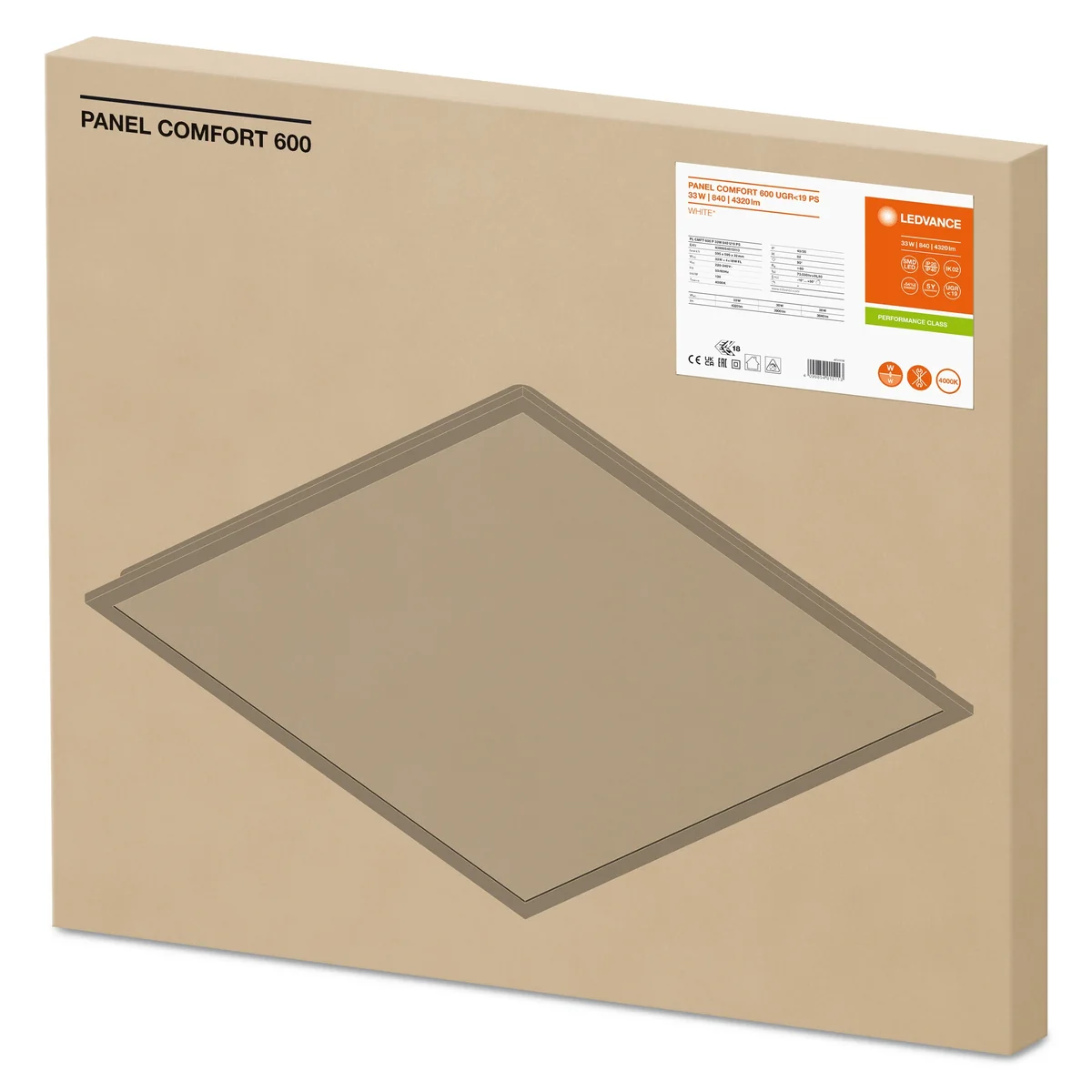

Empaquetado a granel

una especie de paquete Skrzynia Karton
Cantidad 1 uds. 4 uds.
Peso (kg) 2,205 9,902
Volumen (m3) 0,021 0,104
Ancho (m) 0,620 0,220
Longitud (m) 0,050 0,650
Profundidad (m) 0,650 0,720
