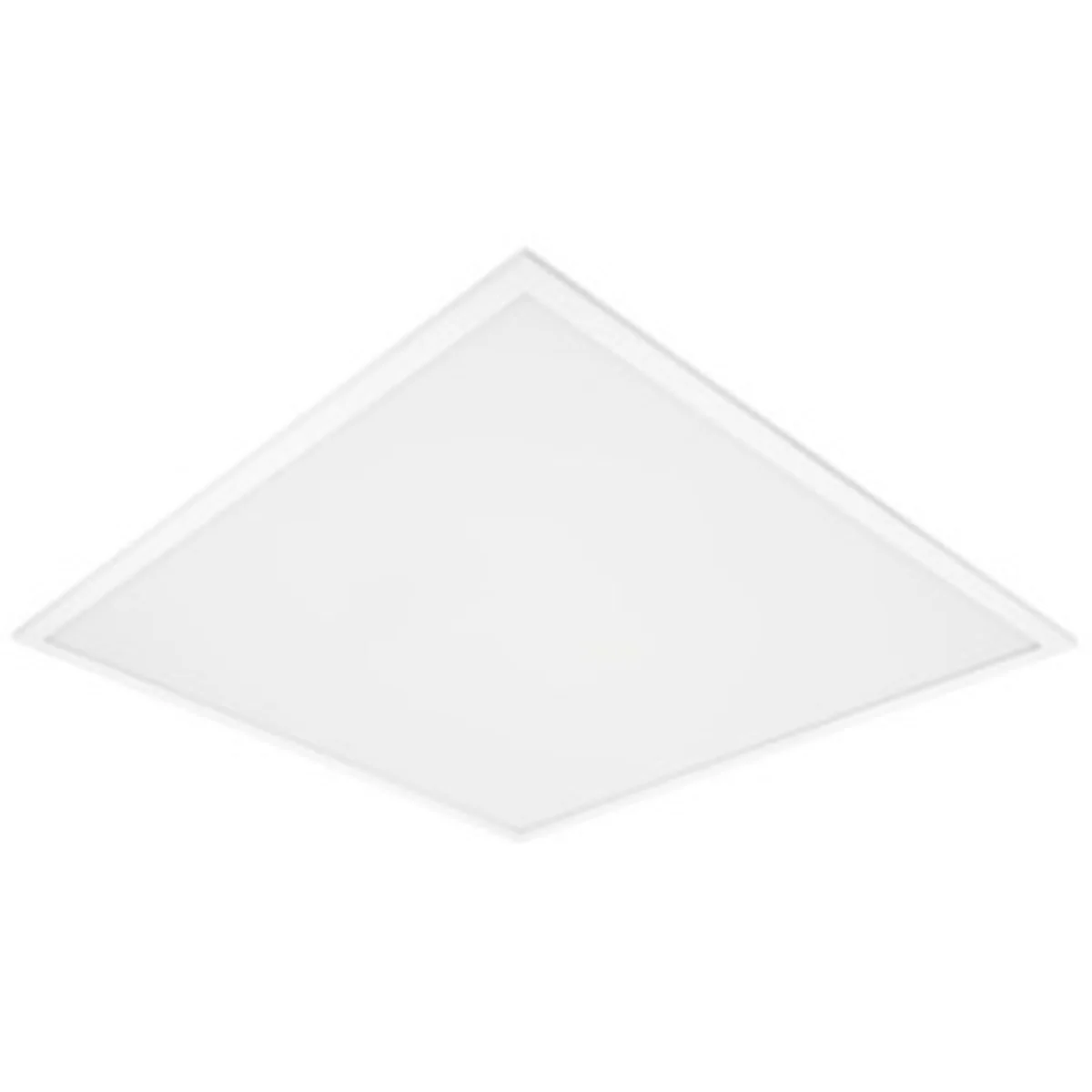

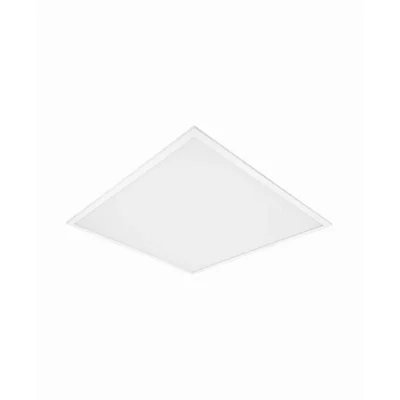

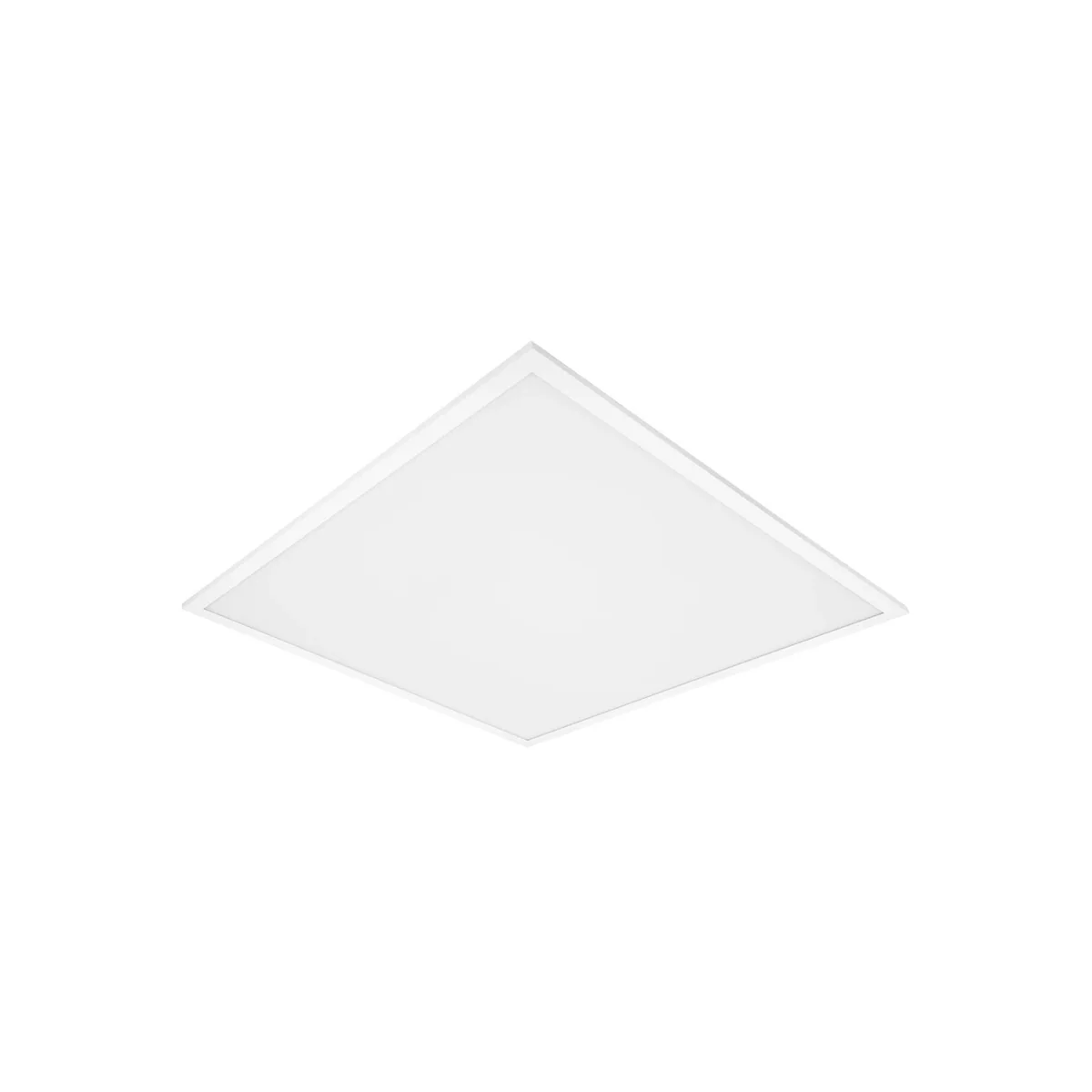

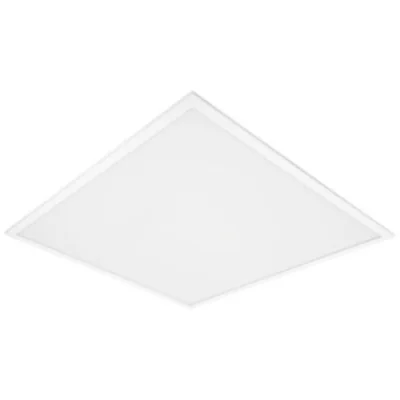

PANEL 625 Ceiling luminaire 230V 36W 4320lm IP54 WW 120st white 4058075149526

local index:
OWE022LEDV
Catalog No:
4058075149526
EAN code:
4058075149526
Manufacturer: LEDVANCE
Light color [K]: 2000-3500 (warm)
Length [mm]: 620

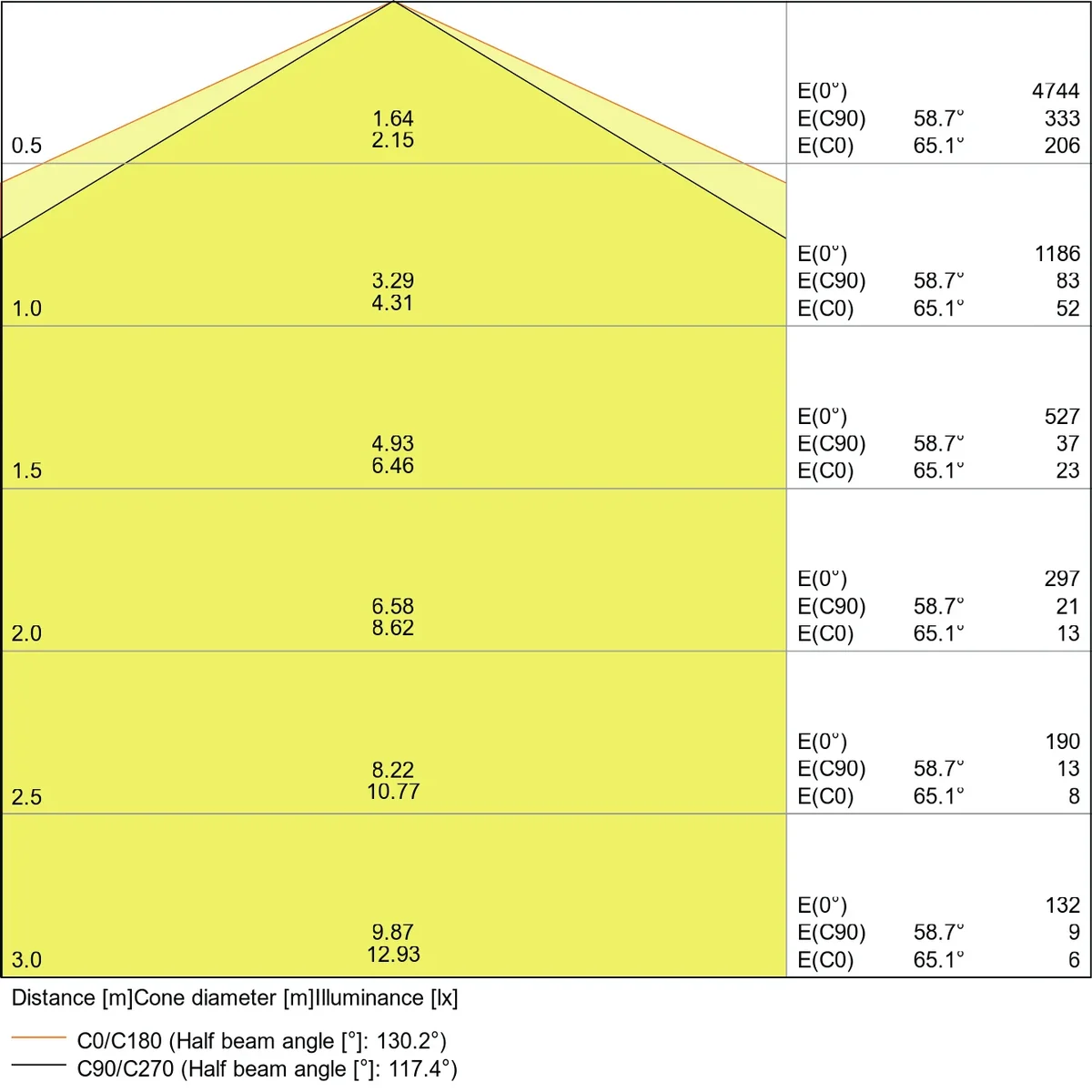

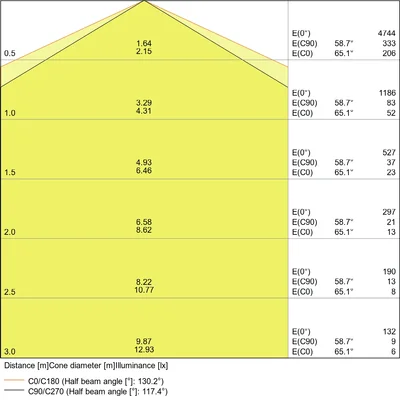

beam angle [°]: 120
Price:
193,84 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

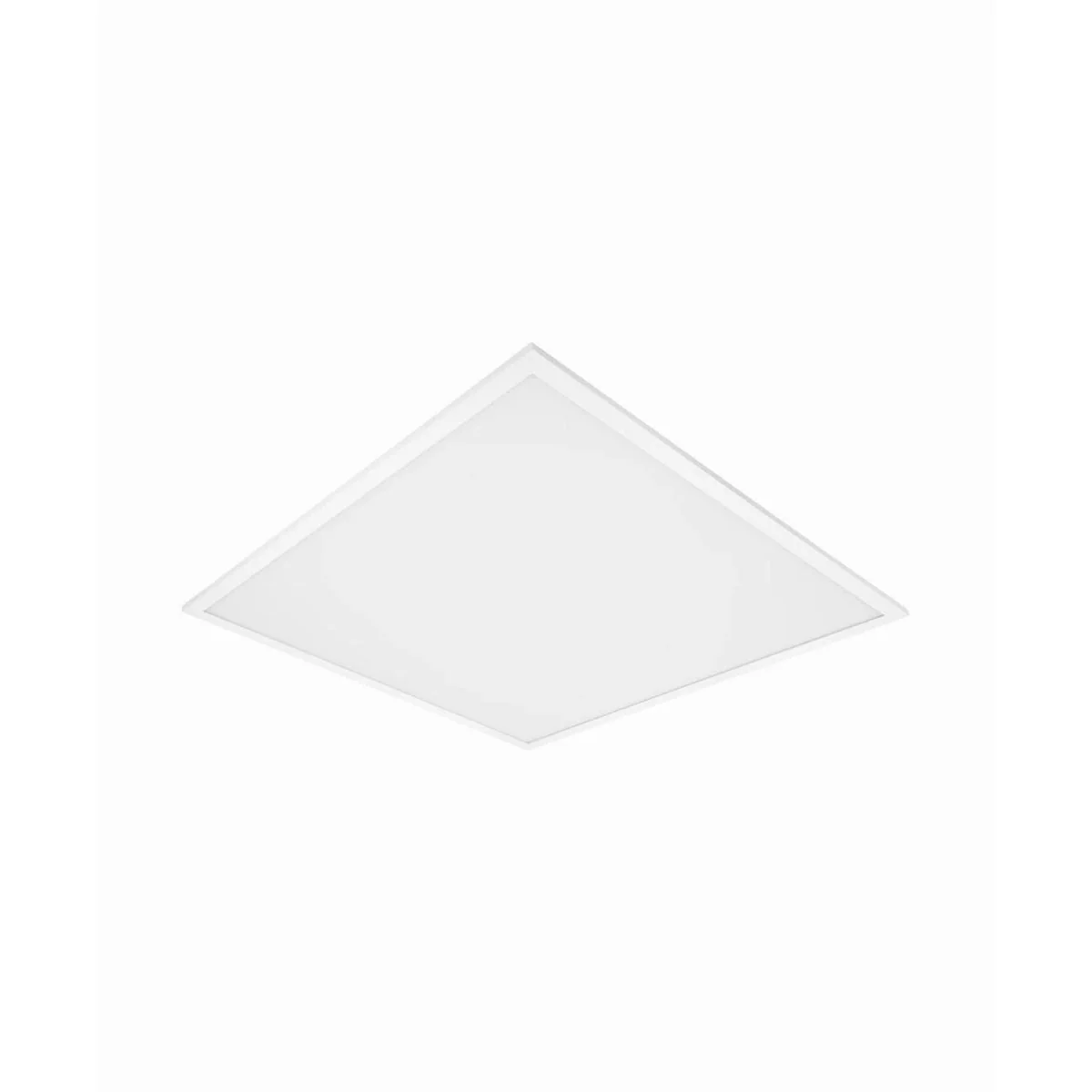

Light fitting with square edges and a high degree of protection, from the PANEL 625 series.

Area of application:< /p>

  • Corridors,
  • Offices,
  • Meeting rooms,
  • Reception areas,
  • Hospitals,< /li>
  • Laboratories.
  • Suitable for flush ceiling systems with a module size of 625 x 625 mm.

Product benefits:

  • Up to 50% energy savings (compared to luminaires using fluorescent lamps),
  • Lightweight guide plate with a microstructure of non-yellowing material ensures long life,

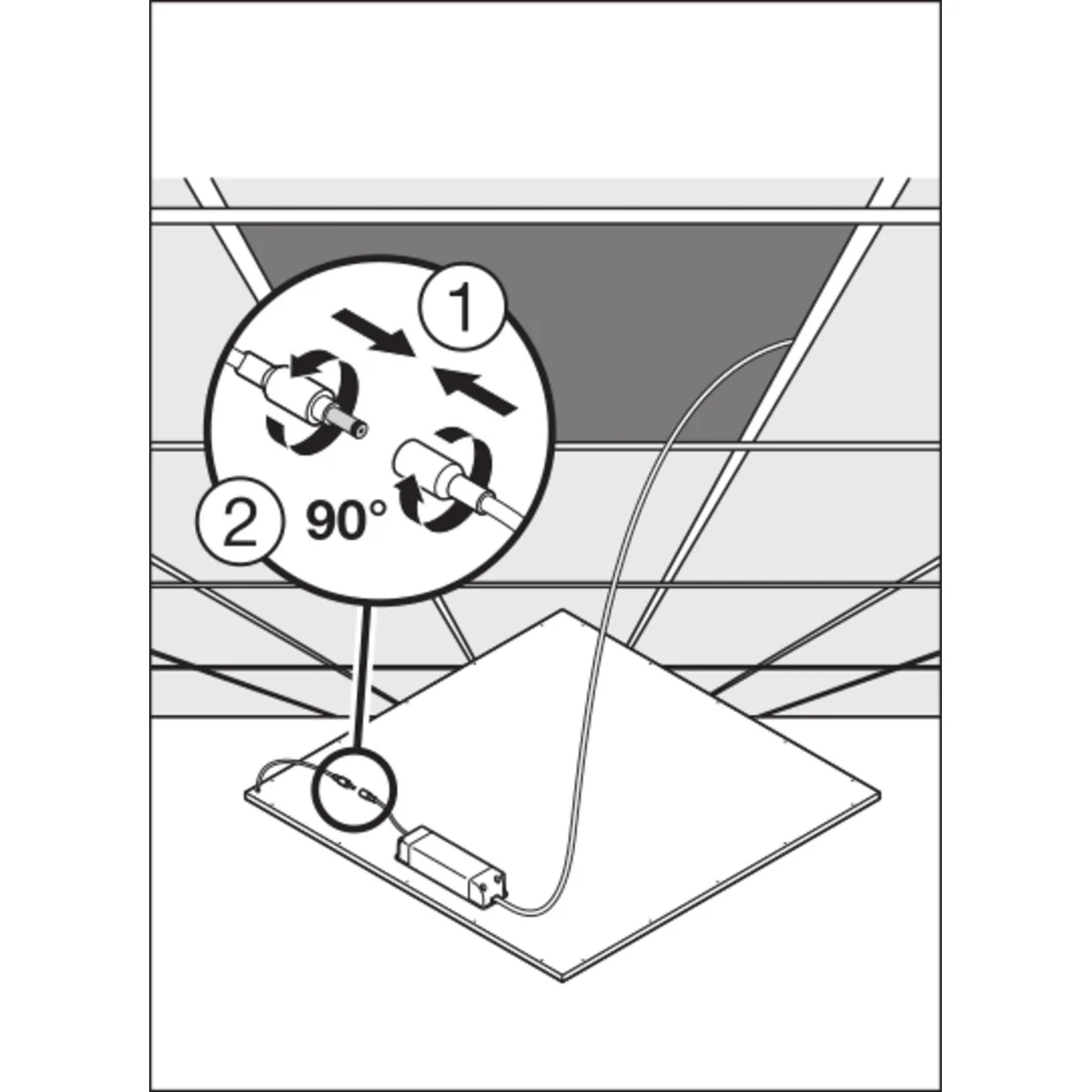

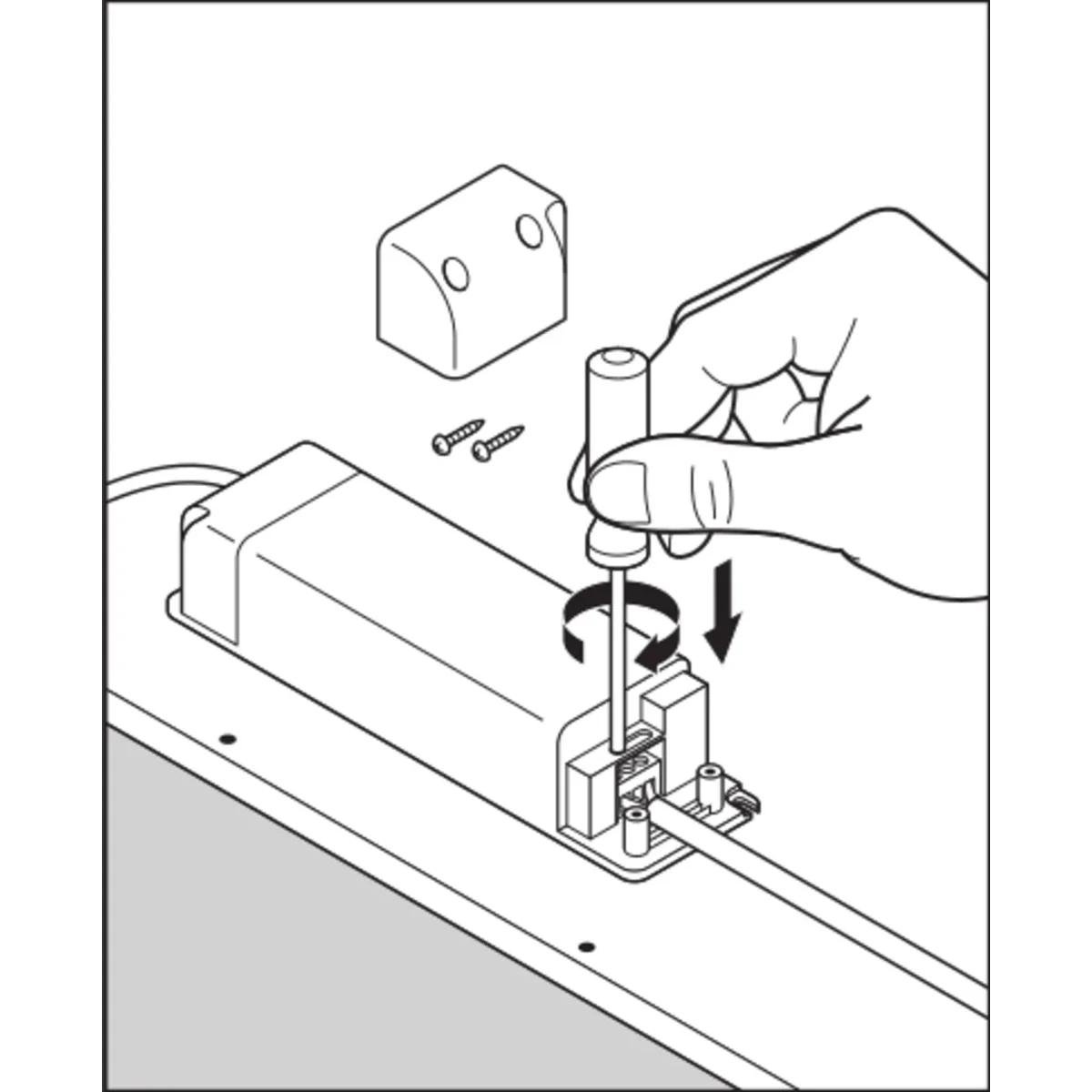

  • < li> Easy and fast installation.

Product features:

  • Ambient temperature: -10 ... + 40 ° C .

Technical data

  • Light color [K]
    2000-3500 (warm)
  • beam angle [°]
    120
  • Color
    White
  • Power [W]
    36
  • Rated voltage [V]
    230
  • Luminous efficiency [lm/W]
    120
  • luminous flux [lm]
    4320
  • Mounting width [mm]
    600
  • Color Temperature [K]
    3000
  • Lampshade material
    PMMA
  • PKWIU
    27.40.25

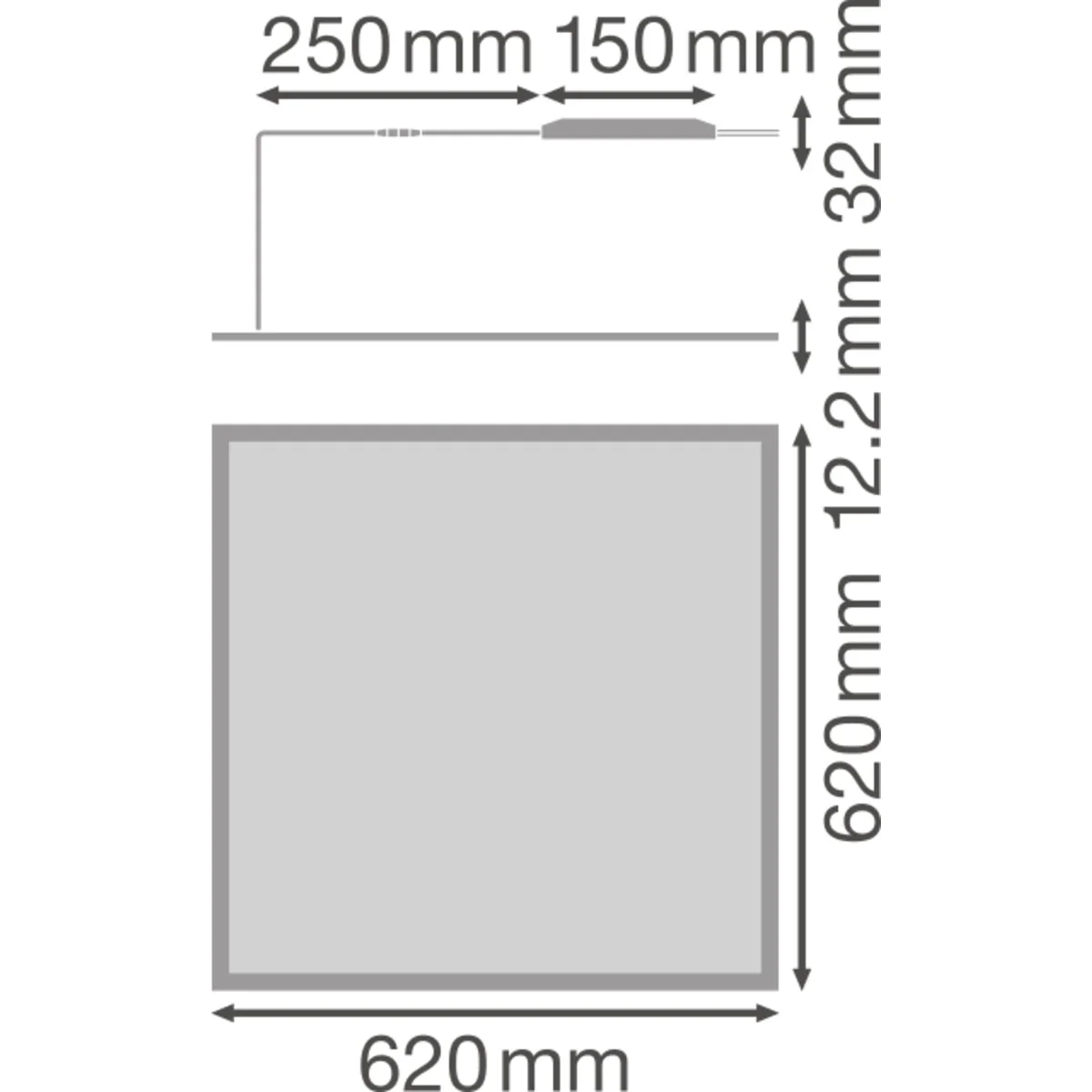

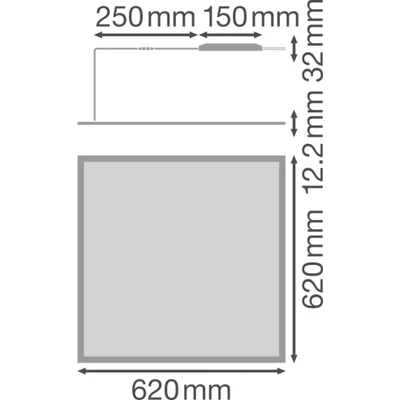

  • Length [mm]
    620
  • Protection class
    II
  • Material
    Aluminum
  • Installation
    Surface Flush-mounted
  • Family
    PANEL 625
  • Level of security
    IP54
  • Width [mm]
    620
  • Height [mm]
    12.6
  • cri (ra)
    >80
  • Mounting length [mm]
    600

Other technical data

  • Suitable for wall mounting
    Yes
  • Suitable for ceiling mounting
    Yes
  • Suitable for surface mounting
    No
  • Suitable for workplace according to EN 12464-1
    No
  • With light source
    Yes
  • Housing colour
    White
  • Type of grid
    Matt

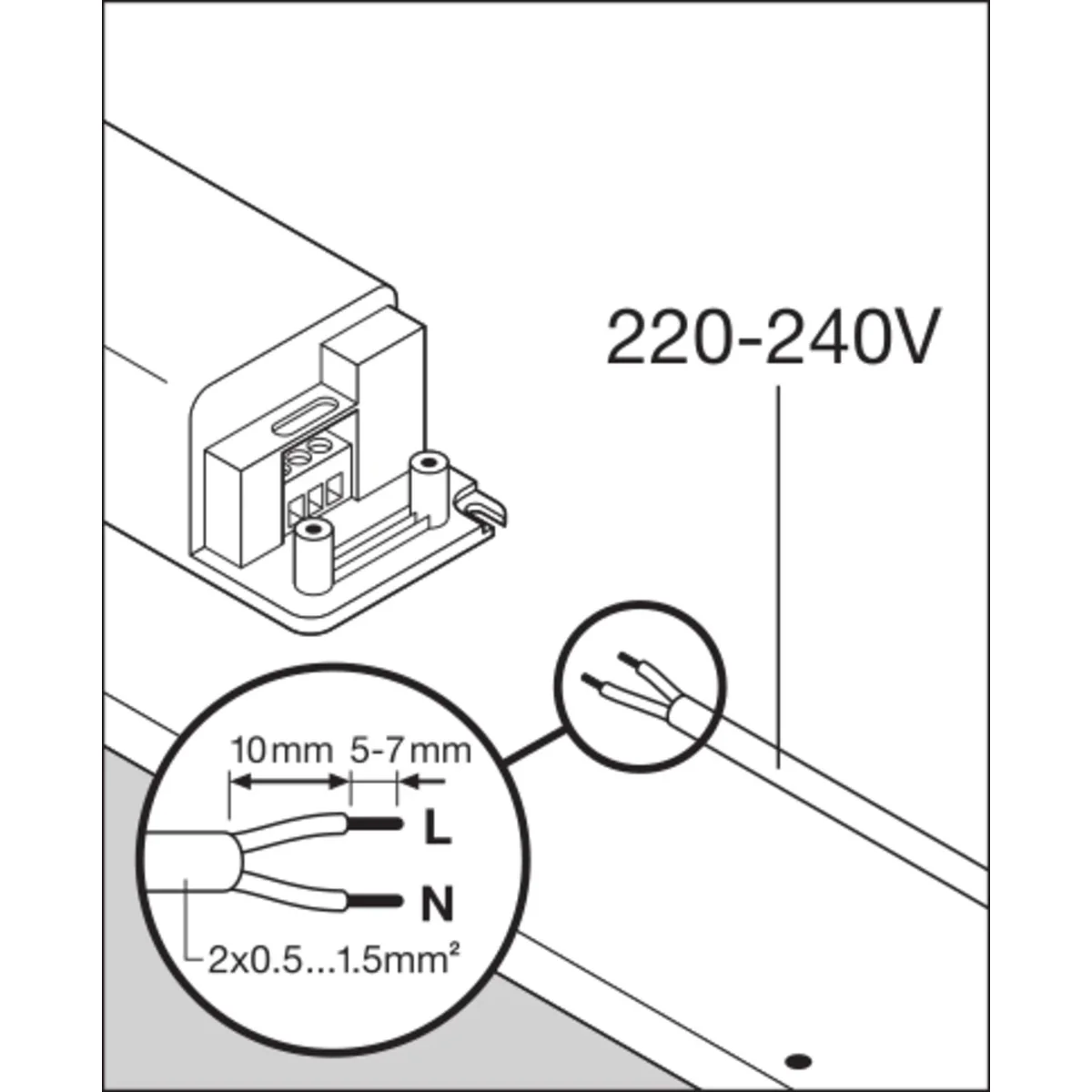

  • Nominal voltage
    220 ... 240 V
  • Type of control gear
    Electronic ballast
  • Dimming 0-10 V
    No
  • Dimming DALI
    No
  • Dimming DSI
    No
  • Ściemniacz GPRS
    No
  • Dimming manufacturer's proprietary system
    No
  • Dimming phase cut-off
    No
  • Dimming programmable
    No
  • Dimming Sine Wave Reduction
    No
  • Dimming Zigbee
    No
  • Ściemniacz zależny od statecznika
    No
  • Light distributor
    Diffuser lens/optic/panel
  • Beam angle
    Extreme wide beam >80°
  • Klasa efektywności energetycznej zamontowanego źródła światła
    A++, A+, A (LED)
  • Rated life time L70/B50 at 25 °C
    80000 h
  • Żywotność znamionowa L80/B50 przy 25 °C
    60000 h
  • Żywotność znamionowa L90/B50 przy 25 °C
    35000 h
  • Impact strength
    IK03
  • Suitable for emergency lighting
    Yes
  • With light sensor
    No
  • With air slots
    No
  • Max. system power
    36.00 W
  • Colour of light
    White
  • Colour rendering index CRI
    80-89
  • Power factor
    0.90
  • Height/depth
    12.6 mm
  • Built-in length
    600.0 mm
  • Built-in height/depth
    50.0 mm
  • Number of poles
    2
  • Suitable for suspended mounting
    Yes
  • Suitable for built-in mounting
    Yes
  • Suitable for light line configuration
    No
  • Lamp type
    LED not exchangeable
  • Housing material
    Aluminium
  • Material cover
    Plastic, opal
  • Voltage type
    AC
  • Prąd znamionowy LED przy zasilaniu prądem stałym
    190 ... 190 mA
  • With control gear
    Yes
  • Dimming 1-10 V
    No
  • Dimming DMX
    No
  • Dimming potentiometer (integrated)
    No
  • Dimming LineSwitch
    No
  • Dimming mains voltage modulation
    No
  • Dimming phase cut-on
    No
  • Dimming RF
    No
  • Dimming Touch and Dim
    No
  • Dimming with push-button
    No
  • No dim function
    Yes
  • Light sharing
    Symmetric
  • Light outlet
    Direct
  • Żywotność znamionowa L70/B10 przy 25 °C
    80000 h
  • Rated life time L80/B10 at 25 °C
    60000 h
  • Żywotność znamionowa L90/B10 przy 25°C
    35000 h
  • Degree of protection (IP)
    IP54
  • Protection class
    II
  • With movement sensor
    No
  • Covering of the luminaire with thermally insulating material possible
    No
  • Filament test according to IEC 60695-2-11
    650 °C - 30 s
  • Rated luminous flux according to IEC 62722-2-1
    4320 lm
  • Colour temperature
    3000 ... 3000 K
  • Luminaire efficacy
    120 lm/W
  • Width
    620.0 mm
  • Length
    620.0 mm
  • Built-in width
    600.0 mm
  • Type of wiring
    Ending
  • Connection type
    Other

Manufacturer details

Bulk packaging

A kind of package Skrzynia Karton
Quantity 1 pcs. 1 pcs. 4 pcs.
Weight (kg) 3,200 3,510 14,950
Volume (m3) - 0,026 0,120
Width (m) - 0,060 0,270
Length (m) - 0,650 0,670
Depth (m) - 0,650 0,670
