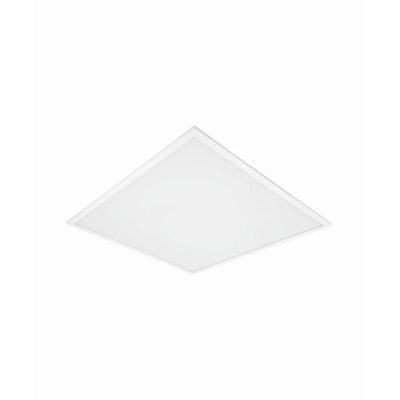

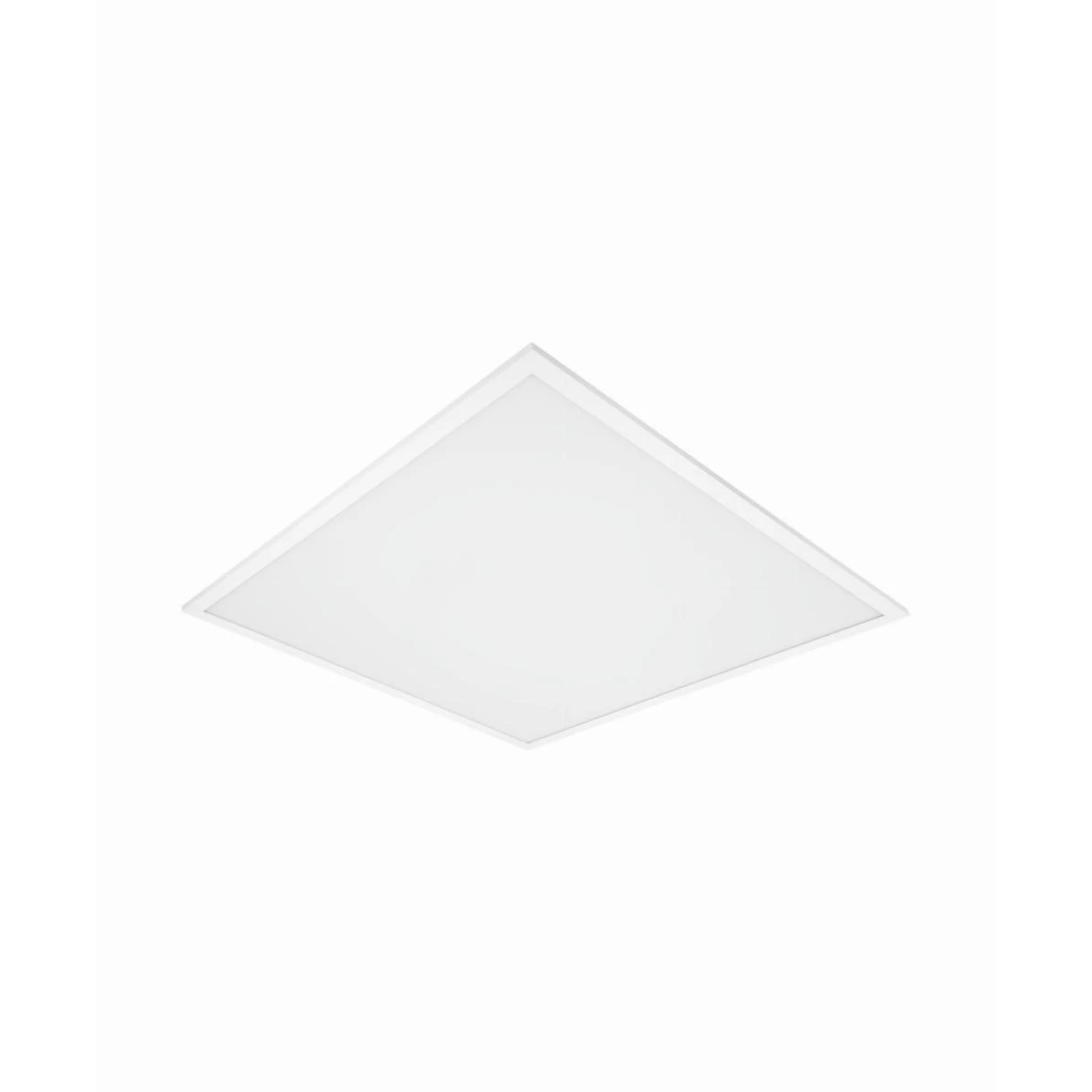

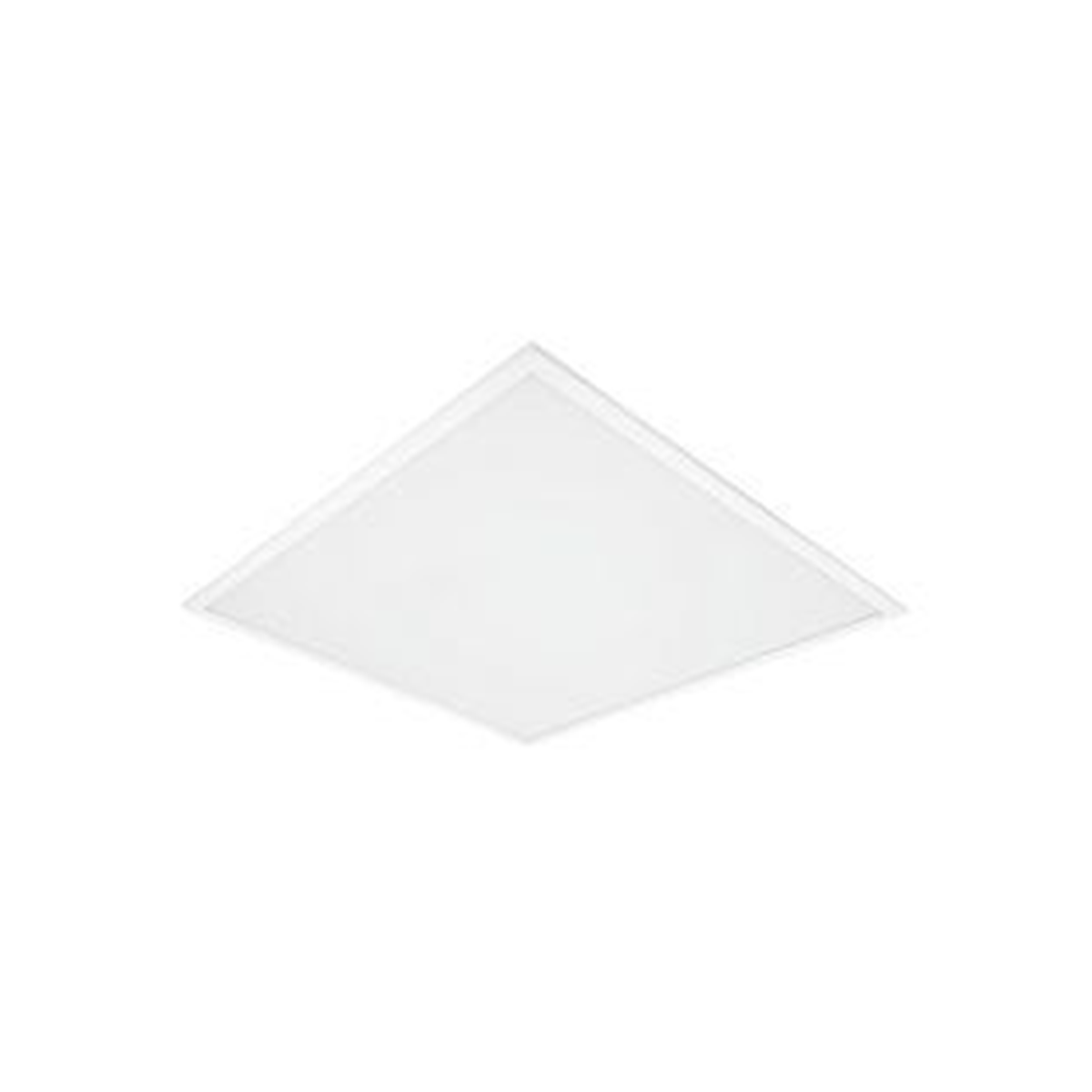

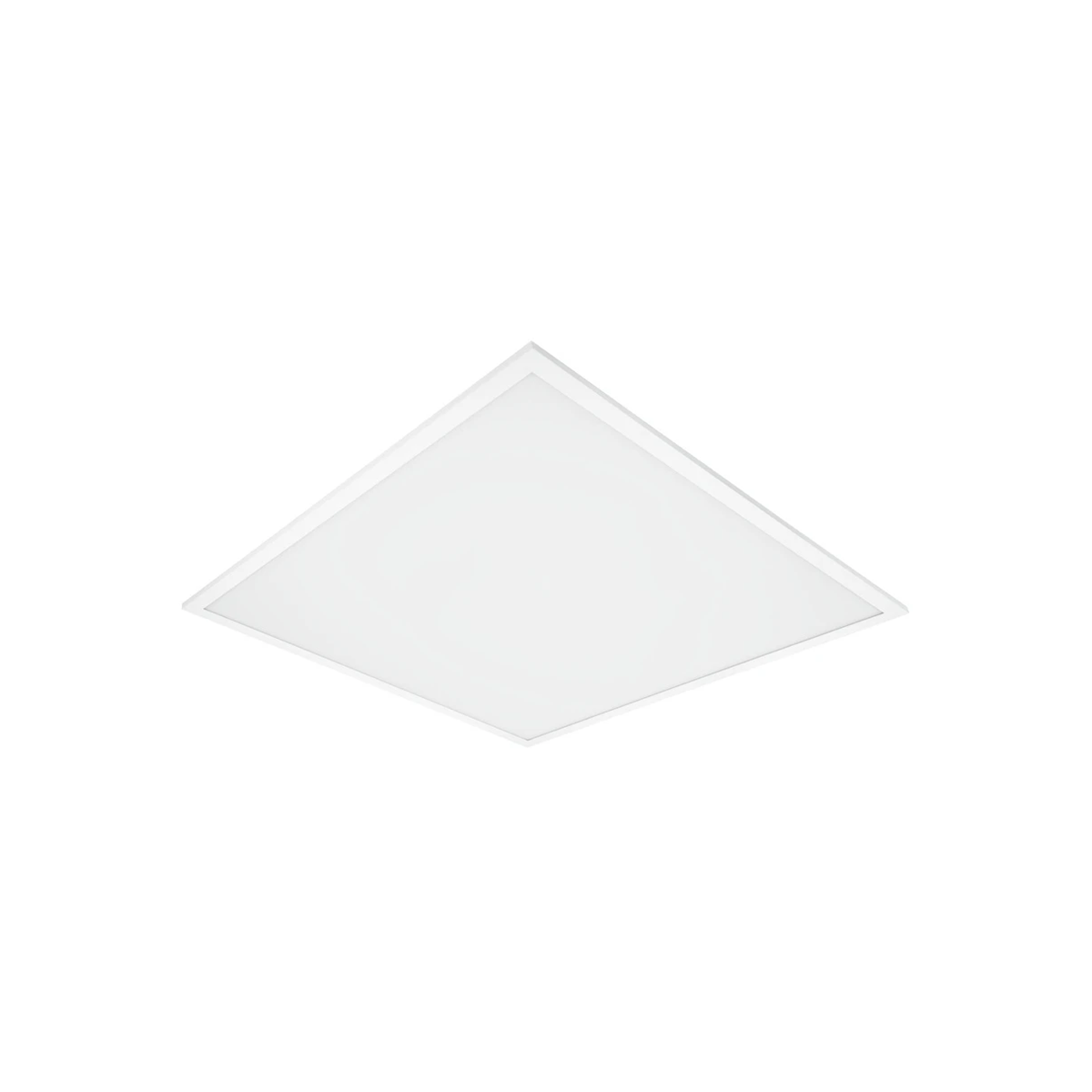

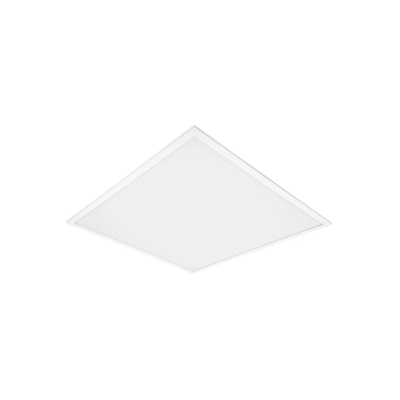

el12 Lighting Light fixtures Indoor luminaires Surface-mounted office and decorative PANEL 600 Ceiling luminaire 230V 36W 4320lm IP54 NW 120st white
PANEL 600 Ceiling luminaire 230V 36W 4320lm IP54 NW 120st white
PANEL 600 Ceiling luminaire 230V 36W 4320lm IP54 NW 120st white
PANEL 600 Ceiling luminaire 230V 36W 4320lm IP54 NW 120st white

Click on the photo to enlarge

PANEL 600 Ceiling luminaire 230V 36W 4320lm IP54 NW 120st white
PANEL 600 Ceiling luminaire 230V 36W 4320lm IP54 NW 120st white
PANEL 600 Ceiling luminaire 230V 36W 4320lm IP54 NW 120st white
LEDVANCE

PANEL 600 Ceiling luminaire 230V 36W 4320lm IP54 NW 120st white 4058075149502

local index:
OWE011LEDV
Catalog No:
4058075149502
EAN code:
4058075149502
Price:
189,19 €
gross / pcs.
including VAT 23%
Availability:
up to a week (working days)
Delivery:
From 3,45 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details
Go to section:
Product description Technical data

Product description

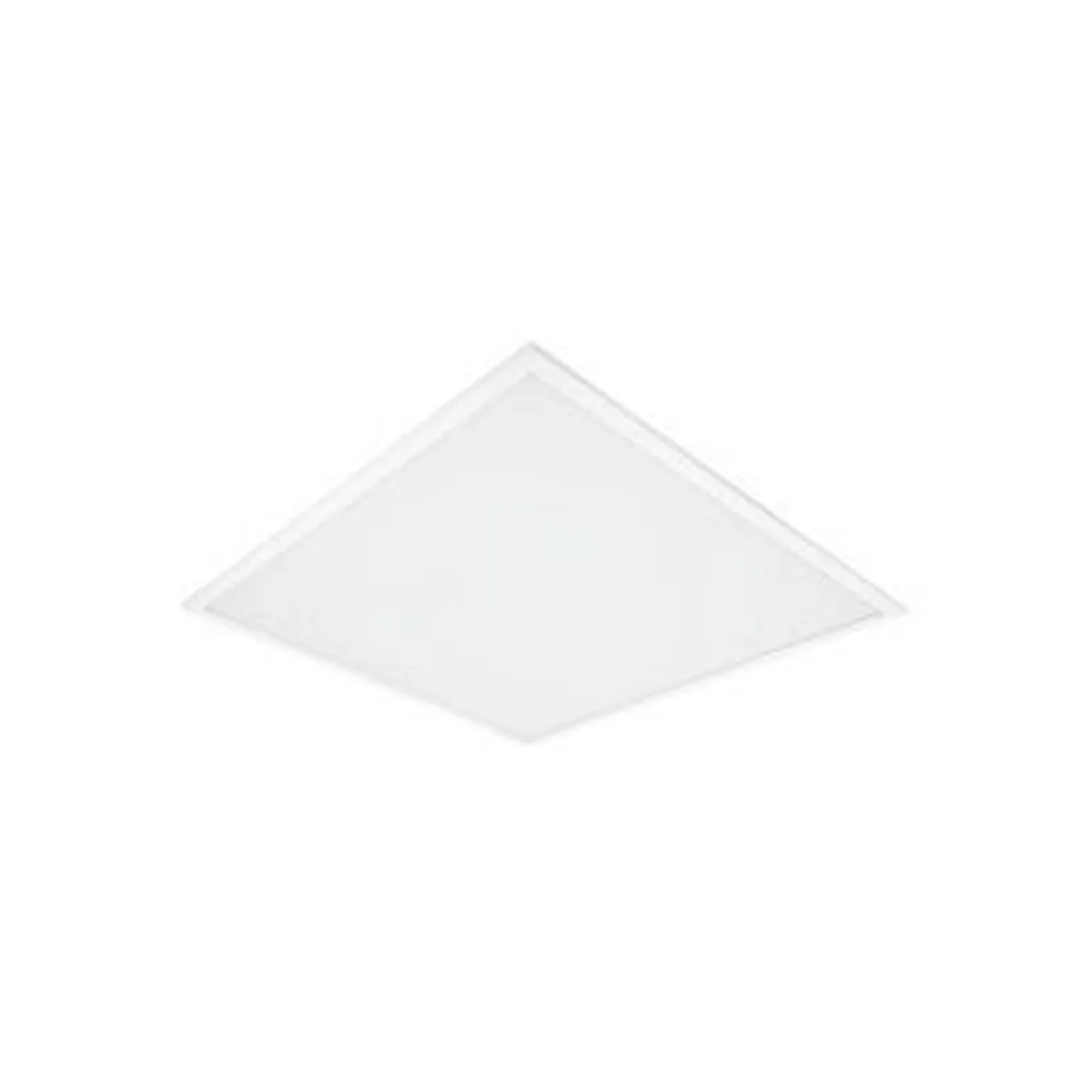

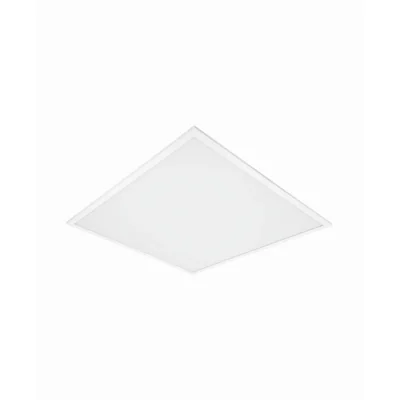

Light fitting with square edges and a high degree of protection, from the PANEL 600 series.

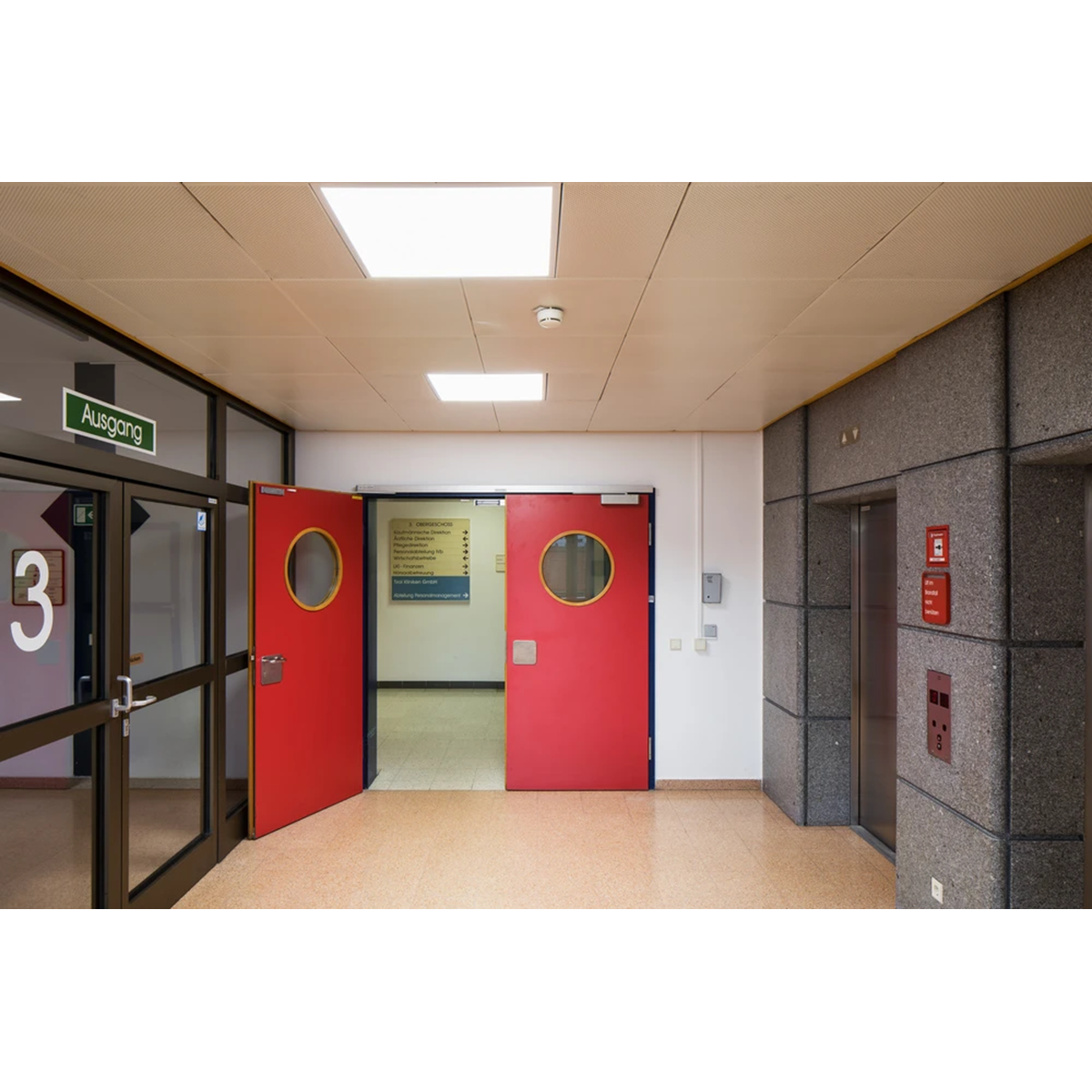

Area of application:< /p>

  • Corridors,
  • Offices,
  • Meeting rooms,
  • Reception areas,
  • Hospitals,< /li>
  • Laboratories.
  • Suitable for flush ceiling systems with a module size of 600 x 600 mm.

Product benefits:

  • Up to 50% energy savings (compared to luminaires using fluorescent lamps),
  • Lightweight guide plate with a microstructure of non-yellowing material ensures long life,
    • < li> Easy and fast installation.

Product features:

  • Operating mode: ECG,
  • Ambient temperature: -10 ... + 40 ° C.
Print the product sheet Report an error

Technical data

  • Light color [K]
    3500-4800 (natural)

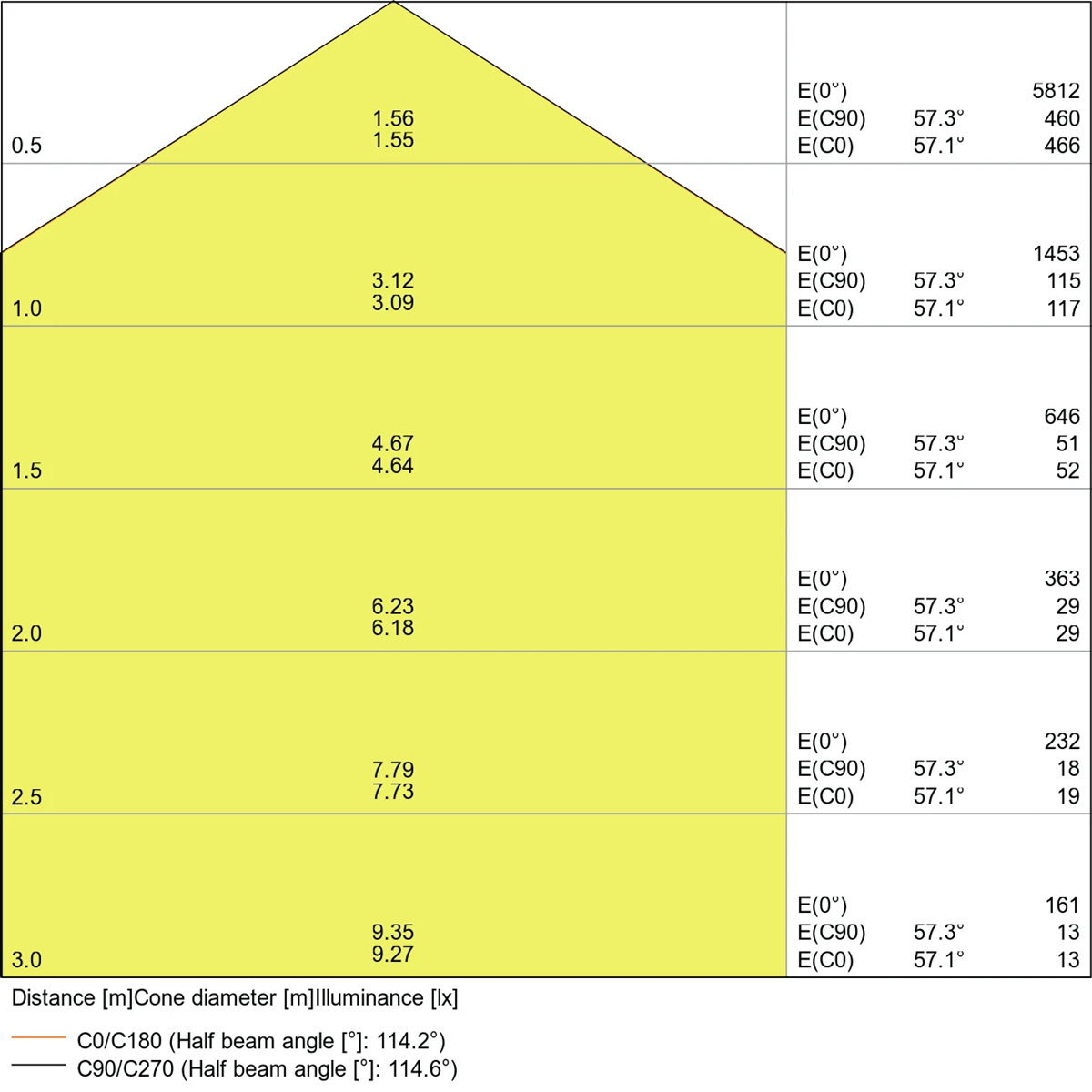

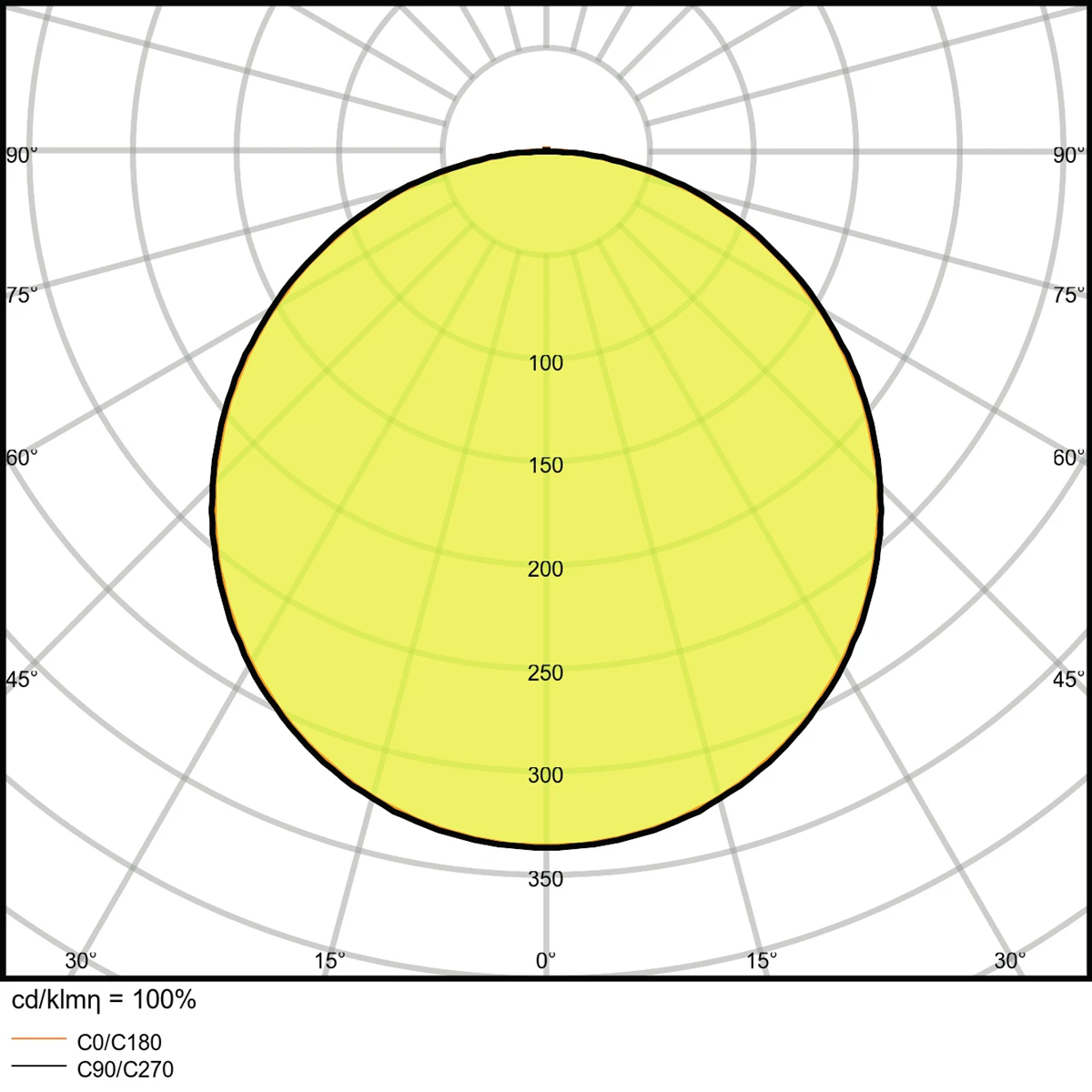

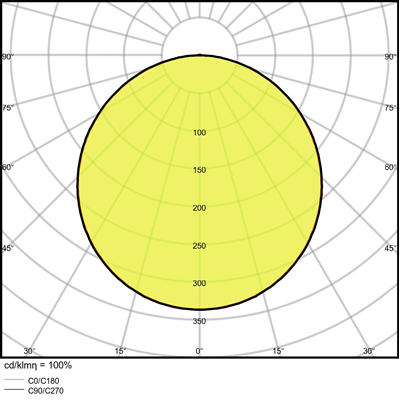

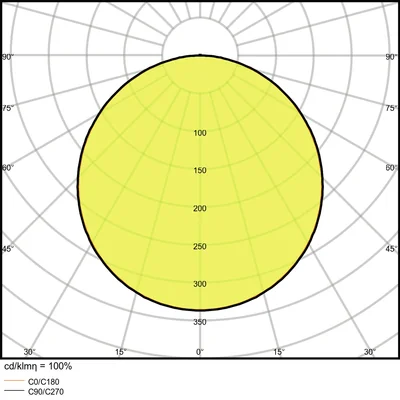

  • beam angle [°]
    120
  • Color
    White
  • Power [W]
    36
  • Rated voltage [V]
    230
  • Luminous efficiency [lm/W]
    120
  • luminous flux [lm]
    4320

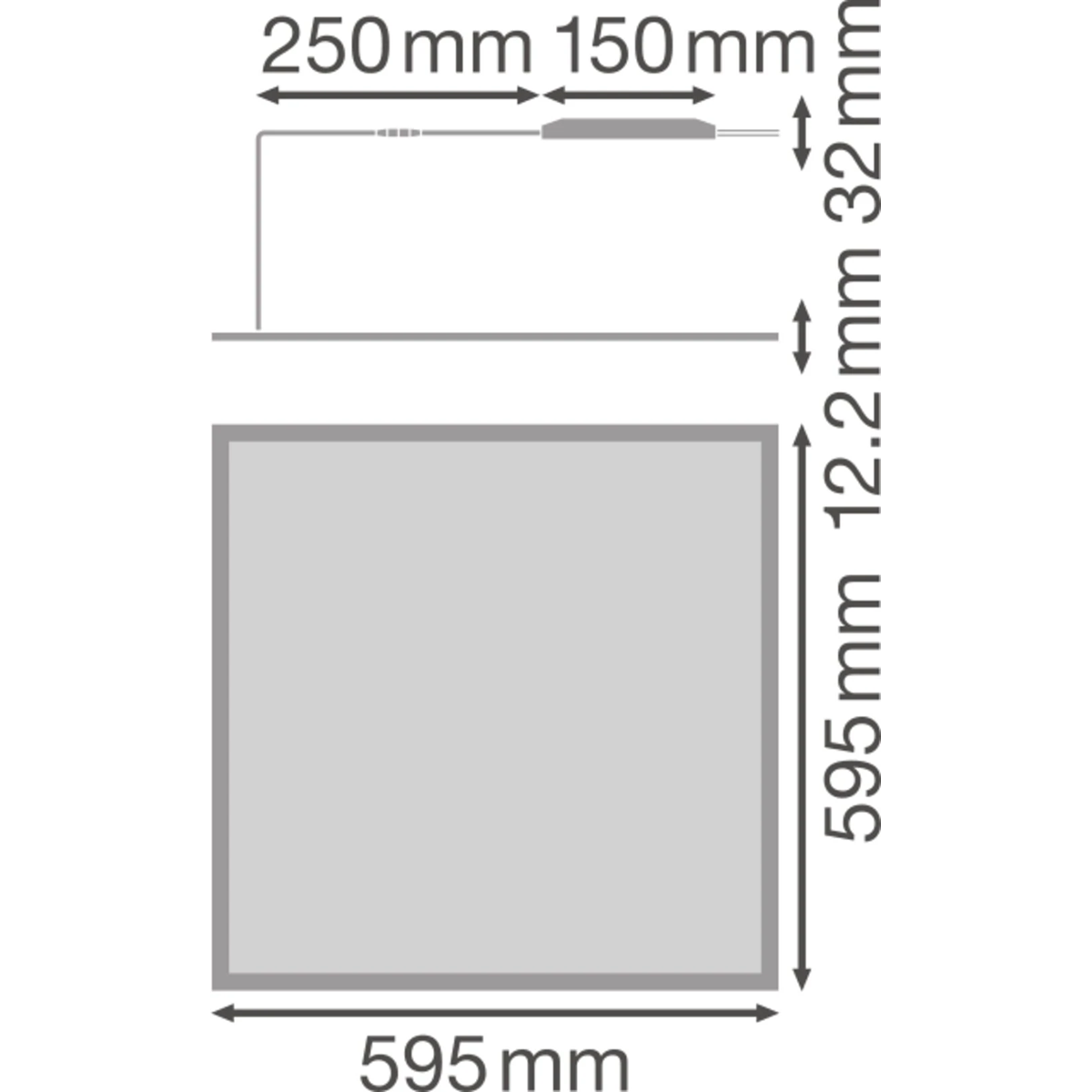

  • Mounting width [mm]
    575
  • Color Temperature [K]
    4000
  • Lampshade material
    PMMA
  • Length [mm]
    595
  • Protection class
    II
  • Material
    Aluminum
  • Installation
    Surface Flush-mounted
  • Family
    PANEL 600
  • Level of security
    IP54

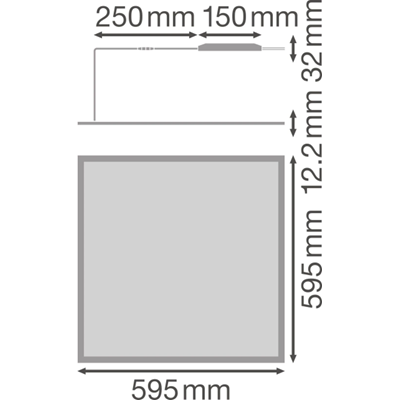

  • Width [mm]
    595
  • Height [mm]
    12.6
  • cri (ra)
    >80
  • Mounting length [mm]
    575

Other technical data

  • Suitable for wall mounting
    yes
  • Suitable for ceiling mounting
    yes
  • Suitable for surface mounting
    no
  • Suitable for workplace according to EN 12464-1
    no
  • With light source
    yes
  • Housing colour
    White
  • Type of grid
    Matt
  • Nominal voltage
    220 ... 240 V
  • Type of control gear
    Electronic ballast
  • Dimming 0-10 V
    no
  • Dimming DALI
    no
  • Dimming DSI
    no
  • Ściemniacz GPRS
    no
  • Dimming manufacturer's proprietary system
    no
  • Dimming phase cut-off
    no
  • Dimming programmable
    no
  • Dimming Sine Wave Reduction
    no
  • Dimming Zigbee
    no
  • Ściemniacz zależny od statecznika
    no
  • Light distributor
    Diffuser lens/optic/panel

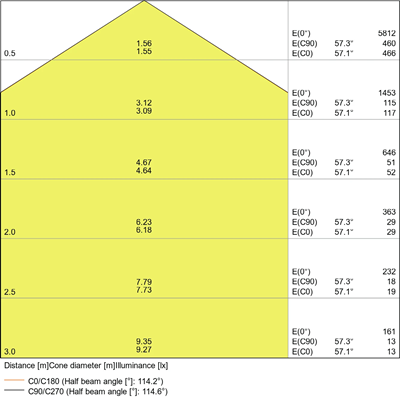

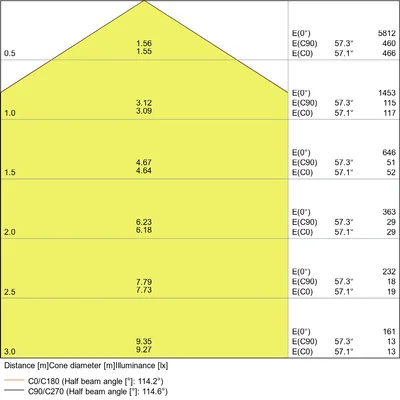

  • Beam angle
    Extreme wide beam >80°
  • Klasa efektywności energetycznej zamontowanego źródła światła
    A++, A+, A (LED)
  • Rated life time L70/B50 at 25 °C
    80000 h
  • Żywotność znamionowa L80/B50 przy 25 °C
    60000 h
  • Żywotność znamionowa L90/B50 przy 25 °C
    35000 h
  • Impact strength
    IK03
  • Suitable for emergency lighting
    yes
  • With light sensor
    no
  • With air slots
    no
  • Max. system power
    36.00 W
  • Colour of light
    White
  • Colour rendering index CRI
    80-89
  • Power factor
    0.90
  • Height/depth
    12.6 mm
  • Built-in length
    575.0 mm
  • Built-in height/depth
    50.0 mm
  • Number of poles
    2
  • Suitable for suspended mounting
    yes
  • Suitable for built-in mounting
    yes
  • Suitable for light line configuration
    no
  • Lamp type
    LED not exchangeable
  • Housing material
    Aluminium
  • Material cover
    Plastic, opal
  • Voltage type
    AC
  • Prąd znamionowy LED przy zasilaniu prądem stałym
    190 ... 190 mA
  • With control gear
    yes
  • Dimming 1-10 V
    no
  • Dimming DMX
    no
  • Dimming potentiometer (integrated)
    no
  • Dimming LineSwitch
    no
  • Dimming mains voltage modulation
    no
  • Dimming phase cut-on
    no
  • Dimming RF
    no
  • Dimming Touch and Dim
    no
  • Dimming with push-button
    no
  • No dim function
    yes
  • Light sharing
    Symmetric
  • Light outlet
    Direct
  • Żywotność znamionowa L70/B10 przy 25 °C
    80000 h
  • Rated life time L80/B10 at 25 °C
    60000 h
  • Żywotność znamionowa L90/B10 przy 25°C
    35000 h
  • Degree of protection (IP)
    IP54
  • Protection class
    II
  • With movement sensor
    no
  • Covering of the luminaire with thermally insulating material possible
    no
  • Filament test according to IEC 60695-2-11
    650 °C - 30 s
  • Rated luminous flux according to IEC 62722-2-1
    4320 lm
  • Colour temperature
    4000 ... 4000 K
  • Luminaire efficacy
    120 lm/W
  • Width
    595.0 mm
  • Length
    595.0 mm
  • Built-in width
    575.0 mm
  • Type of wiring
    Ending
  • Connection type
    Other
