el12 Lighting Light fixtures Indoor luminaires Recessed office and decorative

Luminaire LUGSTAR LB LED p/t ED 2050lm/840 MAT IP44 70° white GEN.2 18 W 300031.00006

local index:
OWG055LUGQ
Catalog No:
300031.00006
EAN code:
5900530090609

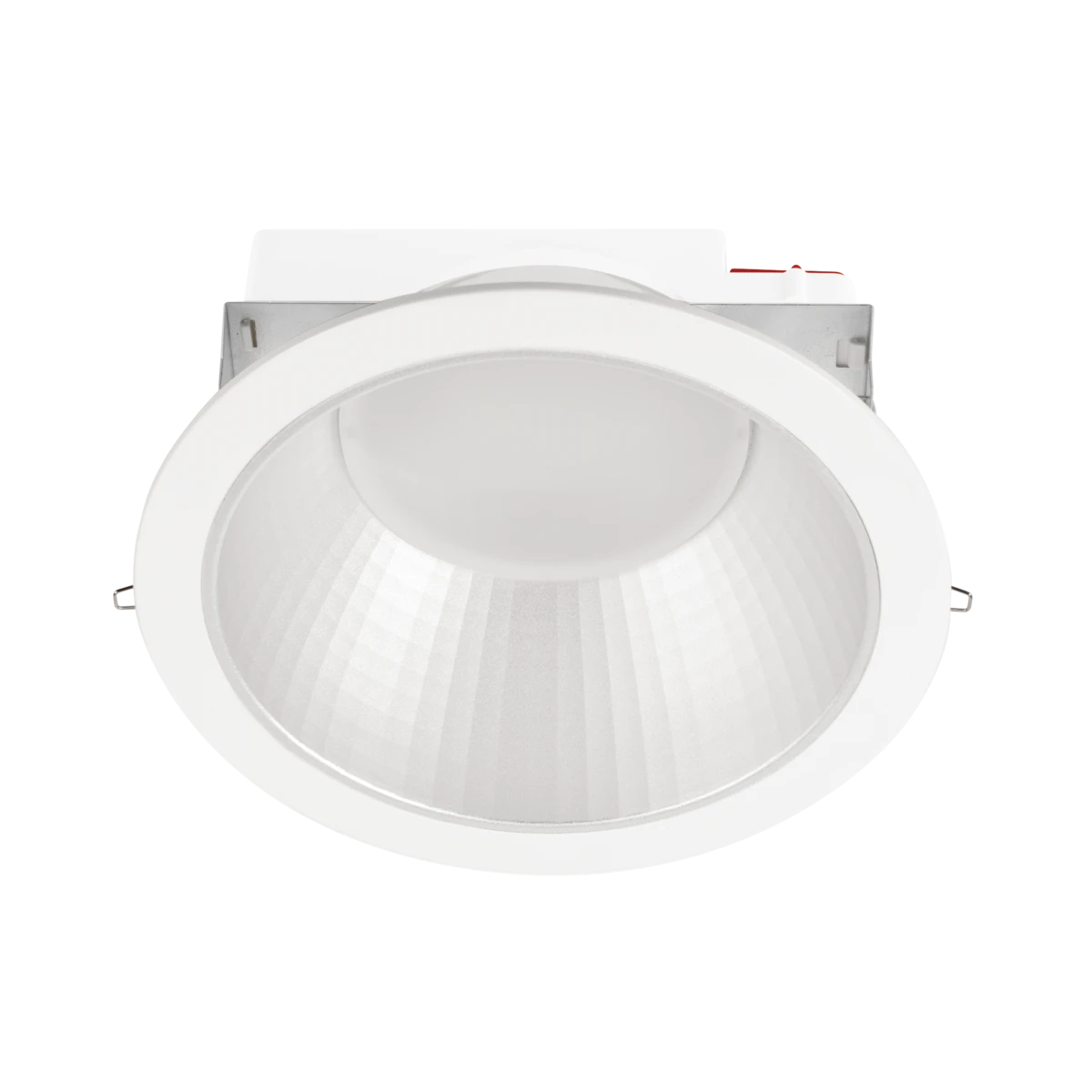

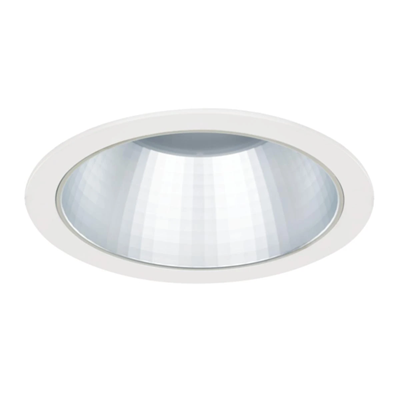

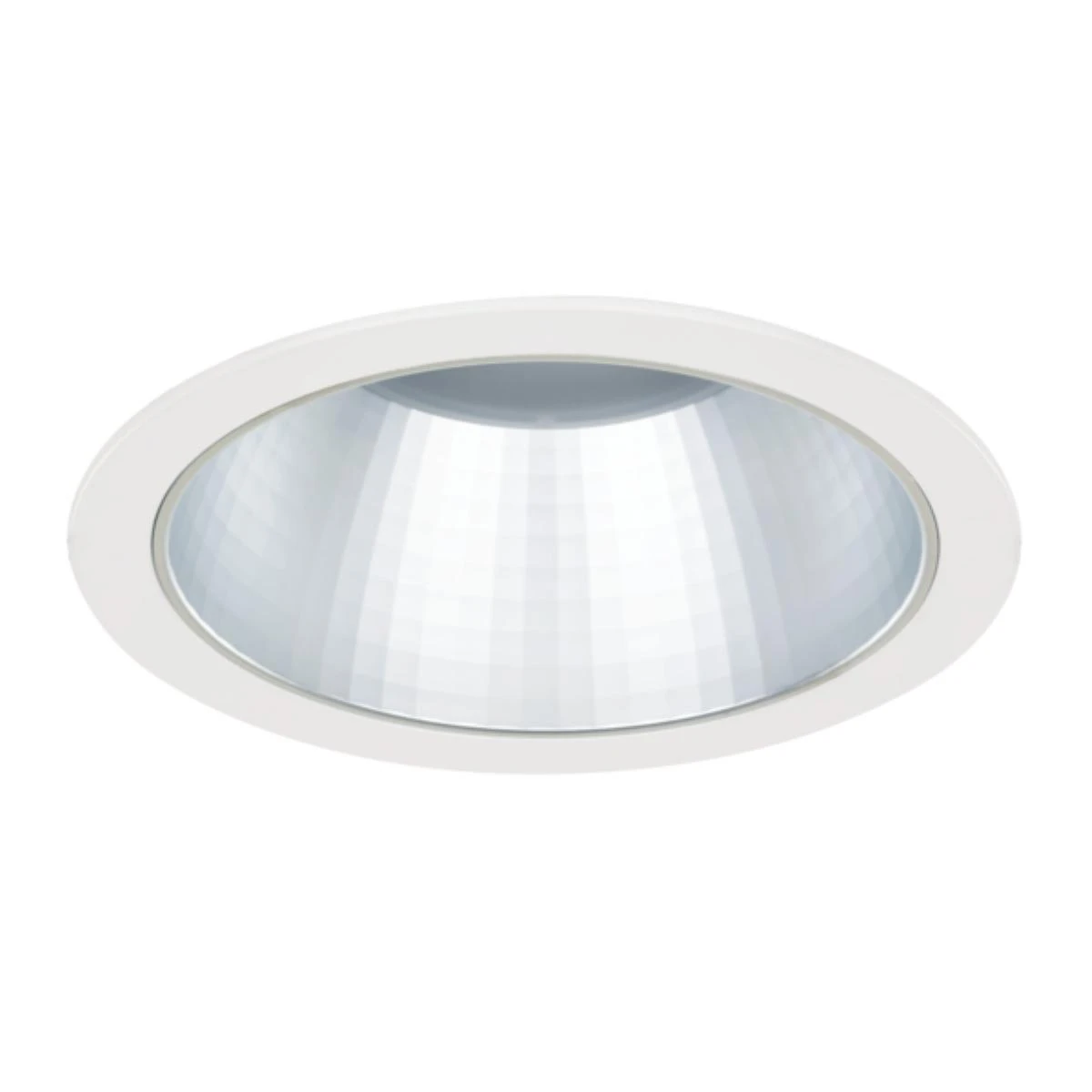

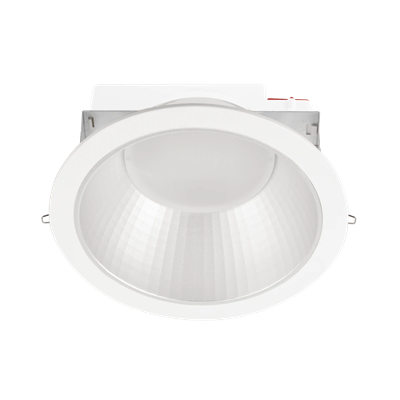

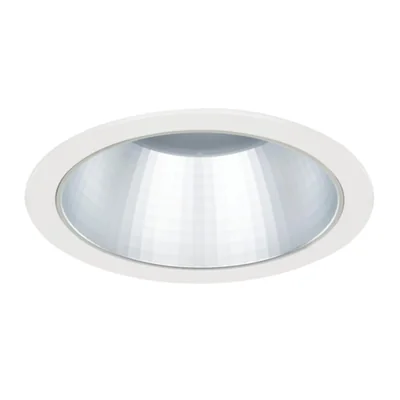

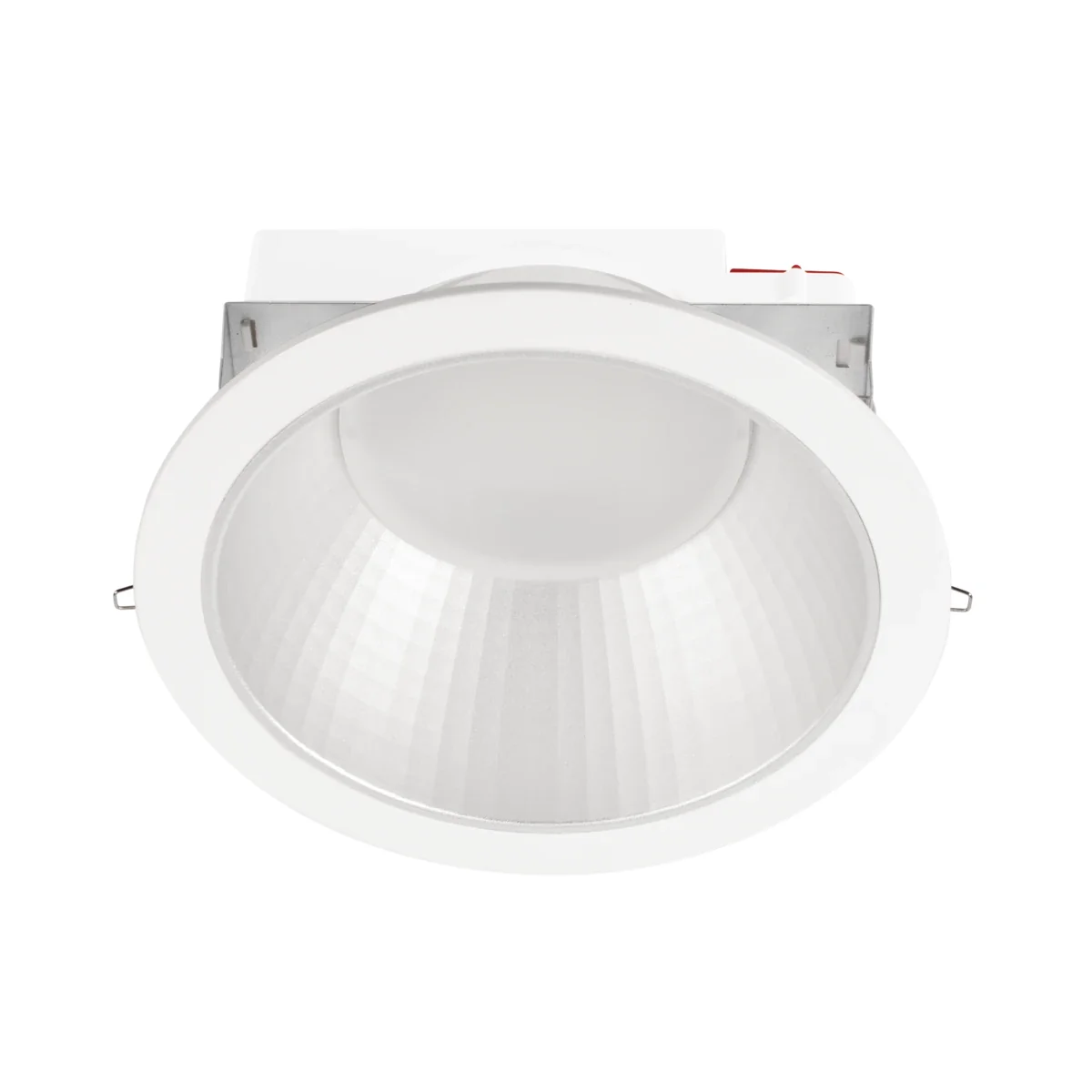

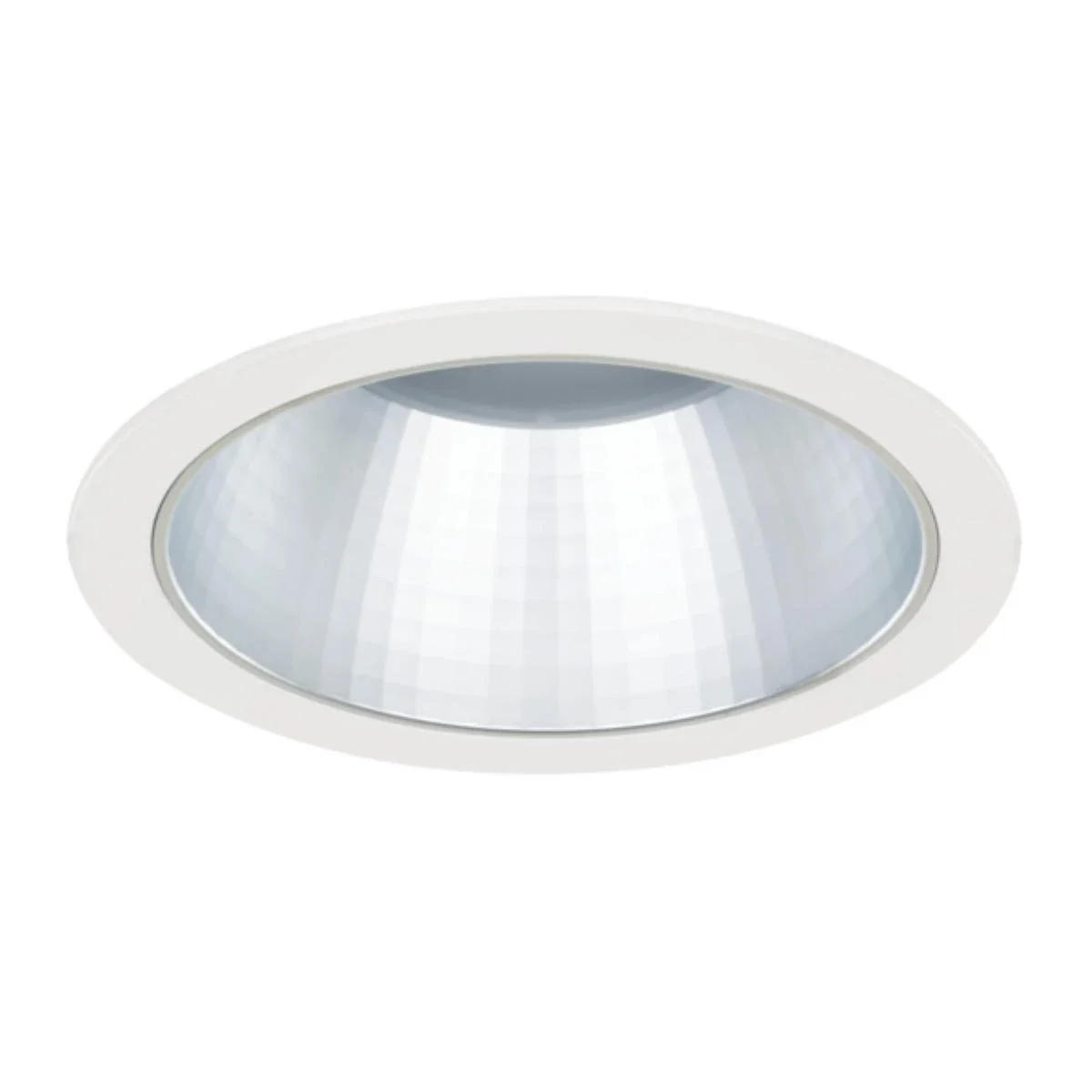

Luminaire LUGSTAR LB LED p/t ED 2050lm/840 MAT IP44 70° white GEN.2 18 W
Luminaire LUGSTAR LB LED p/t ED 2050lm/840 MAT IP44 70° white GEN.2 18 W

Click on the photo to enlarge

Manufacturer: LUG LIGHT
Level of security: IP44
See full description
Price:
100,23 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 5 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Product description Technical data

Product description

Luminaire LUGSTAR LB LED p/t ED 2050lm/840 MAT IP44 70° white GEN.2 18 W

Technical data

  • Level of security
    IP44

Other technical data

  • Suitable for surface mounting
    No
  • Suitable for wall mounting
    No
  • Suitable for ceiling mounting
    Yes
  • Suitable for pedestal/floor mounting
    No
  • Suitable for clamp-mounting
    No
  • Adjustability
    Not adjustable
  • With light sensor
    No
  • With light source
    Yes
  • Housing colour
    White
  • Nominal voltage
    220 ... 240 V
  • With control gear
    Yes
  • Dimming 1-10 V
    No
  • Dimming DMX
    No
  • Dimming potentiometer (integrated)
    No
  • Dimming LineSwitch
    No
  • Dimming Zigbee
    No
  • Reflector
    Matt
  • Light sharing
    Symmetric
  • Light outlet
    Direct
  • Rated life time L80/B10 at 25 °C
    50000 h
  • Impact strength
    IK07
  • Rated ambient temperature according to IEC 62722-2-1
    0 ... 35 °C
  • Colour of light
    White
  • Colour rendering index CRI
    80-89
  • Rated luminous flux according to IEC 62722-2-1
    1900 lm
  • Width
    240 mm
  • Outer diameter
    240 mm
  • Type of wiring
    Suitable for through wiring
  • Connectable conductor cross section
    0 ... 2.5 mm²
  • Luminaire efficacy
    106 lm/W
  • Covering of the luminaire with thermally insulating material possible
    No
  • Colour consistency (McAdam ellipse)
    SDCM3
  • Suitable for built-in mounting
    Yes
  • Suitable for suspended mounting
    No
  • Suitable for traverse mounting
    No
  • Suitable for light-track mounting
    No
  • Suitable for low voltage cable system
    No
  • With movement sensor
    No
  • Lamp type
    LED not exchangeable
  • Housing material
    Aluminium
  • Voltage type
    AC
  • Type of control gear
    LED operating device current-controlled
  • Dimming 0-10 V
    No
  • Dimming DALI
    No
  • Dimming DSI
    No
  • Ściemniacz GPRS
    No
  • Dimming programmable
    No
  • No dim function
    Yes
  • Light distributor
    Reflector
  • Beam angle
    Wide beam 41-80°
  • Klasa efektywności energetycznej zamontowanego źródła światła
    A++, A+, A (LED)
  • Degree of protection (IP)
    IP44
  • Protection class
    I
  • Max. system power
    18 W
  • Colour temperature
    4000 ... 4000 K
  • Luminous flux
    1900 ... 1900 lm
  • Lamp efficacy
    106 lm/W
  • Height/depth
    140 mm
  • Built-in diameter
    215 mm
  • Conductor cross section
    2.5 mm²
  • Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
    No
  • Suitable for workplace according to EN 12464-1
    No
  • Filament test according to IEC 60695-2-11
    650 °C - 30 s
See more >>
