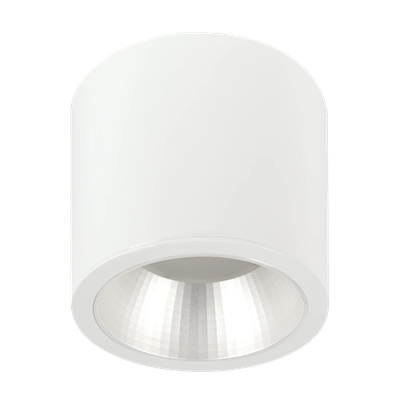

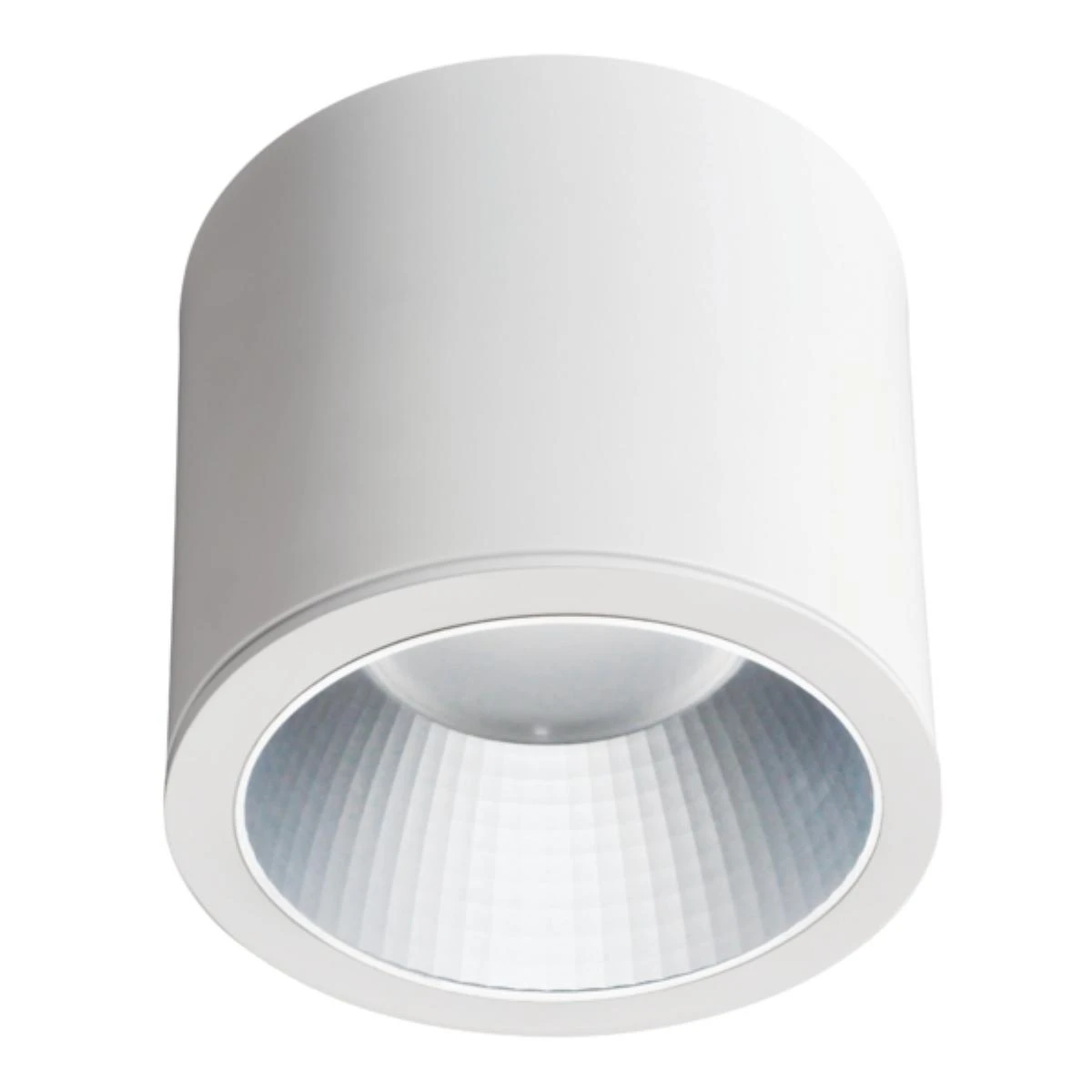

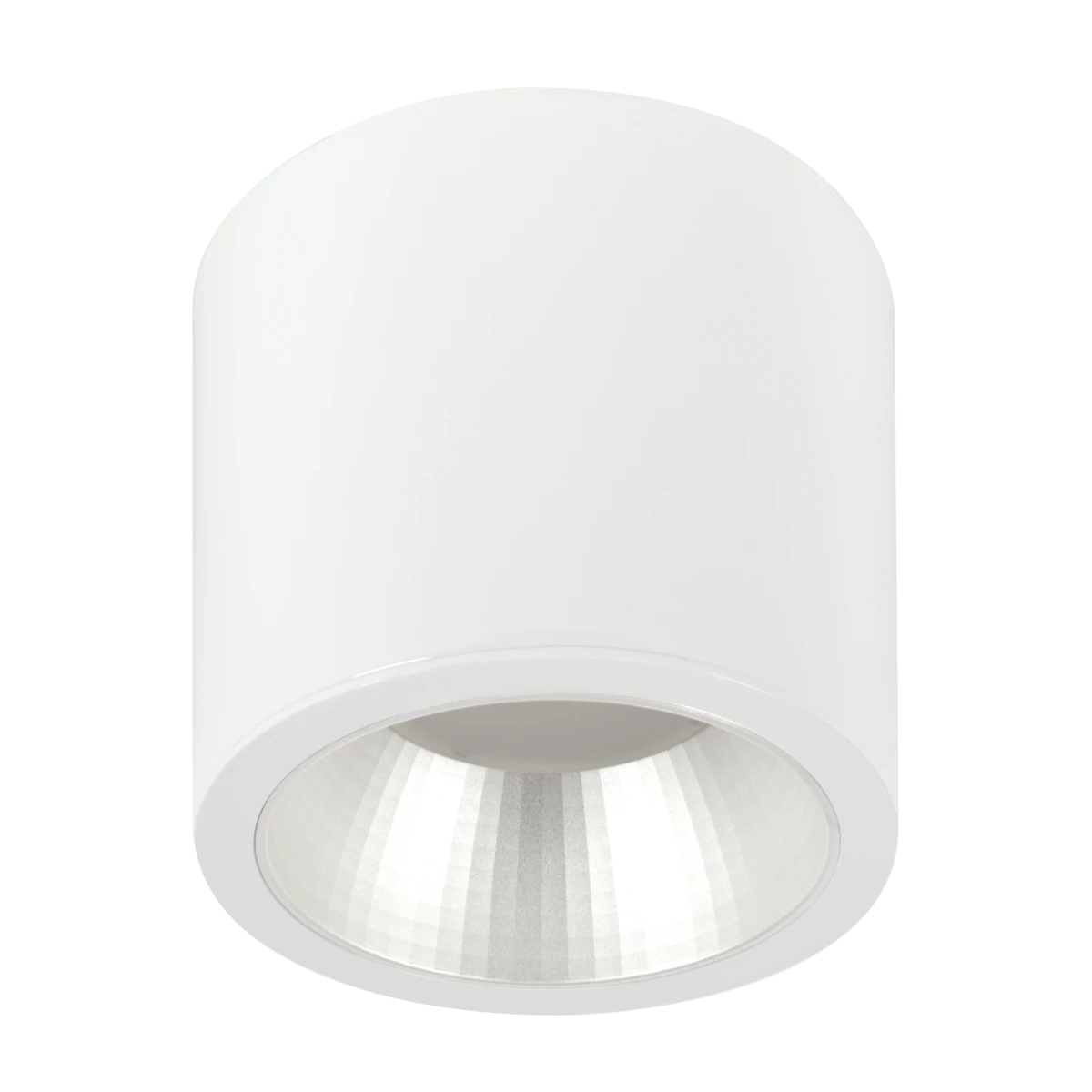

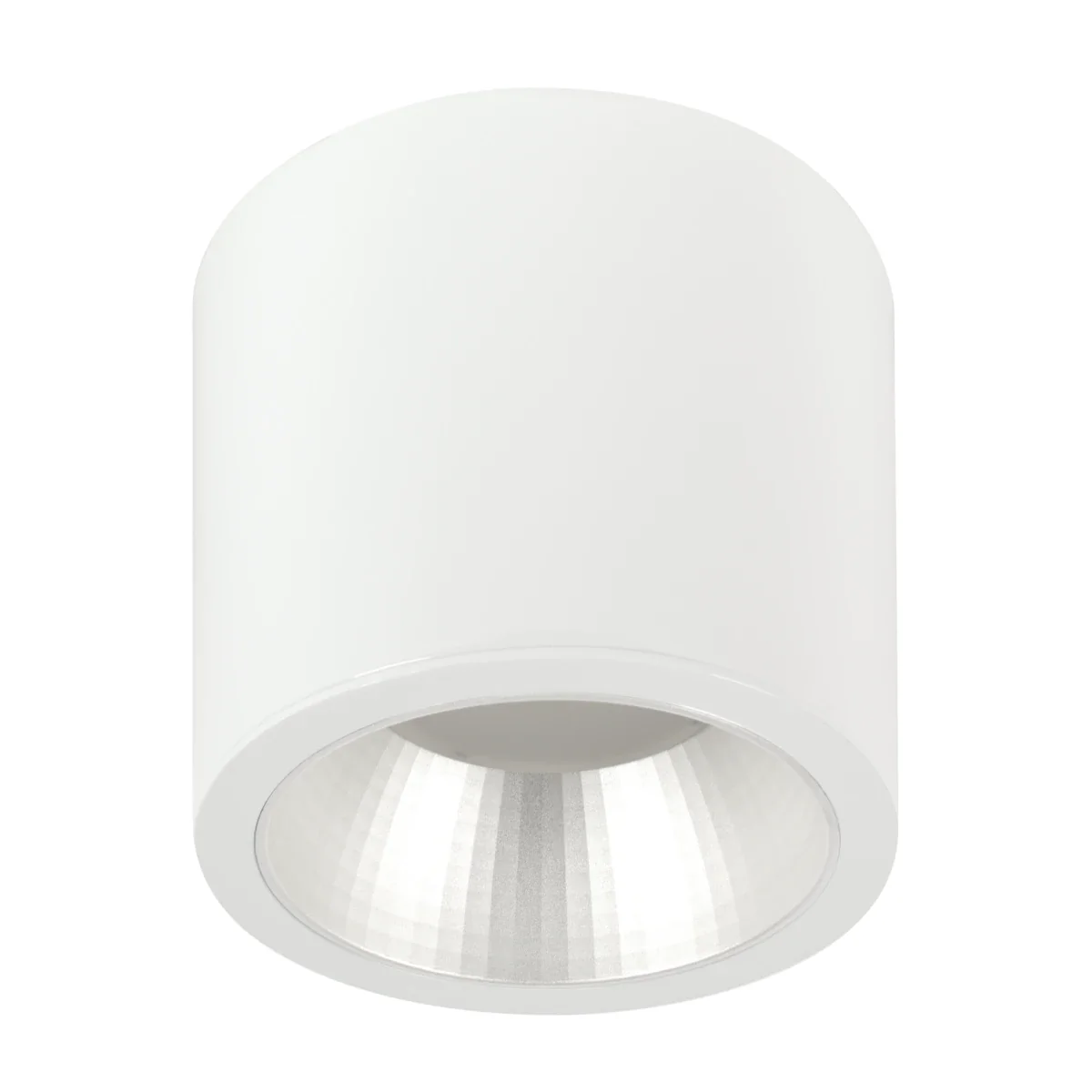

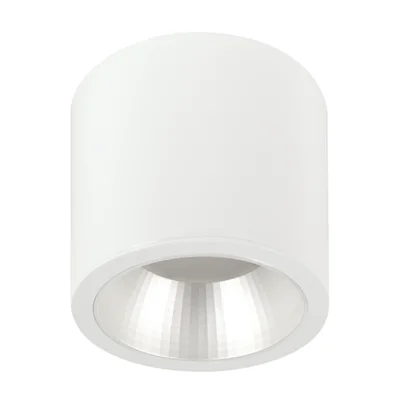

Name: Luminaire LUGSTAR LB LED n/t ED 2700lm/840 MAT IP20 70° white GEN.2 24 W
Brand: LUG LIGHT
SKU: OWE028LUGQ
Price: 172.95 PLN
Availability: InStock

Level of security

IP20

Other technical data

Suitable for surface mounting

Yes
Suitable for wall mounting

No
Suitable for ceiling mounting

Yes
Suitable for pedestal/floor mounting

No
Suitable for clamp-mounting

No
Adjustability

Not adjustable
With light sensor

No
With light source

Yes
Housing colour

White
Nominal voltage

220 ... 240 V
Type of control gear

LED operating device current-controlled
Dimming 0-10 V

No
Dimming DALI

No
Dimming DSI

No
Ściemniacz GPRS

No
Dimming programmable

No
No dim function

Yes
Light distributor

Reflector
Beam angle

Wide beam 41-80°
Klasa efektywności energetycznej zamontowanego źródła światła

A++, A+, A (LED)
Degree of protection (IP)

IP20
Protection class

I
Max. system power

24 W
Colour temperature

4000 ... 4000 K
Luminous flux

2500 ... 2500 lm
Lamp efficacy

104 lm/W
Height/depth

238 mm
Type of wiring

Suitable for through wiring
Connectable conductor cross section

0 ... 2.5 mm²
Luminaire efficacy

104 lm/W
Filament test according to IEC 60695-2-11

650 °C - 30 s

Suitable for built-in mounting

No
Suitable for suspended mounting

No
Suitable for traverse mounting

No
Suitable for light-track mounting

No
Suitable for low voltage cable system

No
With movement sensor

No
Lamp type

LED not exchangeable
Housing material

Steel
Voltage type

AC
Prąd znamionowy LED przy zasilaniu prądem stałym

900 ... 900 mA
With control gear

Yes
Dimming 1-10 V

No
Dimming DMX

No
Dimming potentiometer (integrated)

No
Dimming LineSwitch

No
Dimming Zigbee

No
Reflector

Matt
Light sharing

Symmetric
Light outlet

Direct
Rated life time L80/B10 at 25 °C

50000 h
Impact strength

IK07
Rated ambient temperature according to IEC 62722-2-1

0 ... 30 °C
Colour of light

White
Colour rendering index CRI

80-89
Rated luminous flux according to IEC 62722-2-1

2500 lm
Width

242 mm
Built-in diameter

242 mm
Conductor cross section

2.5 mm²
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24

No
Suitable for workplace according to EN 12464-1

No
Colour consistency (McAdam ellipse)

SDCM3

Luminaire LUGSTAR LB LED n/t ED 2700lm/840 MAT IP20 70° white GEN.2 24 W 300031.00045
