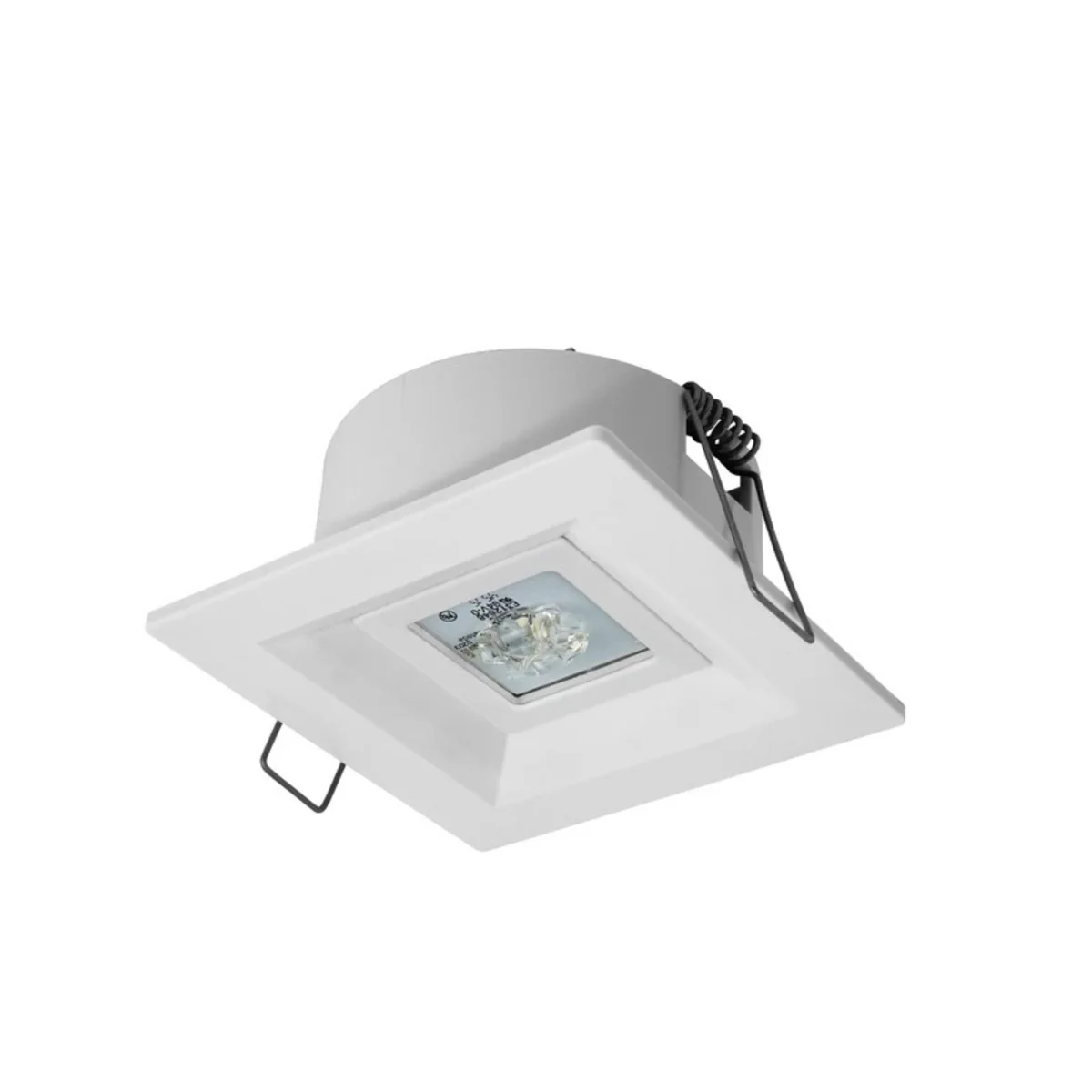

LOVATO P LED luminaire 3W 360lm (opt. universal) 3h single-purpose AT white LVPU/3W/B/3/SE/AT/WH

local index:
OWA250AWEX
Catalog number:
LVPU/3W/B/3/SE/AT/WH
EAN code:
5902869526484
Manufacturer: AWEX
Price:
613,81 zł
gross / pcs.
(including VAT 23%)
Out of stock
On request
Add to inquiry
Print

Technical data

Other technical data

  • Mounting method
    Built-in
  • With pictogram
    No
  • With remote switch connection
    No
  • Battery quality
    Other
  • With light source
    Yes
  • Housing material
    Plastic
  • Material cover
    Without cover
  • Nominal voltage
    220 ... 240 V
  • Light distributor
    Diffuser lens/optic/panel
  • Impact strength
    IK08
  • Rated ambient temperature according to IEC 62722-2-1
    0 ... 40 °C
  • Colour temperature
    6000 ... 6500 K
  • Width
    95 mm
  • Length
    95 mm
  • Built-in diameter
    83 mm
  • Function
    Escape route lighting
  • Monitoring equipment
    Automatic self test
  • Power supply system
    Peripheral (individual battery)
  • Lamp type
    LED not exchangeable
  • Number of lighting heads
    0
  • Housing colour
    White
  • Voltage type
    AC
  • Type of control gear
    LED operating device voltage-controlled
  • Degree of protection (IP)
    IP20
  • Protection class
    II
  • Max. system power
    3 W
  • Nominal operation time
    1 ... 3 h
  • Height/depth
    47.7 mm
  • Built-in height/depth
    47.7 mm

Manufacturer details

  • Manufacturer
    Rafał Stanuch P.P.H.U. AWEX Sp. z o.o.
  • Address
    32-091 Michałowice, Masłomiąca Długa 39 Polska
  • E-mail
