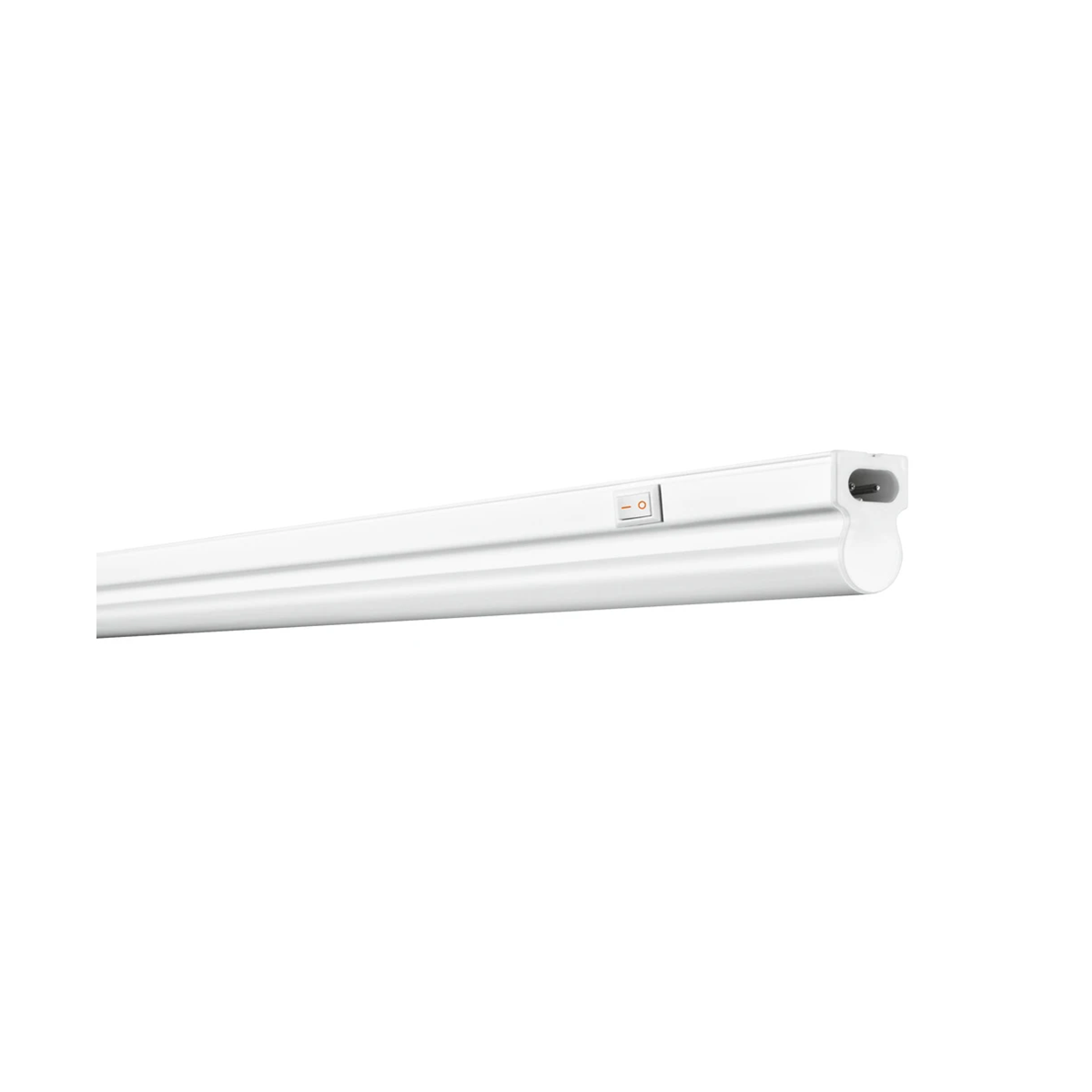

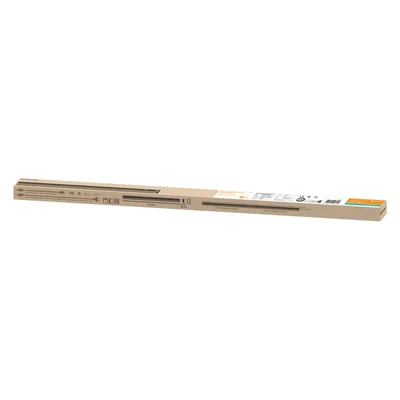

LINEAR COMPACT SWITCH Linear luminaire 8W 800lm 4000K IP20 NW 4058075106130
Lokaler Index:
OWE126LEDV
Katalognummer:
4058075106130
EAN-Code:
4058075106130
Preis:
17,54 €
gross / stk.
(inklusive MwSt 23%)
Lieferung in 3h
Abholung in 1 Stunde
Menge stk.
(mehrere:
1
)
Zur Zwischenablage hinzufügen
Drucken
Fragen Sie nach dem Produkt
Produktbeschreibung
- Compact dimensions
- Low space required due to compact size

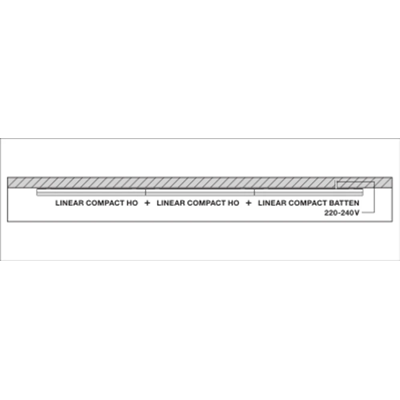

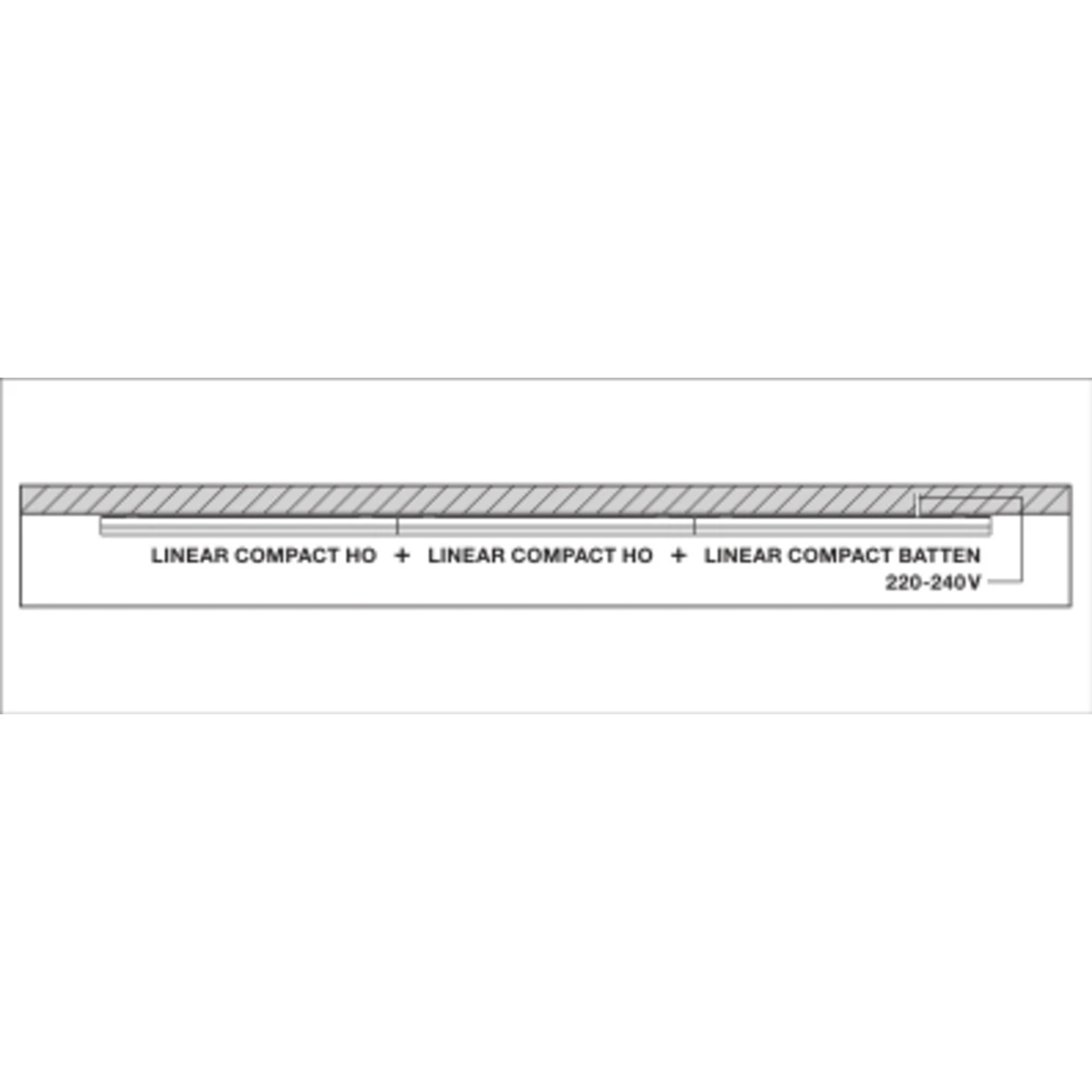

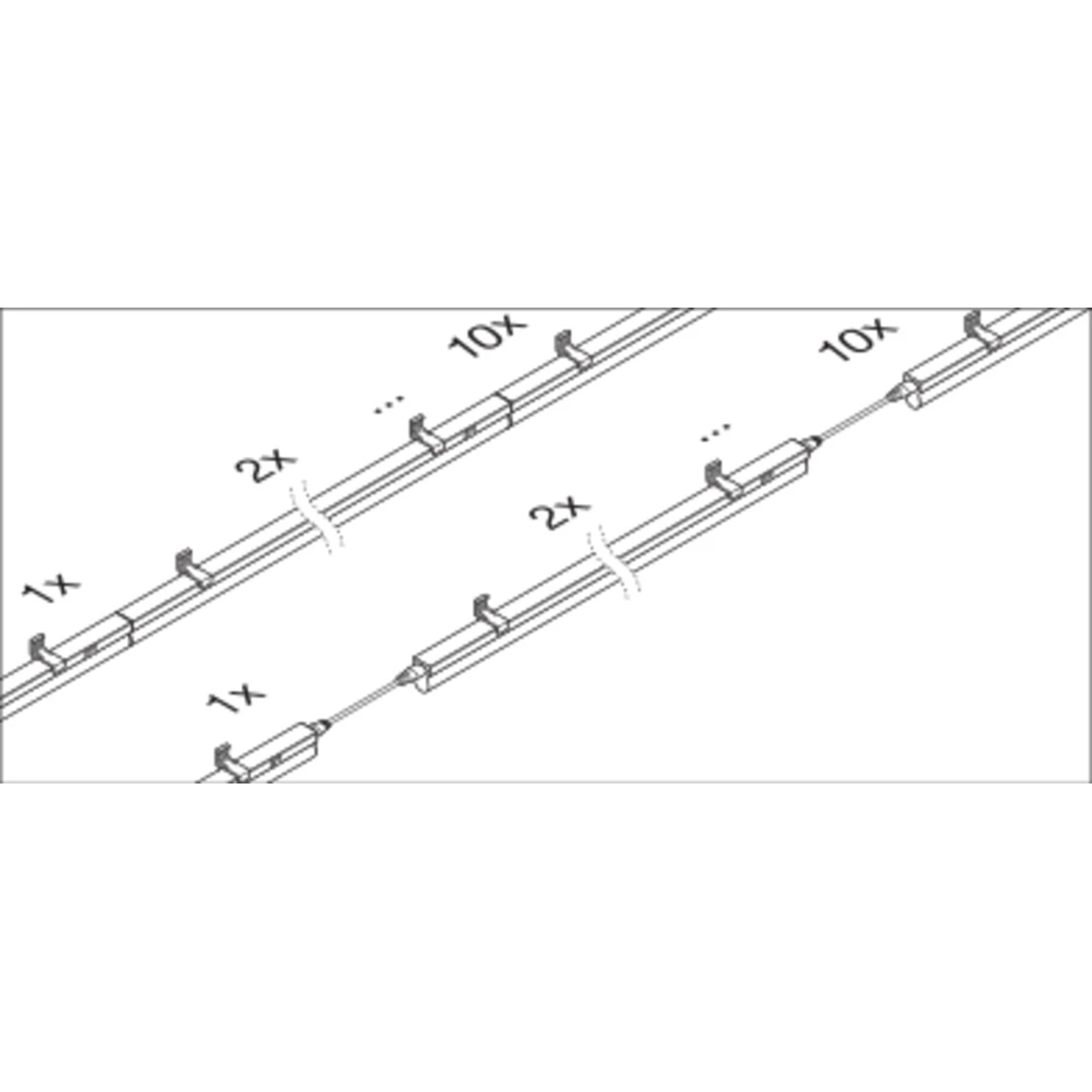

- Effortlessly connect up to 10 luminaires in a line
- Convenient switch directly installed in the luminaire light flicker
- Low light flicker thanks to special electronic ballast

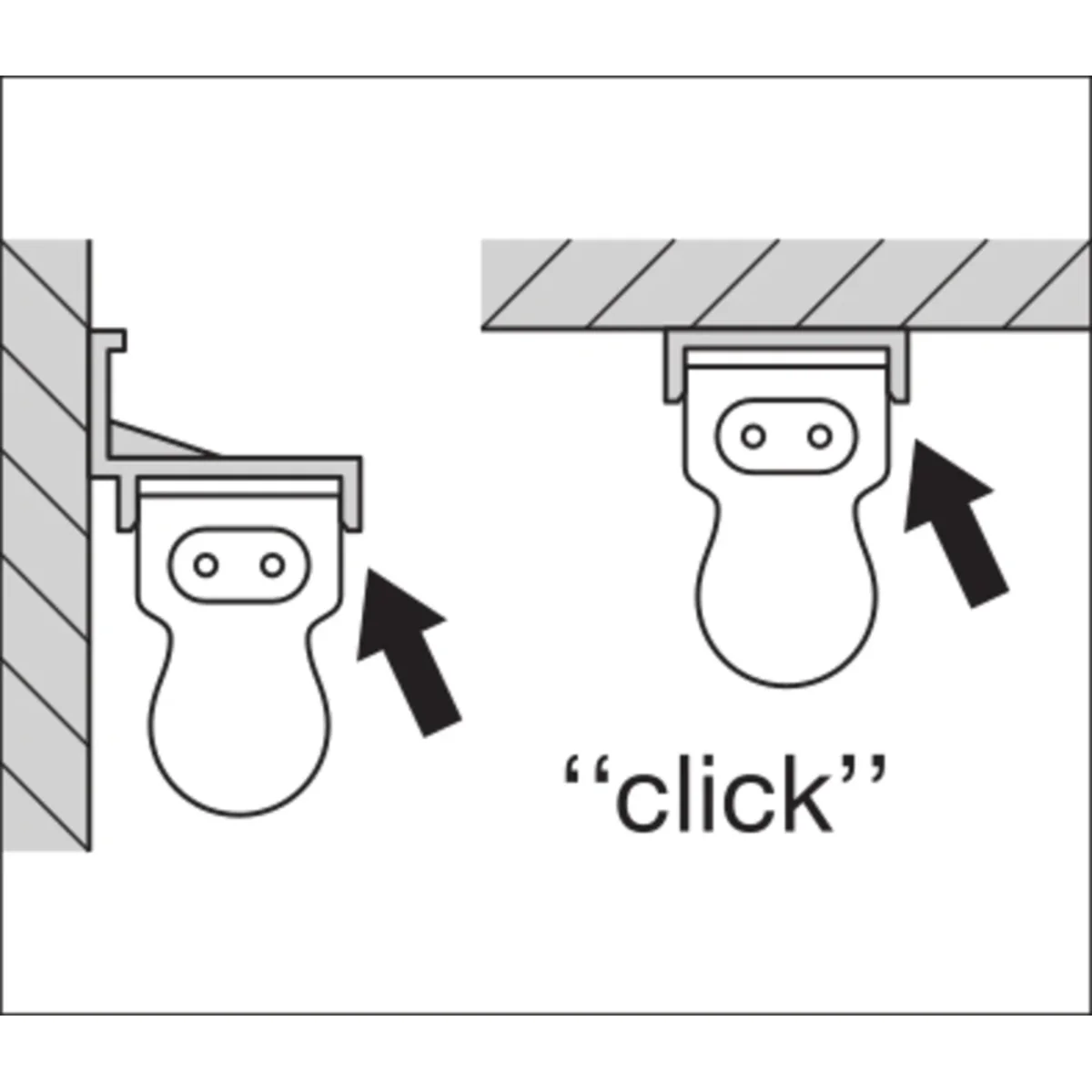

- Universal installation at 2 different angles with 2 different mounting options
- Universal applications thanks to the wide range of available lengths: from 300 to 1200 mm

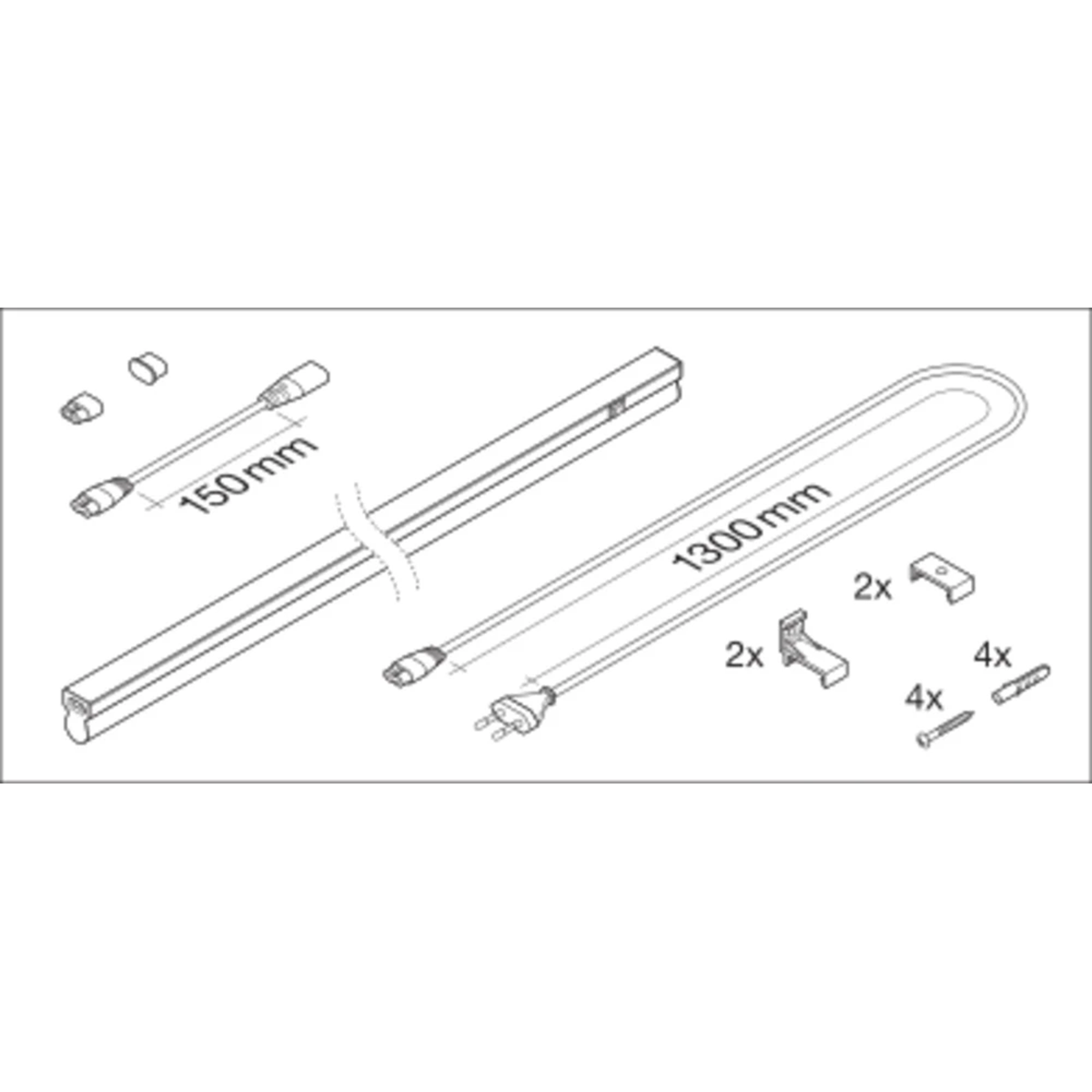

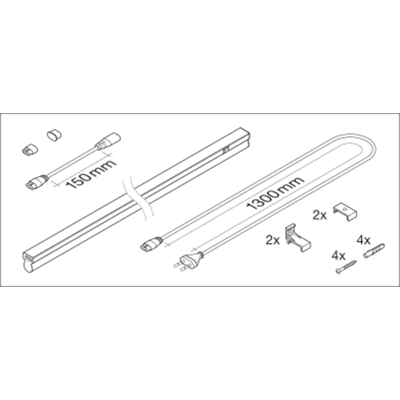

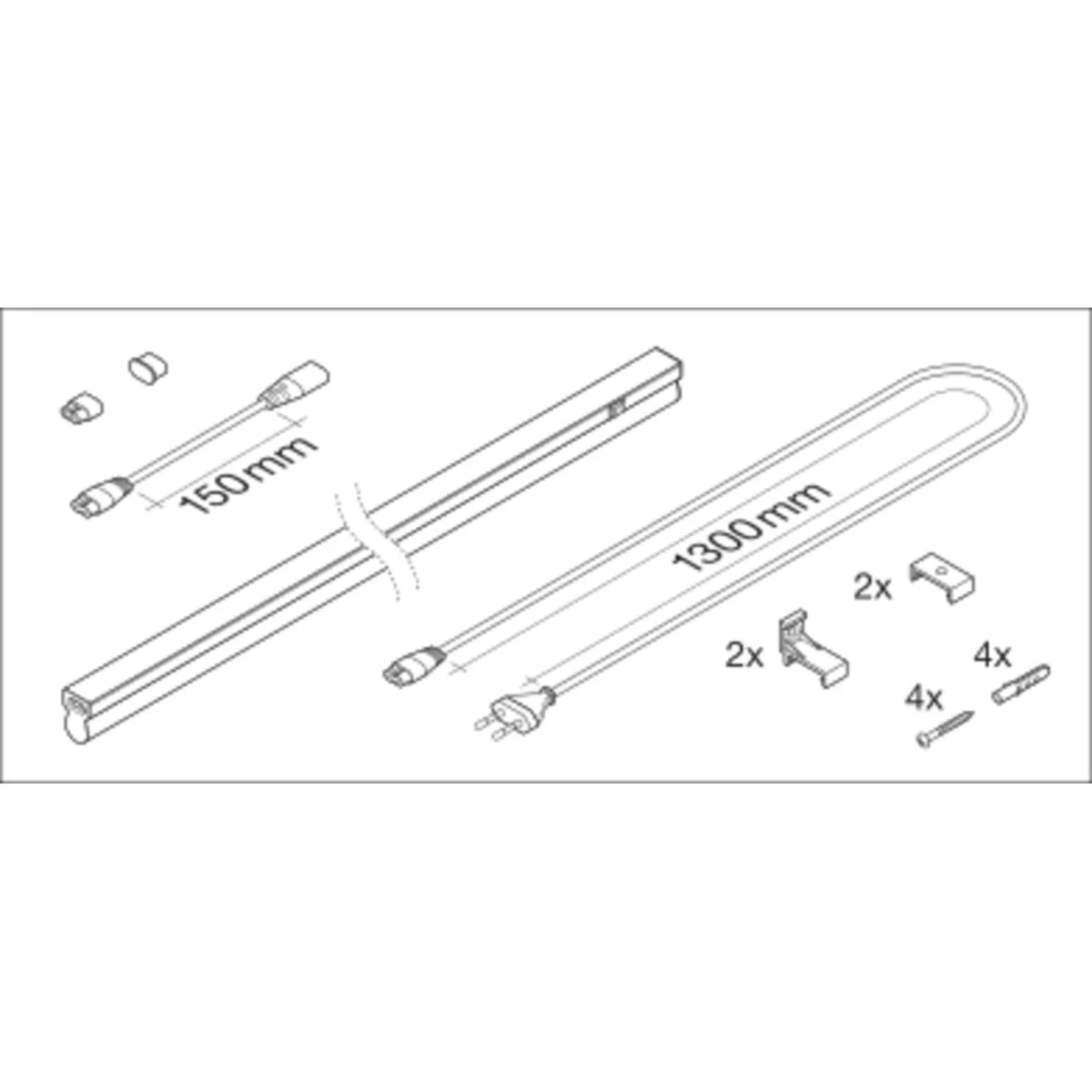

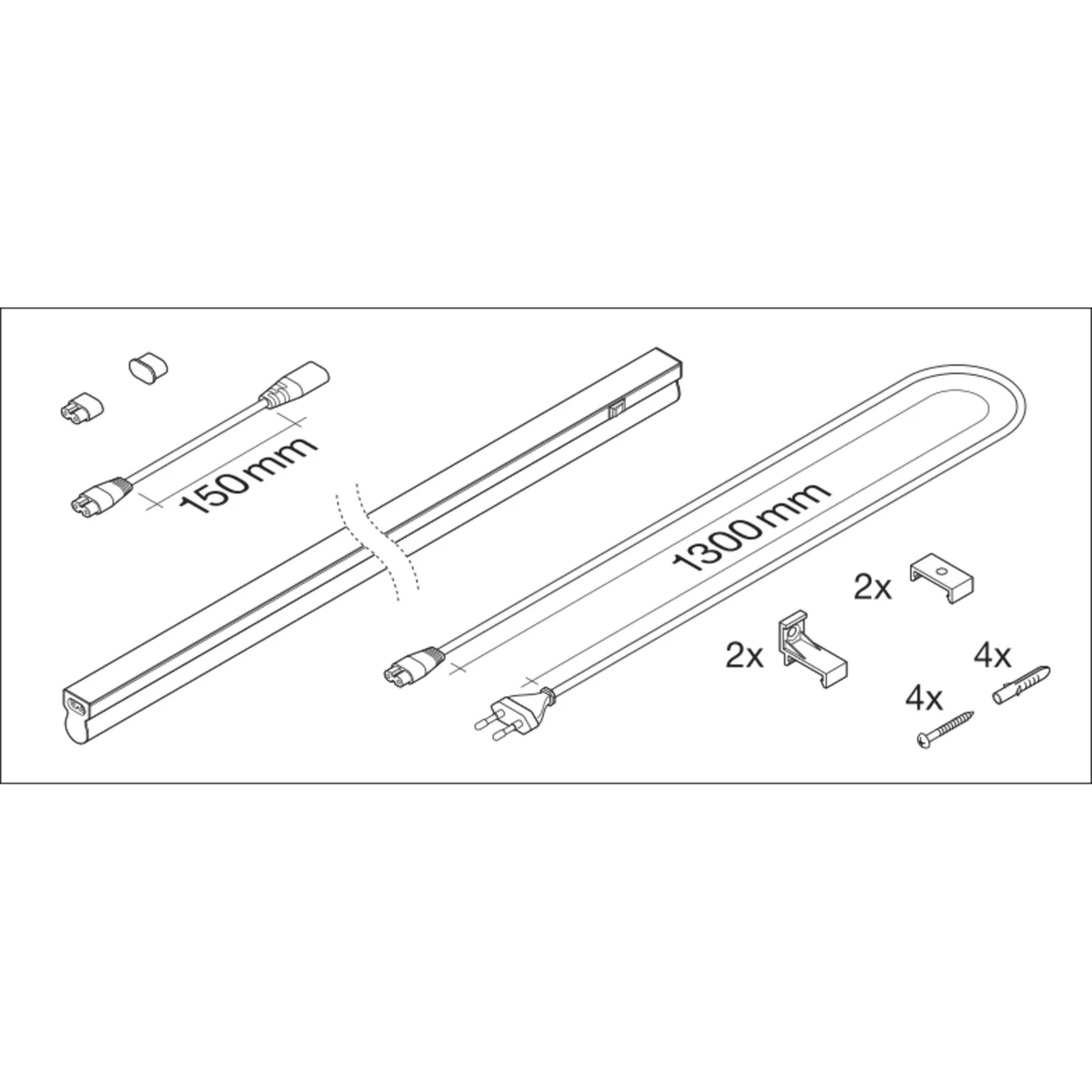

- Ability to connect at an angle thanks to the supplied cables
Technische Daten
-
Light color [K]3500-4800 (natural)
-

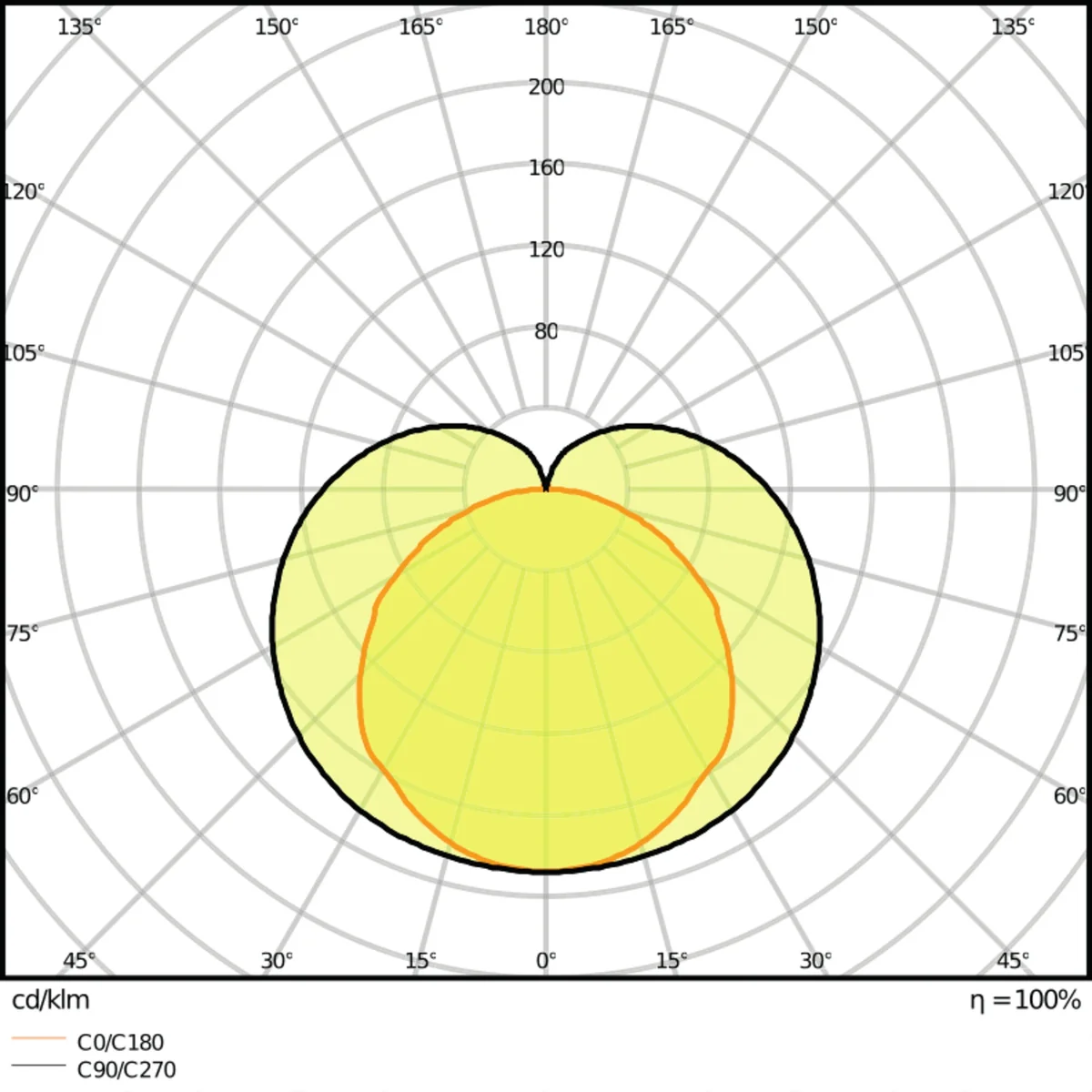

beam angle [°]140
-
ColorWhite
-
Power [W]8
-
Rated voltage [V]230
-
Luminous efficiency [lm/W]100
-
luminous flux [lm]800
-
Durability [h]30000
-
Degree of mechanical protectionIK03
-
Color Temperature [K]4000
-
PKWIU27.40.25
-

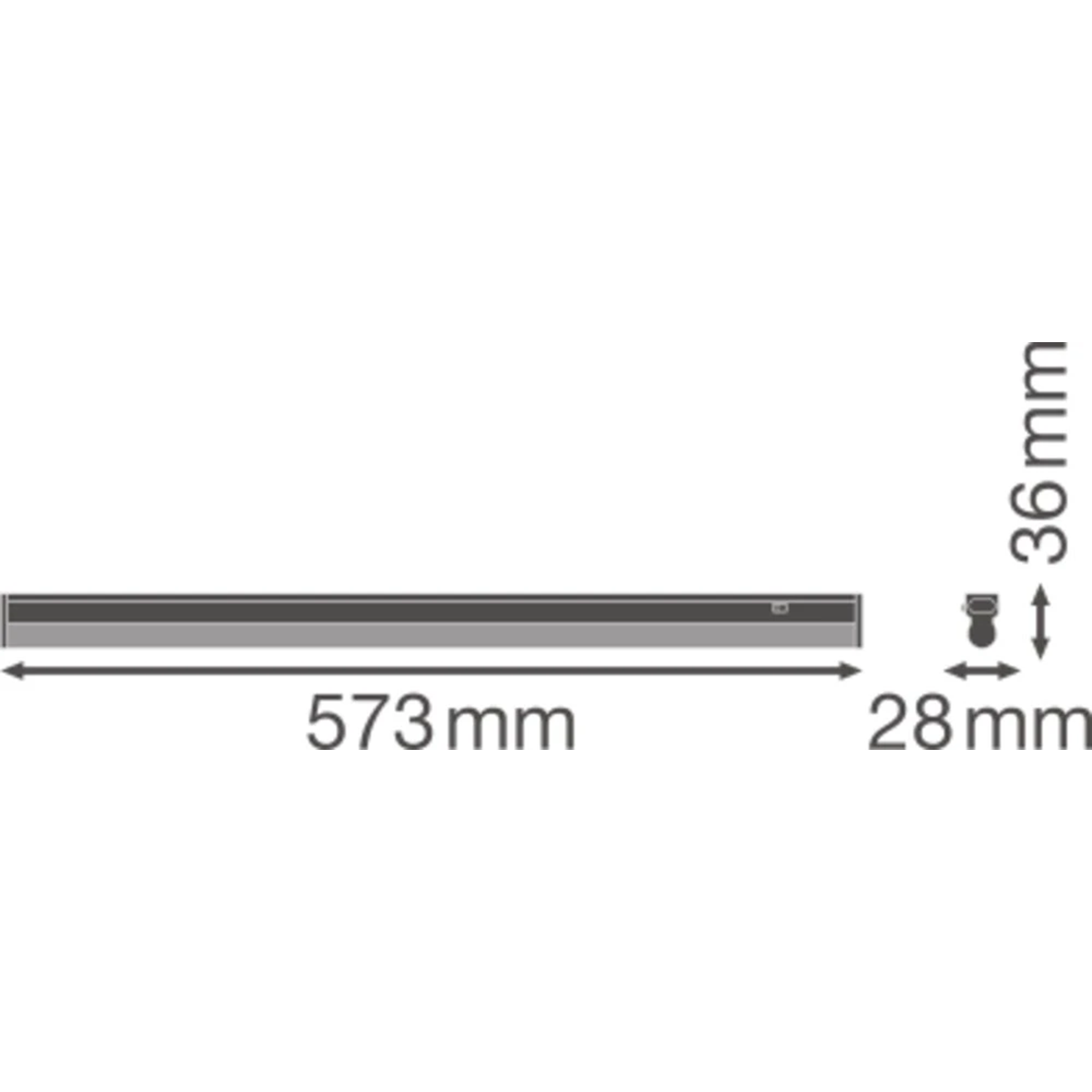

Length [mm]573
-
Protection classII
-
MaterialPC
-
InstallationSurface-mounted
-
Rated current [A]10
-
Level of securityIP20
-
Width [mm]28
-
Height [mm]36
-
Power factor [λ]>0.5
-
cri (ra)>80
Weitere technische Daten
-
Lamp typeLED not exchangeable
-
MaterialPlastic
-
Voltage typeAC
-
Prąd znamionowy LED przy zasilaniu prądem stałym62 ... 62 mA
-
With control gearYes
-
Dimming 1-10 VNo
-
Dimming DMXNo
-
Dimming potentiometer (integrated)No
-
Dimming LineSwitchNo
-
Dimming mains voltage modulationNo
-
Dimming phase cut-onNo
-
Dimming RFNo
-
Dimming Touch and DimNo
-
Dimming with push-buttonNo
-
Light distributorDiffuser lens/optic/panel
-
Klasa efektywności energetycznej zamontowanego źródła światłaA++, A+, A (LED)
-
Rated life time L70/B50 at 25 °C50000 h
-
Żywotność znamionowa L80/B50 przy 25 °C40000 h
-
Żywotność znamionowa L90/B50 przy 25 °C30000 h
-
Protection classII
-
With switchYes
-
Suitable for lamp power8.00 ... 8.00 W
-
Rated luminous flux according to IEC 62722-2-1800 lm
-
Colour temperature4000 ... 4000 K
-
Power factor0.5
-
Length573.0 mm
-
Number of poles2
-
Electrical connection with connector systemYes
-
With light sourceYes
-
Housing colourWhite
-
Nominal voltage220 ... 240 V
-
Type of control gearElectronic ballast
-
Dimming 0-10 VNo
-
Dimming DALINo
-
Dimming DSINo
-
Ściemniacz GPRSNo
-
Dimming manufacturer's proprietary systemNo
-
Dimming phase cut-offNo
-
Dimming programmableNo
-
Dimming Sine Wave ReductionNo
-
Dimming ZigbeeNo
-
No dim functionYes
-
Suitable for emergency lightingNo
-
Żywotność znamionowa L70/B10 przy 25 °C50000 h
-
Rated life time L80/B10 at 25 °C40000 h
-
Żywotność znamionowa L90/B10 przy 25°C30000 h
-
Degree of protection (IP)IP20
-
Covering of the luminaire with thermally insulating material possibleYes
-
With movement sensorNo
-
Max. system power8.00 W
-
Colour of lightWhite
-
Colour rendering index CRI80-89
-
Height/depth36.0 mm
-
Type of wiringThrough wiring included
-
Connection typeOther
Hersteller-Details
-
HerstellerLEDVANCE GmbH
-
Adresse85748 Garching Parkring 29-33 Niemcy
-
Telefonnummer
-
E-Mail
Großpackungen
| Eine Art Paket | Skrzynia | Karton | |
| Menge | 1 stk. | 1 stk. | 25 stk. |
| Gewicht (kg) | 0,300 | 0,364 | 8,180 |
| Volumen (m3) | - | 0,001 | 0,033 |
| Breite (m) | - | 0,040 | 0,220 |
| Länge (m) | - | 0,780 | 0,820 |
| Tiefe (m) | - | 0,030 | 0,180 |
