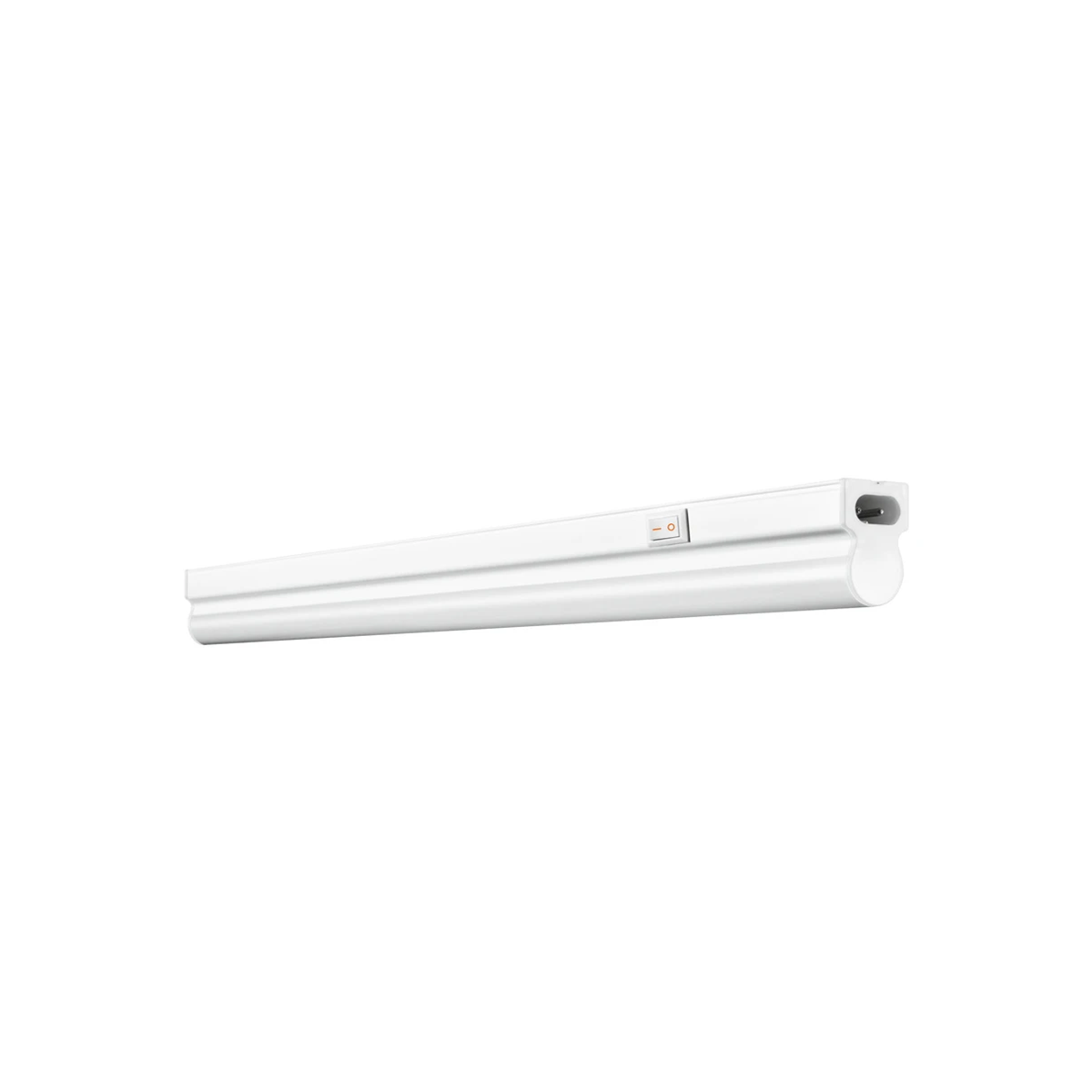

LINEAR COMPACT SWITCH Linear luminaire 4W 450lm 4000K IP20 NW white 4058075106093

local index:
OWE001LEDV
Catalog No:
4058075106093
EAN code:
4058075106093
Manufacturer: LEDVANCE
Light color [K]: 3500-4800 (natural)
Color Rendering Index [CRI]: >80
Length [mm]: 313
Price:
14,85 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 46 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Product benefits

  • Compact dimensions
  • Low space required due to compact size

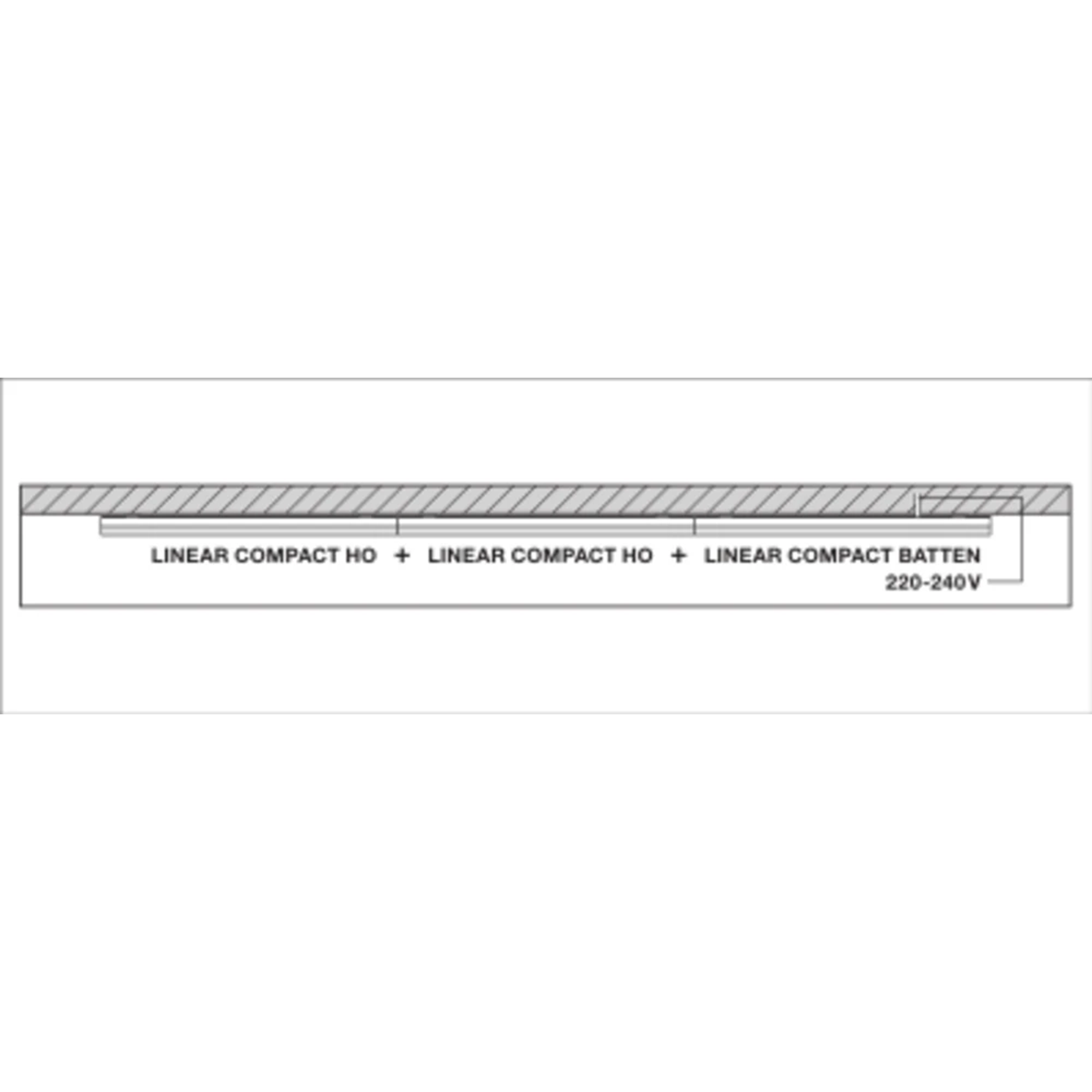

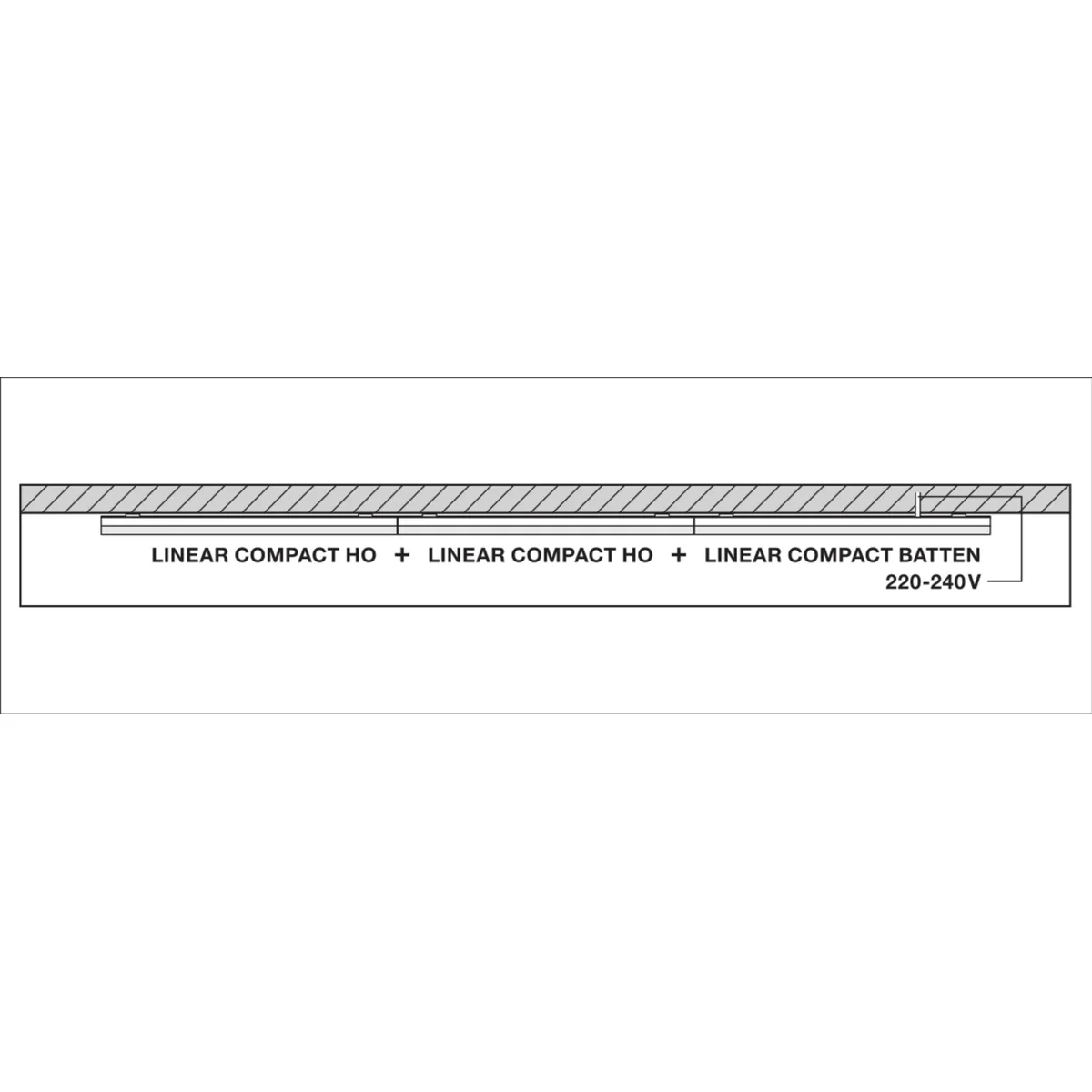

  • Effortless connection to 10 luminaires in line
  • Convenient switch directly installed in the luminaire
  • Low light flicker thanks to special electronic ballast

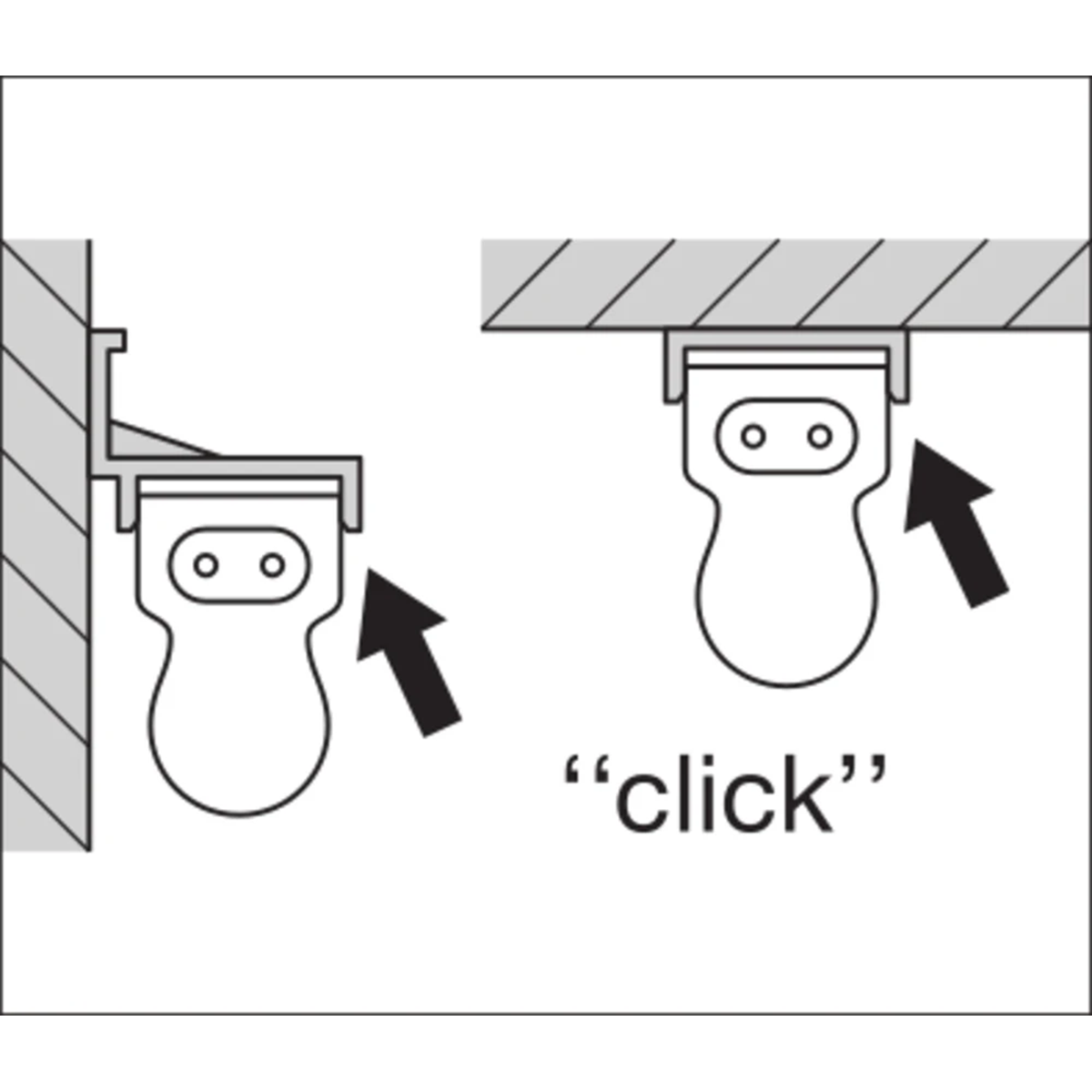

  • Universal installation at 2 different angles with 2 different possibilities installation
  • Universal applications thanks to a wide range of available lengths: from 300 to 1200 mm

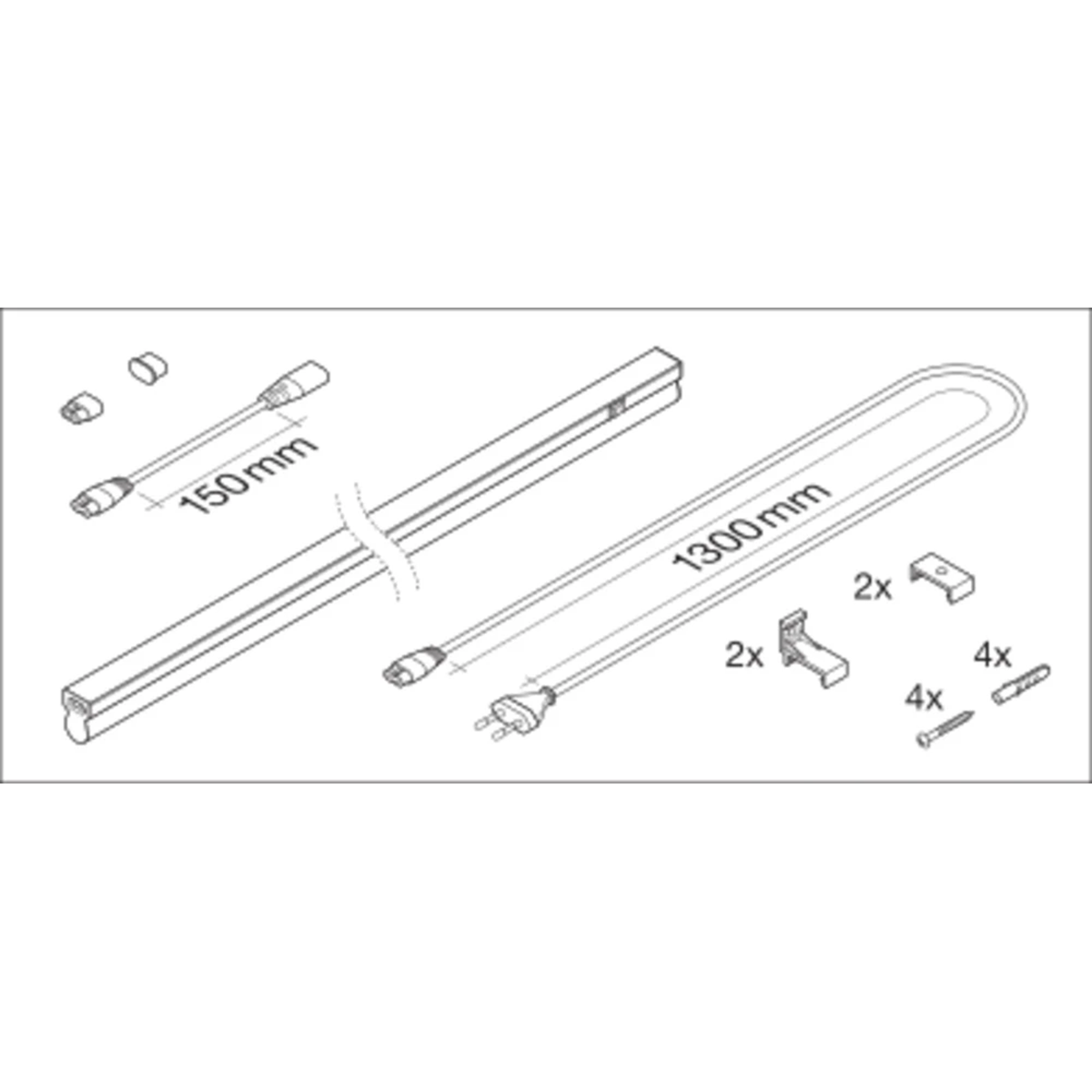

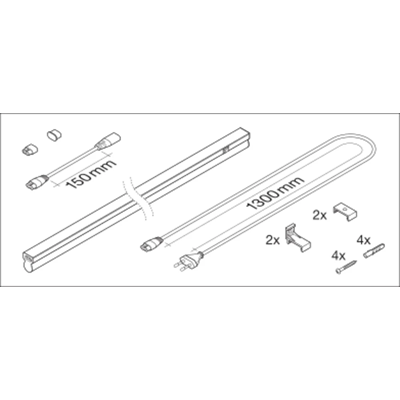

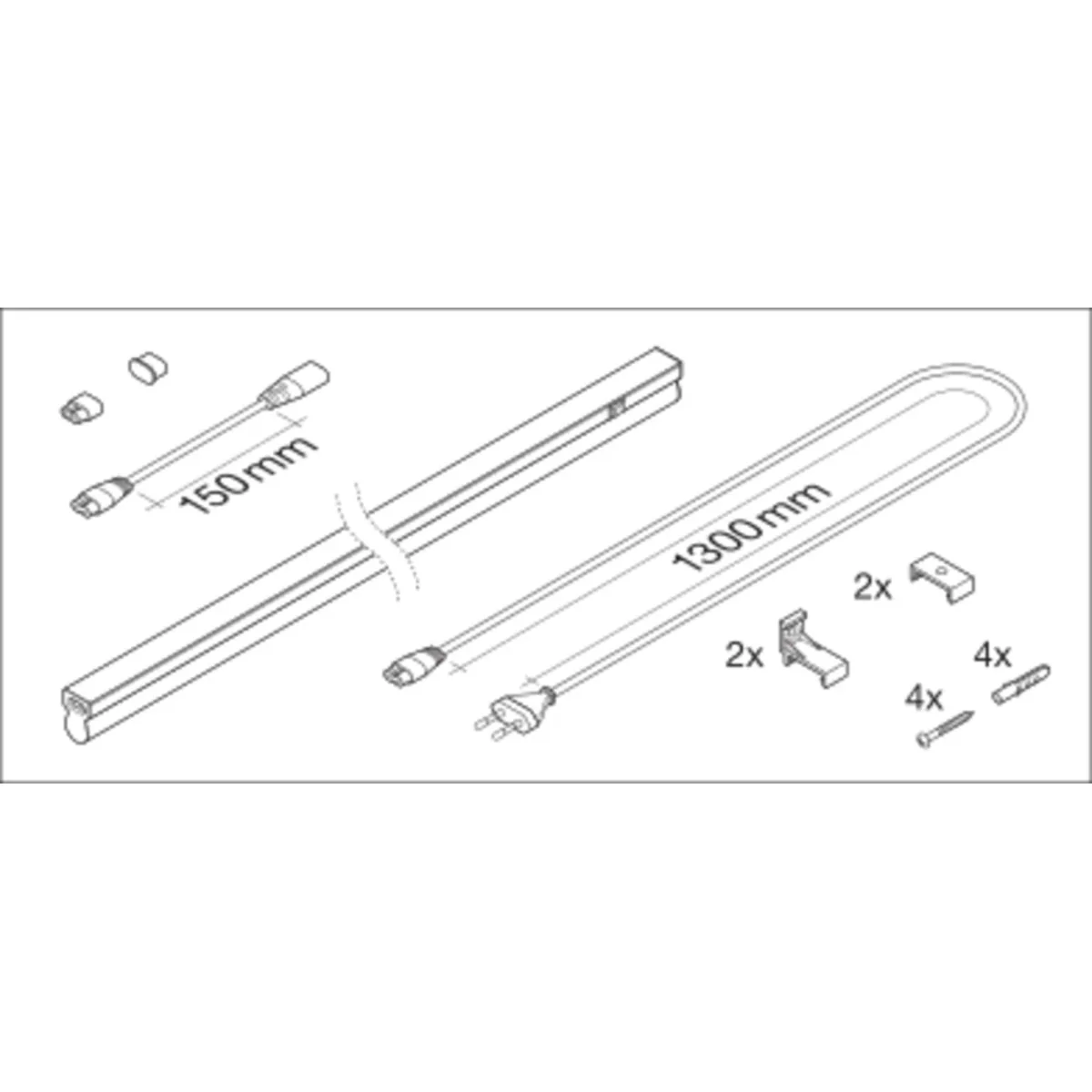

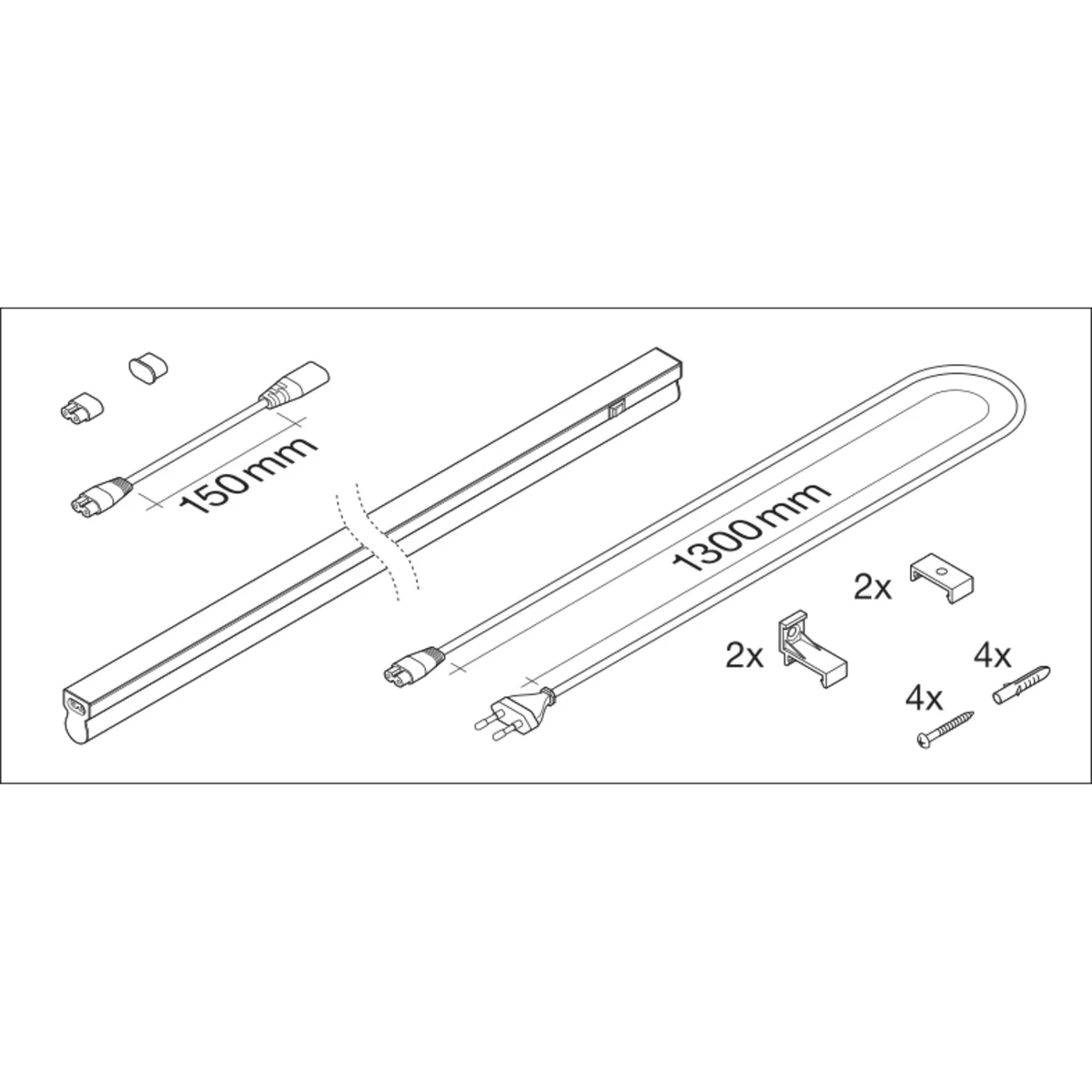

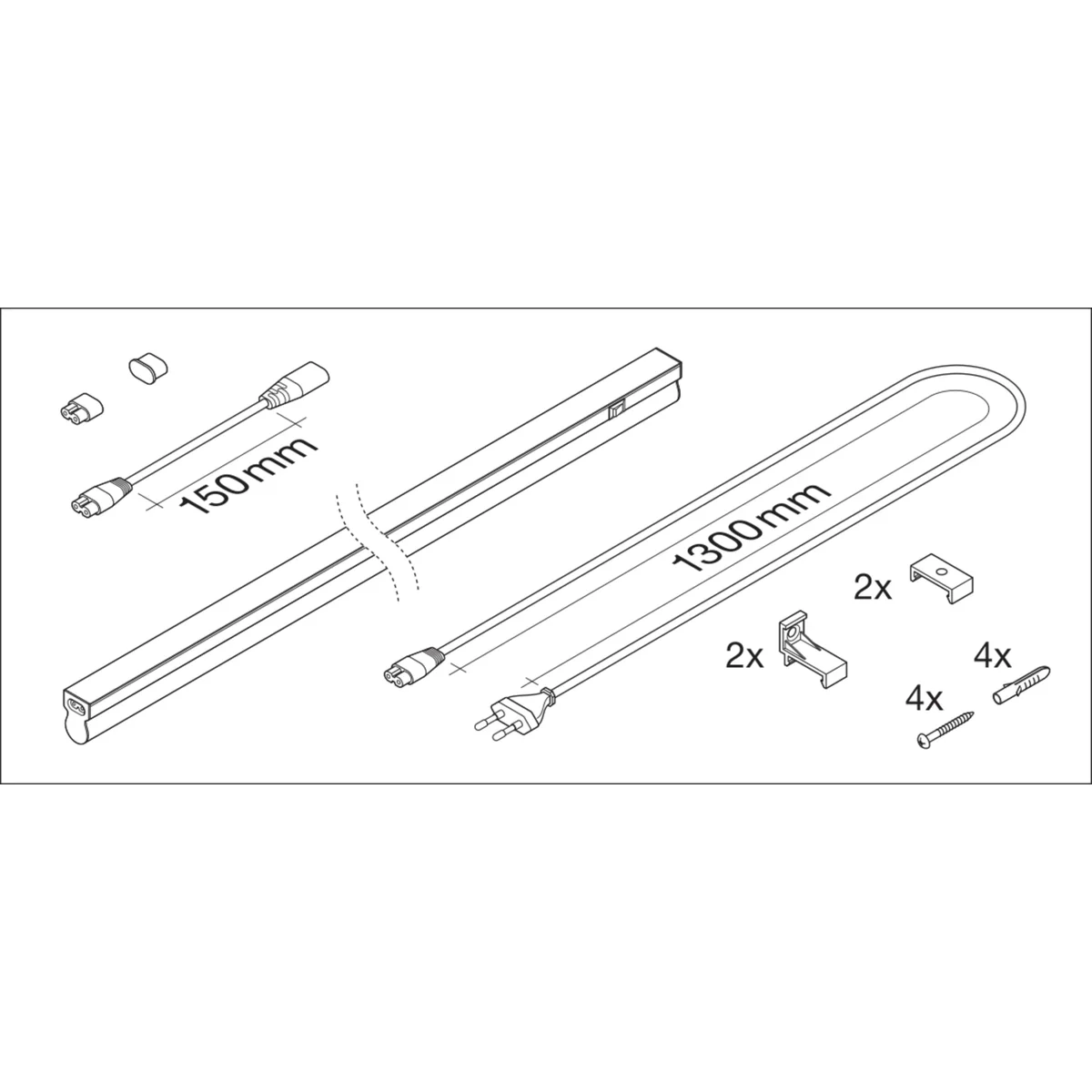

  • Ability to connect at an angle thanks to the supplied cables

Area of application

  • Direct replacement of fluorescent luminaires
  • Indoor applications
  • Corridors, entrances, staircases, living rooms, basements< /li>
  • Accent lighting
  • Public areas
  • Cove lighting
  • Shelves, units or cabinets
  • Seamless lighting linear

Product features

  • Built-in switch

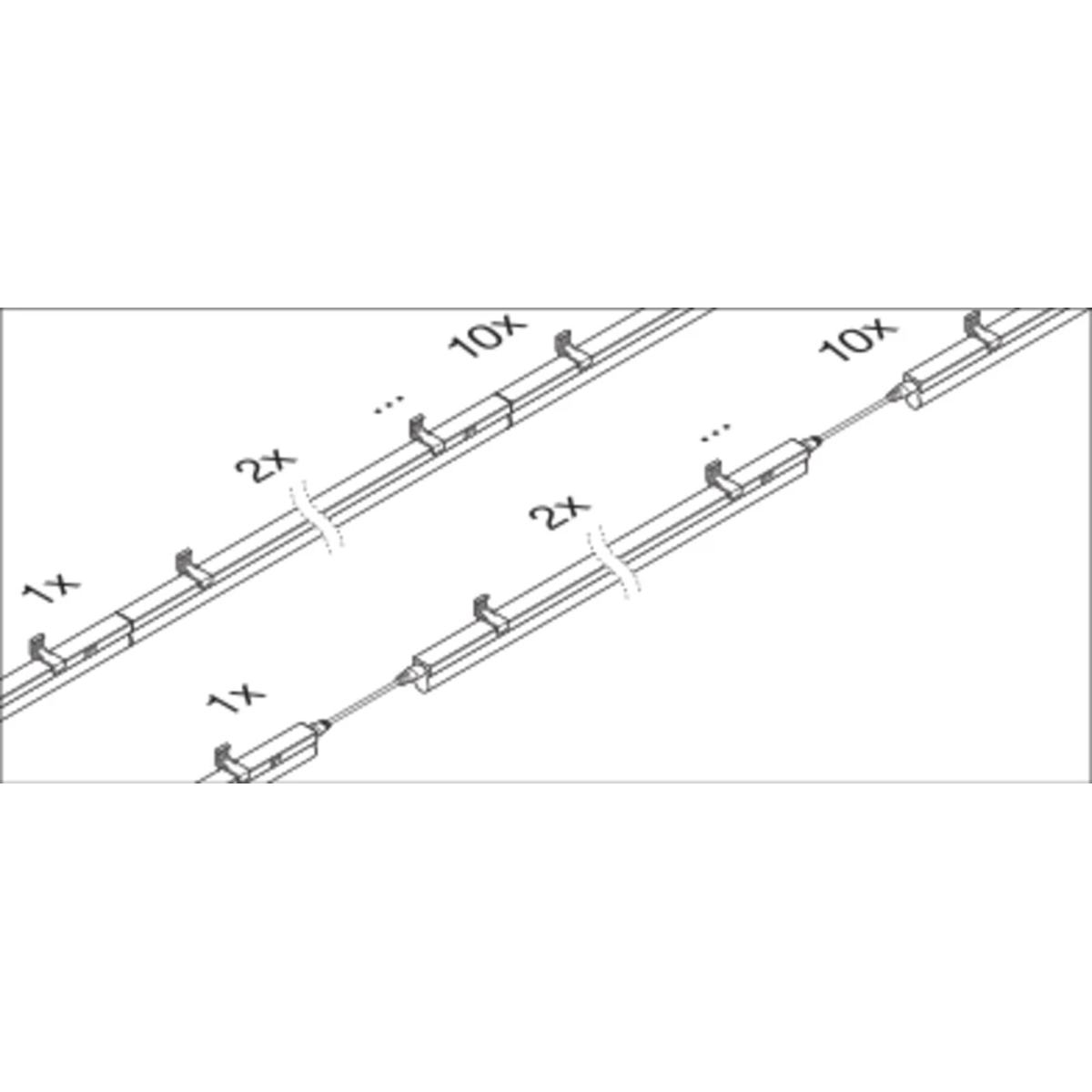

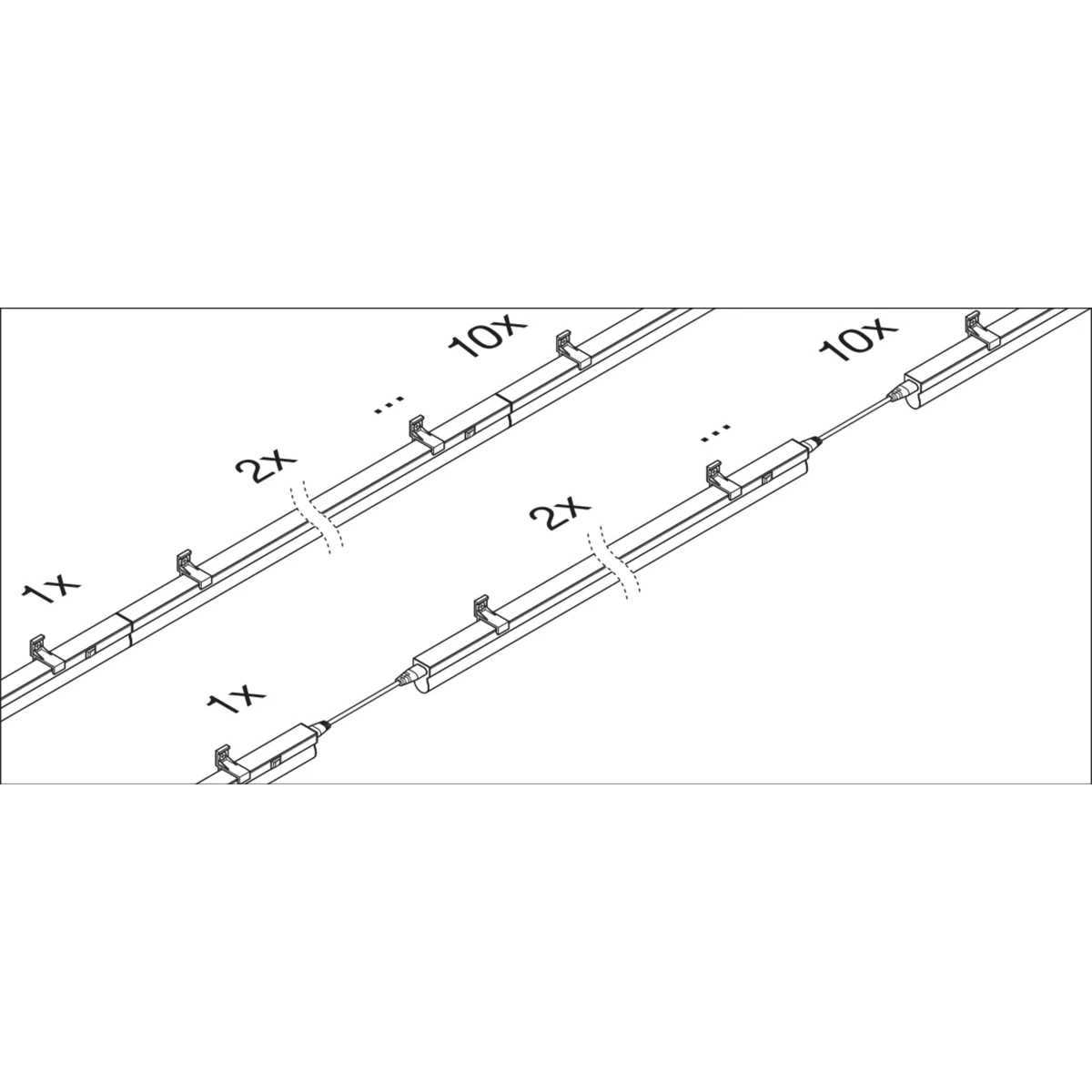

  • Up to 10 luminaires can be connected
  • Transparent rotating shafts
  • Glow wire test according to IEC 60695-2-12: 850 °C

Technical data

  • Light color [K]
    3500-4800 (natural)
  • Length [mm]
    313
  • Protection class
    II
  • Power [W]
    4
  • Mechanical resistance
    IK03
  • Level of security
    IP20

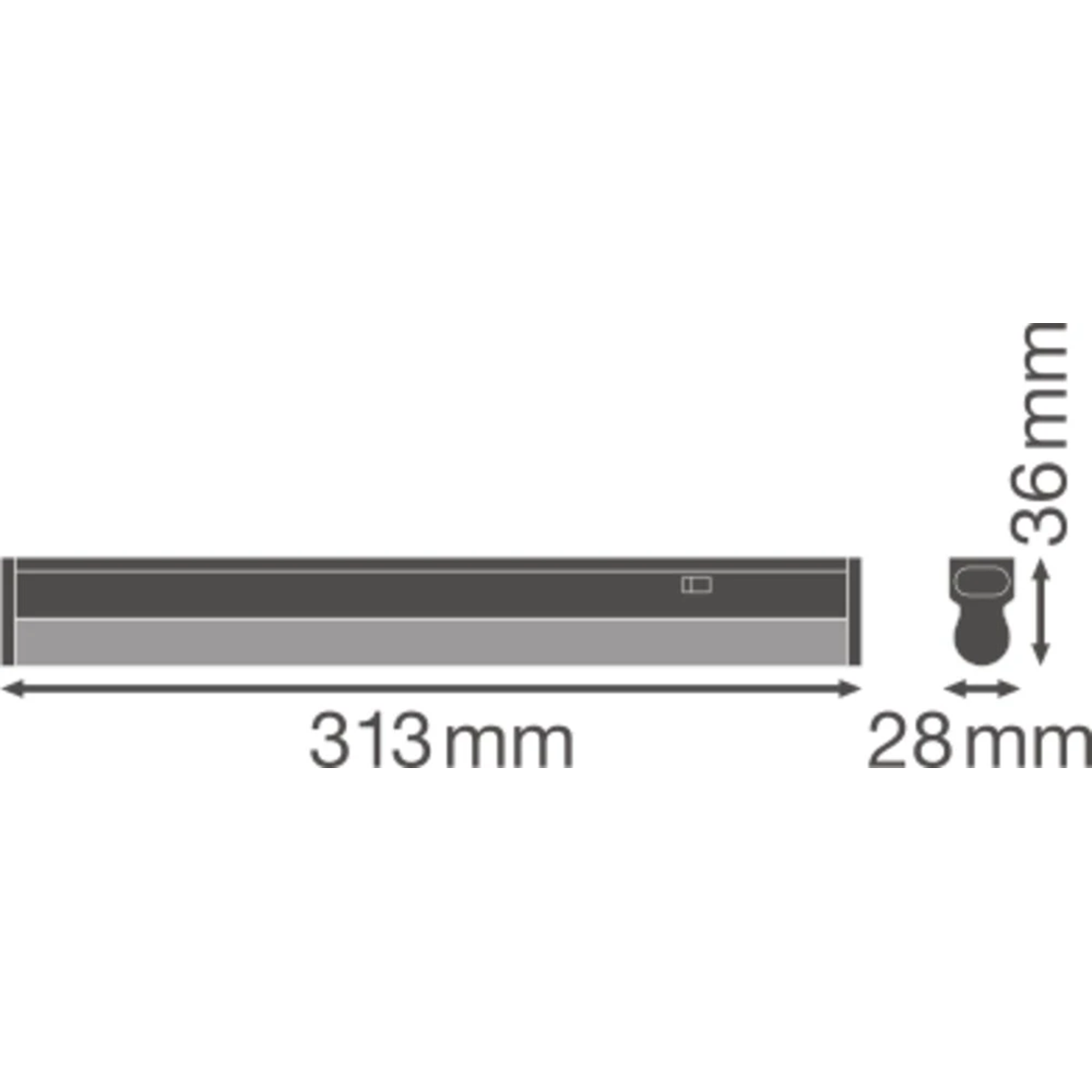

  • Width [mm]
    28
  • Height [mm]
    36
  • PKWIU
    27.40.25
  • Color Rendering Index [CRI]
    >80

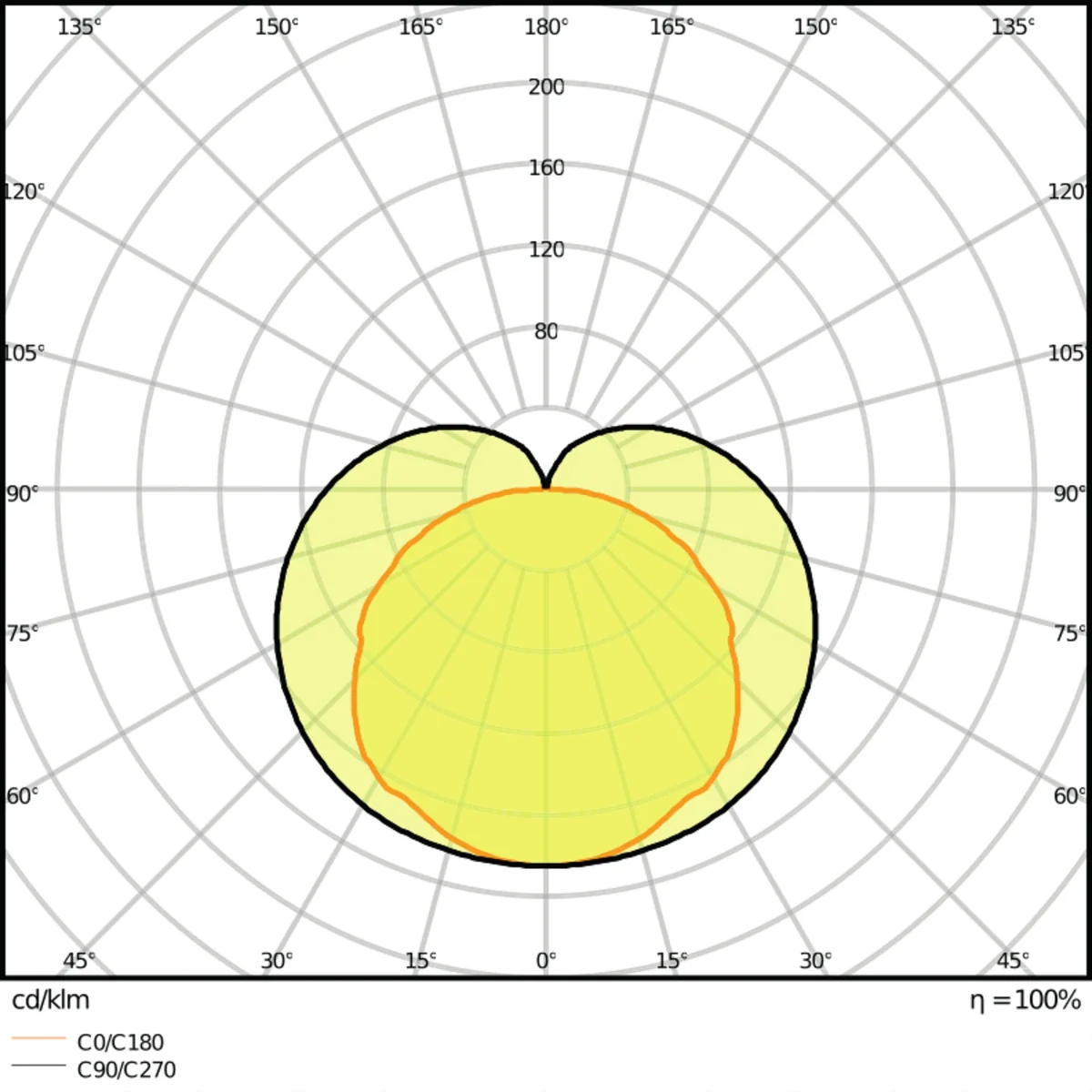

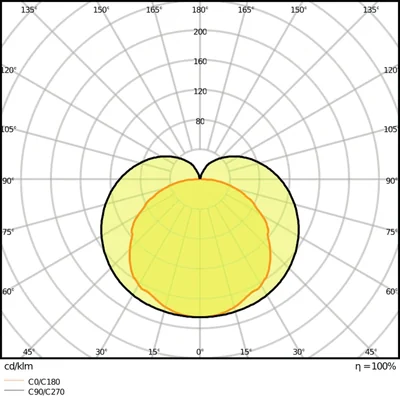

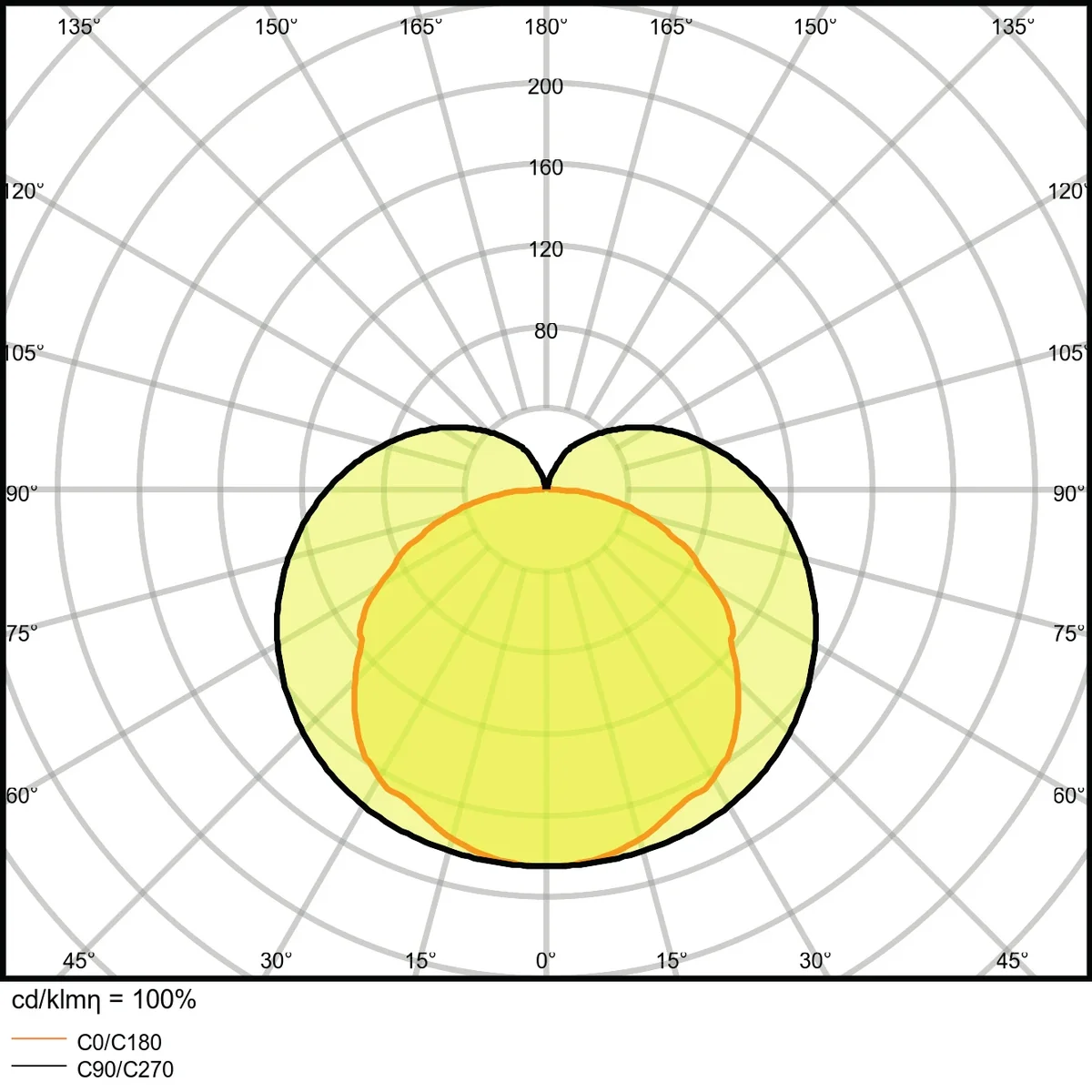

  • beam angle [°]
    140
  • Material
    PC
  • Rated voltage [V]
    230
  • Luminous efficiency [lm/W]
    110
  • luminous flux [lm]
    450
  • Durability [h]
    50000
  • Color Temperature [K]
    4000

Other technical data

  • Lamp type
    LED not exchangeable
  • Material
    Plastic
  • Voltage type
    AC
  • Prąd znamionowy LED przy zasilaniu prądem stałym
    32 ... 32 mA
  • With control gear
    yes
  • Dimming 1-10 V
    no
  • Dimming DMX
    no
  • Dimming potentiometer (integrated)
    no
  • Dimming LineSwitch
    no
  • Dimming mains voltage modulation
    no
  • Dimming phase cut-on
    no
  • Dimming RF
    no
  • Dimming Touch and Dim
    no
  • Dimming with push-button
    no
  • Light distributor
    Diffuser lens/optic/panel
  • Klasa efektywności energetycznej zamontowanego źródła światła
    A++, A+, A (LED)
  • Rated life time L70/B50 at 25 °C
    50000 h
  • Żywotność znamionowa L80/B50 przy 25 °C
    40000 h
  • Żywotność znamionowa L90/B50 przy 25 °C
    30000 h
  • Protection class
    II
  • With switch
    yes
  • Suitable for lamp power
    4.00 ... 4.00 W
  • Rated luminous flux according to IEC 62722-2-1
    450 lm
  • Colour temperature
    4000 ... 4000 K
  • Power factor
    0.5
  • Length
    313.0 mm
  • Number of poles
    2
  • Electrical connection with connector system
    yes
  • With light source
    yes
  • Housing colour
    White
  • Nominal voltage
    220 ... 240 V
  • Type of control gear
    Electronic ballast
  • Dimming 0-10 V
    no
  • Dimming DALI
    no
  • Dimming DSI
    no
  • Ściemniacz GPRS
    no
  • Dimming manufacturer's proprietary system
    no
  • Dimming phase cut-off
    no
  • Dimming programmable
    no
  • Dimming Sine Wave Reduction
    no
  • Dimming Zigbee
    no
  • No dim function
    yes
  • Suitable for emergency lighting
    no
  • Żywotność znamionowa L70/B10 przy 25 °C
    50000 h
  • Rated life time L80/B10 at 25 °C
    40000 h
  • Żywotność znamionowa L90/B10 przy 25°C
    30000 h
  • Degree of protection (IP)
    IP20
  • Covering of the luminaire with thermally insulating material possible
    yes
  • With movement sensor
    no
  • Max. system power
    4.00 W
  • Colour of light
    White
  • Colour rendering index CRI
    80-89
  • Height/depth
    36.0 mm
  • Type of wiring
    Through wiring included
  • Connection type
    Other

Bulk packaging

A kind of package Skrzynia Karton
Quantity 1 pcs. 25 pcs.
Weight (kg) 0,167 6,590
Volume (m3) 0,001 0,022
Width (m) 0,029 0,223
Length (m) 0,042 0,558
Depth (m) 0,580 0,180
