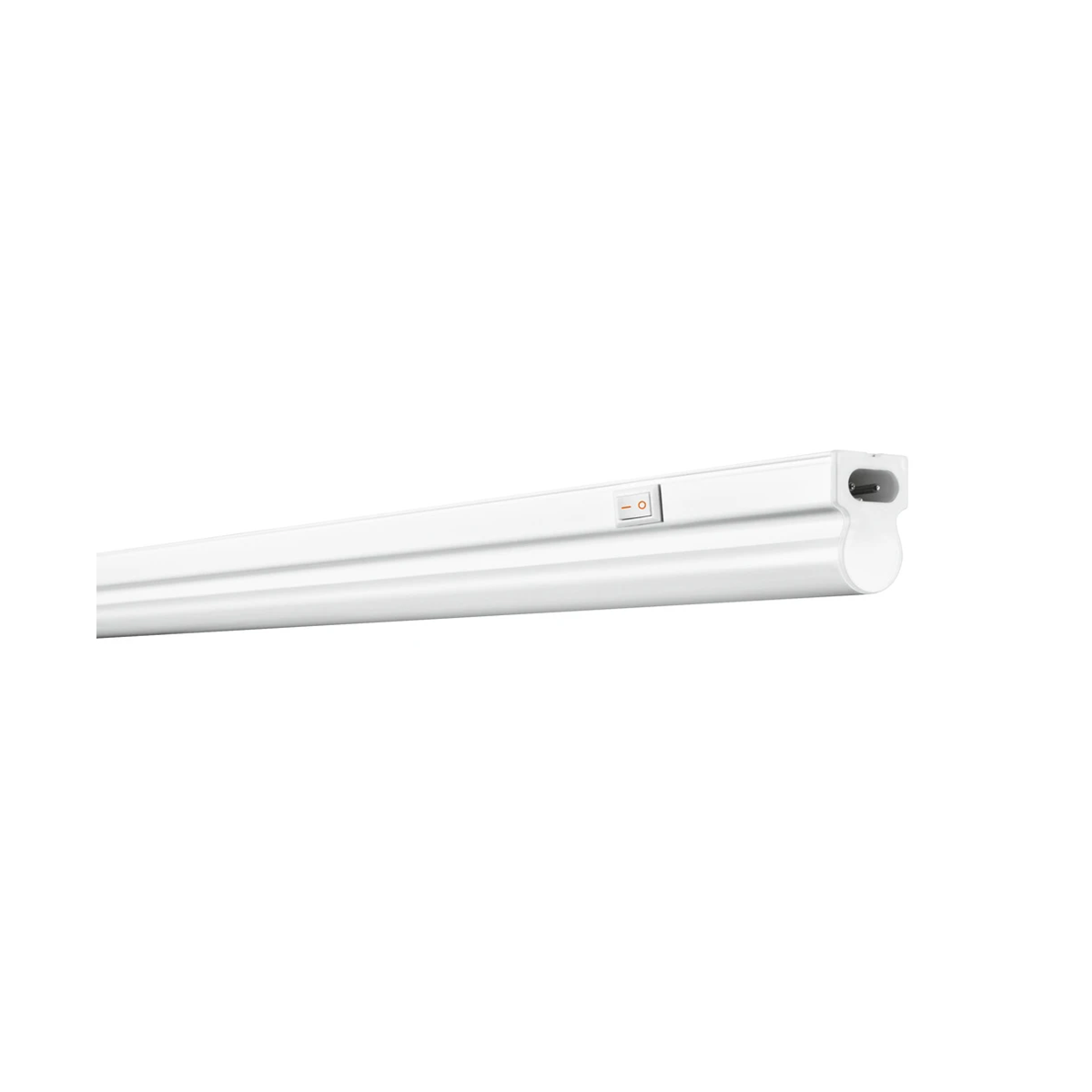

LINEAR COMPACT SWITCH Linear luminaire 14W 1500lm 4000K IP20 NW white 4058075106178
local index:
OWE002LEDV
Catalog No:
4058075106178
EAN code:
4058075106178
Click on the photo to enlarge
Manufacturer:
LEDVANCE
Light color [K]:
3500-4800 (natural)
Color Rendering Index [CRI]:
>80
Length [mm]:
1173
See full description
Price:
25,84 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 16 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Manufacturer details
Bulk packaging
Product description
Product benefits
Compact size
Low space required due to compact size

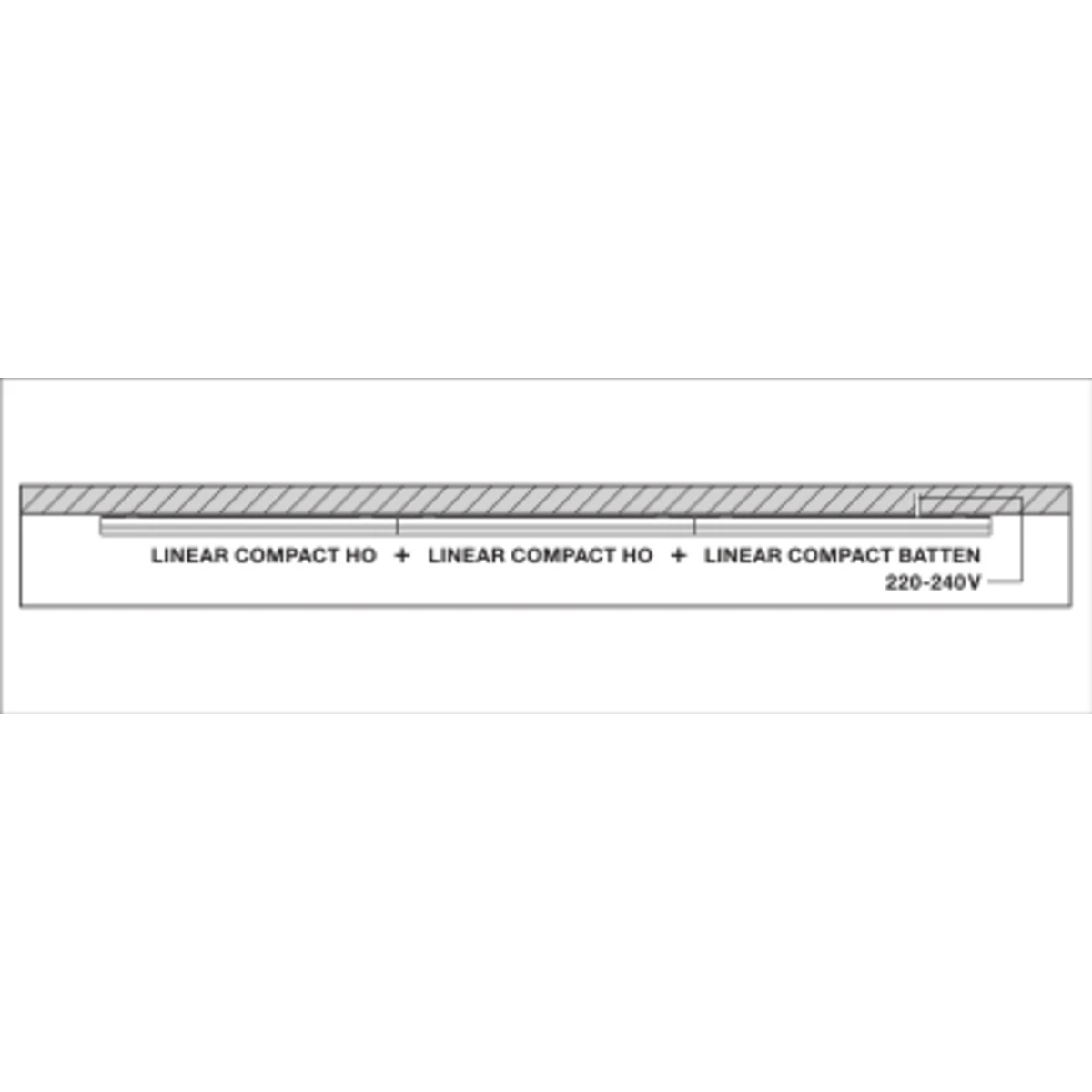

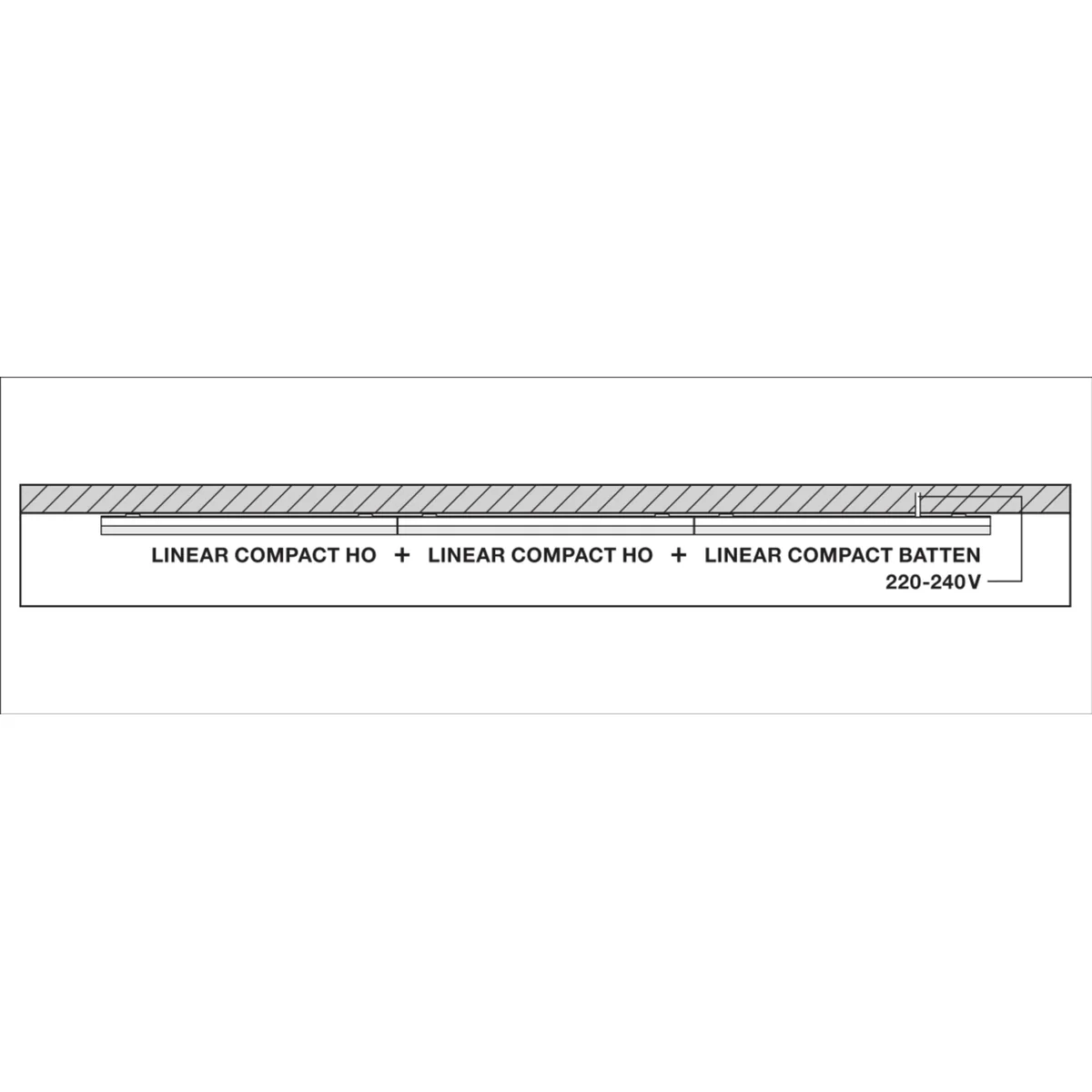

Effortless connection to 10 luminaires in line
Convenient switch directly installed in the luminaire
Low light flicker thanks to special electronic ballast

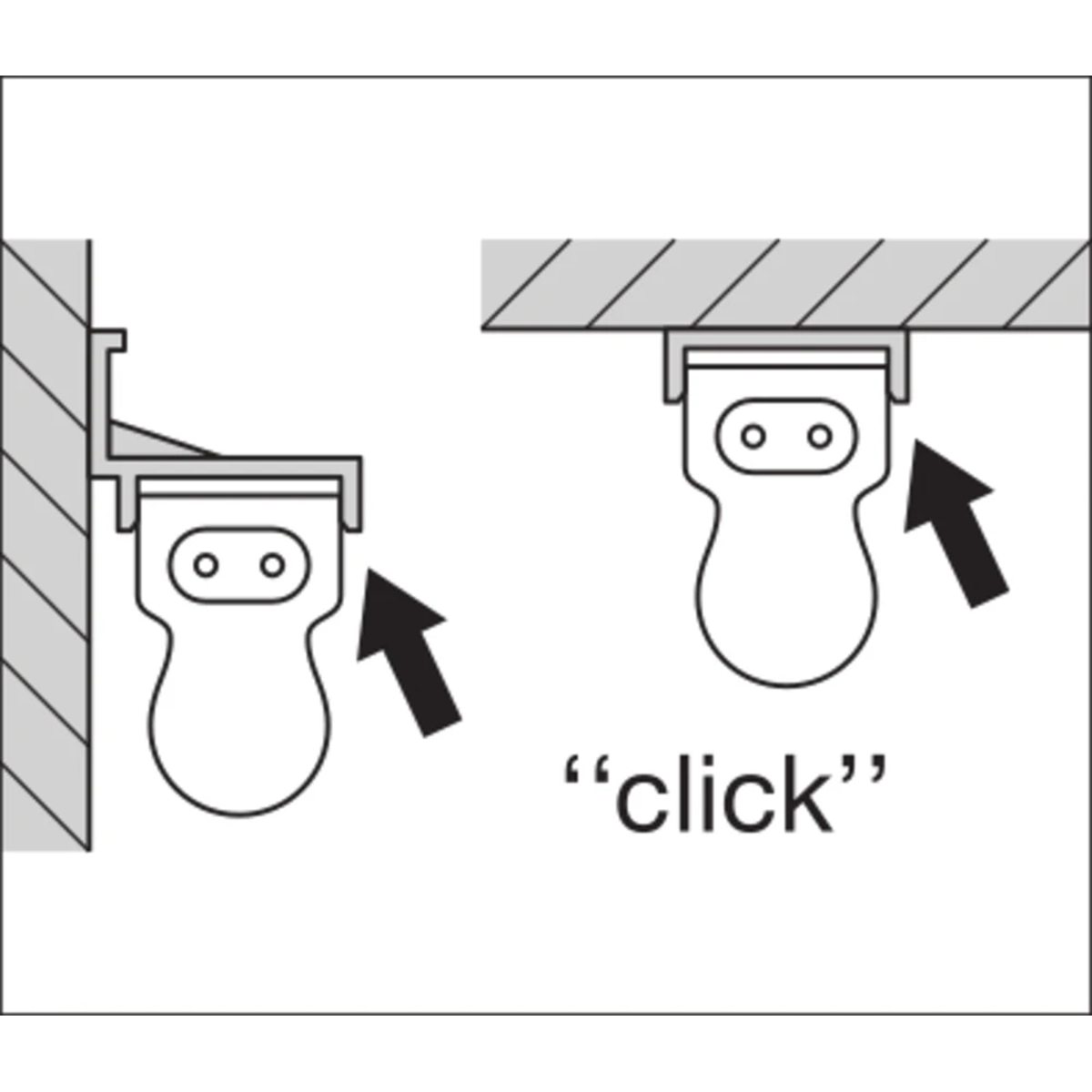

Universal installation at 2 different angles with 2 different possibilities installation
Universal applications thanks to a wide range of available lengths: from 300 to 1200 mm

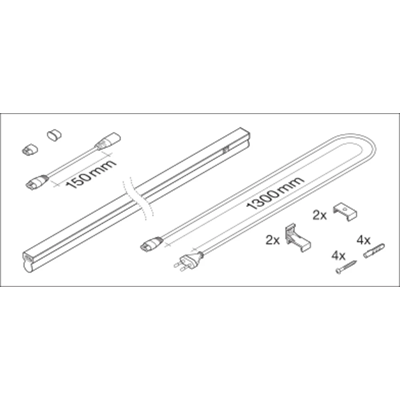

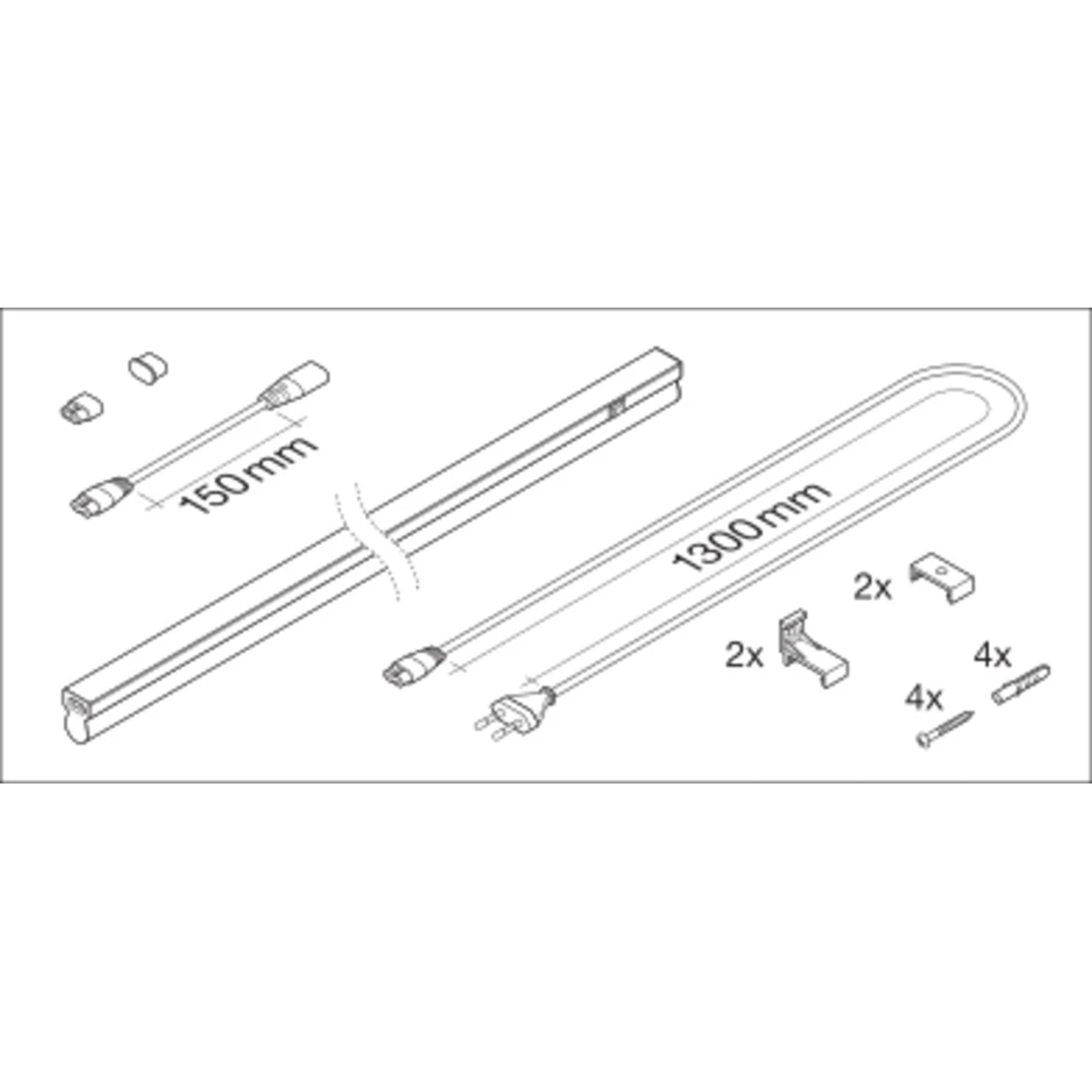

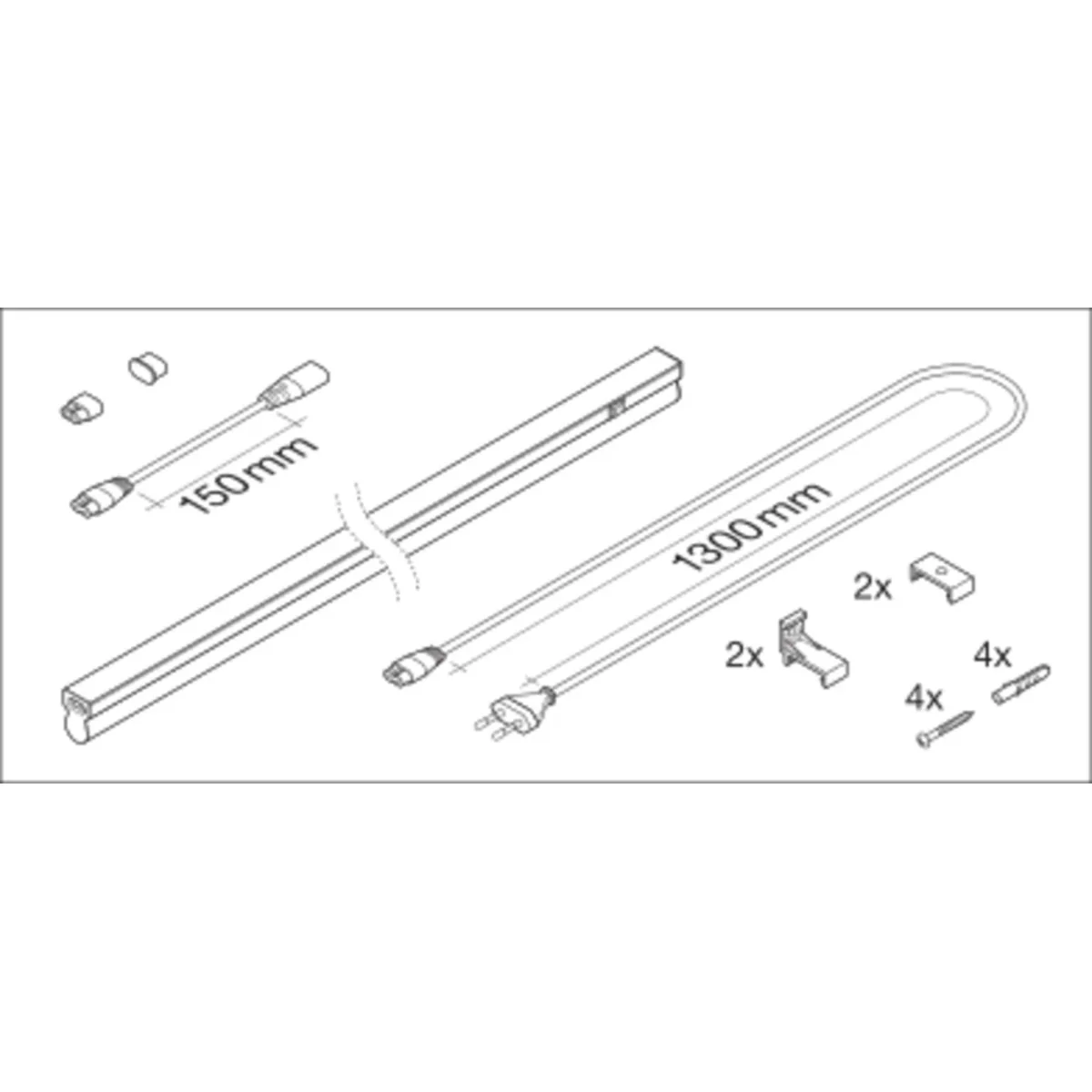

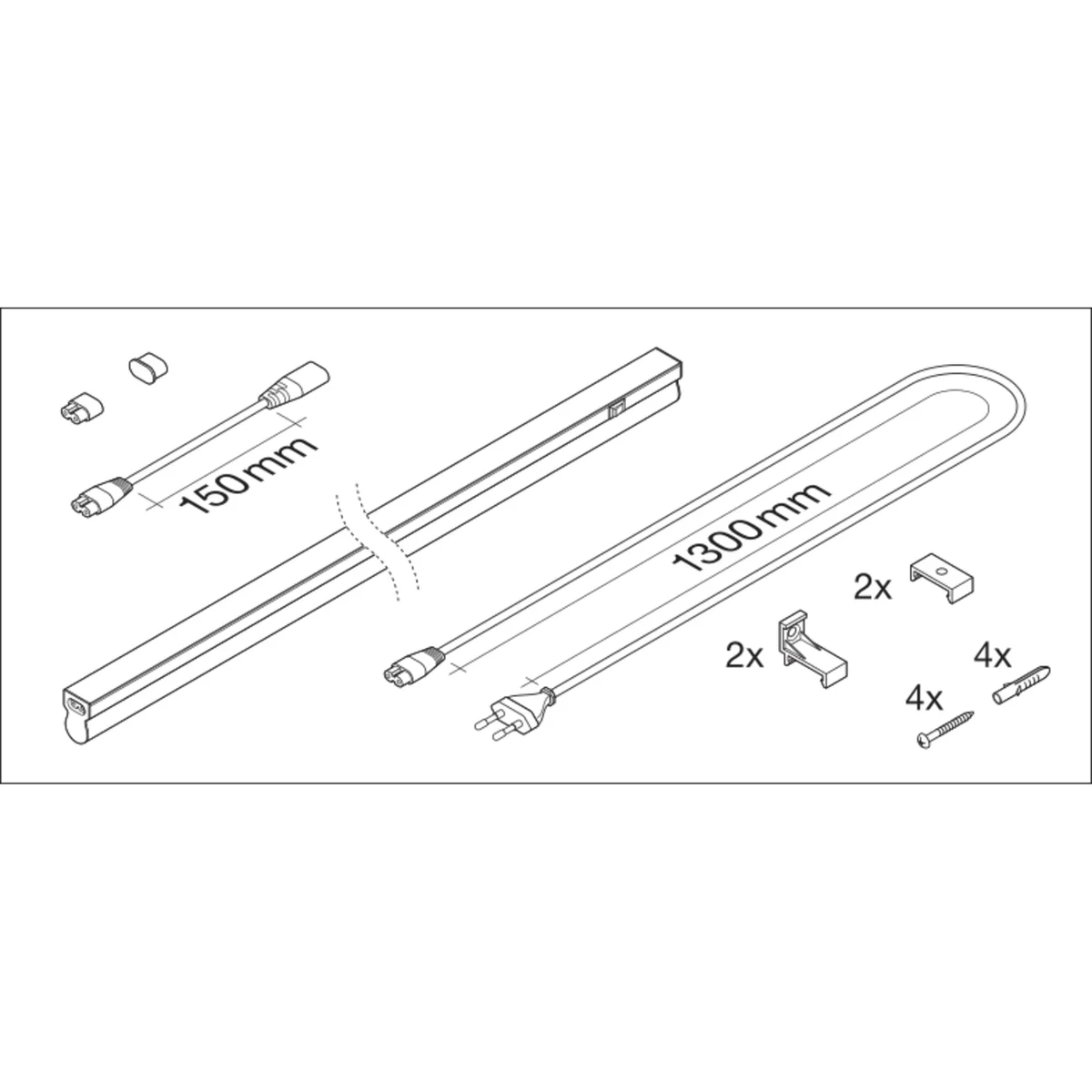

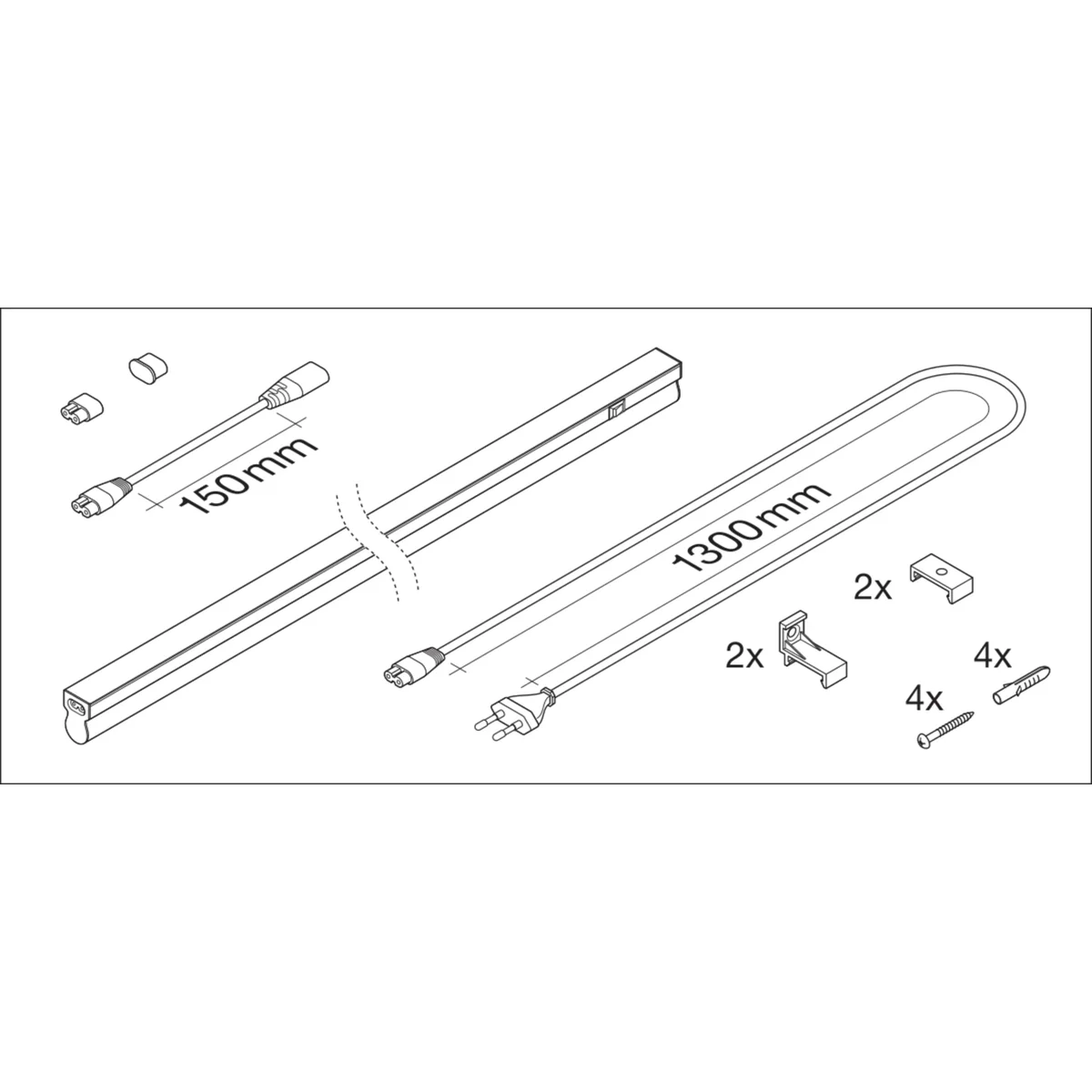

Ability to connect at an angle thanks to the supplied cables
Area of application
Direct replacement of fluorescent luminaires
Indoor applications
Corridors, entrances, staircases, living rooms, basements< /li>
Accent lighting
Public areas
Cove lighting
Shelves, units or cabinets
Seamless lighting linear
Product features
Built-in switch

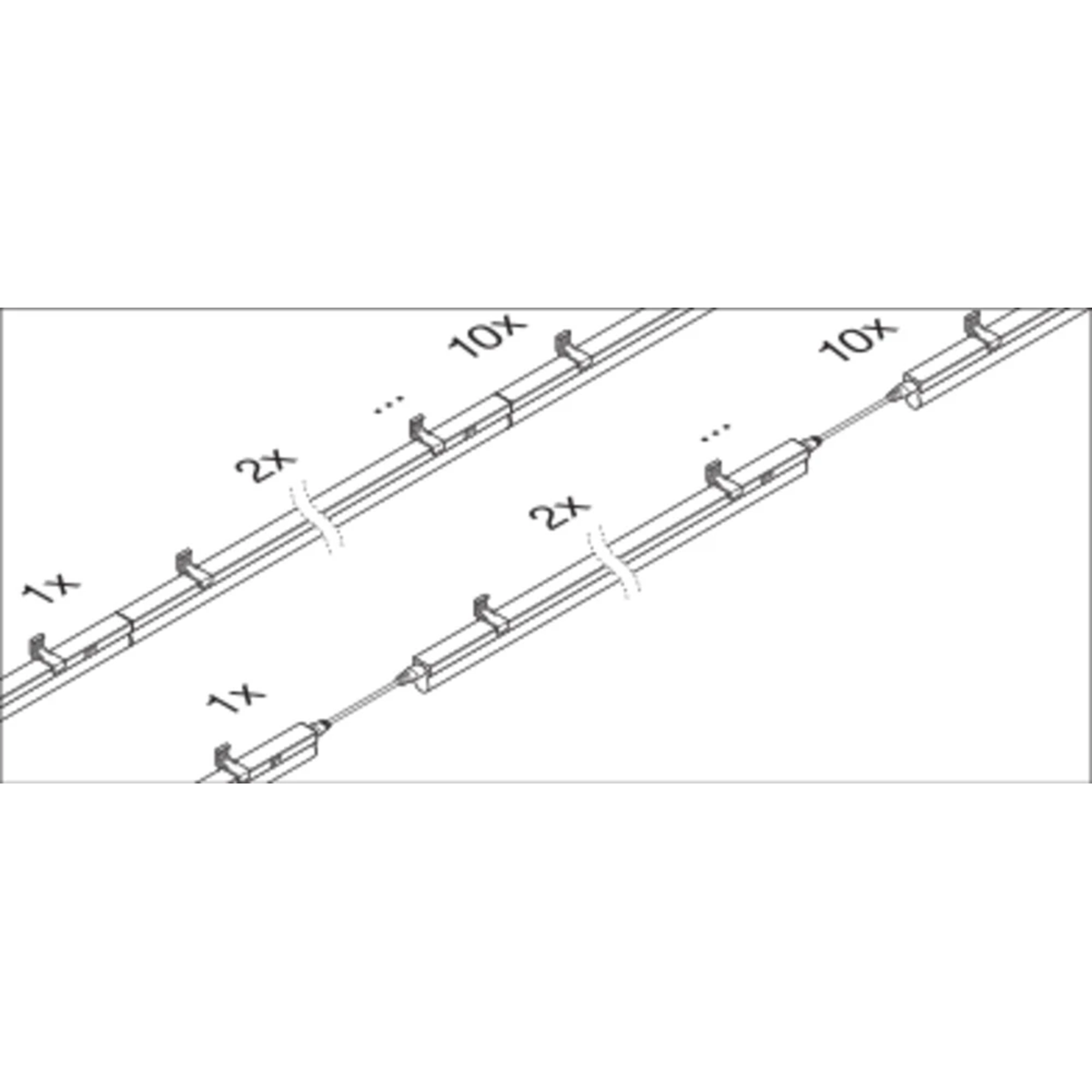

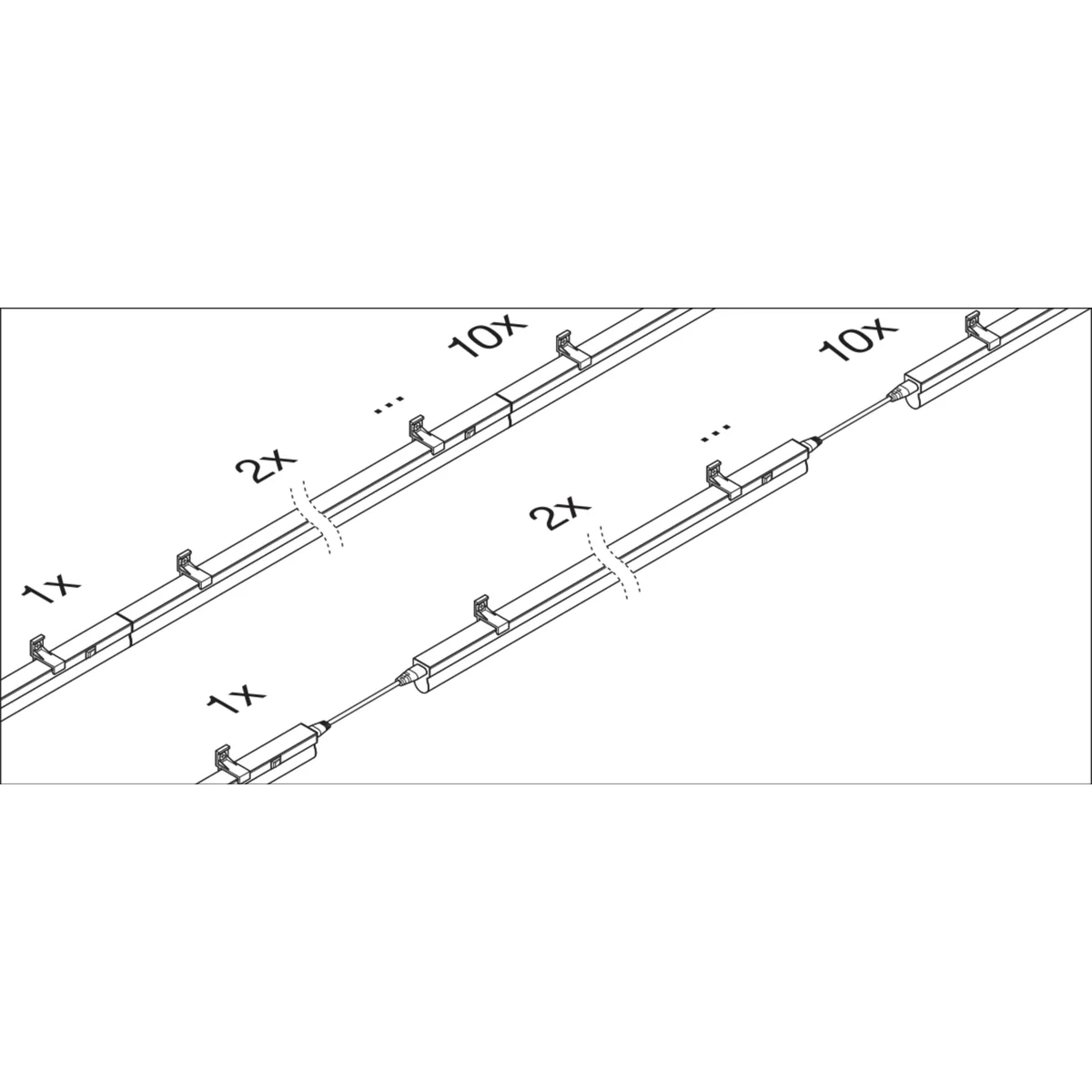

Up to 10 luminaires can be connected
Transparent rotating shafts
Glow wire test according to IEC 60695-2-12: 850 °C
Expand full description ▼
Technical data
Light color [K]
3500-4800 (natural)

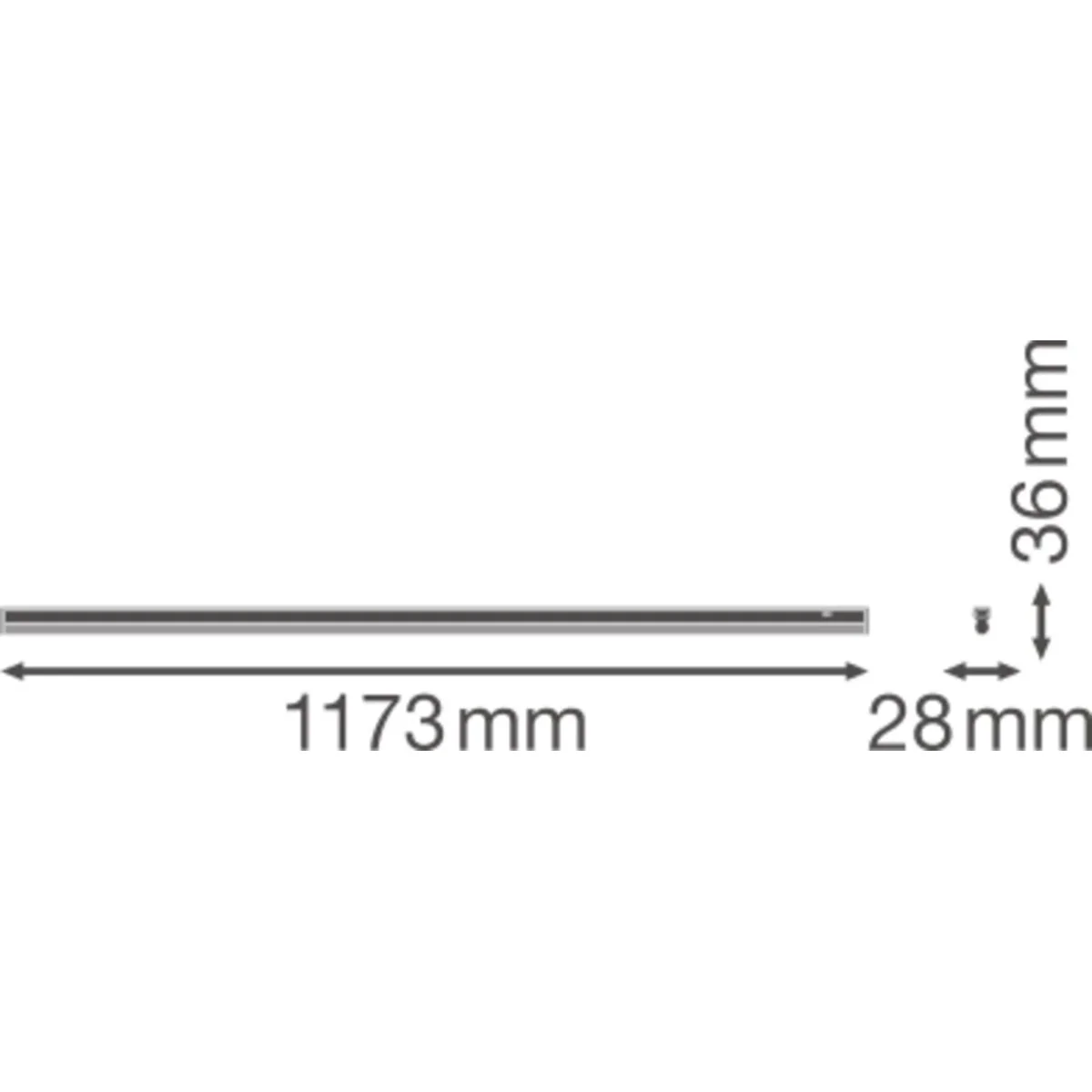

Length [mm]
1173
Protection class
II
Power [W]
14
Mechanical resistance
IK03
Level of security
IP20
Width [mm]
28
Height [mm]
36
PKWIU
27.40.25
Color Rendering Index [CRI]
>80

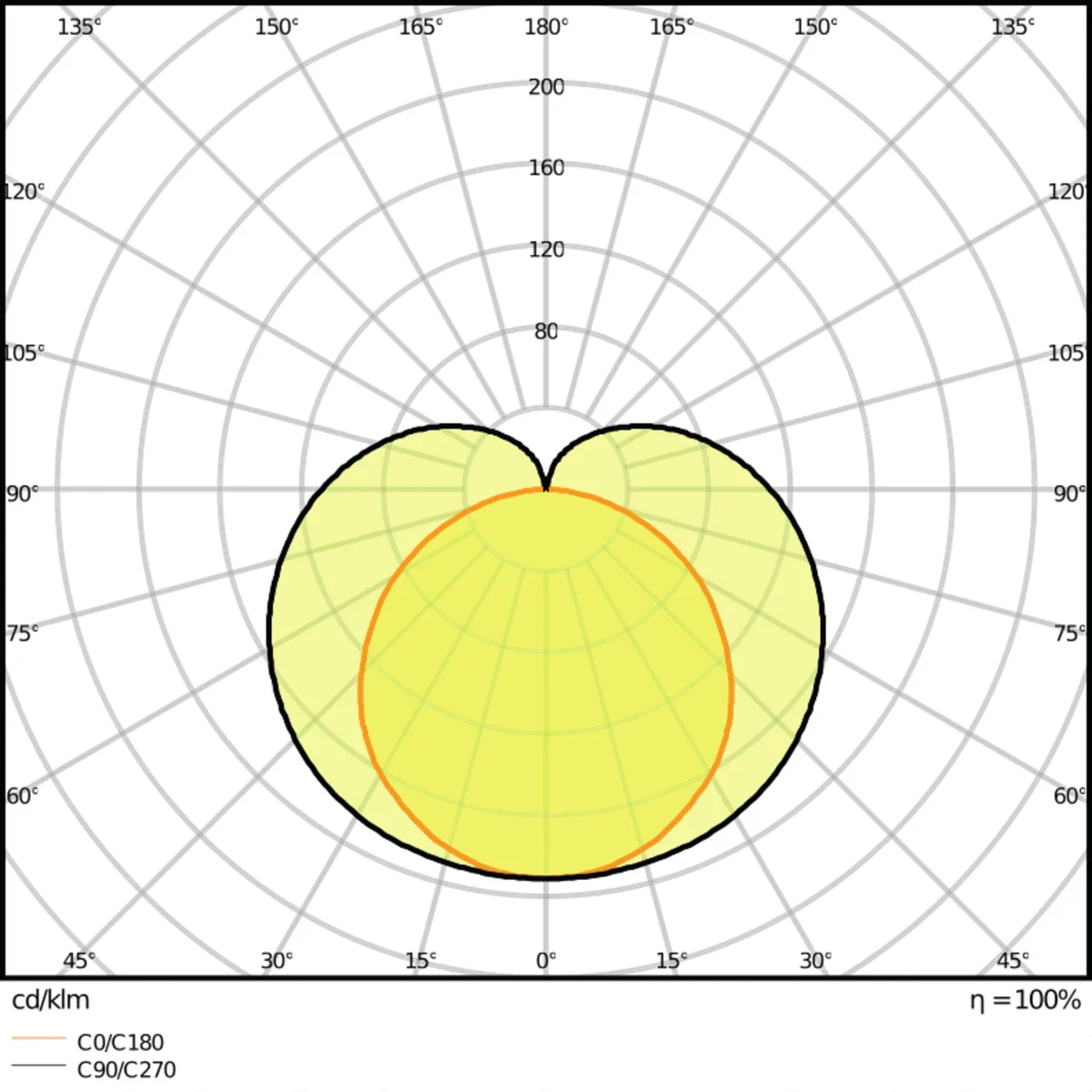

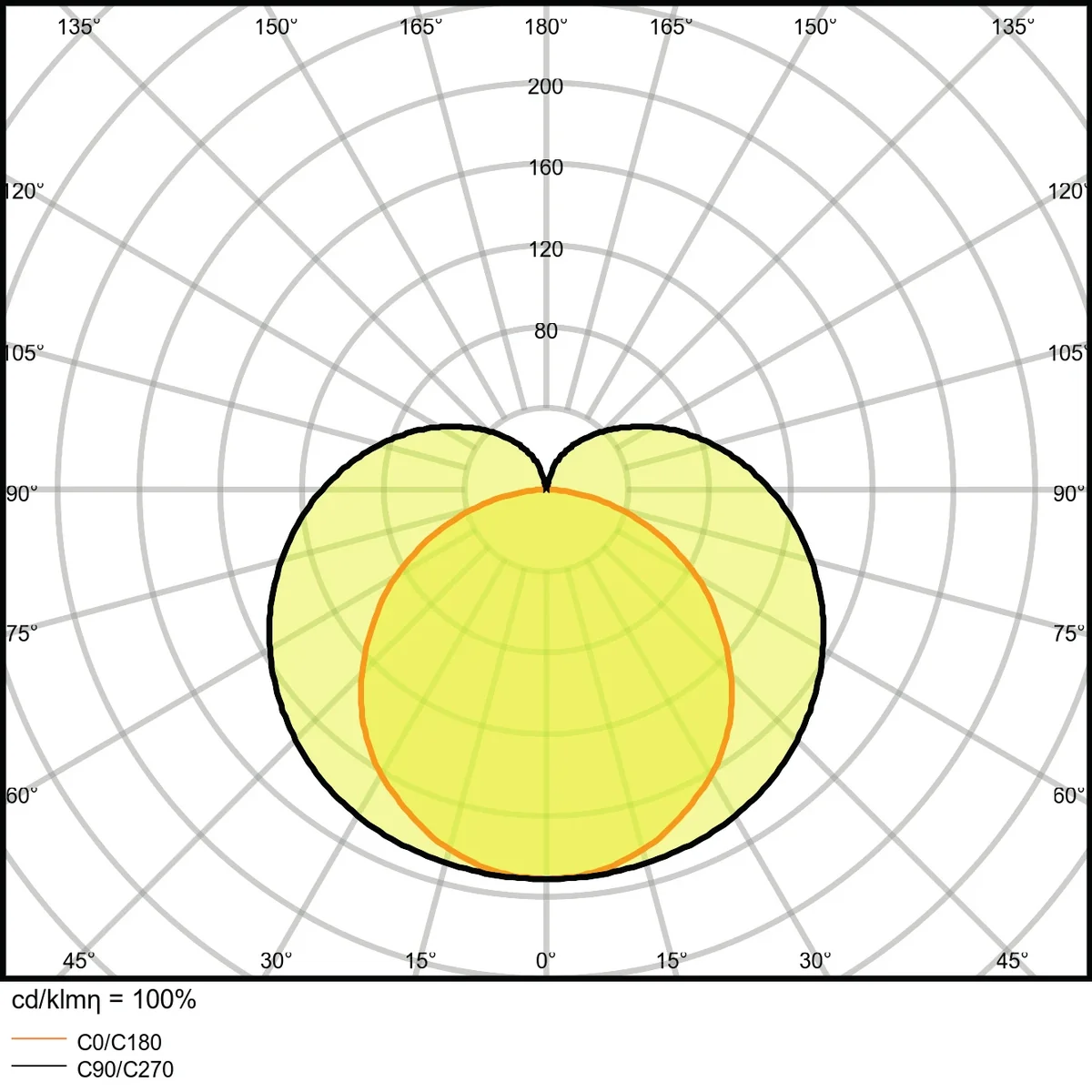

beam angle [°]
140
Material
PC
Rated voltage [V]
230
Luminous efficiency [lm/W]
110
luminous flux [lm]
1500
Durability [h]
50000
Color Temperature [K]
4000
Other technical data
Lamp type
LED not exchangeable
Material
Plastic
Voltage type
AC
Prąd znamionowy LED przy zasilaniu prądem stałym
100 ... 100 mA
With control gear
Yes
Dimming 1-10 V
No
Dimming DMX
No
Dimming potentiometer (integrated)
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming phase cut-on
No
Dimming RF
No
Dimming Touch and Dim
No
Dimming with push-button
No
Light distributor
Diffuser lens/optic/panel
Klasa efektywności energetycznej zamontowanego źródła światła
A++, A+, A (LED)
Rated life time L70/B50 at 25 °C
50000 h
Żywotność znamionowa L80/B50 przy 25 °C
40000 h
Żywotność znamionowa L90/B50 przy 25 °C
30000 h
Protection class
II
With switch
Yes
Suitable for lamp power
14.00 ... 14.00 W
Rated luminous flux according to IEC 62722-2-1
1500 lm
Colour temperature
4000 ... 4000 K
Power factor
0.5
Length
1173 mm
Number of poles
2
Electrical connection with connector system
Yes
With light source
Yes
Housing colour
White
Nominal voltage
220 ... 240 V
Type of control gear
Electronic ballast
Dimming 0-10 V
No
Dimming DALI
No
Dimming DSI
No
Ściemniacz GPRS
No
Dimming manufacturer's proprietary system
No
Dimming phase cut-off
No
Dimming programmable
No
Dimming Sine Wave Reduction
No
Dimming Zigbee
No
No dim function
Yes
Suitable for emergency lighting
No
Żywotność znamionowa L70/B10 przy 25 °C
50000 h
Rated life time L80/B10 at 25 °C
40000 h
Żywotność znamionowa L90/B10 przy 25°C
30000 h
Degree of protection (IP)
IP20
Covering of the luminaire with thermally insulating material possible
Yes
With movement sensor
No
Max. system power
14.00 W
Colour of light
White
Colour rendering index CRI
80-89
Height/depth
36.0 mm
Type of wiring
Through wiring included
Connection type
Other
Expand Technical Data ▼
Manufacturer details
Manufacturer
LEDVANCE GmbH
Address
85748 Garching Parkring 29-33 Niemcy
E-mail
InfoPL@ledvance.com

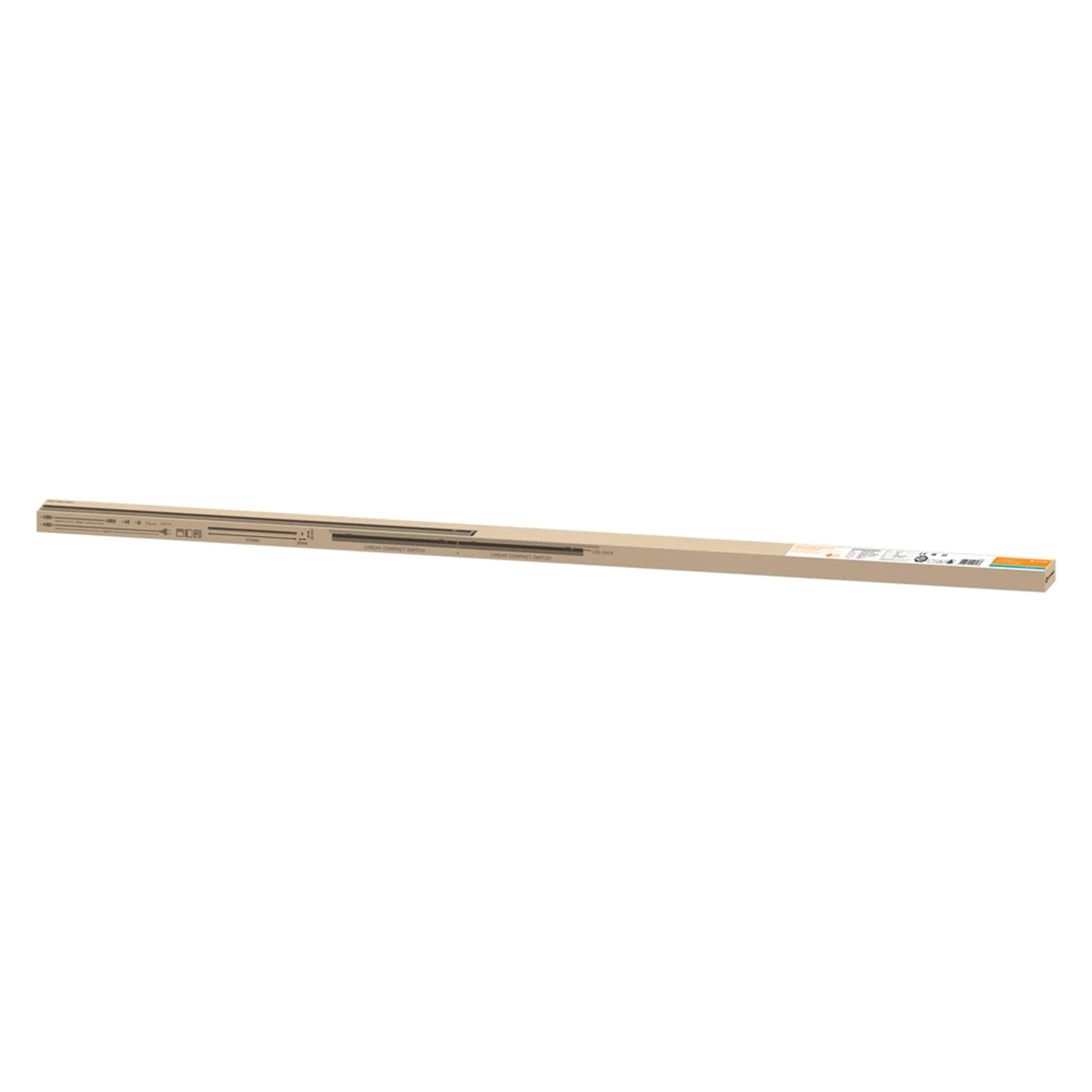

Bulk packaging
A kind of package
Skrzynia
Karton
Quantity
1 pcs.
25 pcs.
Weight (kg)
0,525
11,910
Volume (m3)
0,002
0,057
Width (m)
0,040
0,220
Length (m)
1,380
1,420
Depth (m)
0,030
0,180
