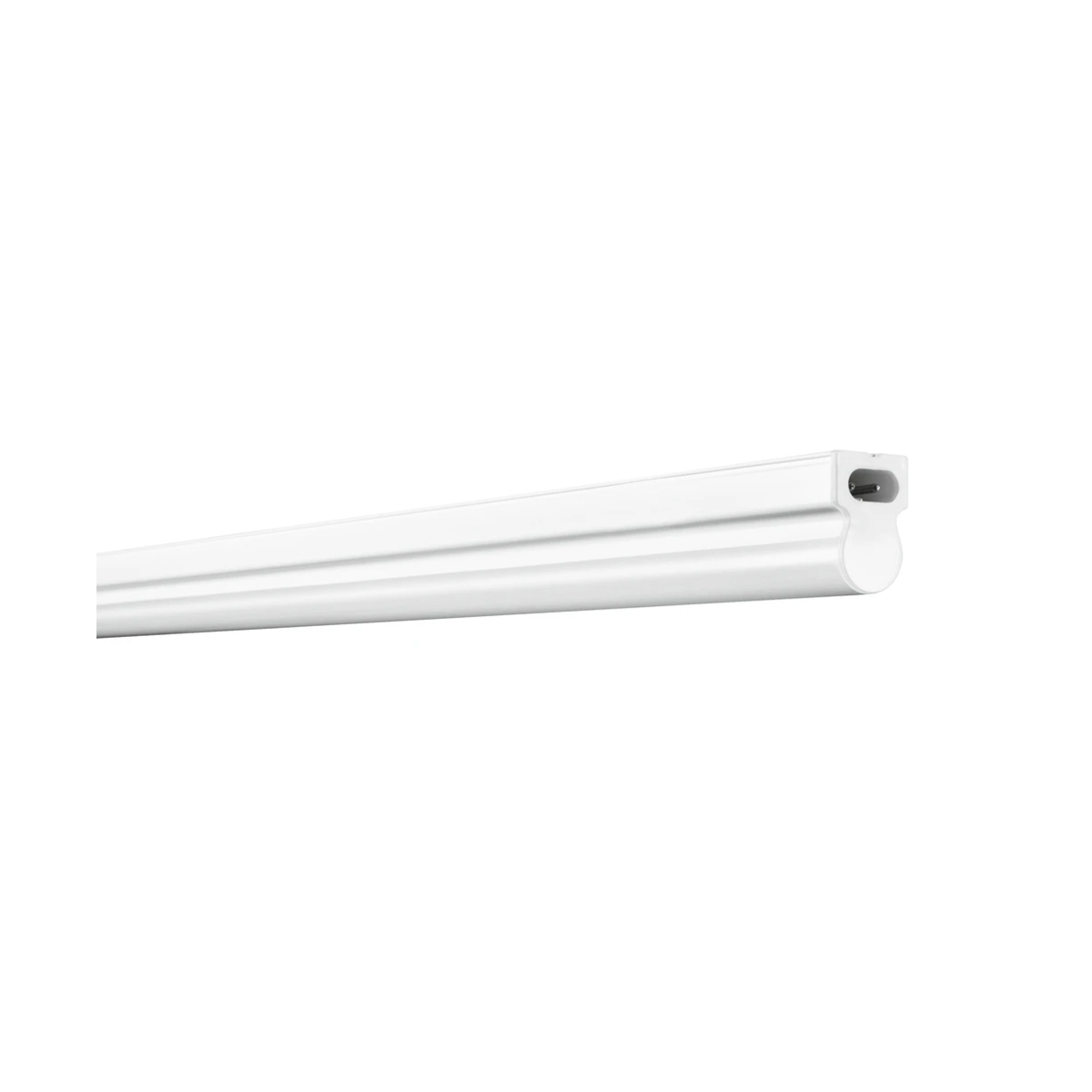

LINEAR COMPACT Linear luminaire 25W 2500lm 4000K NW milky white 4058075106376

local index:
OWE016LEDV
Catalog No:
4058075106376
EAN code:
4058075106376
Manufacturer: LEDVANCE
Light color [K]: 3500-4800 (natural)
Color Rendering Index [CRI]: >80
Length [mm]: 1473
Large-size product
Price:
42,31 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 18 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Product benefits

Compact dimensions
Easy installation at 2 different mounting angles
Up to 45% energy savings compared to conventional linear luminaires

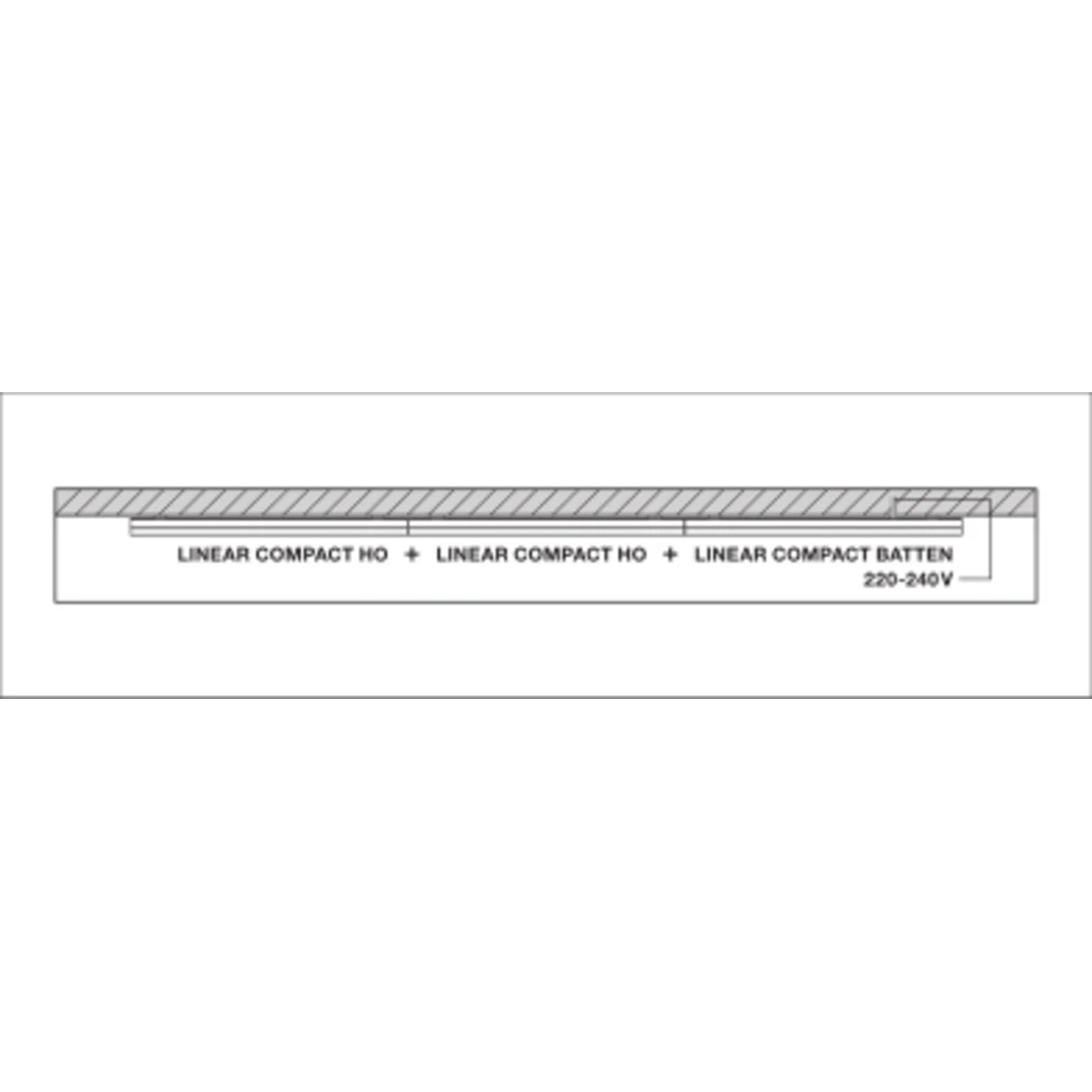

Linear systems with up to 10 luminaires can be created
For creating homogeneous lines of light without dark segments

Areas of application

Direct replacement of fluorescent luminaires
Internal general lighting
Corridors, entrances, staircases, living rooms, basements
Accent lighting
Public areas
Cove lighting
Shelves, furniture segments or assembly in cabinets
Effortless linear lighting

Technical data

  • Light color [K]
    3500-4800 (natural)

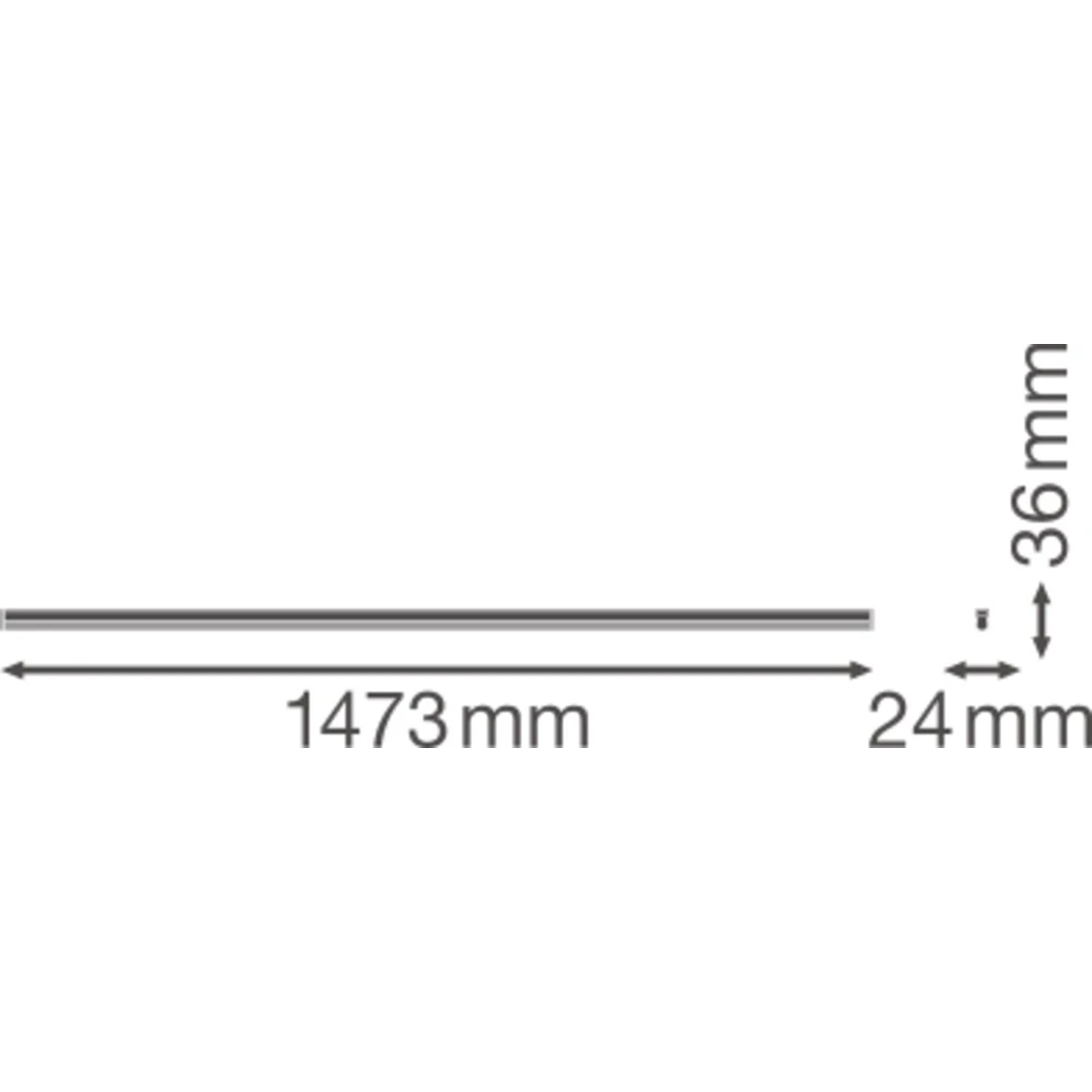

  • Length [mm]
    1473

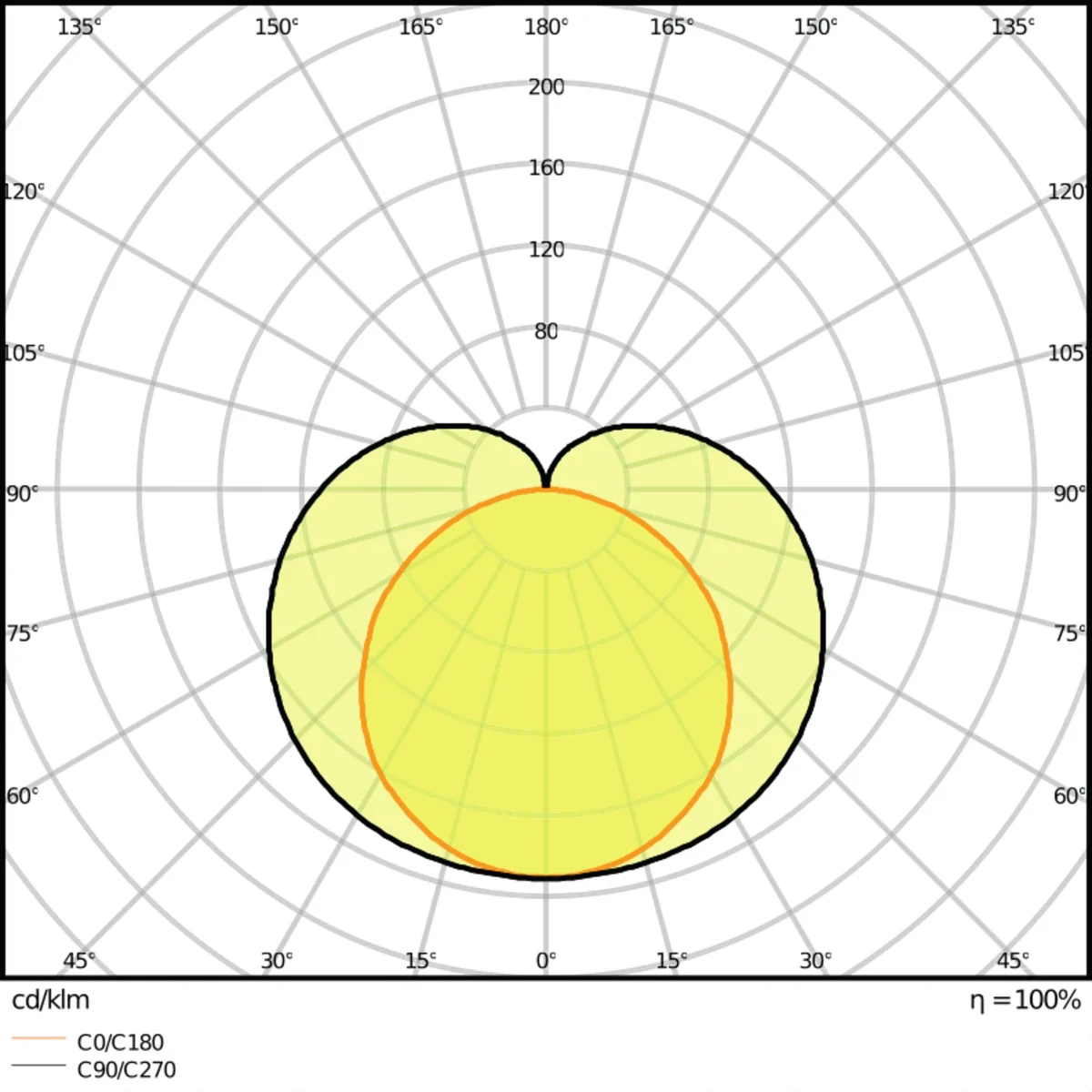

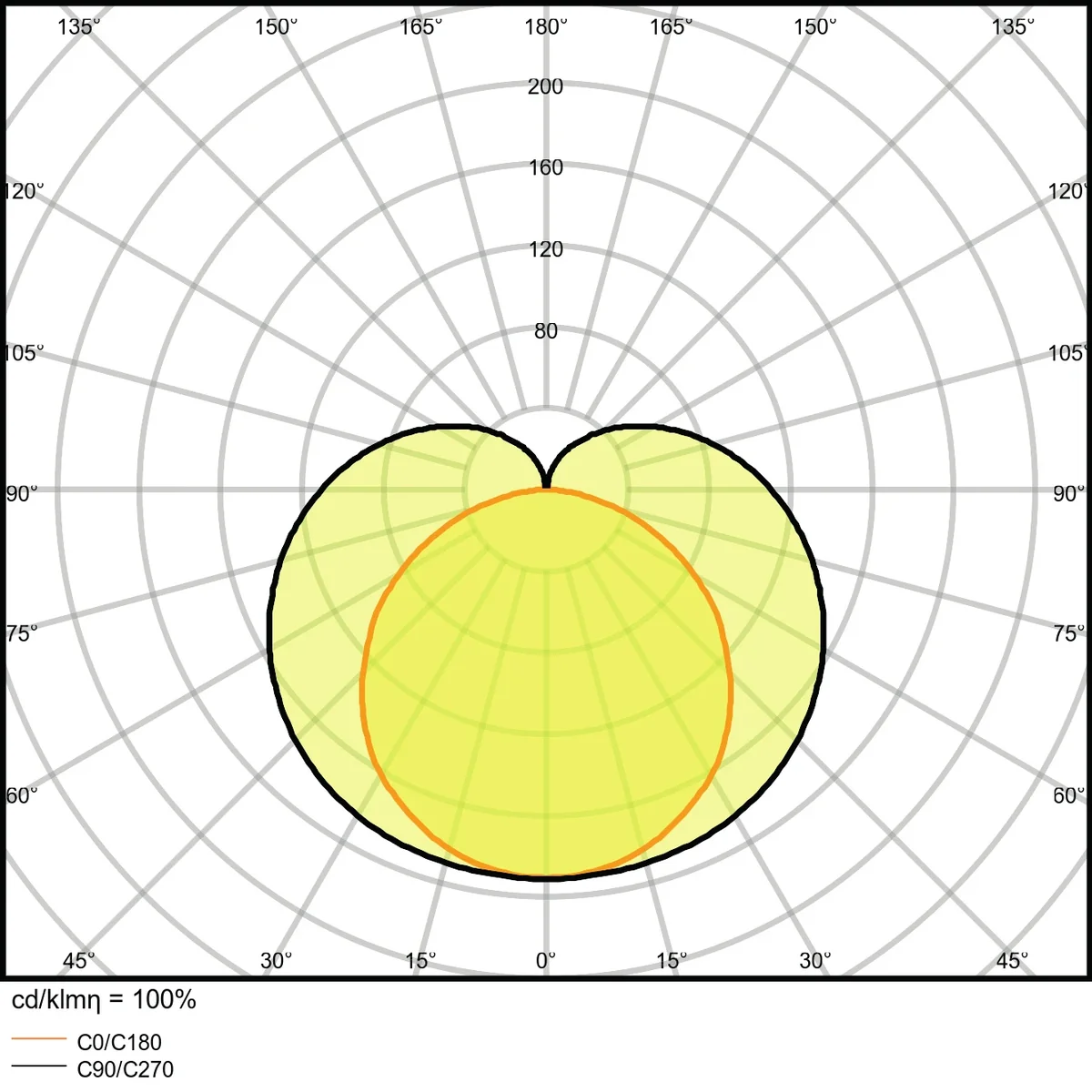

  • beam angle [°]
    140
  • Color
    White
  • Power [W]
    25
  • Rated voltage [V]
    230
  • Level of security
    IP20
  • Width [mm]
    24
  • Color Temperature [K]
    4000
  • Color Rendering Index [CRI]
    >80
  • Thickness [mm]
    36
  • Shade
    milk
  • Material
    PC
  • Installation
    Surface-mounted
  • Mechanical resistance
    IK03
  • luminous flux [lm]
    2500
  • Durability [h]
    40000
  • PKWIU
    27.40.25

Other technical data

  • Lamp type
    LED not exchangeable
  • Material
    Plastic
  • Voltage type
    AC
  • Prąd znamionowy LED przy zasilaniu prądem stałym
    115 ... 115 mA
  • With control gear
    yes
  • Dimming 1-10 V
    no
  • Dimming DMX
    no
  • Dimming potentiometer (integrated)
    no
  • Dimming LineSwitch
    no
  • Dimming mains voltage modulation
    no
  • Dimming phase cut-on
    no
  • Dimming RF
    no
  • Dimming Touch and Dim
    no
  • Dimming with push-button
    no
  • Light distributor
    Diffuser lens/optic/panel
  • Klasa efektywności energetycznej zamontowanego źródła światła
    A++, A+, A (LED)
  • Rated life time L70/B50 at 25 °C
    50000 h
  • Żywotność znamionowa L80/B50 przy 25 °C
    40000 h
  • Żywotność znamionowa L90/B50 przy 25 °C
    30000 h
  • Protection class
    II
  • With switch
    no
  • Suitable for lamp power
    25.00 ... 25.00 W
  • Rated luminous flux according to IEC 62722-2-1
    2500 lm
  • Colour temperature
    4000 ... 4000 K
  • Power factor
    0.90
  • Length
    1473 mm
  • Number of poles
    3
  • Electrical connection with connector system
    yes
  • With light source
    yes
  • Housing colour
    White
  • Nominal voltage
    220 ... 240 V
  • Type of control gear
    Electronic ballast
  • Dimming 0-10 V
    no
  • Dimming DALI
    no
  • Dimming DSI
    no
  • Ściemniacz GPRS
    no
  • Dimming manufacturer's proprietary system
    no
  • Dimming phase cut-off
    no
  • Dimming programmable
    no
  • Dimming Sine Wave Reduction
    no
  • Dimming Zigbee
    no
  • No dim function
    yes
  • Suitable for emergency lighting
    no
  • Żywotność znamionowa L70/B10 przy 25 °C
    50000 h
  • Rated life time L80/B10 at 25 °C
    40000 h
  • Żywotność znamionowa L90/B10 przy 25°C
    30000 h
  • Degree of protection (IP)
    IP20
  • Covering of the luminaire with thermally insulating material possible
    yes
  • With movement sensor
    no
  • Max. system power
    25.00 W
  • Colour of light
    White
  • Colour rendering index CRI
    80-89
  • Height/depth
    36.0 mm
  • Type of wiring
    Through wiring included
  • Connection type
    Other

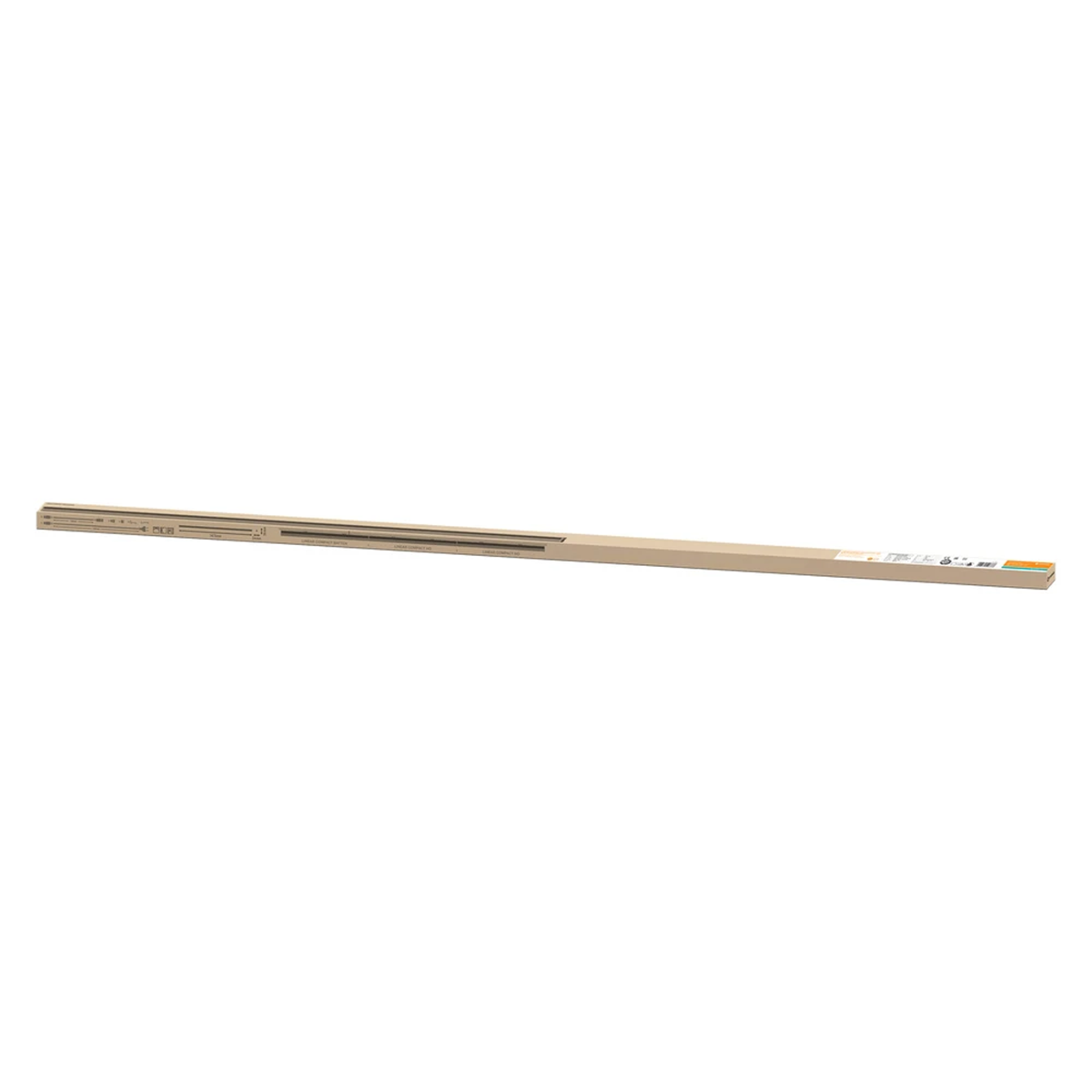

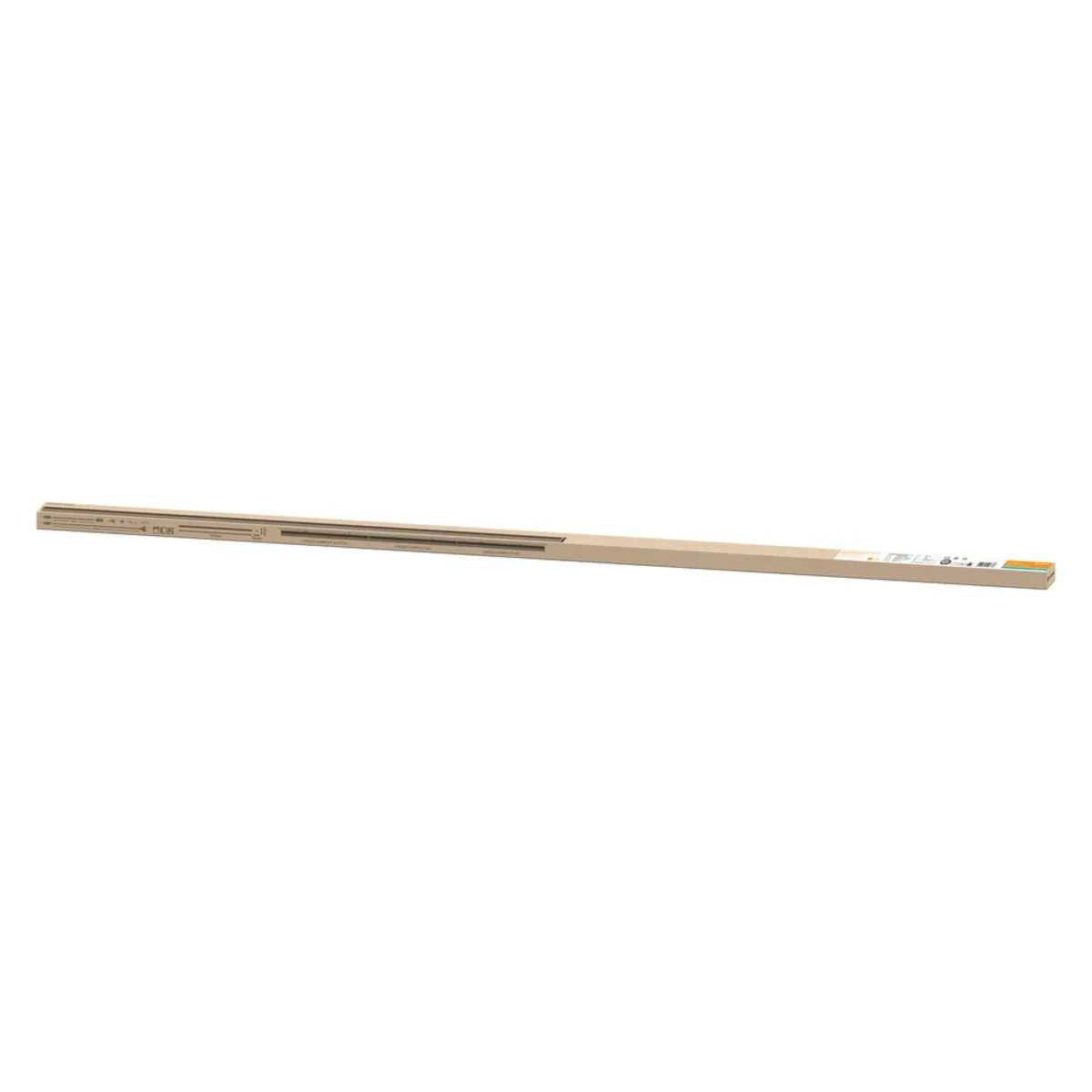

Bulk packaging

A kind of package Skrzynia Karton
Quantity 1 pcs. 25 pcs.
Weight (kg) 0,741 19,481
Volume (m3) 0,002 0,072
Width (m) 0,040 0,233
Length (m) 1,680 1,718
Depth (m) 0,030 0,180
