LINEAR COMPACT Linear luminaire 20W 2000lm 4000K NW milky white 4058075106338
local index:
OWE015LEDV
Catalog No:
4058075106338
EAN code:
4058075106338
Manufacturer:
LEDVANCE
Light color [K]: 3500-4800 (natural)
Color Rendering Index [CRI]: >80
Length [mm]: 1173
Large-size product
Price:
35,07 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Product benefits
Compact dimensions
Easy installation at 2 different mounting angles
Up to 45% energy savings compared to conventional linear luminaires

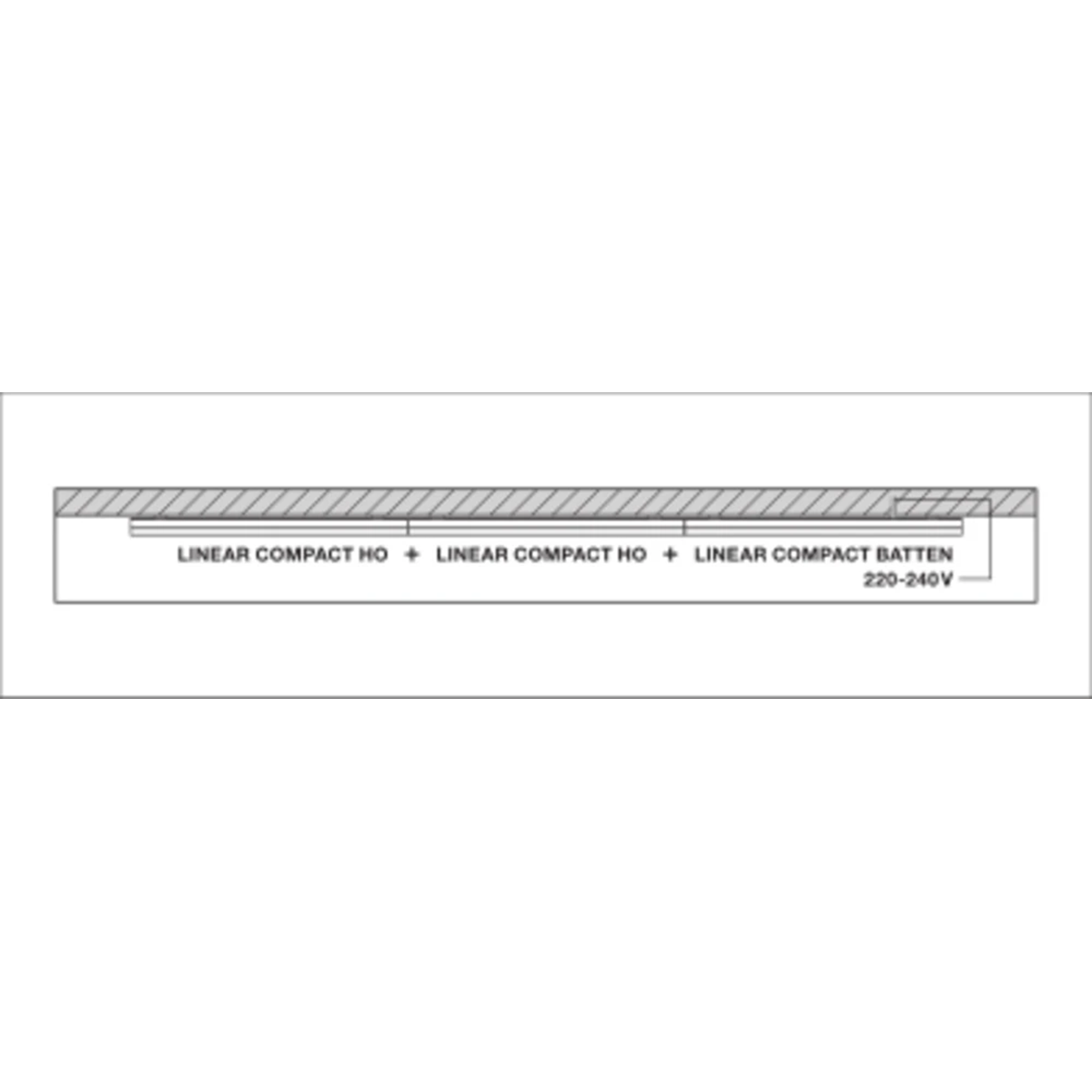

Linear systems with up to 10 luminaires can be created
For creating homogeneous lines of light without dark segments
Areas of application
Direct replacement of fluorescent luminaires
Interior general lighting
Corridors, entrances, staircases, living rooms, basements
Accent lighting
Public areas
Cove lighting
Shelves, furniture segments or assembly in cabinets
Effortless linear lighting
Technical data
-
Light color [K]3500-4800 (natural)
-
Length [mm]1173
-
beam angle [°]140
-
ColorWhite
-
Power [W]20
-
Rated voltage [V]230
-
Level of securityIP20
-
Width [mm]24
-
Color Temperature [K]4000
-
Color Rendering Index [CRI]>80
-
Thickness [mm]36
-
Shademilk
-
MaterialPC
-
InstallationSurface-mounted
-
Mechanical resistanceIK03
-
luminous flux [lm]2000
-
Durability [h]40000
-
PKWIU27.40.25
Other technical data
-
Lamp typeLED not exchangeable
-
MaterialPlastic
-
Voltage typeAC
-
Prąd znamionowy LED przy zasilaniu prądem stałym158 ... 158 mA
-
With control gearYes
-
Dimming 1-10 VNo
-
Dimming DMXNo
-
Dimming potentiometer (integrated)No
-
Dimming LineSwitchNo
-
Dimming mains voltage modulationNo
-
Dimming phase cut-onNo
-
Dimming RFNo
-
Dimming Touch and DimNo
-
Dimming with push-buttonNo
-
Light distributorDiffuser lens/optic/panel
-
Klasa efektywności energetycznej zamontowanego źródła światłaA++, A+, A (LED)
-
Rated life time L70/B50 at 25 °C50000 h
-
Żywotność znamionowa L80/B50 przy 25 °C40000 h
-
Żywotność znamionowa L90/B50 przy 25 °C30000 h
-
Protection classII
-
With switchNo
-
Suitable for lamp power20.00 ... 20.00 W
-
Rated luminous flux according to IEC 62722-2-12000 lm
-
Colour temperature4000 ... 4000 K
-
Power factor0.5
-
Length1173 mm
-
Number of poles3
-
Electrical connection with connector systemYes
-
With light sourceYes
-
Housing colourWhite
-
Nominal voltage220 ... 240 V
-
Type of control gearElectronic ballast
-
Dimming 0-10 VNo
-
Dimming DALINo
-
Dimming DSINo
-
Ściemniacz GPRSNo
-
Dimming manufacturer's proprietary systemNo
-
Dimming phase cut-offNo
-
Dimming programmableNo
-
Dimming Sine Wave ReductionNo
-
Dimming ZigbeeNo
-
No dim functionYes
-
Suitable for emergency lightingNo
-
Żywotność znamionowa L70/B10 przy 25 °C50000 h
-
Rated life time L80/B10 at 25 °C40000 h
-
Żywotność znamionowa L90/B10 przy 25°C30000 h
-
Degree of protection (IP)IP20
-
Covering of the luminaire with thermally insulating material possibleYes
-
With movement sensorNo
-
Max. system power20.00 W
-
Colour of lightWhite
-
Colour rendering index CRI80-89
-
Height/depth36.0 mm
-
Type of wiringThrough wiring included
-
Connection typeOther
Manufacturer details
-
ManufacturerLEDVANCE GmbH
-
Address85748 Garching Parkring 29-33 Niemcy
-
Phone number
-
E-mail
Bulk packaging
| A kind of package | Skrzynia | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 25 pcs. |
| Weight (kg) | 0,410 | 0,525 | 11,780 |
| Volume (m3) | - | 0,002 | 0,059 |
| Width (m) | - | 0,040 | 0,230 |
| Length (m) | - | 1,380 | 1,420 |
| Depth (m) | - | 0,030 | 0,180 |
