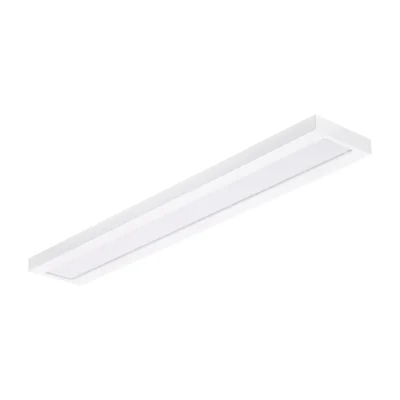

LEDINAIRE Surface mounted luminaire 40W 4000lm 4000K IP20 911401842480
local index:
OWC280FARE
Catalog No:
911401842480
EAN code:
8710163350417
Manufacturer:
PHILIPS - FAREL
Light color [K]: 3500-4800 (natural)
Color Rendering Index [CRI]: >80
Length [mm]: 1200
Price:
77,06 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

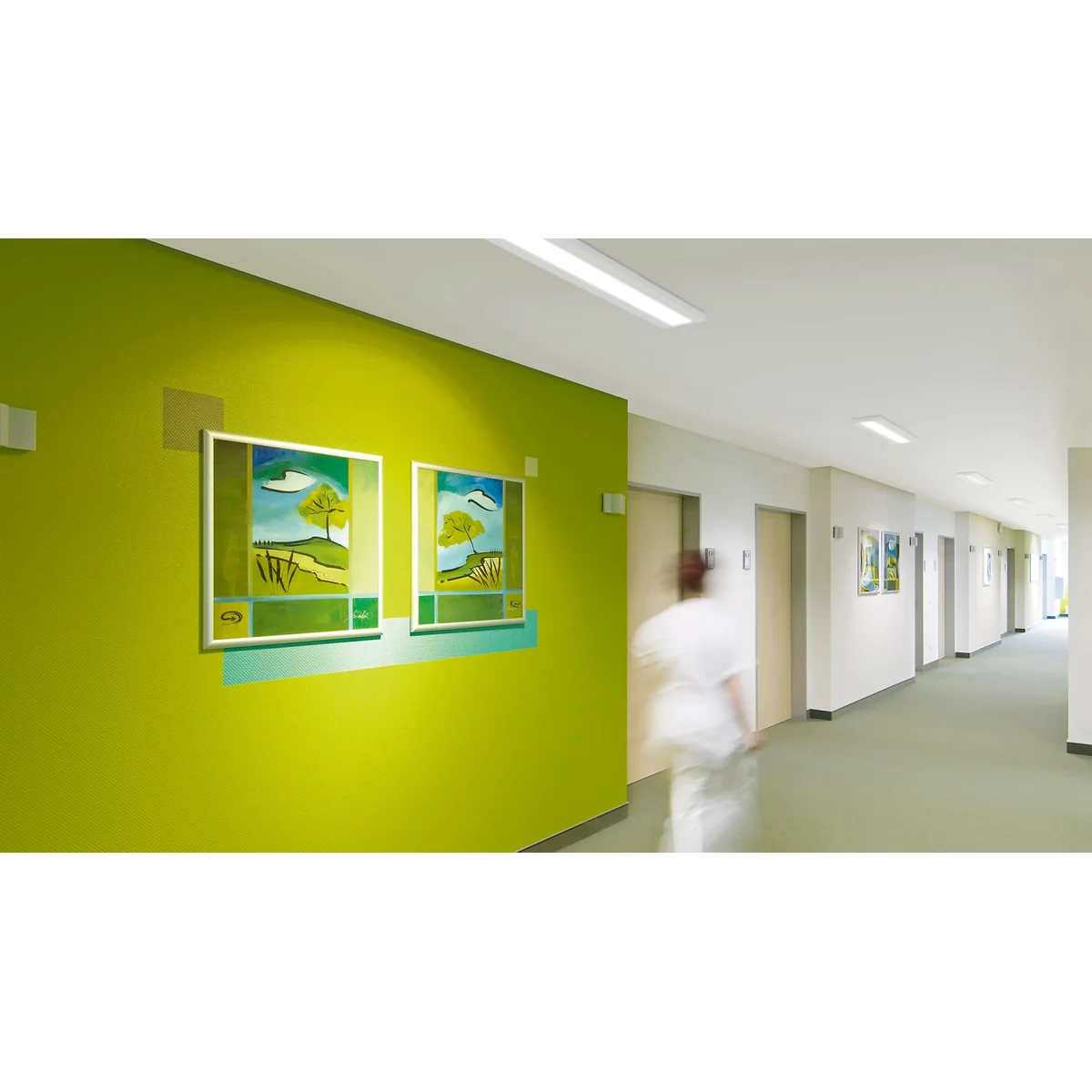

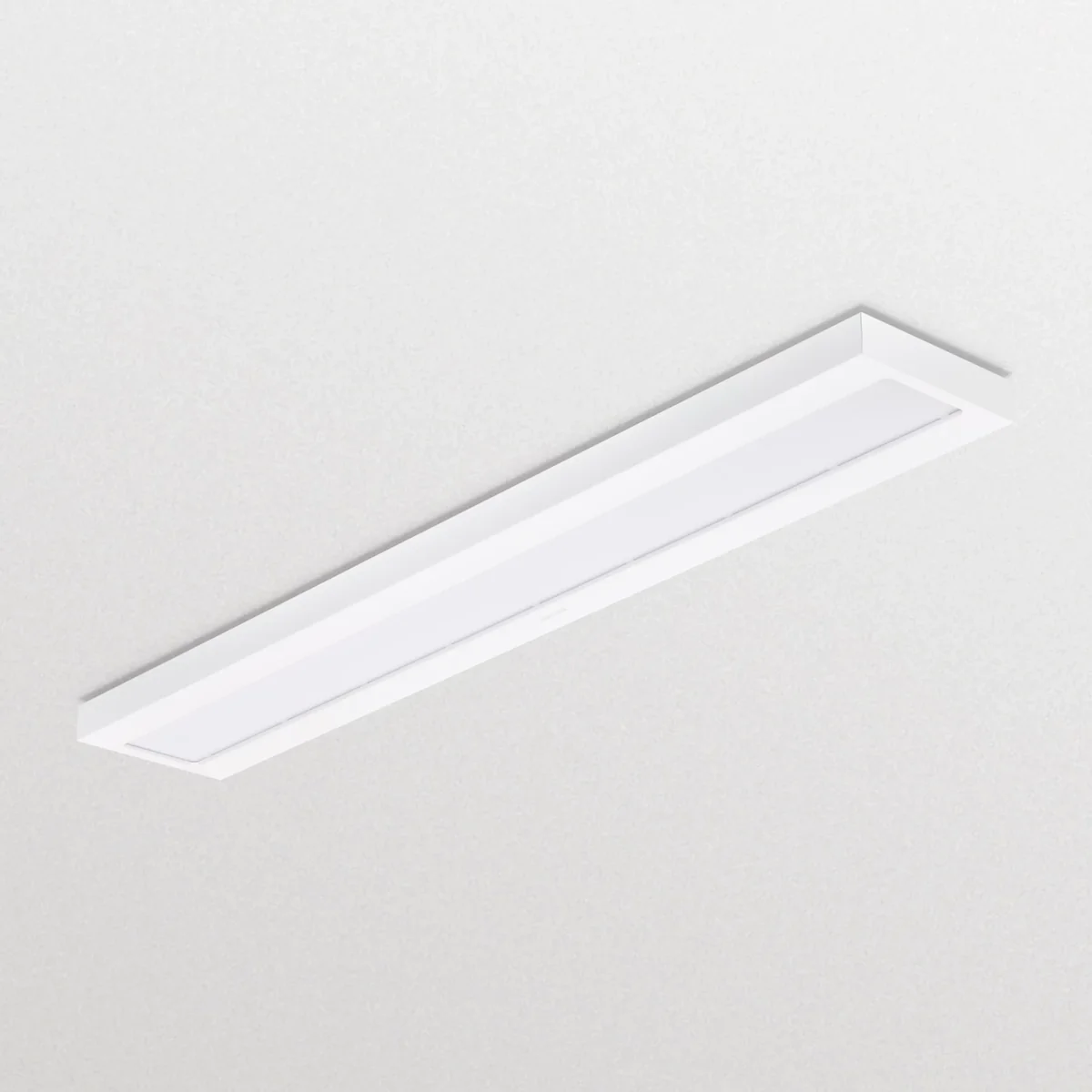

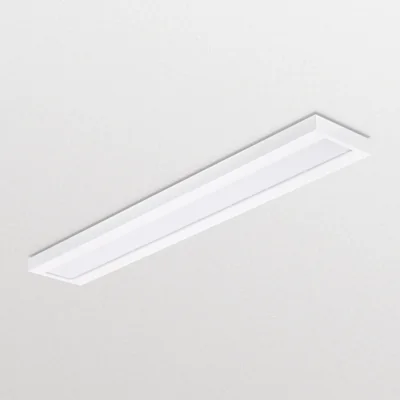

The surface-mounted LEDINAIRE SM060C luminaire is a combination of a classic look and professional quality of the components used, it has LED lighting with high durability and stability of light parameters. The LEDINAIRE SM060C surface-mounted luminaire is designed to illuminate general spaces. It is an economical and energy-saving LED solution for installation in offices, classrooms, corridors and passageways
Technical data
-
Light color [K]3500-4800 (natural)
-
Length [mm]1200
-
ColorWhite
-
Power [W]40
-
Rated voltage [V]230
-
FamilyLEDINAIRE
-
luminous flux [lm]4000
-
DarkeningNO
-
SwitchNO
-
Light source includedYes
-
Color Temperature [K]4000
-
Replaceable light sourceNO
-
Color Rendering Index [CRI]>80
-
beam angle [°]110
-
Materialsteel
-
InstallationSurface-mounted
-
TypeCeiling
-
Level of securityIP20
-
Width [mm]2000
-
TypeCeiling
-
Height [mm]53
-
Degree of mechanical protectionIP20
-
Warranty [years]5
Other technical data
-
Suitable for wall mountingNo
-
Suitable for ceiling mountingYes
-
Suitable for surface mountingYes
-
Suitable for workplace according to EN 12464-1No
-
With light sourceYes
-
Housing materialSteel
-
Material coverPlastic, opal
-
Voltage typeAC
-
Type of control gearLED operating device current-controlled
-
Dimming 0-10 VNo
-
Dimming DALINo
-
Dimming DSINo
-
Ściemniacz GPRSNo
-
Dimming manufacturer's proprietary systemNo
-
Dimming phase cut-offNo
-
Dimming programmableNo
-
Dimming Sine Wave ReductionNo
-
Dimming ZigbeeNo
-
Ściemniacz zależny od statecznikaNo
-
Light distributorDiffuser lens/optic/panel
-
Beam angleExtreme wide beam >80°
-
Rated life time L70/B50 at 25 °C30000 h
-
Impact strengthIK03
-
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24No
-
Suitable for emergency lightingNo
-
With light sensorNo
-
With air slotsNo
-
Max. system power40 W
-
Colour of lightWhite
-
Colour rendering index CRI80-89
-
Power factor0.9
-
Height/depth53 mm
-
Built-in length1200 mm
-
Built-in height/depth53 mm
-
Number of poles3
-
Connection typeOther
-
Suitable for suspended mountingNo
-
Suitable for built-in mountingNo
-
Suitable for light line configurationNo
-
Lamp typeLED not exchangeable
-
Lamp holderOther
-
Housing colourWhite
-
Type of gridNone
-
Nominal voltage220 ... 240 V
-
With control gearYes
-
Dimming 1-10 VNo
-
Dimming DMXNo
-
Dimming potentiometer (integrated)No
-
Dimming LineSwitchNo
-
Dimming mains voltage modulationNo
-
Dimming phase cut-onNo
-
Dimming RFNo
-
Dimming Touch and DimNo
-
Dimming with push-buttonNo
-
No dim functionYes
-
Light sharingSymmetric
-
Light outletDirect
-
Degree of protection (IP)IP20
-
Protection classI
-
Rated ambient temperature according to IEC 62722-2-110 ... 40 °C
-
With movement sensorNo
-
Covering of the luminaire with thermally insulating material possibleNo
-
Filament test according to IEC 60695-2-11650 °C - 30 s
-
Rated luminous flux according to IEC 62722-2-14000 lm
-
Colour temperature4000 ... 4000 K
-
Luminaire efficacy100 lm/W
-
Width200 mm
-
Length1200 mm
-
Built-in width200 mm
-

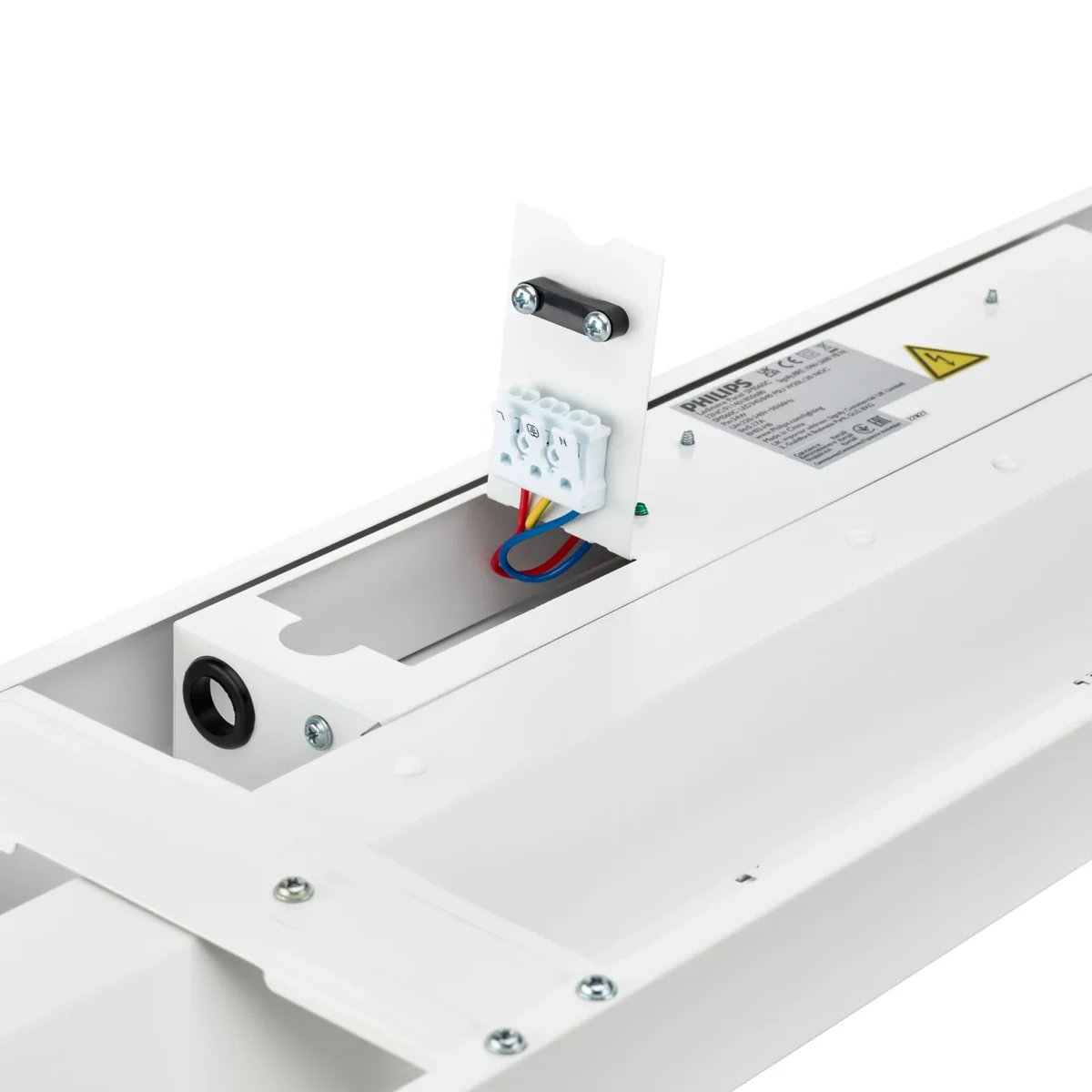

Type of wiringSuitable for through wiring
-
Conductor cross section2.5 mm²
Manufacturer details
-
ManufacturerSignify I.B.R.S. / C.C.R.I.
-
Address5600 VB Eindhoven Noméro 10461 Holandia
Bulk packaging
| A kind of package | Paczka | Karton | Paleta |
| Quantity | 1 pcs. | 1 pcs. | 57 pcs. |
| Weight (kg) | 3,390 | 3,390 | - |
| Width (m) | - | 0,240 | - |
| Length (m) | - | 1,250 | - |
| Depth (m) | - | 0,055 | - |
