LEDINAIRE LED ceiling lamp 17W 1700lm 4000K IP65 911401826682

local index:
OWE025FARE
Catalog No:
911401826682
EAN code:
8719514522695

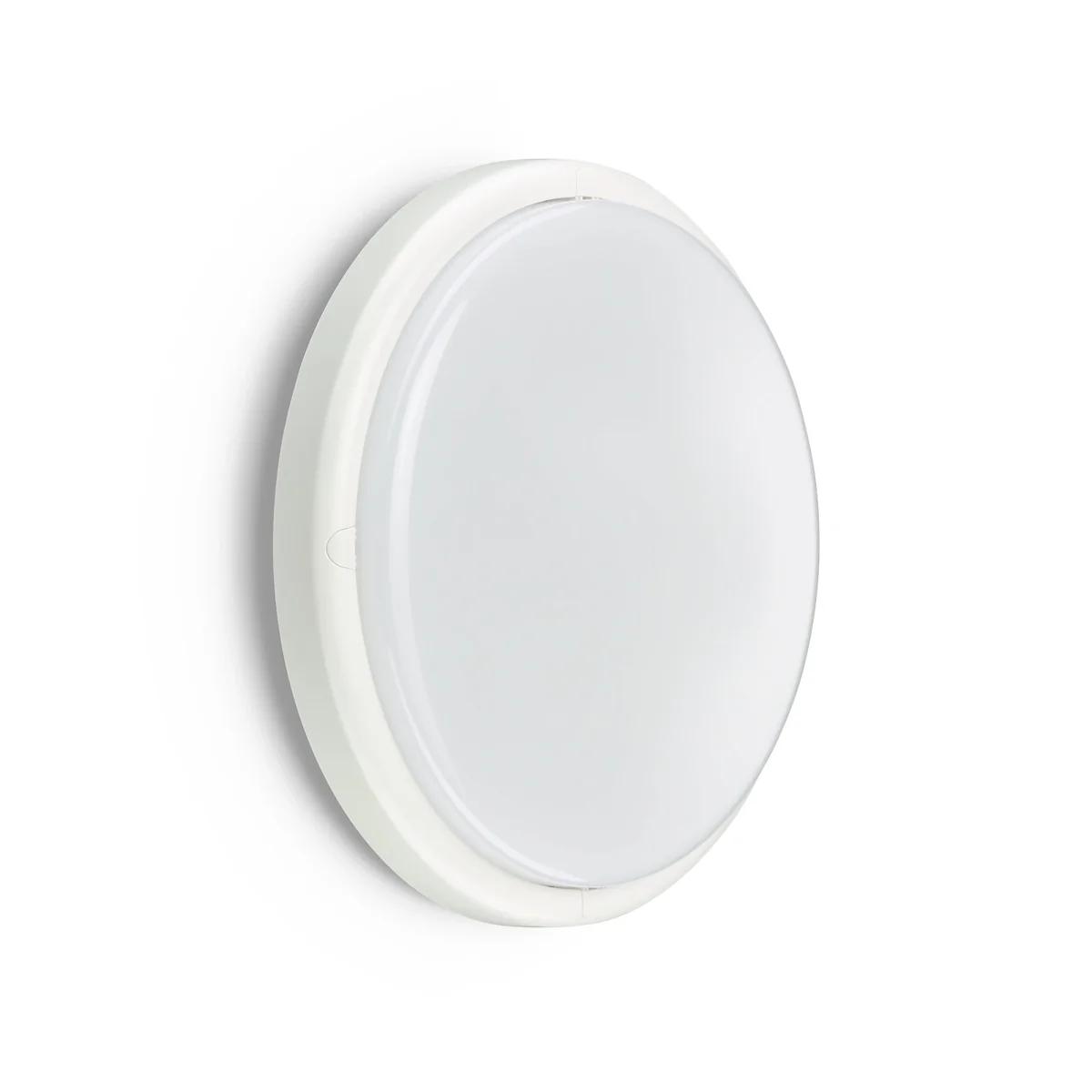

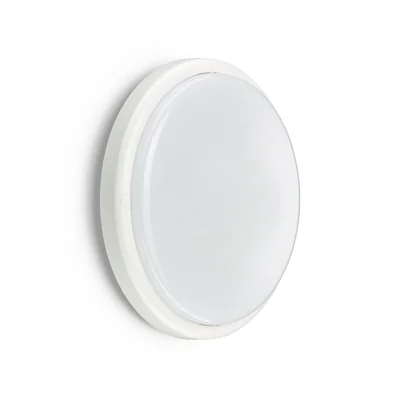

LEDINAIRE LED ceiling lamp 17W 1700lm 4000K IP65
LEDINAIRE LED ceiling lamp 17W 1700lm 4000K IP65
LEDINAIRE LED ceiling lamp 17W 1700lm 4000K IP65
LEDINAIRE LED ceiling lamp 17W 1700lm 4000K IP65

Click on the photo to enlarge

Manufacturer: PHILIPS - FAREL
Light color [K]: 3500-4800 (natural)
Color Rendering Index [CRI]: >80
beam angle [°]: 120
See full description
Price:
29,47 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 23 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

WL070V 17W LED plafond,whose casing is made ofpolypropylene, while the diffuser is made of polycarbonate. The plafond has a built-in light sourceand a reliable construction. The wall-mounted version of the luminaire can be used outdoors, provided that all wiring is routed inside the building and the luminaire is installed no more than 10 m from the building.

Technical data

  • Light color [K]
    3500-4800 (natural)
  • beam angle [°]
    120
  • Material
    Plastic
  • Installation
    Surface-mounted
  • Type
    Ceiling
  • Level of security
    IP65
  • Darkening
    NO
  • Type
    Ceiling
  • Height [mm]
    64
  • lifetime [h]
    35000
  • Warranty [years]
    5
  • Color Rendering Index [CRI]
    >80
  • Color
    White
  • Power [W]
    17
  • Rated voltage [V]
    230
  • Family
    LEDINAIRE
  • luminous flux [lm]
    1700
  • Diameter [mm]
    285
  • Switch
    NO
  • Light source included
    Yes
  • Color Temperature [K]
    4000
  • Replaceable light source
    NO

Other technical data

  • Suitable for wall mounting
    Yes
  • Suitable for ceiling mounting
    Yes
  • Suitable for surface mounting
    Yes
  • Suitable for workplace according to EN 12464-1
    No
  • With light source
    Yes
  • Housing material
    Plastic
  • Housing colour
    White
  • Type of grid
    None
  • Nominal voltage
    220 ... 240 V
  • Type of control gear
    LED operating device current-controlled
  • Exchangeable control gear
    No
  • Dimming 1-10 V
    No
  • Dimming DALI
    No
  • Dimming DSI
    No
  • Ściemniacz GPRS
    No
  • Dimming manufacturer's proprietary system
    No
  • Dimming phase cut-off
    No
  • Dimming programmable
    No
  • Dimming Sine Wave Reduction
    No
  • Dimming Zigbee
    No
  • Ściemniacz zależny od statecznika
    No
  • Light distributor
    Diffuser lens/optic/panel
  • Beam angle
    Extreme wide beam >80°
  • Light outlet
    Direct
  • Failure rate at median useful life of 50,000 h at 25 °C ambient (tq)
    5 %
  • Max. number of luminaires per miniature circuit breaker C16 (MCB)
    57
  • Impact strength
    IK08
  • Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
    Yes
  • Suitable for emergency lighting
    No
  • With movement sensor
    No
  • Covering of the luminaire with thermally insulating material possible
    Yes
  • Filament test according to IEC 60695-2-11
    850 °C - 30 s
  • Luminaire efficacy
    100 lm/W
  • Colour of light
    White
  • Flickering value Pst LM
    1
  • Power factor
    0.9
  • Constant light output (CLO)
    No
  • Outer diameter
    285 mm
  • Number of poles
    2
  • Connection type
    Push-in clamp
  • Photobiological safety according to EN 62471
    RG0
  • Colour of light adjustable
    No
  • Beam angle adjustable
    No
  • Compatible with Apple HomeKit
    No
  • Compatible with Amazon Alexa
    No
  • Suitable for suspended mounting
    No
  • Suitable for built-in mounting
    No
  • Suitable for light line configuration
    No
  • Lamp type
    LED not exchangeable
  • Lamp holder
    Other
  • Surface protection housing
    Untreated
  • Material cover
    Plastic, opal
  • Voltage type
    AC
  • Nominal current
    82 ... 82 mA
  • With control gear
    Yes
  • Dimming 0-10 V
    No
  • Dimming DALI-2
    No
  • Dimming DMX
    No
  • Dimming potentiometer (integrated)
    No
  • Dimming LineSwitch
    No
  • Dimming mains voltage modulation
    No
  • Dimming phase cut-on
    No
  • Dimming RF
    No
  • Dimming Touch and Dim
    No
  • Dimming with push-button
    No
  • No dim function
    Yes
  • Light sharing
    Symmetric
  • Colour consistency (McAdam ellipse)
    SDCM5
  • Rated life time L70/B50 at 25 °C
    50000 h
  • Max. number of luminaires per miniature circuit breaker B16 (MCB)
    35
  • Degree of protection (IP)
    IP65
  • Protection class
    II
  • Rated ambient temperature according to IEC 62722-2-1
    25 ... 25 °C
  • Emergency power supply integrated
    No
  • With light sensor
    No
  • With air slots
    No
  • Max. system power
    18.7 W
  • Rated luminous flux according to IEC 62722-2-1
    1700 lm
  • Colour temperature
    4000 ... 4000 K
  • Colour rendering index CRI
    80-89
  • Stroboscope effect value SVM
    1.6
  • Height/depth
    64 mm
  • Type of wiring
    Ending
  • Conductor cross section
    1.5 mm²
  • Total harmonic distortion
    20
  • Unified Glare Ratio (UGR)
    24
  • Luminous flux adjustable
    No
  • Operation by Bluetooth
    No
  • Compatible with Google Assistant
    No
  • IFTTT support available
    No

Manufacturer details

Bulk packaging

A kind of package Paczka Karton Paleta
Quantity 1 pcs. 6 pcs. 108 pcs.
Weight (kg) 1,200 7,200 -
Width (m) - 0,310 -
Length (m) - 0,430 -
Depth (m) - 0,310 -
