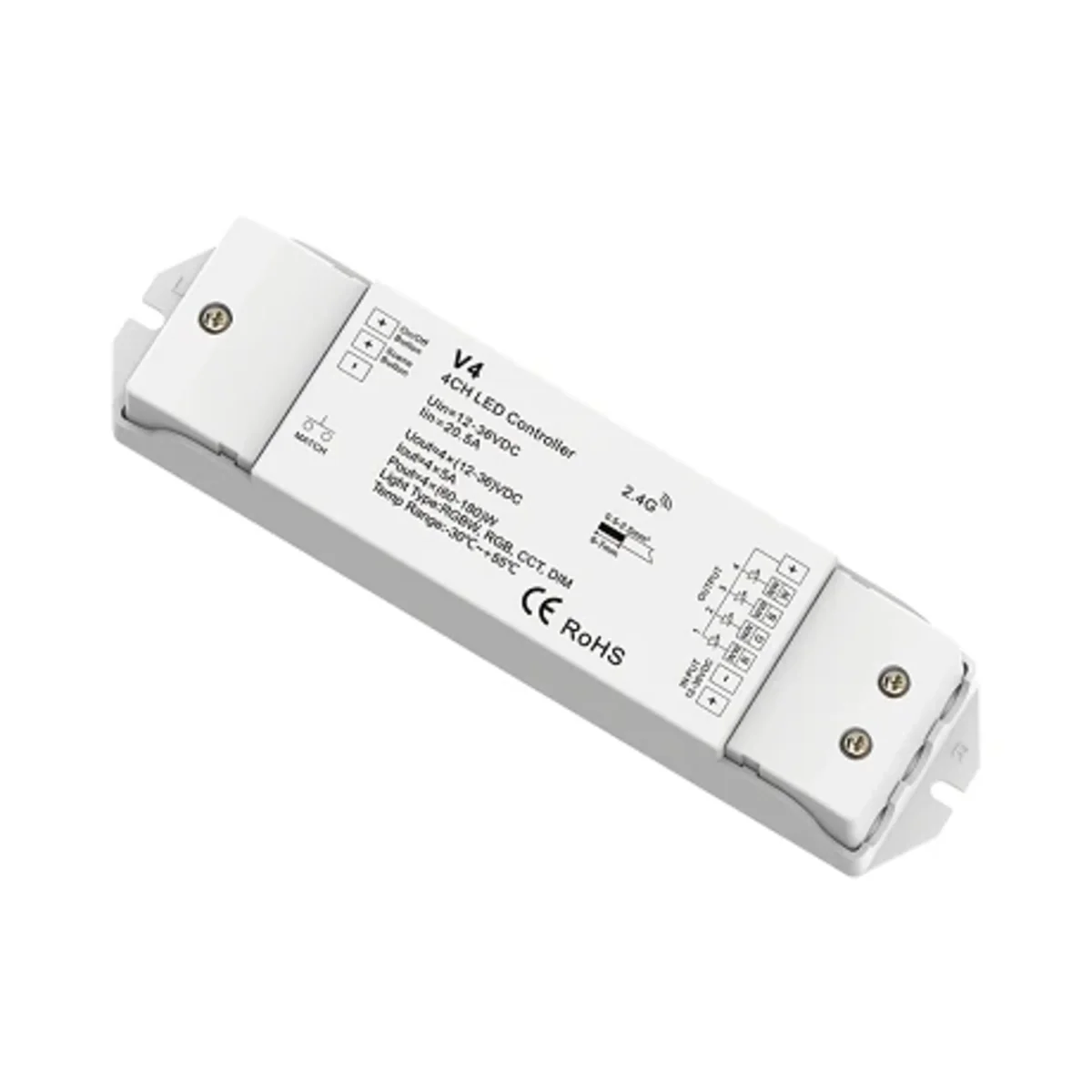

LED driver for NEXTEC SKY RGBW 12-24V 4x5A 2.4GHz Wi-Fi strips PD027309

local index:
OCS001POLT
Catalog No:
PD027309
EAN code:
5908293927309
Manufacturer: POLTRONIC
Frequency [GHz]: 2.4
Length [mm]: 175
Rated voltage [V]: 12-24
Price:
21,99 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 25 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

  • The LED driver is a four-channel (RGBW) RF receiver
  • 2.4GHz technology, the system works up to 30m
  • Constant voltage receiver with four outputs
  • Full compatibility with a variety of remotes, both single and dual color and RGB/RGBW
  • Multiple zones can be controlled separately or synchronously with an infinite number of receivers in each zone
  • Smooth color change and dimming from 0.1% to 100%
  • One RF lighting controller can work with ten remote controls
  • One receiver can send signal from the remote control to another receiver at a distance of 15m
  • The total remote control distance is about 100m
  • The receiver can be controlled via Wi-Fi - using an application installed on a mobile device with IOS systems or Android. When working with the Wi-Fi-Reaaly controller
  • The receiver works with the amplifier

The controller works with the RGB + CCT tape remote control PD027255 single-zone or PD027262

Technical data

  • Frequency [GHz]
    2.4
  • Rated voltage [V]
    12-24
  • Family
    NEXTEC SKY
  • Width [mm]
    45
  • Type
    RF / WiFi
  • Temperature range [°C]
    from -30 to +55
  • dimming [%]
    0.1-100
  • Length [mm]
    175
  • Rated current [A]
    4x5
  • Level of security
    IP20
  • Durability [h]
    100000
  • Height [mm]
    27
  • Range [m]
    thirty
