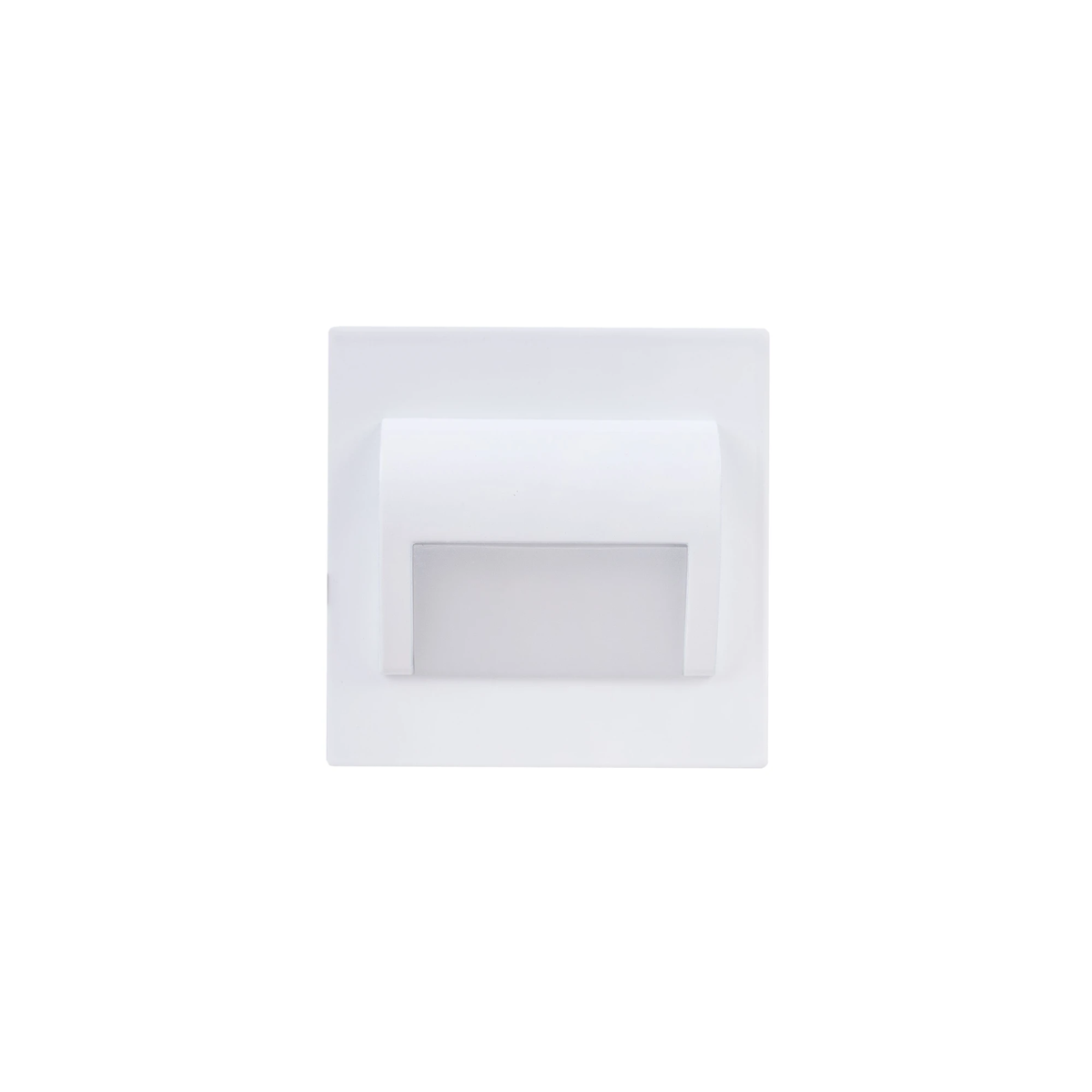

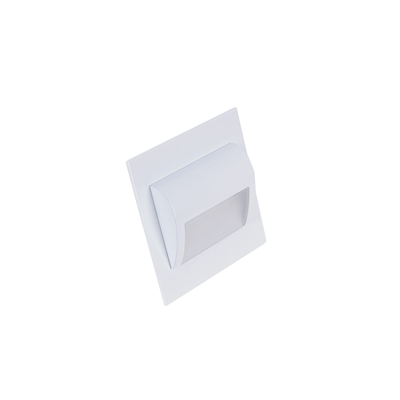

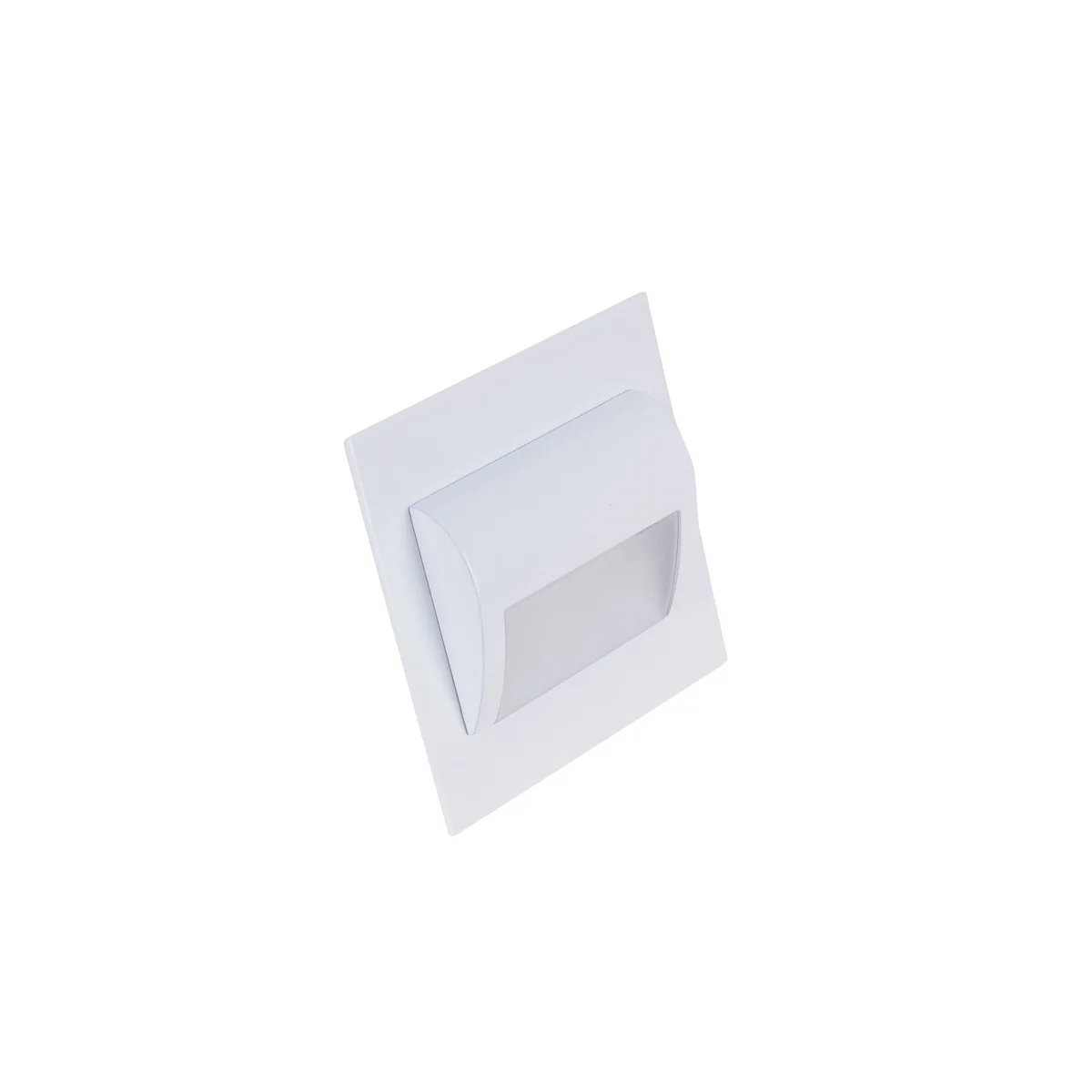

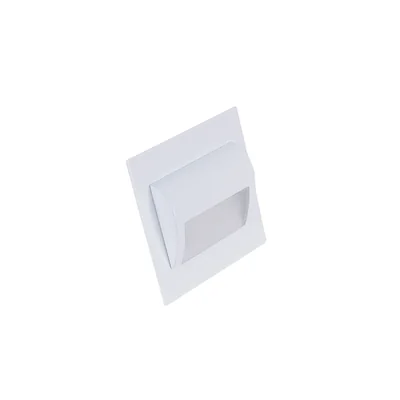

INGA Led staircase luminaire 1.2W 100lm 6000K IP20 white LS-IWC
local index:
OWK005FIFQ
Catalog No:
LS-IWC
EAN code:
5902431670409
Price:
15,44 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Decorative staircase luminaire, which has a cascade function (steps that light up in turn) with the use of the AS-225 automatic switch, it is also dimmable. The advantages of the luminaire include the effect of soft switching on using F&F dimmers as well as remote control in the F&Home, F&Home RADIO, Proxi and F&Wave systems.
Technical data
-
Light color [K]4800-6500 (cool)
-
Housing materialsteel
-
InstallationSurface-mounted
-
Power consumption [W]1.2
-
Level of securityIP20
-
Dimensions [mm]75x75
-
Color Temperature [K]6000
-
Accurate colorPure white
-
PKWIU27.40.24.0
-
ColorWhite
-
Power [W]1.2
-
Supply voltage [V]12
-
FamilyINGA
-
luminous flux [lm]100
-
lifetime [h]40000
-
cri (ra)>80
-
Lampshade materialmilk glass
Other technical data
-
Lamp typeLED not exchangeable
-
Suitable for number of light sources27
-
Housing materialSteel
-
Type of coveringNone
-
Suitable for surface mountingYes
-
Type of control gearElectronic transformer
-
Dimming 0-10 VNo
-
Dimming DALINo
-
Dimming DSINo
-
Ściemniacz GPRSNo
-
Dimming manufacturer's proprietary systemYes
-
Dimming phase cut-offNo
-
Dimming programmableNo
-
Dimming Sine Wave ReductionNo
-
Dimming ZigbeeNo
-
Ściemniacz zależny od statecznikaNo
-
Light distributorDiffuser lens/optic/panel
-
Najwyższa klasa efektywności energetycznej wymiennego źródła światłaA+
-
Degree of protection (IP)IP20
-
Max. system power1.2 W
-
Colour rendering index CRI70-79
-
Height/depth5 mm
-
Connection typeOther
-
With light sourceYes
-
Lamp holderNone
-
Housing colourWhite
-
Material coverGlass opal
-
Voltage typeDC
-
With control gearNo
-
Dimming 1-10 VNo
-
Dimming DMXNo
-
Dimming potentiometer (integrated)No
-
Dimming LineSwitchNo
-
Dimming mains voltage modulationYes
-
Dimming phase cut-onNo
-
Dimming RFNo
-
Dimming Touch and DimNo
-
Dimming with push-buttonYes
-
No dim functionNo
-
Klasa efektywności energetycznej zamontowanego źródła światłaA++, A+, A (LED)
-
Najniższa klasa efektywności energetycznej wymiennego źródła światłaA+
-
Degree of protection (NEMA)1
-
Rated luminous flux according to IEC 62722-2-1100 lm
-
Width73 mm
-
Length73 mm
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 1 pcs. |
| Weight (kg) | 0,070 |
| Width (m) | 0,100 |
| Length (m) | 0,090 |
| Depth (m) | 0,036 |
