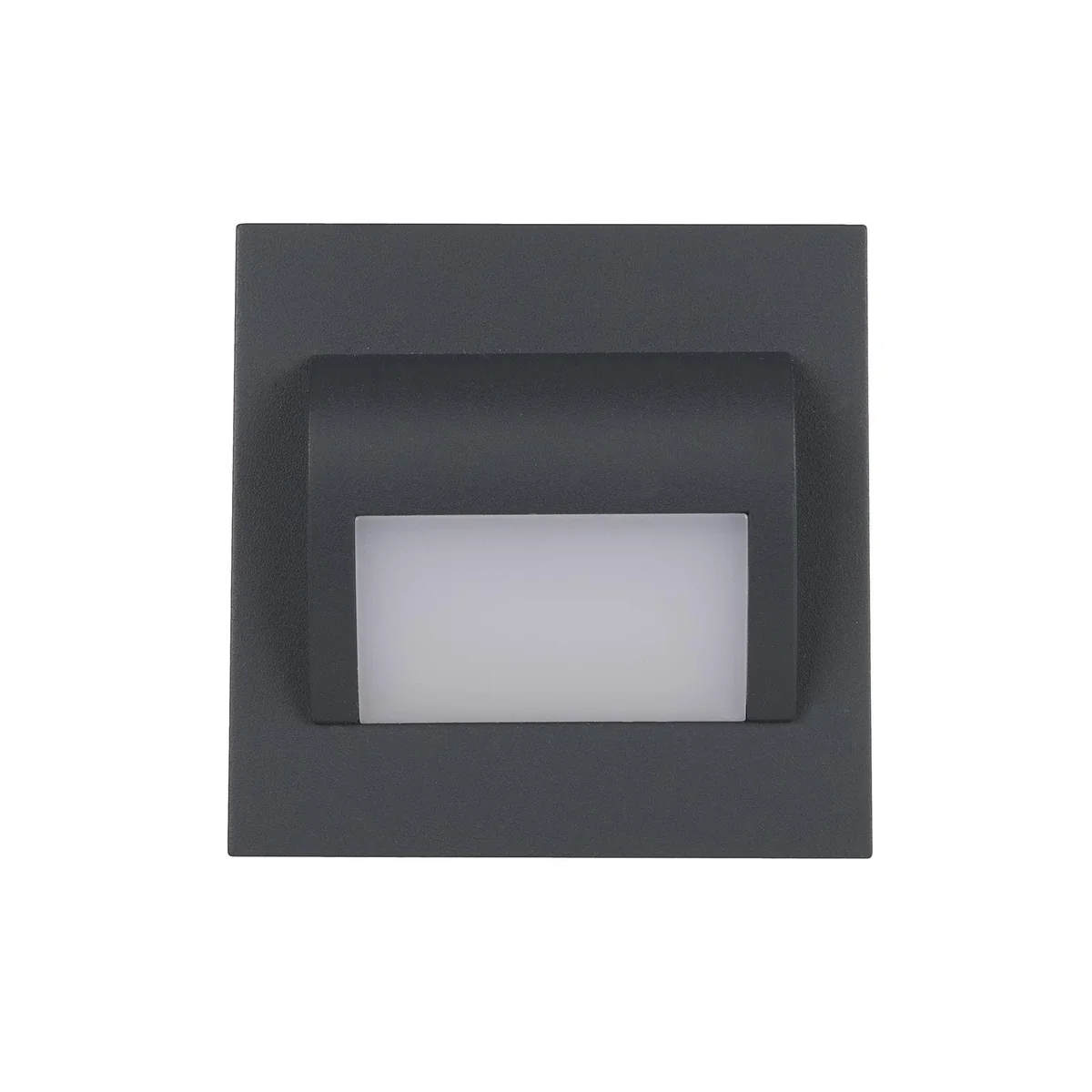

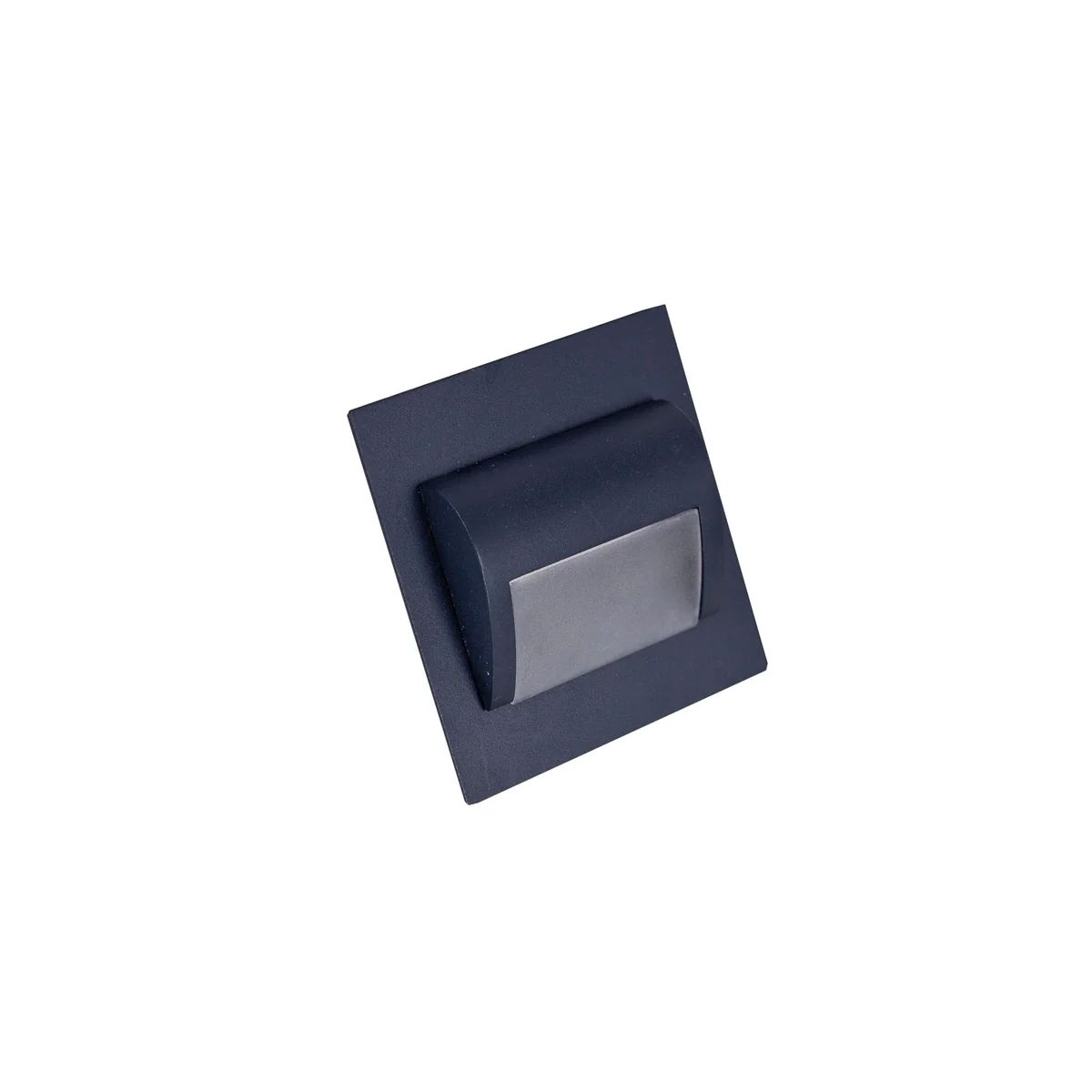

INGA Led stair luminaire 1.2W 100lm 3000K IP20 anthracite LS-IAW

local index:
OWK002FIFQ
Catalog No:
LS-IAW
EAN code:
5902431670454
Manufacturer: F&F
Light color [K]: 2000-3500 (warm)
Color: Graphite
Housing material: steel
Price:
15,44 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The LED staircase luminaire has a dimming function. Moreover, when using the AS-225 staircase timer, you can activate the cascade function in the staircase luminaire, thus causing the steps to light up one after the other. The decorative staircase luminaire is also very durable when it comes to working time. The luminaire is ideal for lighting staircases, corridors and numerous public facilities.

Technical data

  • Light color [K]
    2000-3500 (warm)
  • Housing material
    steel
  • Installation
    Surface-mounted
  • Power consumption [W]
    1.2
  • Level of security
    IP20
  • Dimensions [mm]
    75x75
  • Color Temperature [K]
    3000
  • Accurate color
    Anthracite
  • PKWIU
    27.40.24.0
  • Color
    Graphite
  • Power [W]
    1.2
  • Supply voltage [V]
    12
  • Family
    INGA
  • luminous flux [lm]
    100
  • lifetime [h]
    40000
  • cri (ra)
    >80
  • Lampshade material
    milk glass

Other technical data

  • Lamp type
    LED not exchangeable
  • Suitable for number of light sources
    27
  • Housing material
    Steel
  • Type of covering
    None
  • Suitable for surface mounting
    Yes
  • Type of control gear
    Electronic transformer
  • Dimming 0-10 V
    No
  • Dimming DALI
    No
  • Dimming DSI
    No
  • Ściemniacz GPRS
    No
  • Dimming manufacturer's proprietary system
    Yes
  • Dimming phase cut-off
    No
  • Dimming programmable
    No
  • Dimming Sine Wave Reduction
    No
  • Dimming Zigbee
    No
  • Ściemniacz zależny od statecznika
    No
  • Light distributor
    Diffuser lens/optic/panel
  • Najwyższa klasa efektywności energetycznej wymiennego źródła światła
    A+
  • Degree of protection (IP)
    IP20
  • Max. system power
    1.2 W
  • Colour rendering index CRI
    80-89
  • Height/depth
    5 mm
  • Connection type
    Other
  • With light source
    Yes
  • Lamp holder
    None
  • Housing colour
    Anthracite
  • Material cover
    Glass opal
  • Voltage type
    DC
  • With control gear
    No
  • Dimming 1-10 V
    No
  • Dimming DMX
    No
  • Dimming potentiometer (integrated)
    No
  • Dimming LineSwitch
    No
  • Dimming mains voltage modulation
    Yes
  • Dimming phase cut-on
    No
  • Dimming RF
    No
  • Dimming Touch and Dim
    No
  • Dimming with push-button
    Yes
  • No dim function
    No
  • Klasa efektywności energetycznej zamontowanego źródła światła
    A++, A+, A (LED)
  • Najniższa klasa efektywności energetycznej wymiennego źródła światła
    A+
  • Degree of protection (NEMA)
    1
  • Rated luminous flux according to IEC 62722-2-1
    100 lm
  • Width
    73 mm
  • Length
    73 mm

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,070
Width (m) 0,100
Length (m) 0,090
Depth (m) 0,036
