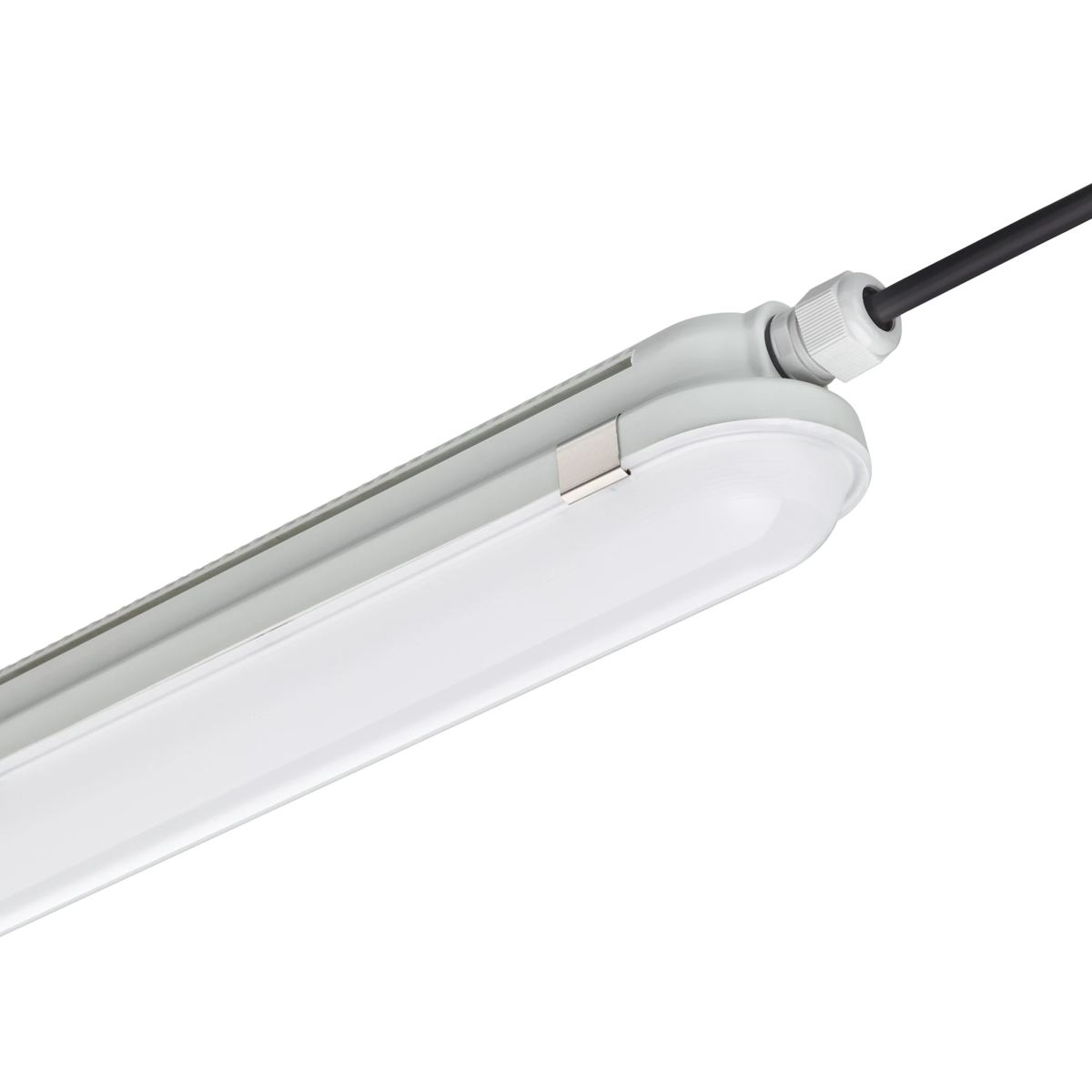

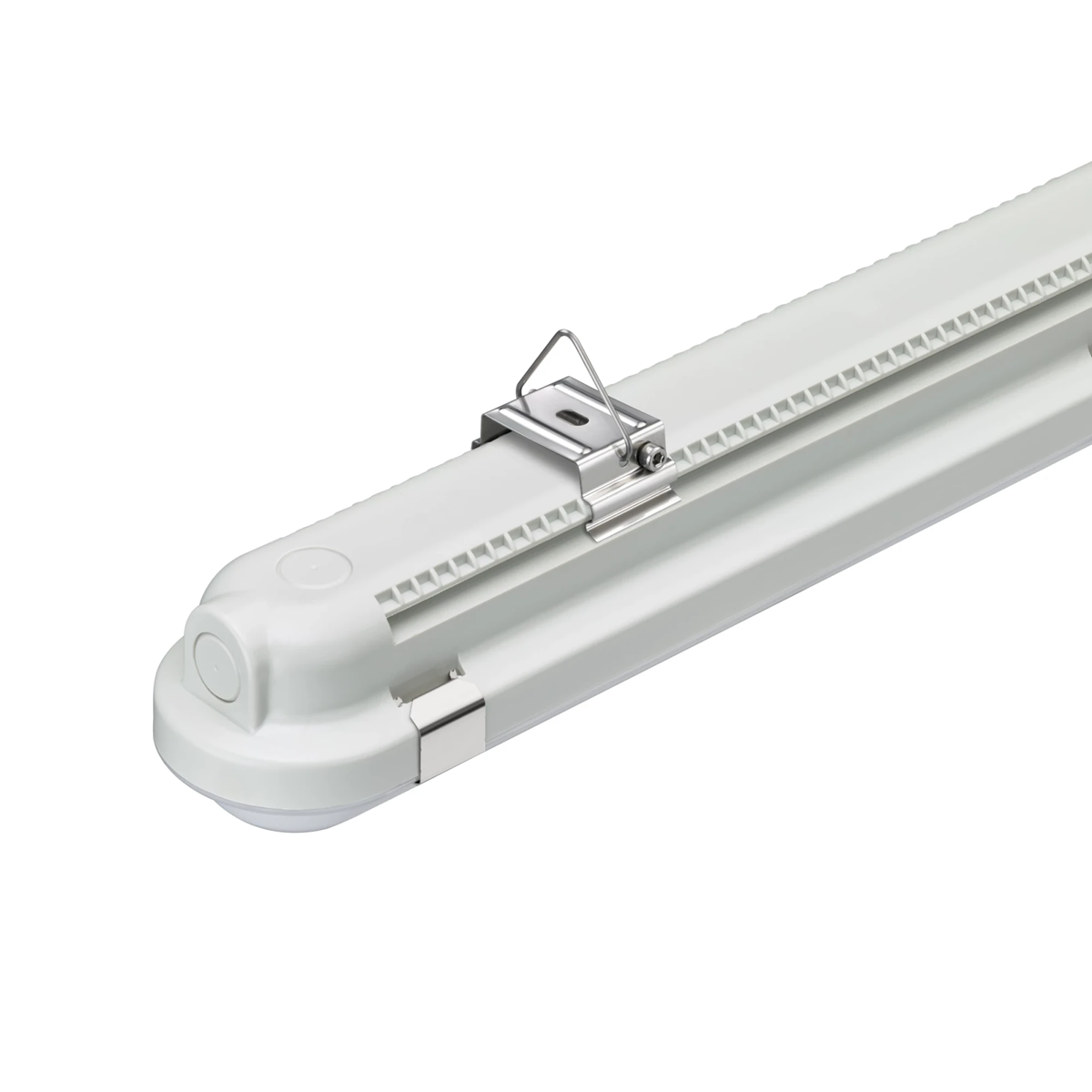

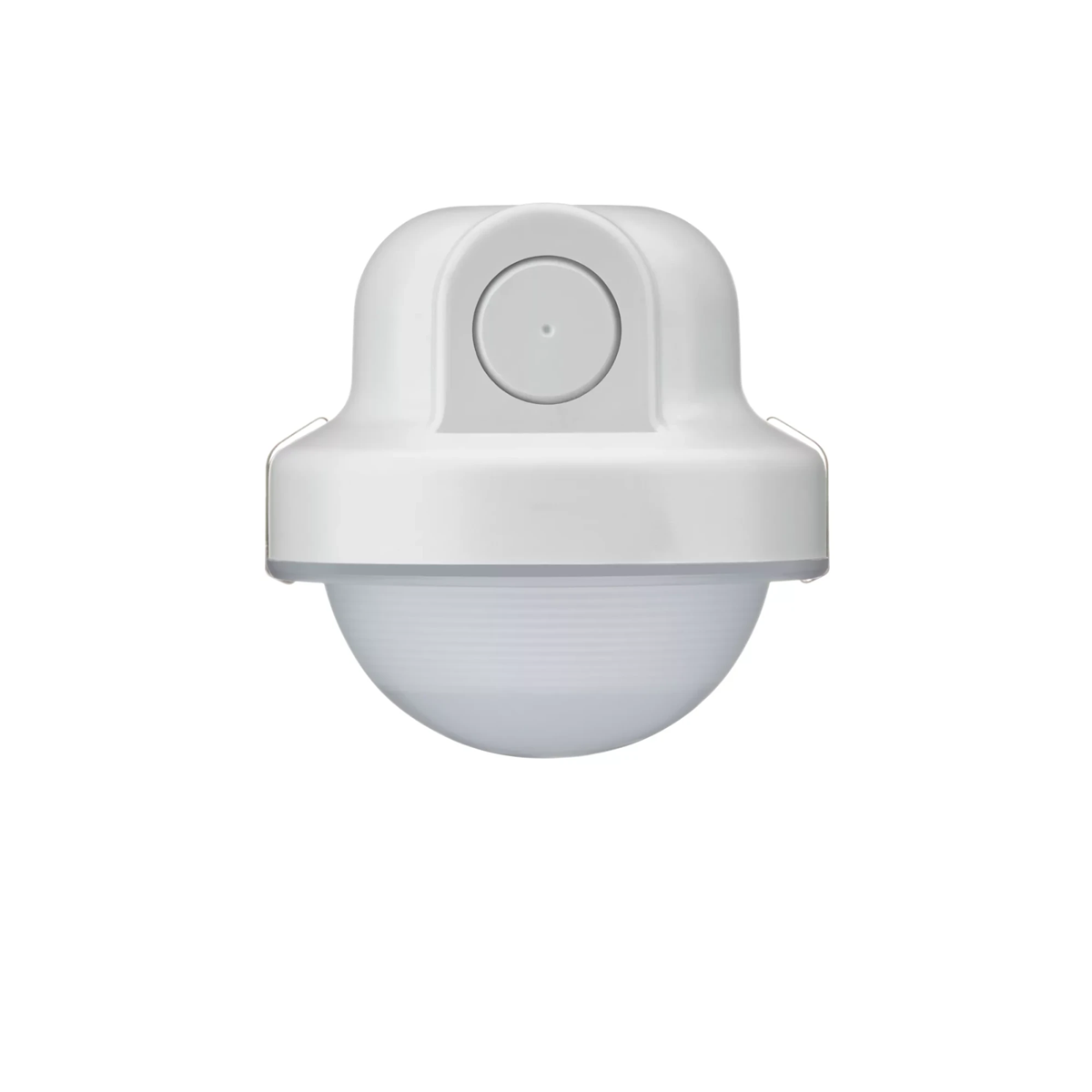

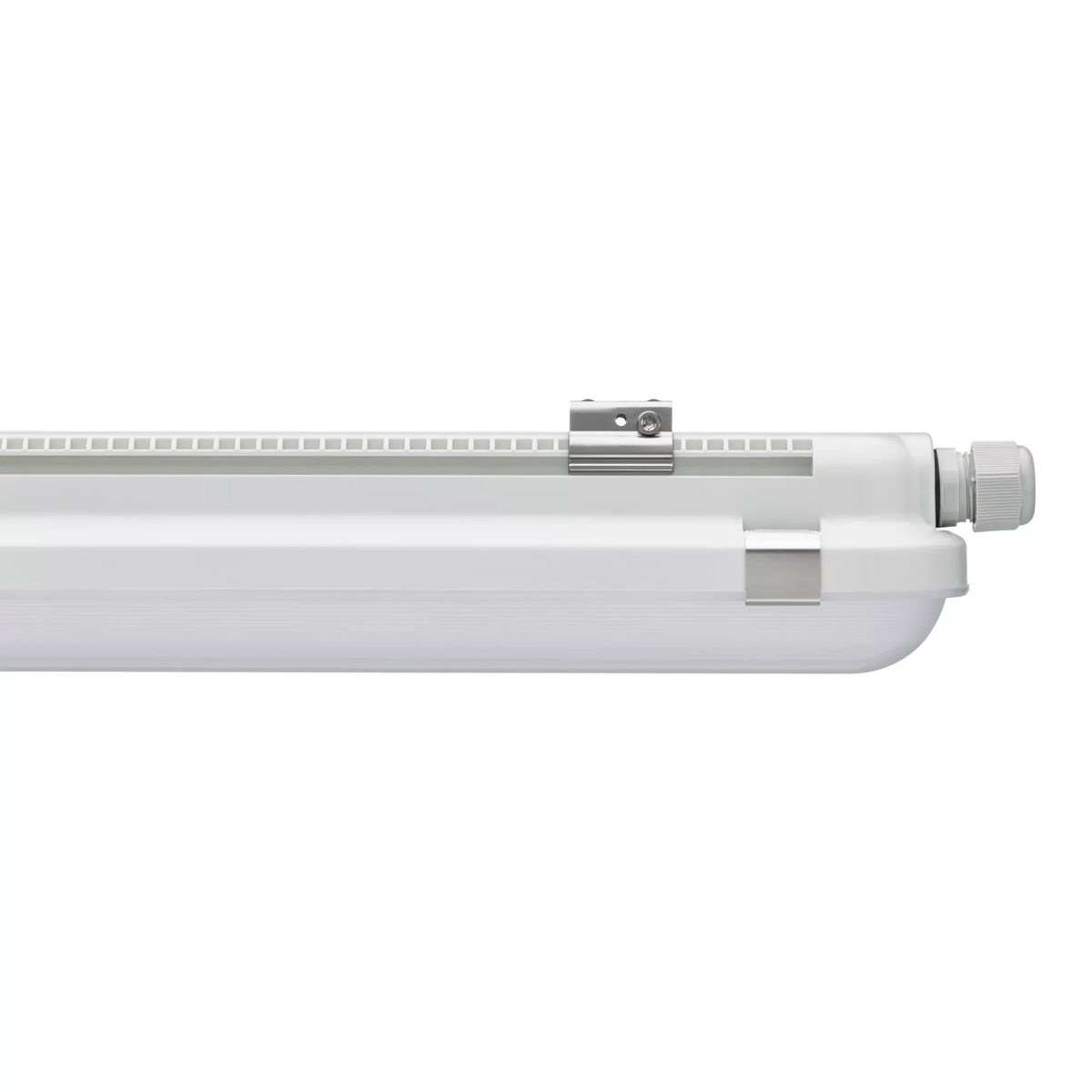

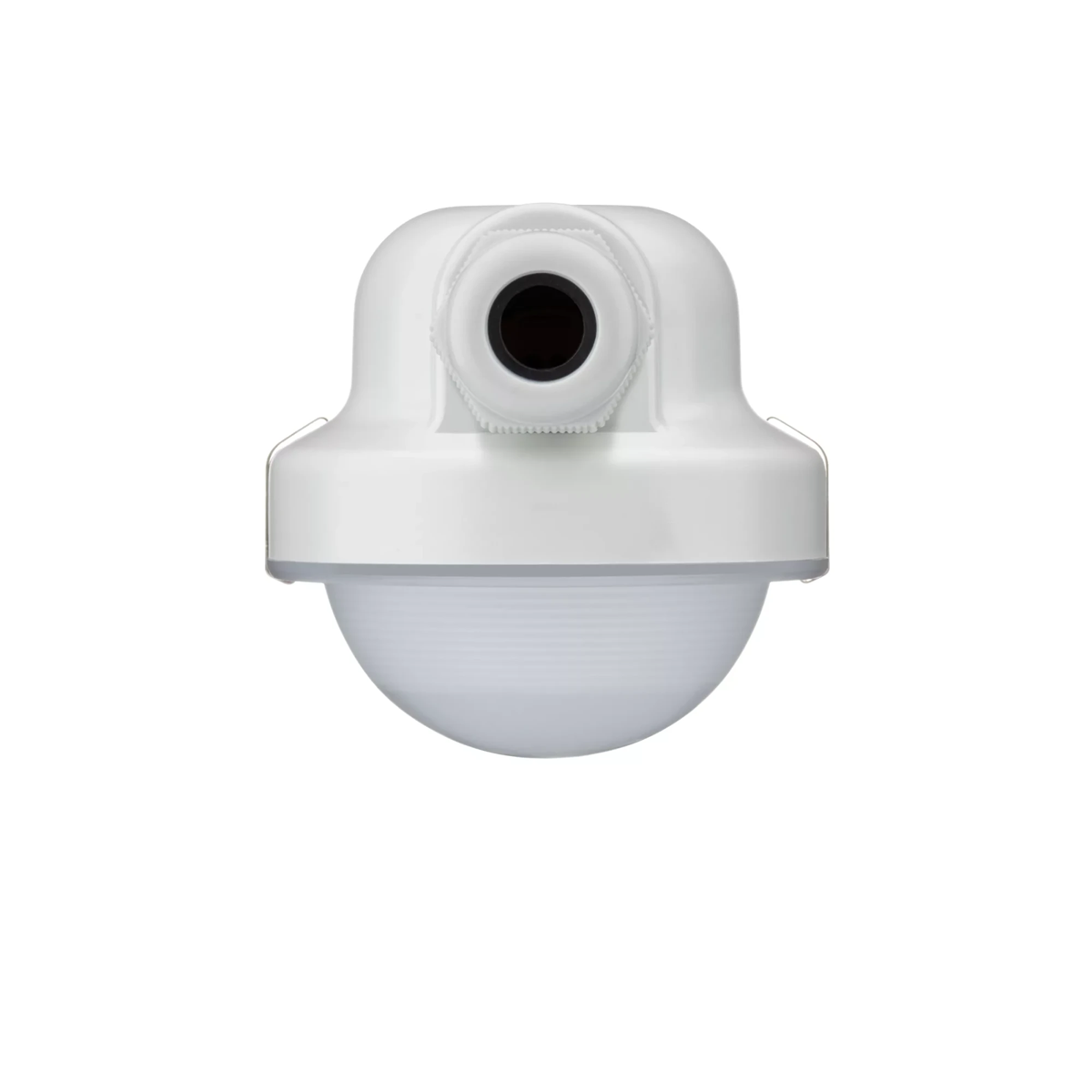

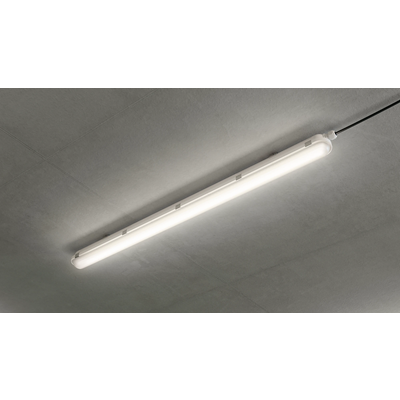

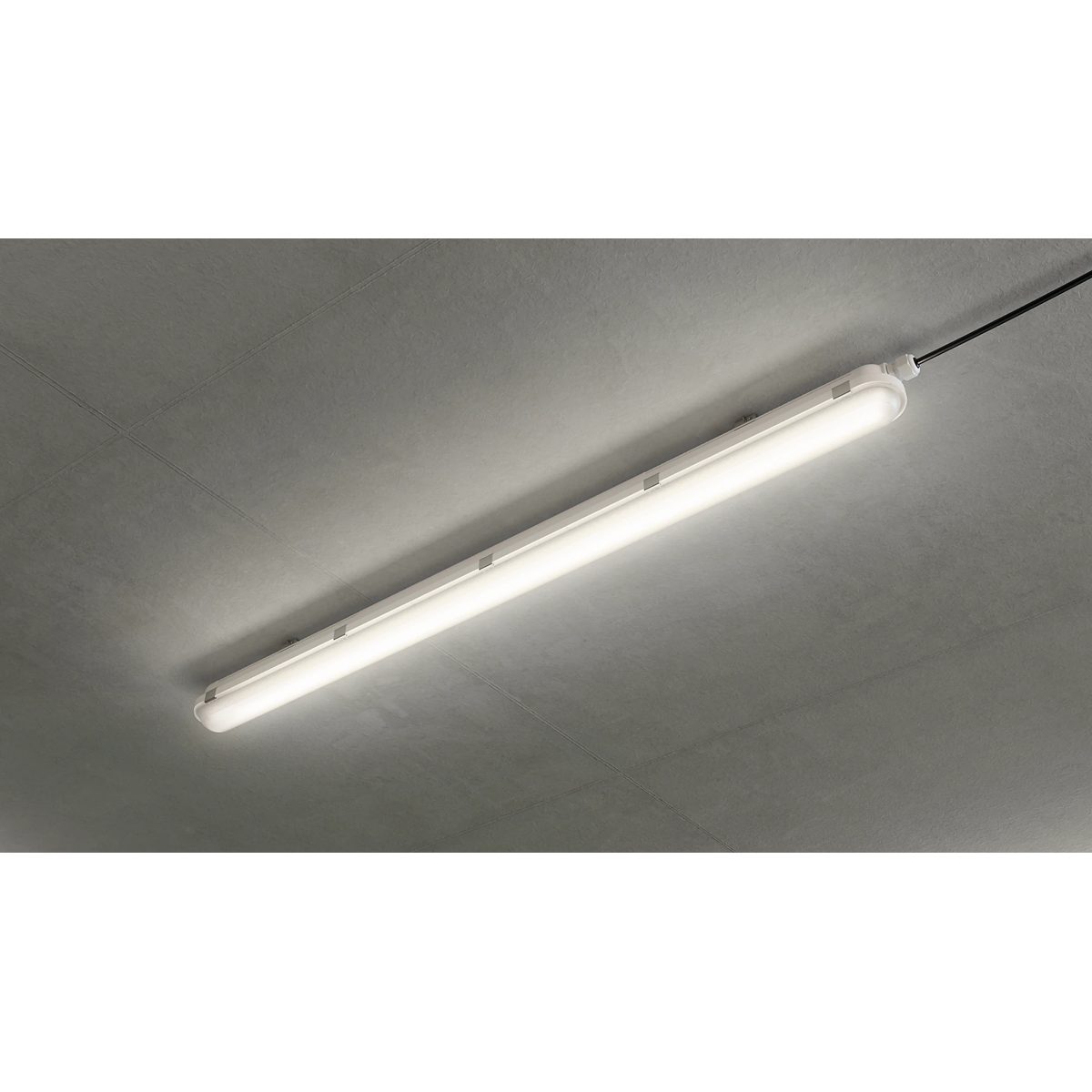

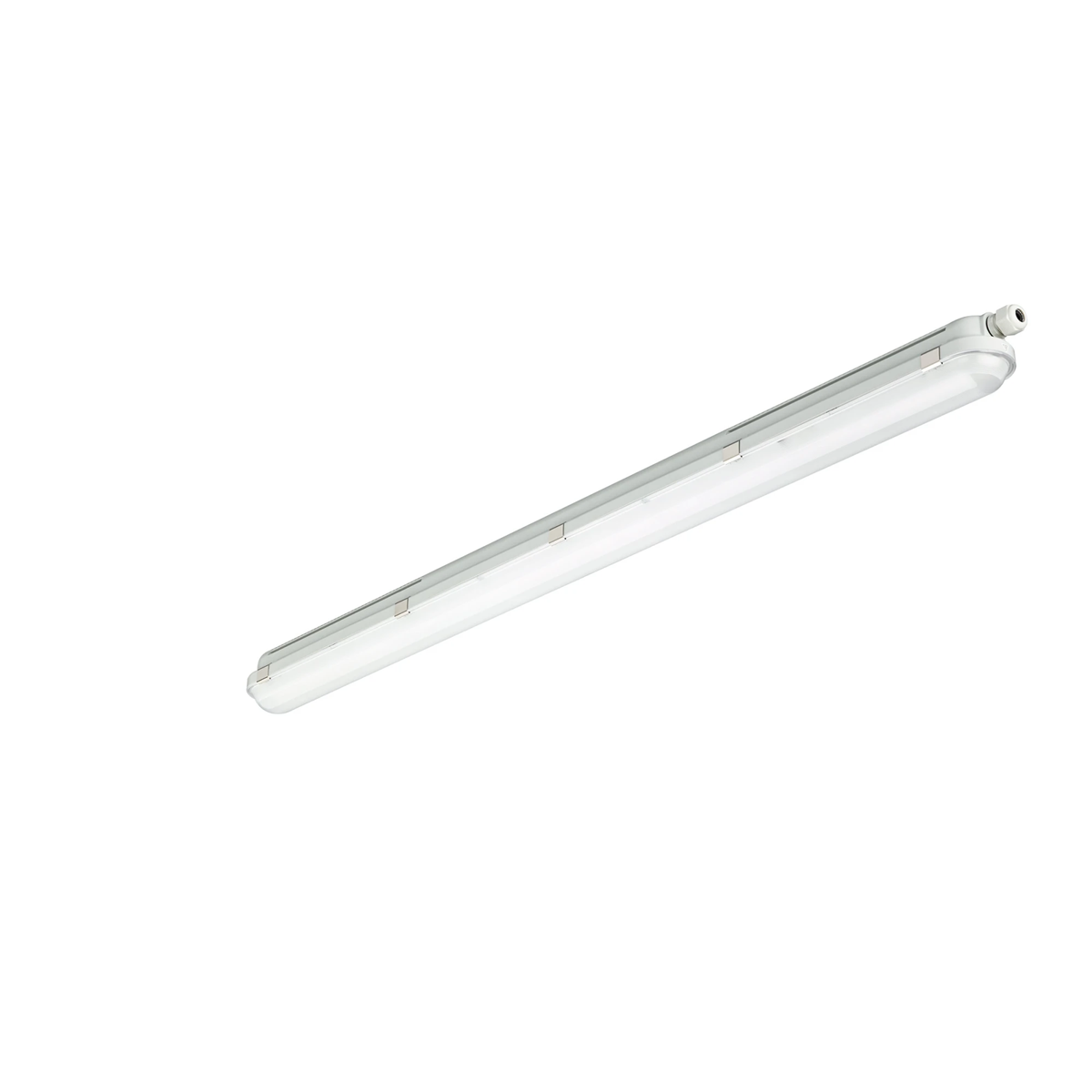

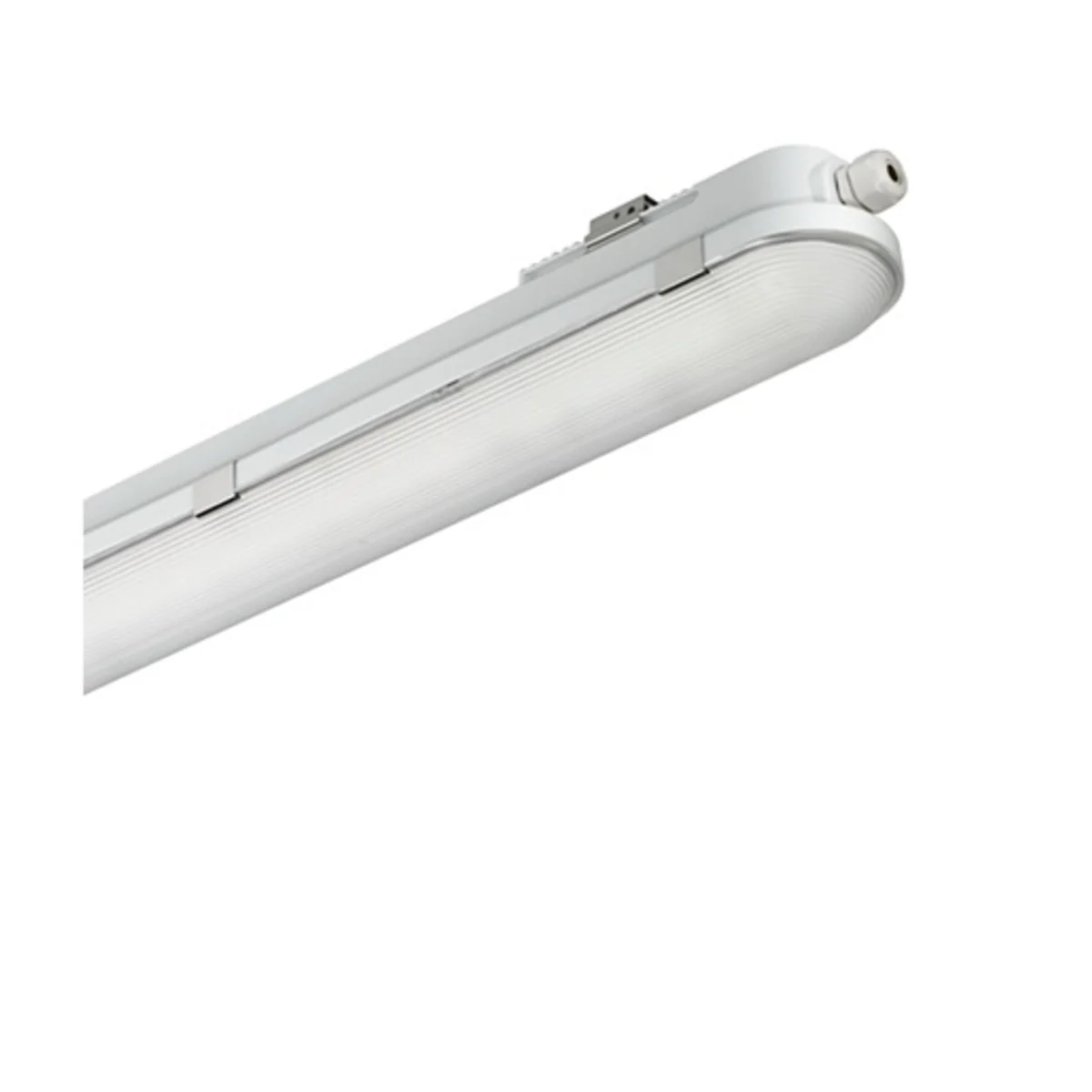

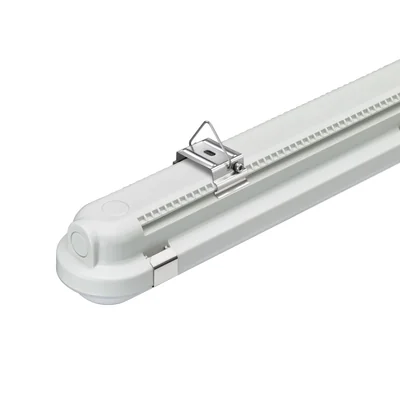

Indoor luminaire with quick assembly line WT120C LED40S/840 PSU L1200 911401823780
local index:
OWE014FARE
Catalog No:
911401823780
EAN code:
8718291840480
Price:
68,90 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description
Technical data:
- product family code: WT120C
- number of light sources: 1
- light source family code: LED40S (LED module, system luminous flux 4000 lm)
- lamp color code: 840 (cool white)
- supply voltage: 220-240V
- line frequency: 50-60 Hz
- initial chip power: 41 W
- initial luminous flux: 4000 lm
- initial lm/W of LED luminaires: 98 Lm/W
- initial color temperature: 4000K
- initial Ra value: >80
- initial chromaticity: (0.38, 0.38) SDCM <3.5
- light source replaceable: none
- transformer / power supply: PSU (power supply unit)
- power adapter included: yes
- shade: PC (polycarbonate)
- dimmable: none

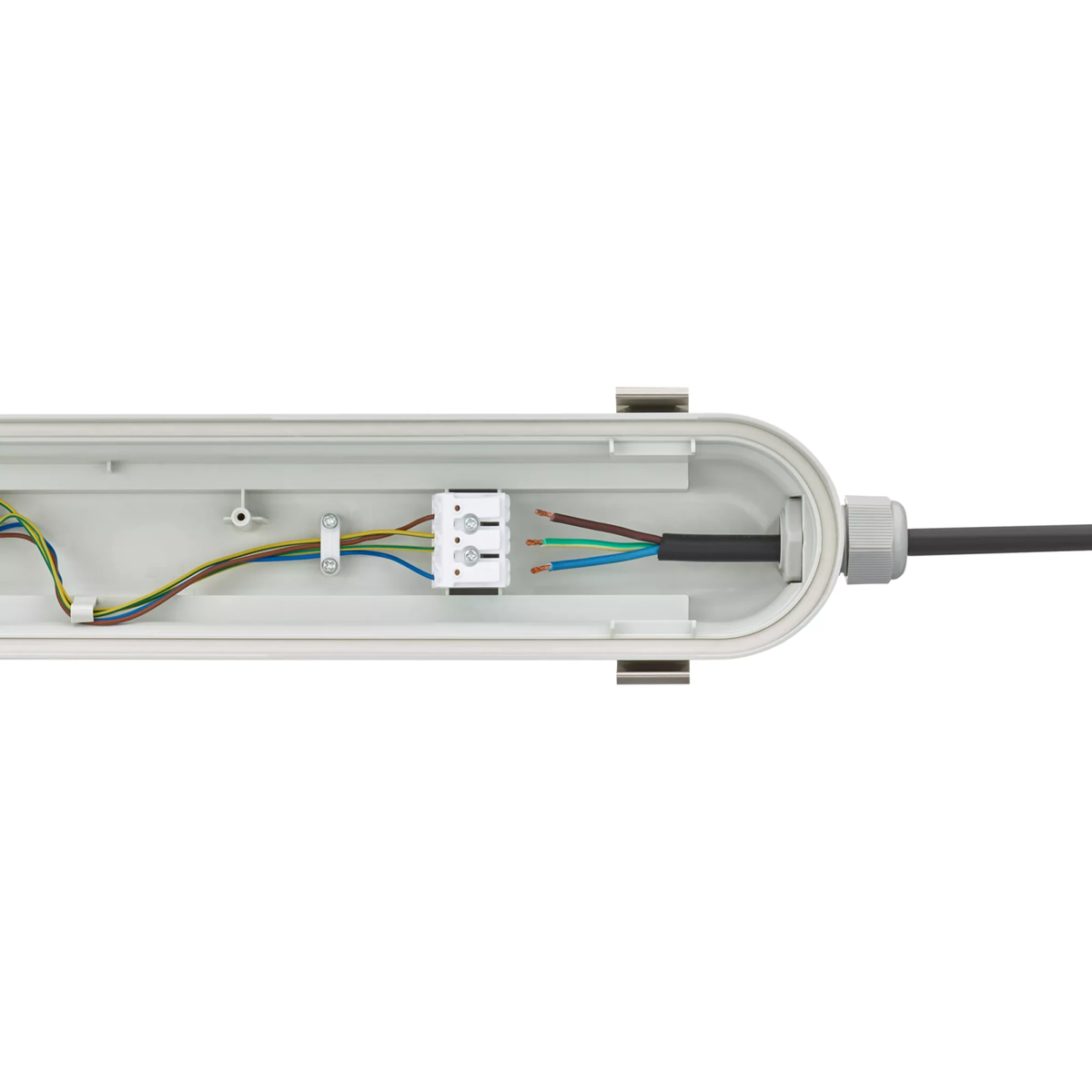

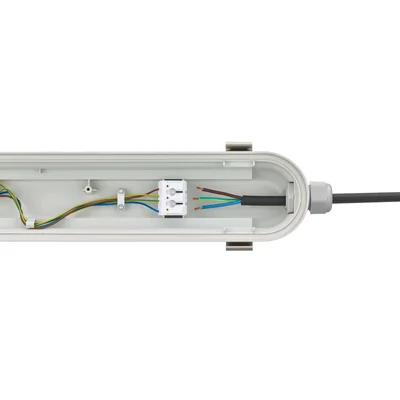

- connection: PIP (push-in and push-in release)
- body material: PC (polycarbonate)
- optics material: PC (polycarbonate)
- shade material: PC (polycarbonate)

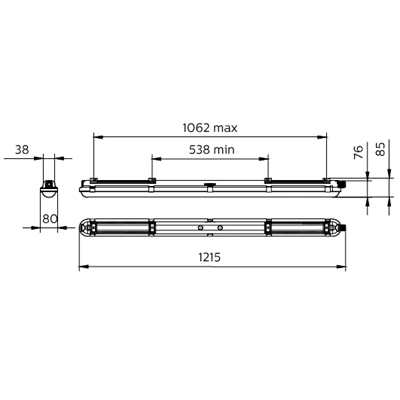

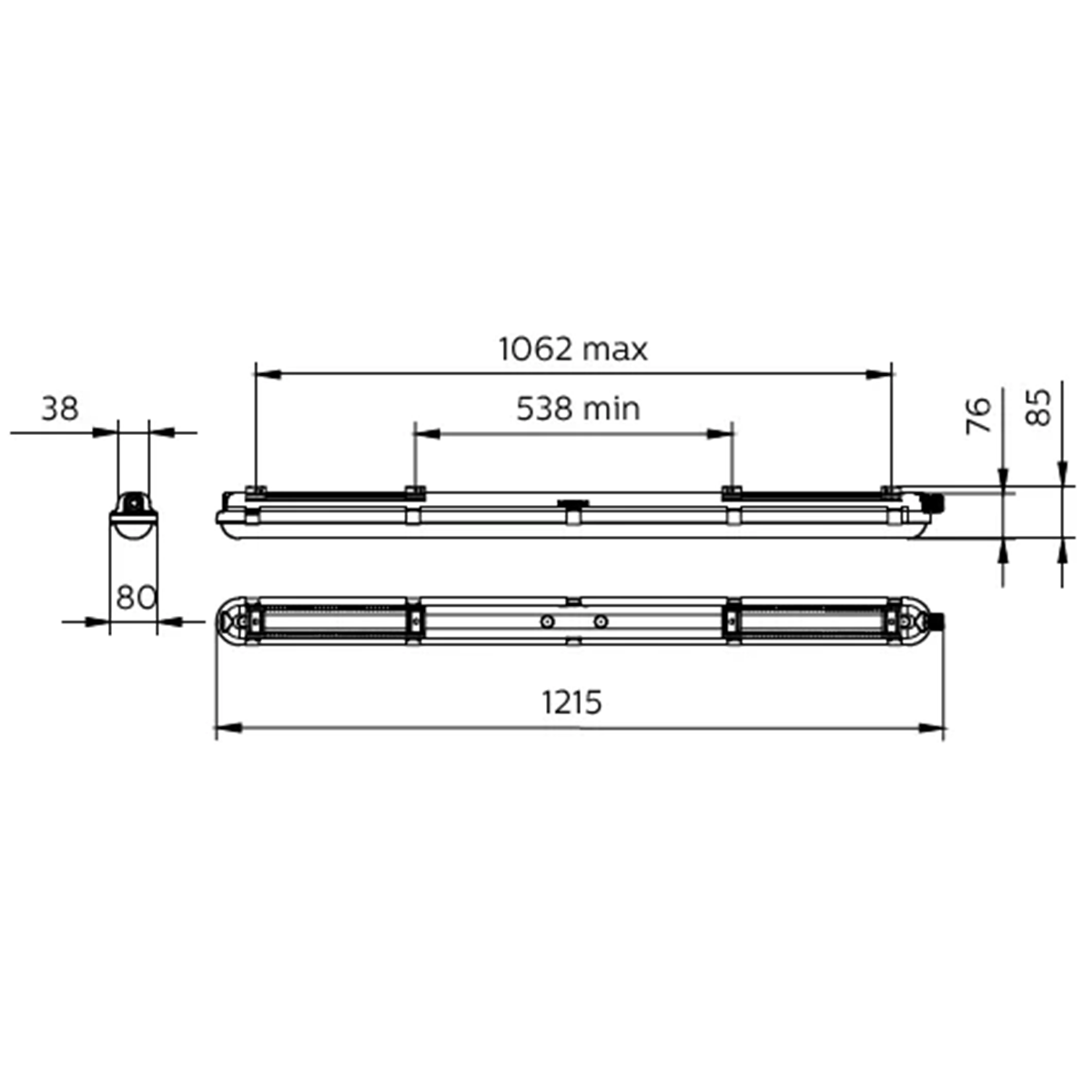

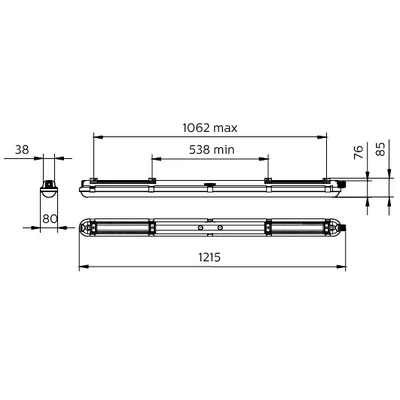

- length: L1200 (1200 mm)
- color: GR (gray)
- protection class: CLI [protection class I]
- IP protection rating: 65 (dustproof, watertight)
- ingress protection IK: 08 (5 J vandal-proof)
- glow-wire test: 850/30 (temperature 850°C, time 30 s)
- flammability rating: F (for mounting on normally flammable surfaces)
- average ambient temperature: T25 (+25°C)
- ambient temperature range: -20 to +35°C
- frequent joins allowed: yes (refers to presence/motion and daylight sensors)
Technical data
-
Number of light sources1
-
Power [W]41
-
Level of securityIP65
-
Color Temperature [K]4000
-
MaterialPC
-
Rated voltage [V]230
-
luminous flux [lm]4000
Manufacturer details
-
ManufacturerSignify I.B.R.S. / C.C.R.I.
-
Address5600 VB Eindhoven Noméro 10461 Holandia
Bulk packaging
| A kind of package | Paczka | Karton | Paleta |
| Quantity | 1 pcs. | 9 pcs. | 108 pcs. |
| Weight (kg) | 1,540 | 13,860 | - |
| Width (m) | - | 0,280 | - |
| Length (m) | - | 1,260 | - |
| Depth (m) | - | 0,270 | - |
