Highbay Philips Coreline BY121P G5 126W 20000lm 4000K LED200S/840 PSU WB 5 years warranty 911401629508

Místní index:
OWF012FARE
Katalogové číslo.:
911401629508
EAN kód:
8719514955691
Cena:
975,39 zł
gross / kusů.
(včetně DPH 23%)
2 týdnů
Na zakázku
Množství kusů.
(vícenásobné:
1
)
Přidat do žádosti o cenovou nabídku
Přidat do schránky
Vytisknout

Technické údaje

Další technické údaje

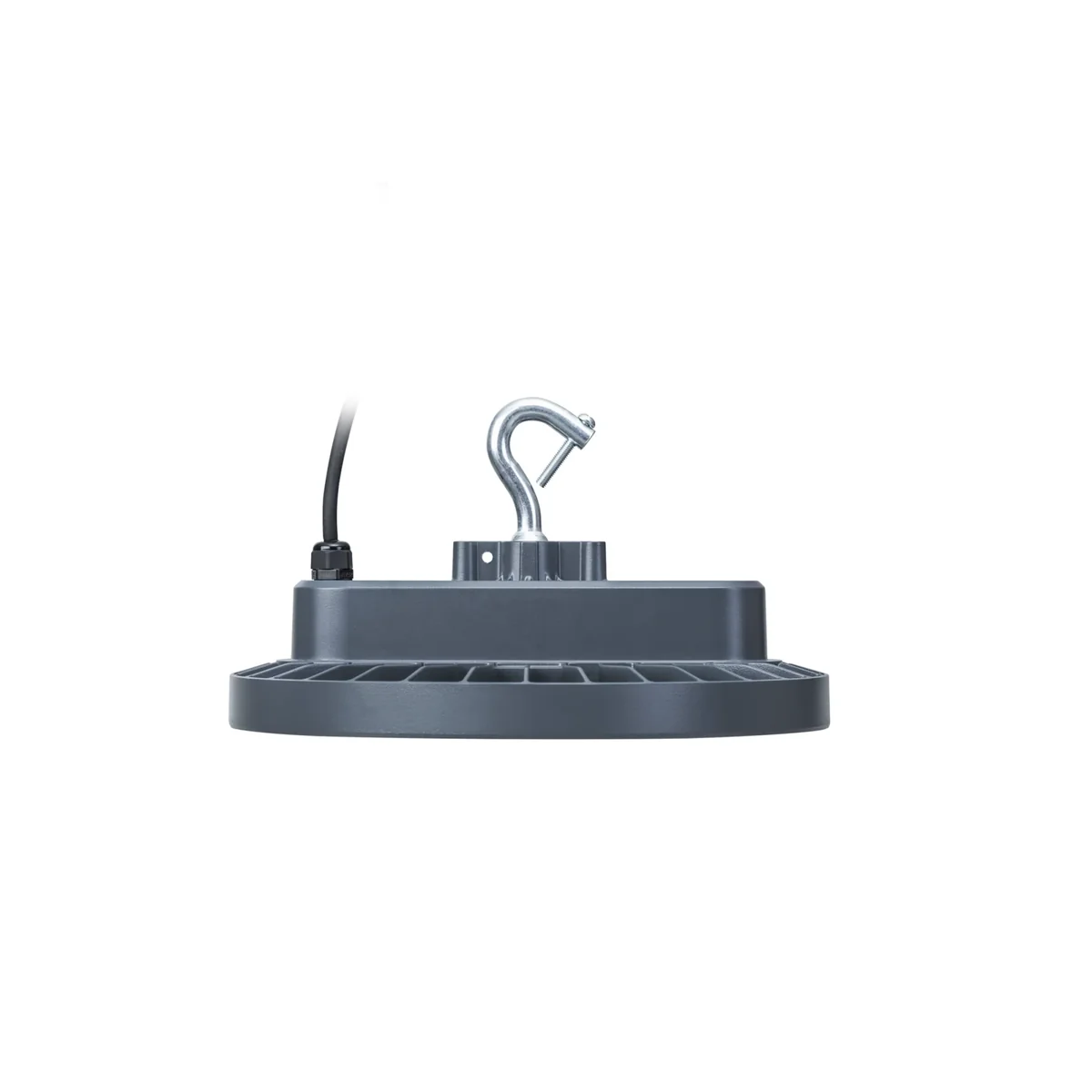

  • Mounting method
    Pendant
  • With light source
    No
  • Suitable for auxiliary lamp
    No
  • Housing material
    Aluminium
  • Voltage type
    AC
  • Nominal current
    540 ... 660 mA
  • Exchangeable control gear
    Yes
  • Dimming 0-10 V
    No
  • Dimming DALI
    No
  • Dimming DSI
    No
  • Dimming phase cut-on
    No
  • Dimming LineSwitch
    No
  • Dimming mains voltage modulation
    No
  • Dimming RF
    No
  • Dimming Touch and Dim
    No
  • Dimming with push-button
    No
  • Light distributor
    Focal lens
  • Reflector
    None
  • Material reflector
    Other
  • Beam angle
    Extreme wide beam >80°
  • Rated life time L70/B50 at 25 °C
    75000 h
  • Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq)
    75 %
  • Failure rate at median useful life of 100,000 h at 25 °C ambient (tq)
    10 %
  • Impact strength
    IK08
  • Protection class
    I
  • Rated ambient temperature according to IEC 62722-2-1
    35 ... 35 °C
  • Suitable for emergency lighting
    No
  • Suitable for lamp power
    102 ... 126 W
  • Rated luminous flux according to IEC 62722-2-1
    20500 lm
  • Colour of light
    White
  • Colour rendering index CRI
    80-89
  • Photobiological safety according to EN 62471
    RG0
  • Constant light output (CLO)
    No
  • Beam angle adjustable
    No
  • Height/depth
    99 mm
  • Outer diameter
    330 mm
  • Number of poles
    3

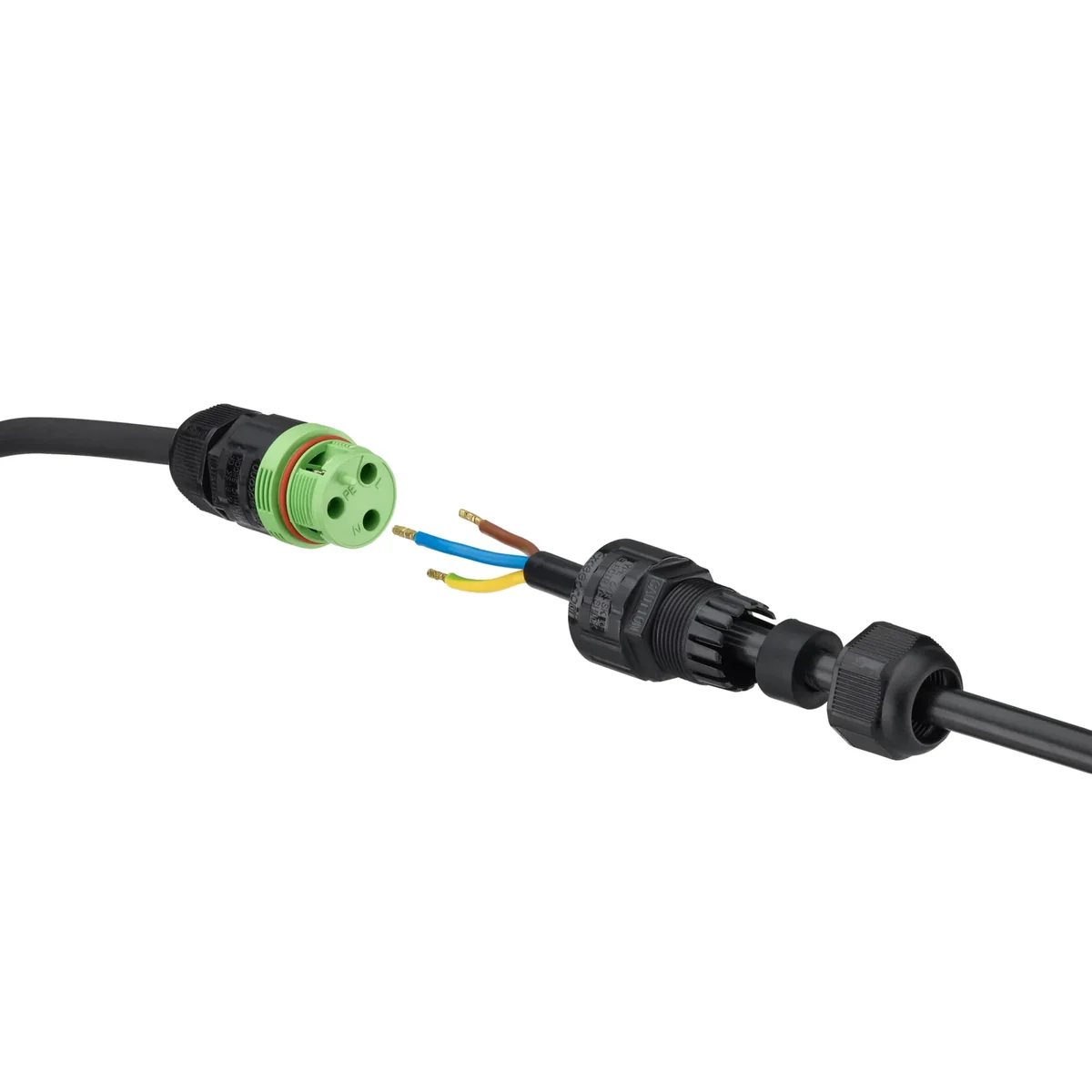

  • Connection type
    Other
  • Max. number of luminaires per miniature circuit breaker B16 (MCB)
    6
  • Max. number of luminaires per miniature circuit breaker C16 (MCB)
    8
  • Lamp type
    LED not exchangeable
  • Suitable for number of light sources
    1
  • Lamp holder
    Other
  • Housing colour
    Grey
  • Nominal voltage
    220 ... 240 V
  • Type of control gear
    LED operating device current-controlled
  • With control gear
    Yes
  • Dimming 1-10 V
    No
  • Dimming DMX
    No
  • Dimming phase cut-off
    No
  • Dimming potentiometer (integrated)
    No
  • Dimming manufacturer's proprietary system
    No
  • Dimming programmable
    No
  • Dimming Sine Wave Reduction
    No
  • Dimming Zigbee
    No
  • No dim function
    Yes
  • Light sharing
    Symmetric
  • Reflector colour
    Other
  • Energy efficiency class of the light source according to EU regulation 2019/2015
    C
  • Colour consistency (McAdam ellipse)
    SDCM5
  • Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)
    85 %
  • Failure rate at median useful life of 50,000 h at 25 °C ambient (tq)
    5 %
  • Degree of protection (IP)
    IP65
  • Ball-proof
    No
  • Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
    No
  • Emergency power supply integrated
    No
  • Filament test according to IEC 60695-2-11
    650 °C - 30 s
  • Max. system power
    121 W
  • Luminaire efficacy
    169 lm/W
  • Colour temperature
    4000 ... 4000 K
  • Total harmonic distortion
    0.15
  • Power factor
    0.95
  • Colour of light adjustable
    No
  • Luminous flux adjustable
    No
  • Length
    330 mm
  • Type of wiring
    Ending
  • Conductor cross section
    1 mm²
  • With protective cover
    Yes
  • Operation by Bluetooth
    No
  • Meets min. EIA service life criterion L90 (at 50,000 hours at tq = 25°C)
    No

Podrobnosti o výrobci

Velkoobjemová balení

Typ obalu Paczka Karton Paleta
Množství 1 kusů. 1 kusů. 48 kusů.
Hmotnost (kg) 3,200 3,200 154,940
Šířka (m) - 0,356 0,800
Délka (m) - 0,368 1,200
Hloubka (m) - 0,140 1,120
