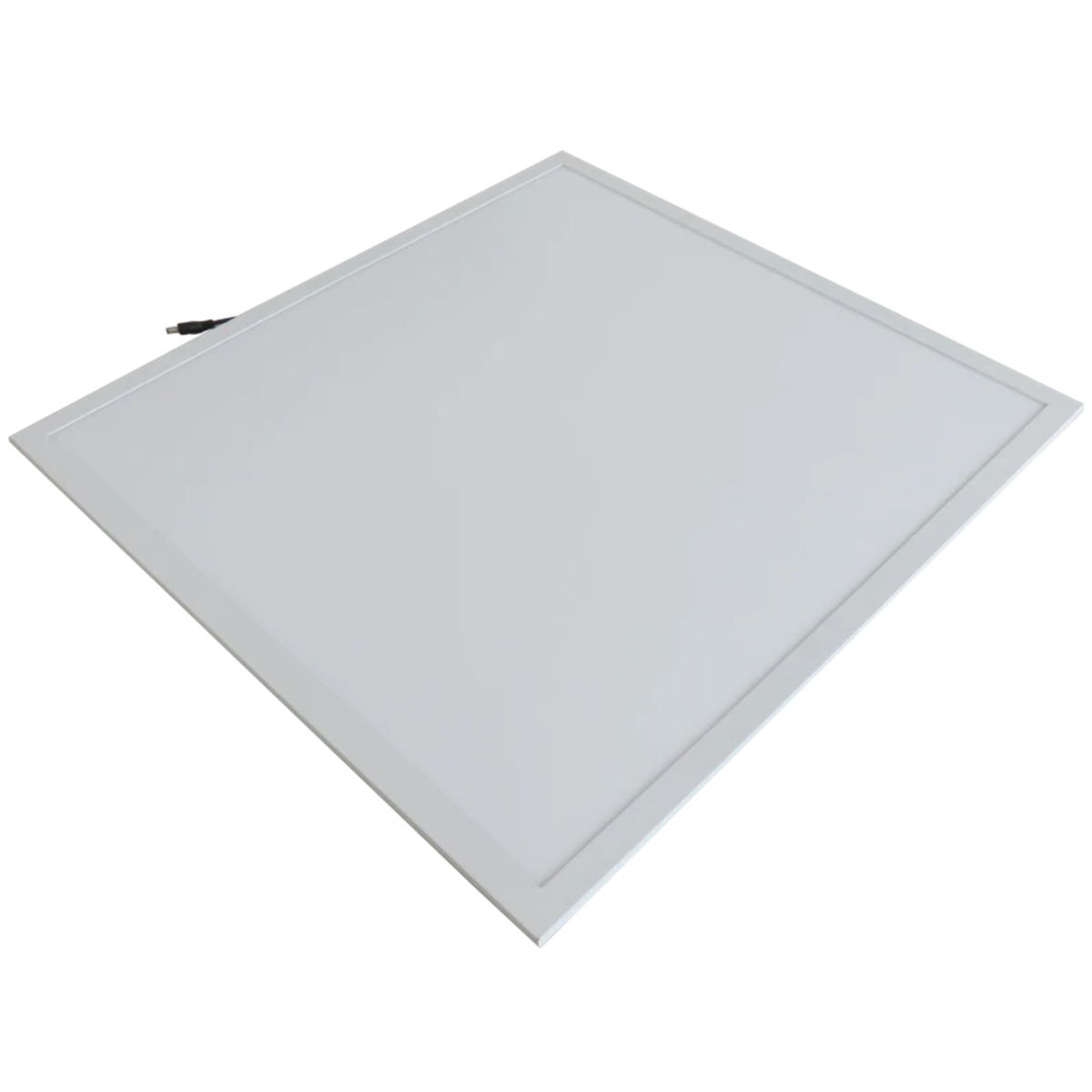

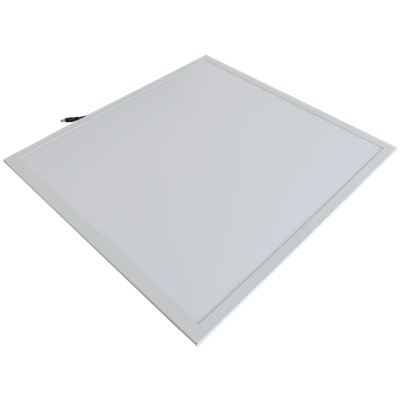

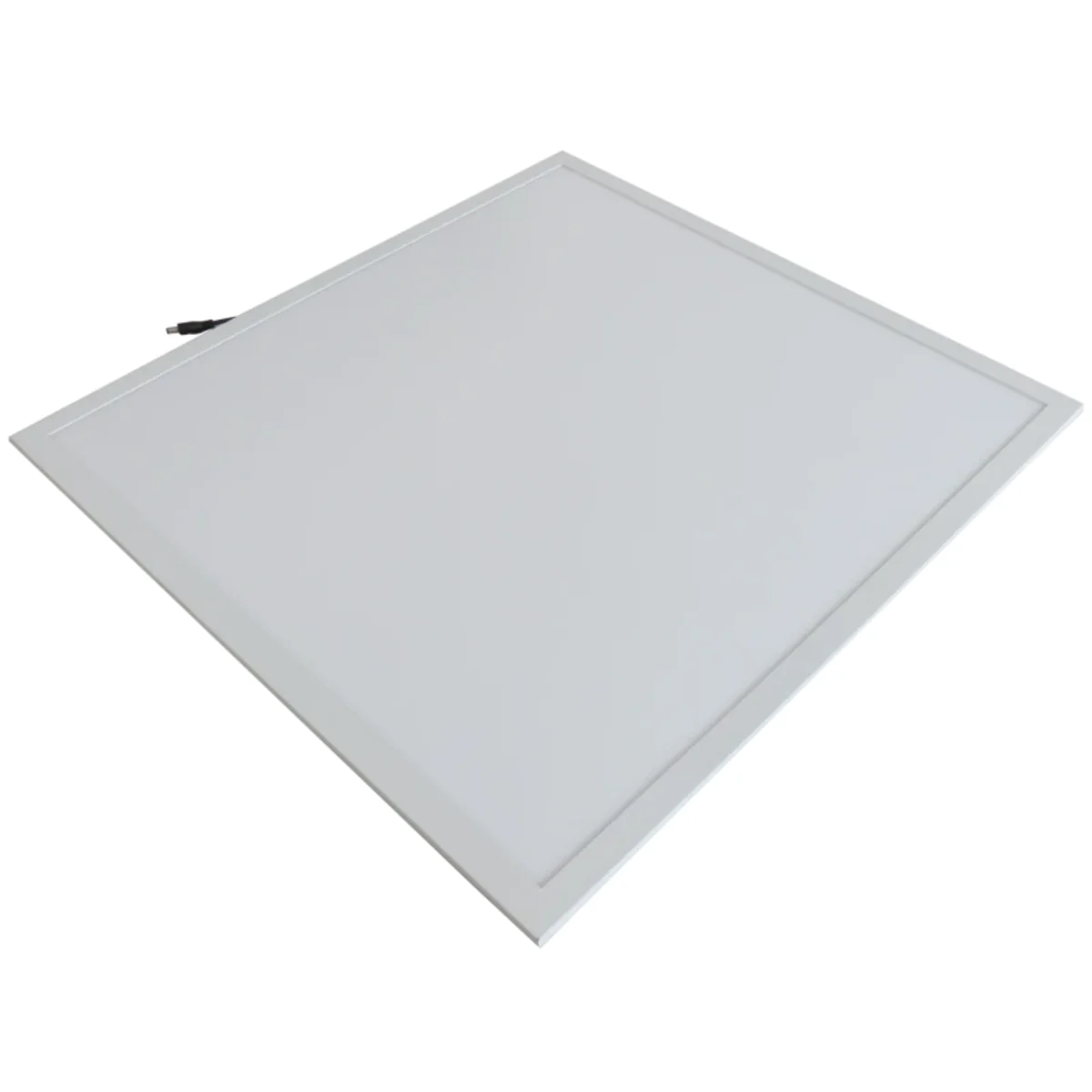

HIGH EFFICIENCY LED panel 60x60 230V 30W 5200lm IP30 NW white LOR4060HE

local index:
OWE016LUMA
Catalog No:
LOR4060HE
EAN code:
5907377259169
Manufacturer: LUMAX
Light color [K]: 3500-4800 (natural)
EEI - energy class of the bulb: A+
beam angle [°]: 120
Price:
58,76 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 30 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

The series of HE panels is distinguished by a very high luminous efficiency of 130lm/W, which at 40W gives a luminous flux of up to 5200lm. They are especially recommended in projects for which energy saving and a large amount of light are the most important. The three luminaires in the series differ in their control options. The LOR4060HE1 panel works with 1-10V dimmers, LOR4060HE2 with the DALI digital control protocol. They are equipped with an A-type profile and a power supply with the technology of complete elimination of light ripple.

Advantages:

  • High luminous efficiency – up to 50% energy savings.
  • Classic, proven design.
  • High luminous flux.
  • Enables easy modernization of conventional lighting.

Features:

  • Light with a natural color and high color rendering index.
  • Four mounting options thanks to optional accessories.

Applications: Offices, hospitals, laboratories, corridors, sales points, schools, public utility facilities.

Technical data

  • Light color [K]
    3500-4800 (natural)
  • beam angle [°]
    120
  • Power [W]
    40
  • Family
    HIGH EFFICIENCY
  • Level of security
    IP30
  • Working temperature [°C]
    from -10 to 40
  • Dimensions [mm]
    595x595x10
  • lifetime [h]
    25000
  • cri (ra)
    >80
  • EEI - energy class of the bulb
    A+
  • Color
    White
  • Voltage [V]
    230
  • Luminous efficiency [lm/W]
    130
  • luminous flux [lm]
    5200
  • Durability [h]
    25000
  • Source of light
    LED
  • Color Temperature [K]
    4000
