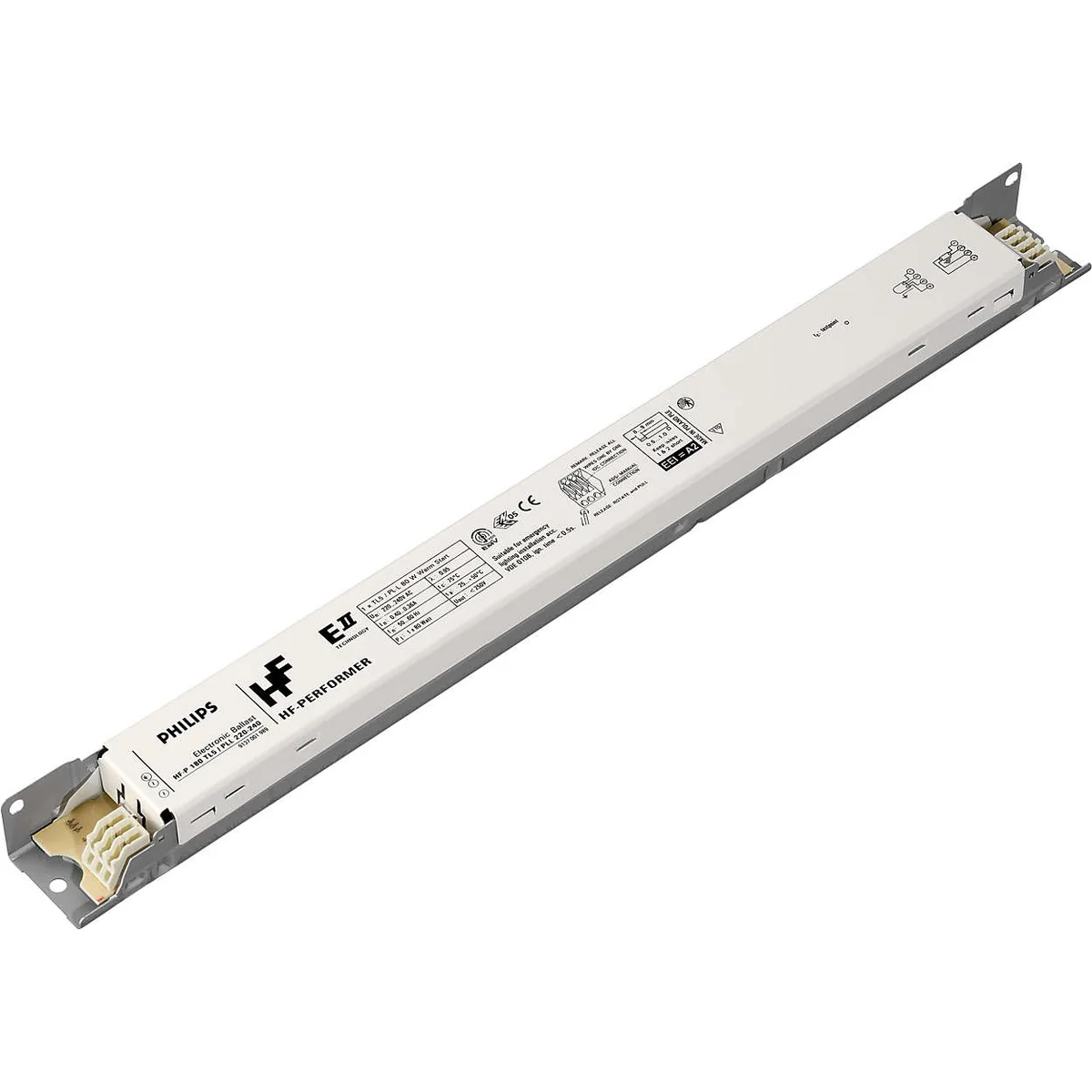

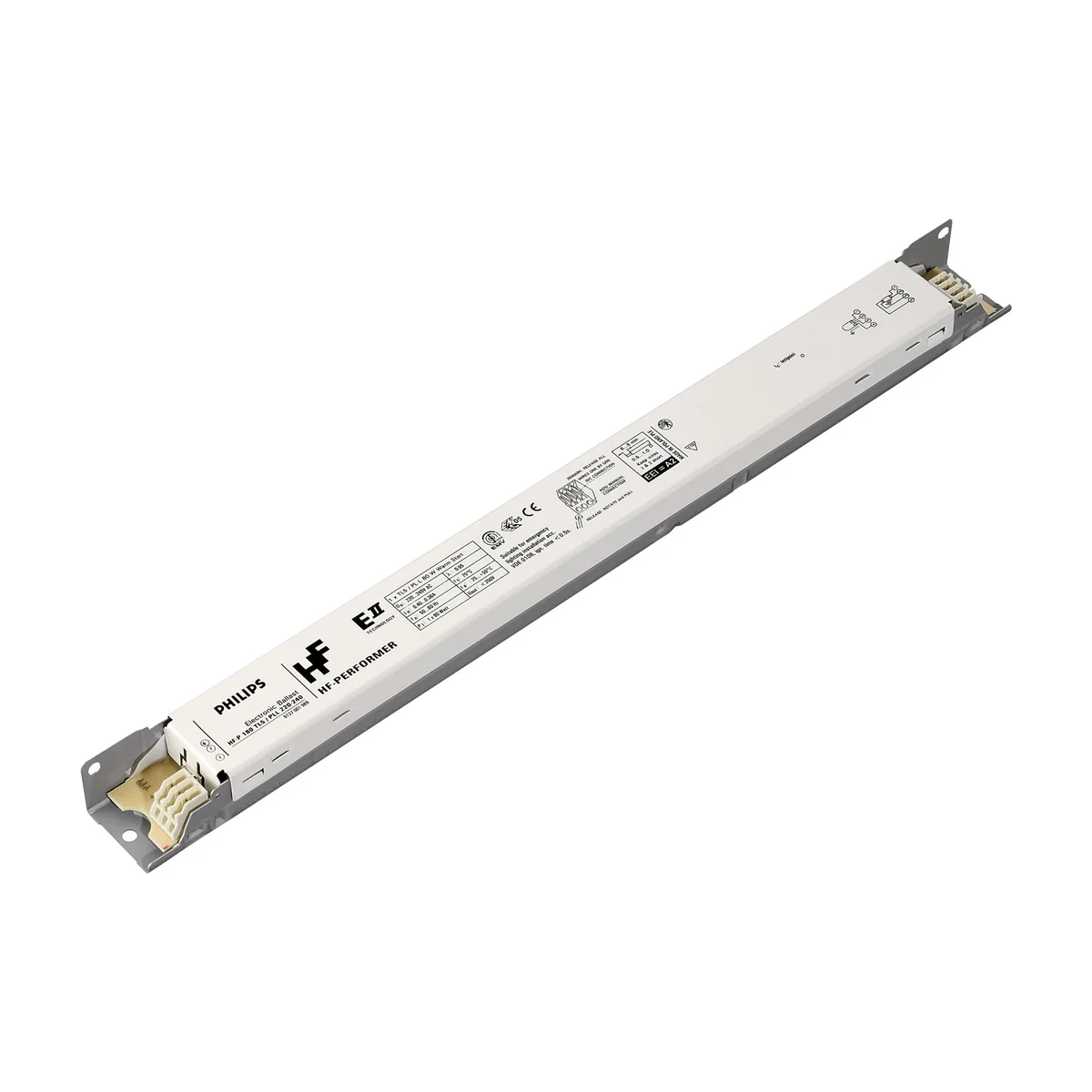

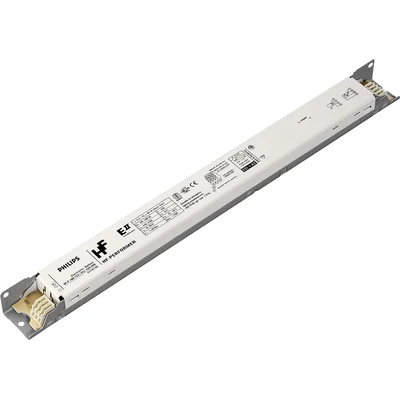

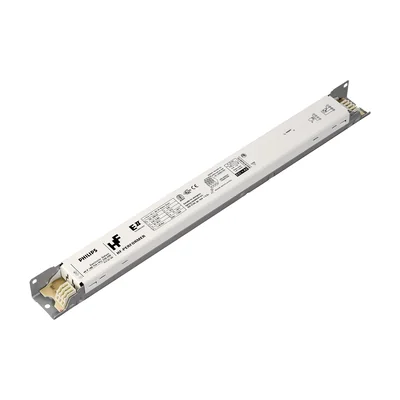

HF-Performer electronic ballast 913700624366
local index:
OCS038PHIL
Catalog No:
913700624366
EAN code:
8711500915023
Price:
32,51 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
The HF-Performer Intelligent ballast is a slim, lightweight HF electronic ballast that allows the replacement of TL5 HE and HO lamps of the same length. This technology maximizes the logistical flexibility of luminaire design and operation. Thanks to its intelligent power functionality, which is based on Philips EII technology, the HF-Performer Intelligent ballasts are the optimal solution for high efficiency systems (CELMA EEI A2 BAT) in combination with TL5 and TL5 Eco lamps.

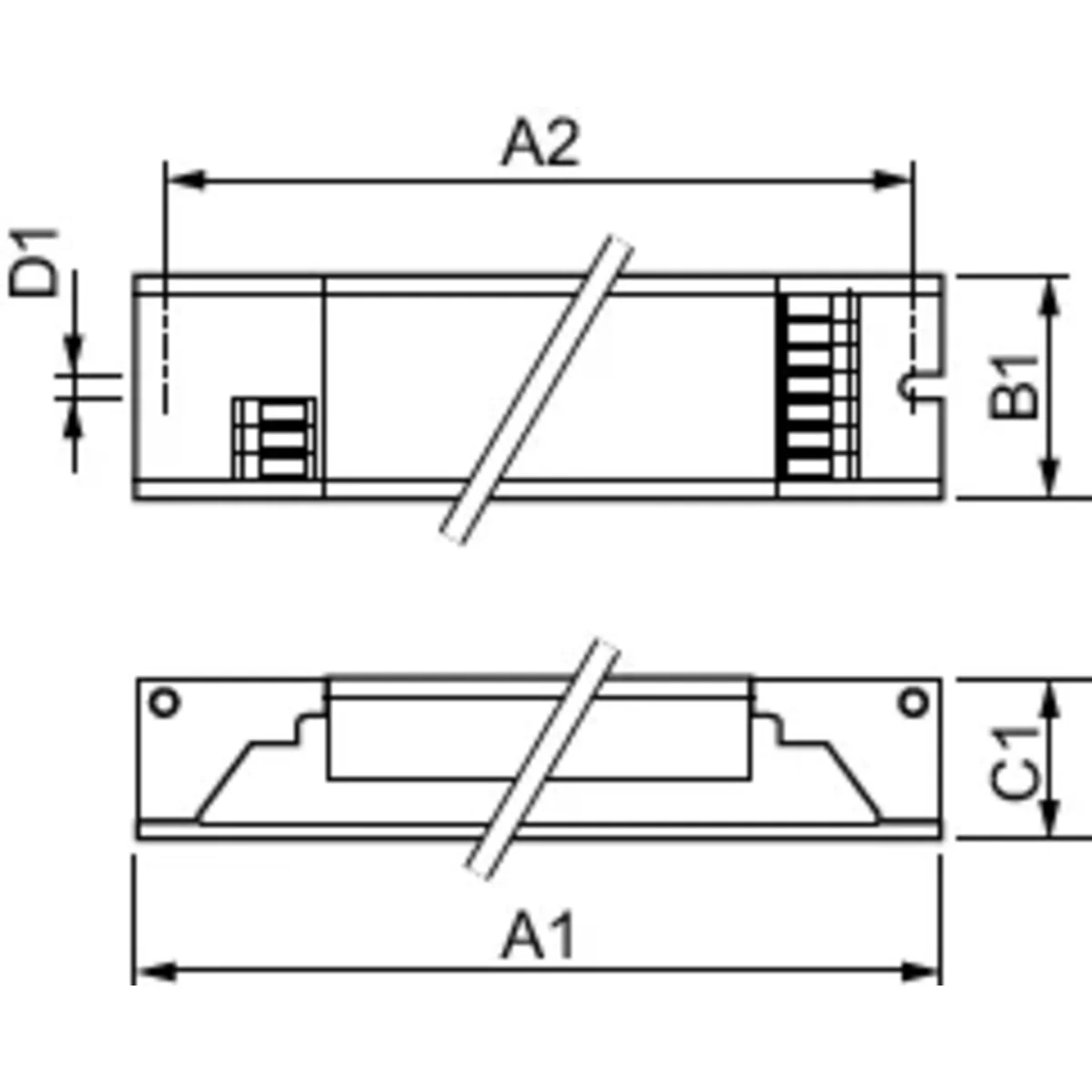

Technical data
-
Length [mm]360
-
Height [mm]22
-
Width [mm]thirty
Other technical data
-
ModelElectronic
-
Dimming 0-10 VNo
-
Dimming DALINo
-
Dimming DMXNo
-
Ściemniacz GPRSNo
-
Dimming manufacturer's proprietary systemNo
-
Dimming phase cut-offNo
-
Dimming programmableNo
-
Dimming Sine Wave ReductionNo
-
Dimming ZigbeeNo
-
No dim functionYes
-
For lamp type HMNo
-
For lamp type LSNo
-
For lamp type T16Yes
-
For lamp type T26No
-
For lamp type T-RNo
-
For lamp type TC-DNo
-
For lamp type TC-DELNo
-
For lamp type TC-LNo
-
For lamp type TC-SNo
-
For lamp type TC-TNo
-
Suitable for lamp power (2 lamps)28 ... 54 W
-
Suitable for lamp power28 ... 54 W
-
HousingMetal housing
-
Degree of protection (IP)IP20
-
Length360 mm
-
Height22 mm
-
Multiwatt modelYes
-
Dimming 1-10 VNo
-
Dimming DSINo
-
Dimming potentiometer (integrated)No
-
Dimming LineSwitchNo
-
Dimming mains voltage modulationNo
-
Dimming phase cut-onNo
-
Dimming RFNo
-
Dimming Touch and DimNo
-
Dimming with push-buttonNo
-
For lamp type HINo
-
For lamp type HSNo
-
For lamp type T7No
-
For lamp type T16-RNo
-
For lamp type T38No
-
For lamp type T-UNo
-
For lamp type TC-DDNo
-
For lamp type TC-FNo
-
For lamp type TC-QELNo
-
For lamp type TC-SELNo
-
For lamp type TC-TELNo
-
Suitable for number of lamps2 ... 2
-
Nominal voltage220 ... 240 V
-
With strain reliefNo
-
Protection classNone
-
Width30 mm
Bulk packaging
| A kind of package | Paczka | Karton | Paleta |
| Quantity | 1 pcs. | 12 pcs. | 1008 pcs. |
| Weight (kg) | 0,317 | 3,801 | - |
| Width (m) | - | 0,193 | - |
| Length (m) | - | 0,371 | - |
| Depth (m) | - | 0,067 | - |
