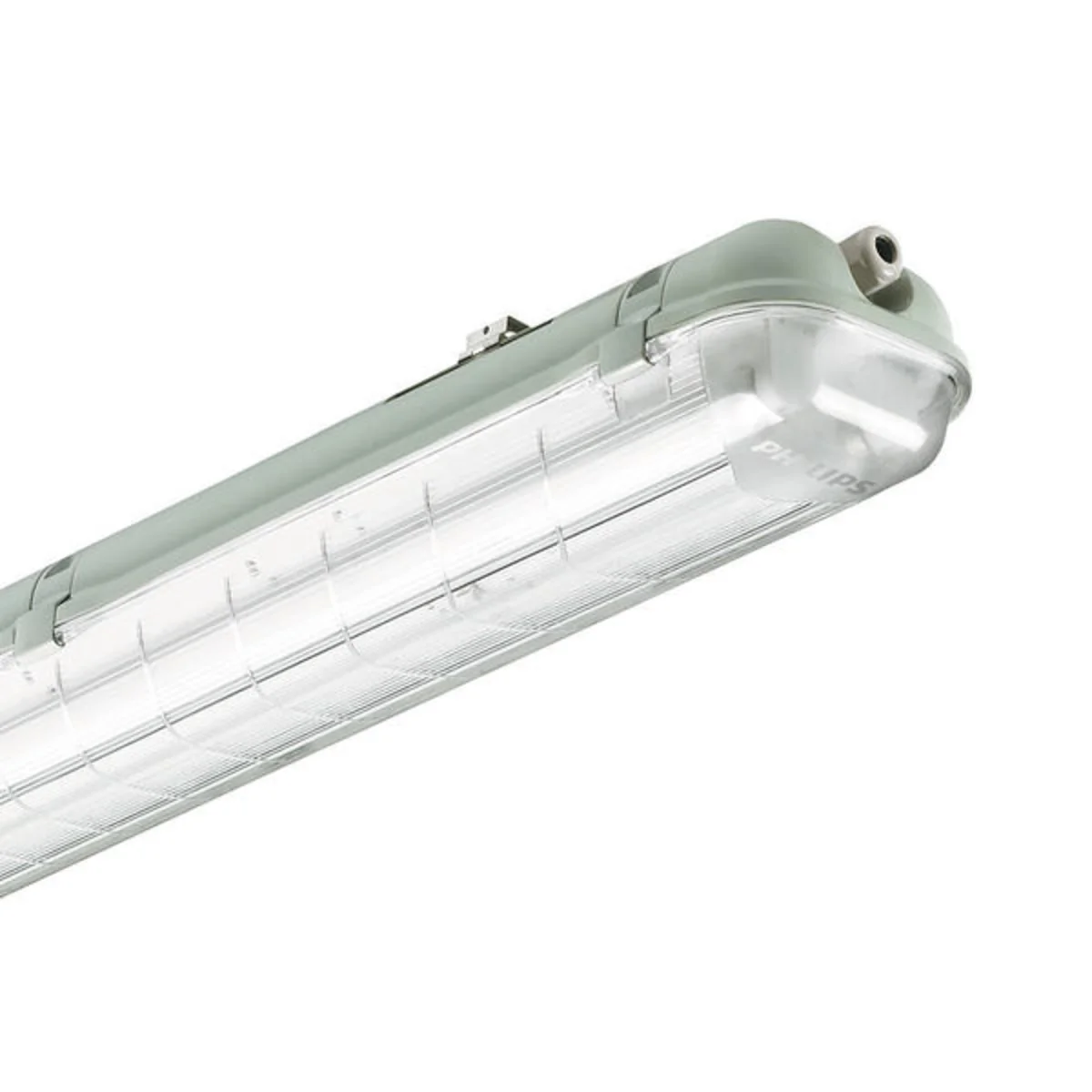

Hermetic luminaire, TCW060 2xTL-D36W EB 89776699

local index:
OWF009FARE
Catalog number:
89776699
EAN code:
8717943897766
Manufacturer: PHILIPS - FAREL
Length [mm]: 1270
Number of light sources: 2
Color: Gray
Large-size product
Price:
157,44 zł
gross / pcs.
(including VAT 23%)
Out of stock
Add to inquiry
Print

Product description


The hermetic luminaire TCW060 2xTL-D36W HF is the highest quality luminaire designed and intended especially for demanding environments. Made of high-quality plastics, it guarantees very high resistance to external factors, thanks to which the luminaire is ideal for use in conditions characterized by high humidity. The TCW060 2xTL-D36W HF luminaire uses up to two T8 fluorescent lamps with a diameter of 26 mm and a maximum power of 36W. Wide-beam distribution and direct light emission ensure a high standard of lighting. The EVG electronic ballast used in the luminaire effectively controls the ignition and lighting maintenance, which positively affects its quality and lifetime. The rated voltage is 230V. The housing of the luminaire is made of high-quality polycarbonate. It is characterized by the IP65 tightness class, which means complete protection against dust and direct water jets. In turn, the mechanical strength of the housing is in the very high class IK08. In addition, I class of protection against electric shock provides protection against indirect contact. The diffuser itself is made of prismatic polycarbonate, characterized by high resistance to UV radiation

Technical data

  • Length [mm]
    1270
  • Color
    Gray
  • Power [W]
    36
  • reflector
    White
  • Level of security
    IP65
  • Handle
    G13
  • Accurate color
    Gray
  • Number of light sources
    2
  • Binding material and color
    Transparent plastic
  • Rated voltage [V]
    230
  • Binding
    Transparent plastic
  • Width [mm]
    136
  • Height [mm]
    90

Other technical data

  • Suitable for suspended mounting
    Yes
  • Protection class
    I
  • Klasa przeciwpożarowa „FF”
    No
  • Lamp holder
    G13
  • Colour cover
    None
  • Ograniczenie olśnienia UGR wzdłużne
    25
  • Housing material
    Plastic
  • Klasa przeciwpożarowa „F”
    Yes
  • Circuit
    Other
  • Ograniczenie olśnienia UGR poprzeczne
    25
  • Test palności zgodny z IEC 695-2-1
    650 °C - 5 s
  • Type of control gear
    Electronic ballast standard
  • Lamp type
    Fluorescent lamp D=26 mm
  • Suitable for number of light sources
    2
  • Length
    1270 mm
  • With light source
    No
  • Odbłyśnik obracany
    No
  • Suitable for built-in mounting
    Yes
  • Moc lampy dla wersji wielowatowej
    Nie dotyczy
  • Suitable for emergency lighting
    Yes
  • Colour temperature
    2700 ... 6500 K
  • Suitable for workplace according to EN 12464-1
    Yes
  • Light sharing
    Symmetric
  • With movement sensor
    Yes
  • Covering of the luminaire with thermally insulating material possible
    Yes
  • Light outlet
    Direct/indirect
  • Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
    No
  • Nominal voltage
    220 ... 240 V
  • Dimmable
    No
  • Suitable for wall mounting
    Yes
  • Height/depth
    90 mm
  • Reflector
    White
  • Housing colour
    Grey
  • Suitable for through-wiring
    Yes
  • Width
    136 mm
  • Material cover
    Tworzywo sztuczne strukturalne/pryzmatyczne
  • Lamp power
    36 W
  • With control gear
    Yes
  • Układ oświetlenia awaryjnego
    Not suitable
  • Impact strength
    IK08
  • Degree of protection (IP)
    IP65
  • Suitable for ceiling mounting
    Yes
  • Suitable for surface mounting
    Yes
  • Rodzaj sterowania ściemnianiem
    Not dimmable
  • Z modułem oświetlenia awaryjnego
    Yes
  • Surface finishing
    Matt
  • Type of grid
    None
  • Beam angle
    Open beam/diffuse
  • With light sensor
    Yes
  • Voltage type
    AC
