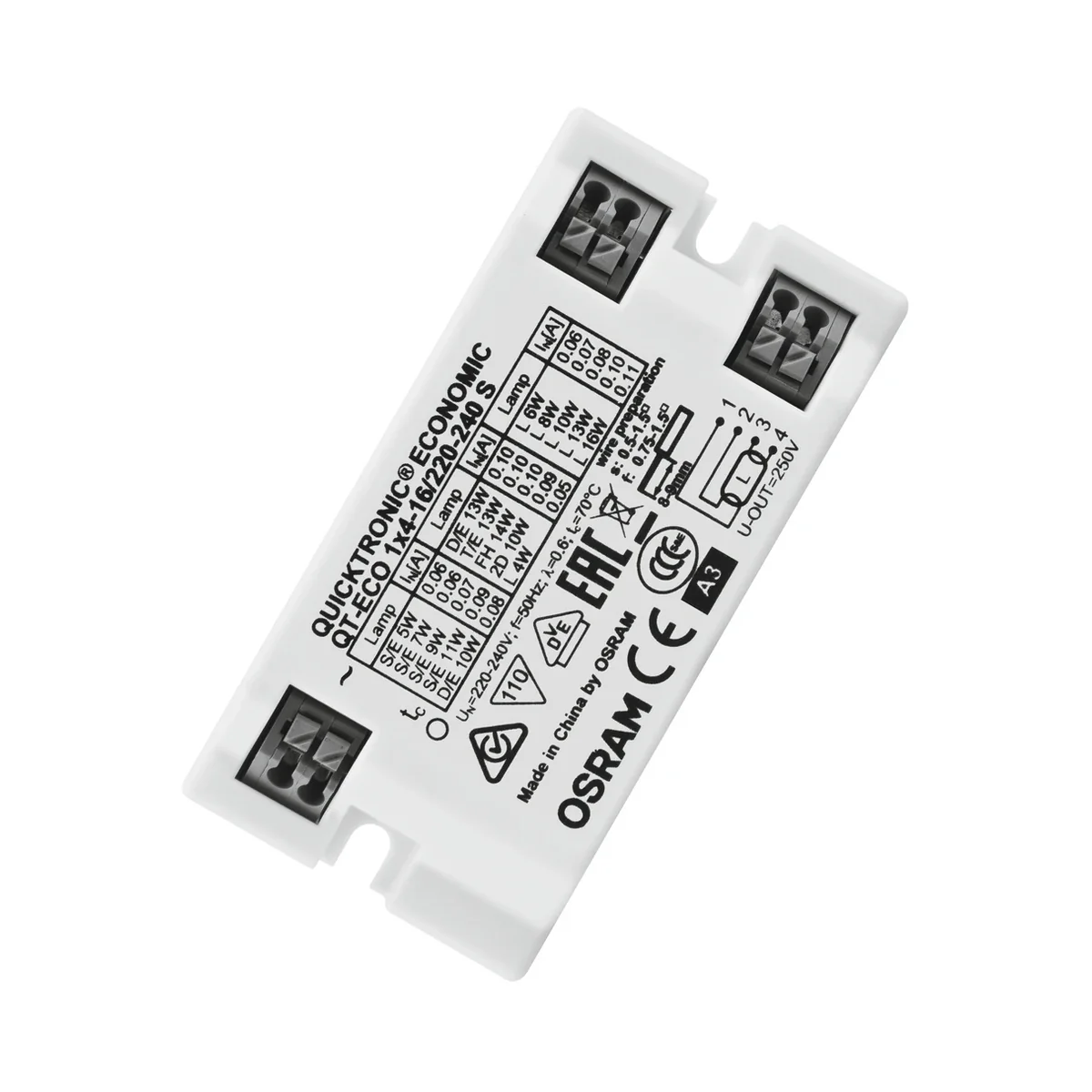

Electronic ballast W QT-ECO 4050300638584
local index:
OCS017LEDV
Catalog No:
4050300638584
EAN code:
4050300638584
Price:
18,81 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Electronic ballast W QT-ECO 1x4-16/230-240 S 1xD-S/E 5W,7W 9W,11W; 1xD-D/E 10W,13W; 1xD-T/E 13W;1xFH 14W; 1xL 4W,6W,8W,10W,13W,16W; 1xCFL SQUARE 10W,16W,
Technical data
-
Rated voltage [V]230
-
PKWIU27.11.50
-
Initial starting current [A]28
Other technical data
-
ModelElectronic
-
Dimming 0-10 VNo
-
Dimming DALINo
-
Dimming DMXNo
-
Ściemniacz GPRSNo
-
Dimming manufacturer's proprietary systemNo
-
Dimming phase cut-offNo
-
Dimming programmableNo
-
Dimming Sine Wave ReductionNo
-
Dimming ZigbeeNo
-
No dim functionYes
-
For lamp type HMNo
-
For lamp type LSNo
-
For lamp type T16Yes
-
For lamp type T26Yes
-
For lamp type T-RNo
-
For lamp type TC-DNo
-
For lamp type TC-DELYes
-
For lamp type TC-LNo
-
For lamp type TC-SNo
-
For lamp type TC-TNo
-
Suitable for number of lamps1 ... 1
-
Nominal voltage220 ... 240 V
-
Degree of protection (IP)IP20
-

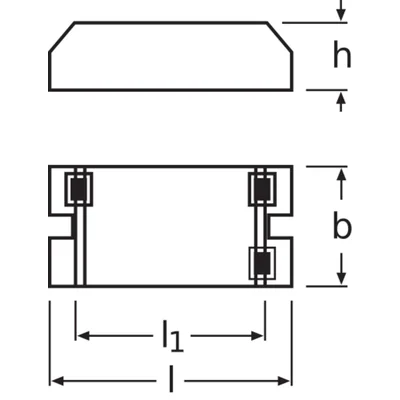

Length80.0 mm
-
Multiwatt modelYes
-
Dimming 1-10 VNo
-
Dimming DSINo
-
Dimming potentiometer (integrated)No
-
Dimming LineSwitchNo
-
Dimming mains voltage modulationNo
-
Dimming phase cut-onNo
-
Dimming RFNo
-
Dimming Touch and DimNo
-
Dimming with push-buttonNo
-
For lamp type HINo
-
For lamp type HSNo
-
For lamp type T7No
-
For lamp type T16-RNo
-
For lamp type T38No
-
For lamp type T-UNo
-
For lamp type TC-DDNo
-
For lamp type TC-FNo
-
For lamp type TC-QELNo
-
For lamp type TC-SELYes
-
For lamp type TC-TELYes
-
Suitable for lamp power4 ... 16 W
-
HousingPlastic housing
-
Protection classI
-
Height22.0 mm
Bulk packaging
| A kind of package | Torebka | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 50 pcs. |
| Weight (kg) | 0,050 | 0,051 | 2,791 |
| Volume (m3) | - | - | 0,005 |
| Width (m) | - | - | 0,140 |
| Length (m) | - | - | 0,210 |
| Depth (m) | - | - | 0,170 |
