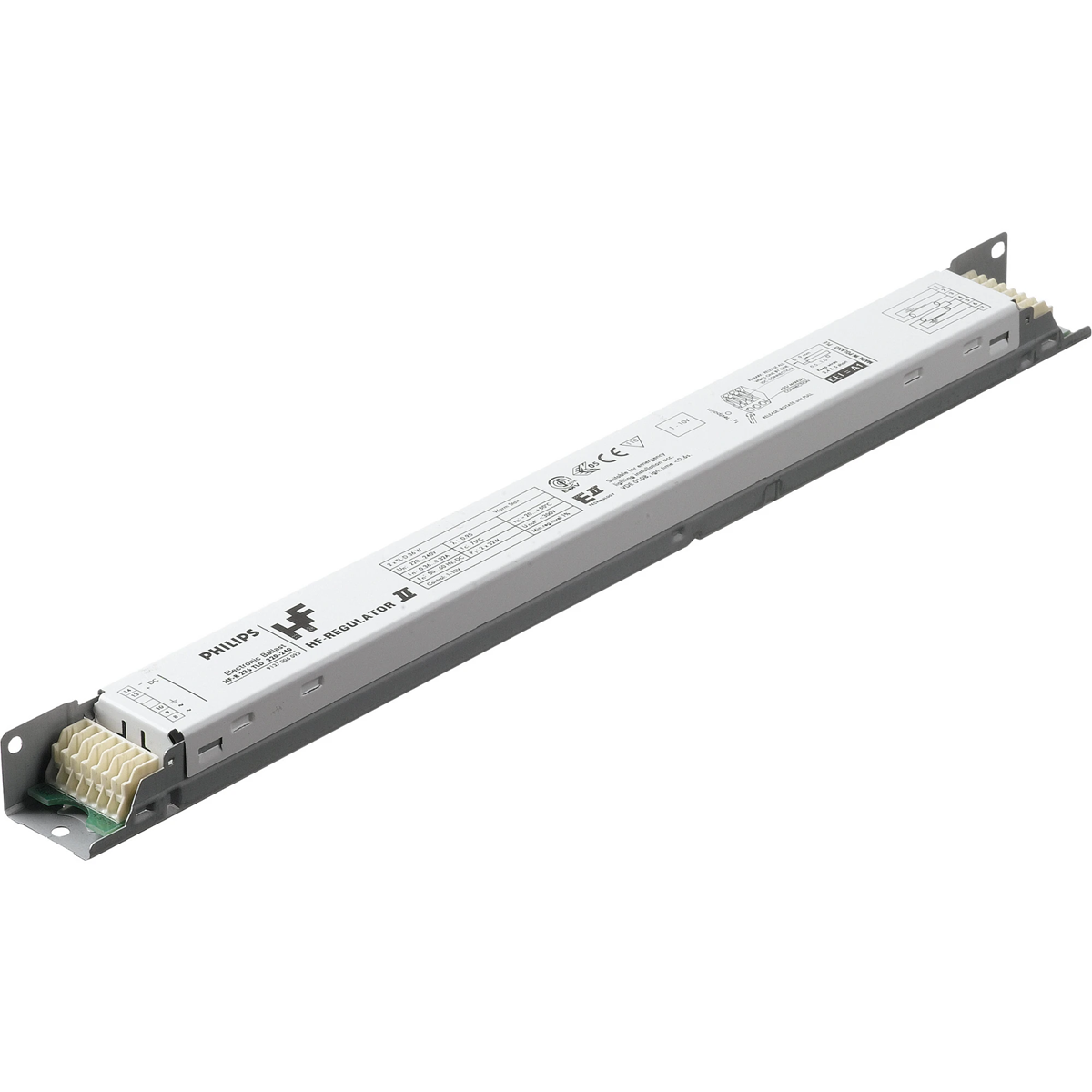

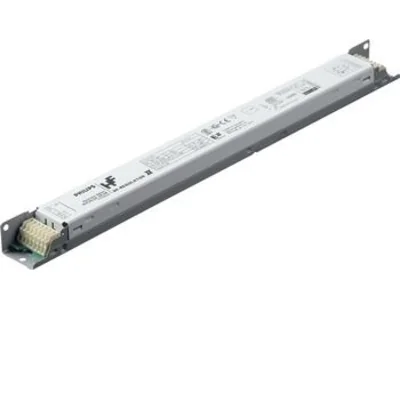

Electronic ballast 36W, 230V 913700609266

local index:
OCS051PHIL
Catalog No:
913700609266
EAN code:
8711500910134
Manufacturer: PHILIPS
Power [W]: 36
Rated voltage [V]: 230
lifetime [h]: 50000
Price:
39,67 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Flat, lightweight high-frequency electronic ballast adjustable according to the 1-10V protocol - for TL-D fluorescent lamps.       HF II regulator for TL-D lamps — dimming: the next step in energy saving:    The lamp power can be reduced from 1 to 100% with the analog input of the driver (according to the standard for 1–10V devices),  Compliance with European and Asian standards; can be used in emergency lighting systems, High-frequency operation improves light quality and extends lamp life, Possibility of additional energy savings thanks to the use of drivers

Technical data

  • Power [W]
    36
  • lifetime [h]
    50000
  • Rated voltage [V]
    230

Other technical data

  • Model
    Electronic
  • Dimming 0-10 V
    No
  • Dimming DALI
    No
  • Dimming DMX
    No
  • Ściemniacz GPRS
    No
  • Dimming manufacturer's proprietary system
    No
  • Dimming phase cut-off
    No
  • Dimming programmable
    No
  • Dimming Sine Wave Reduction
    No
  • Dimming Zigbee
    No
  • No dim function
    No
  • For lamp type HM
    No
  • For lamp type LS
    No
  • For lamp type T16
    No
  • For lamp type T26
    Yes
  • For lamp type T-R
    No
  • For lamp type TC-D
    No
  • For lamp type TC-DEL
    No
  • For lamp type TC-L
    No
  • For lamp type TC-S
    No
  • For lamp type TC-T
    No
  • Suitable for lamp power (1 lamp)
    36 ... 36 W
  • Suitable for lamp power
    36 ... 36 W
  • Housing
    Metal housing
  • Degree of protection (IP)
    IP20

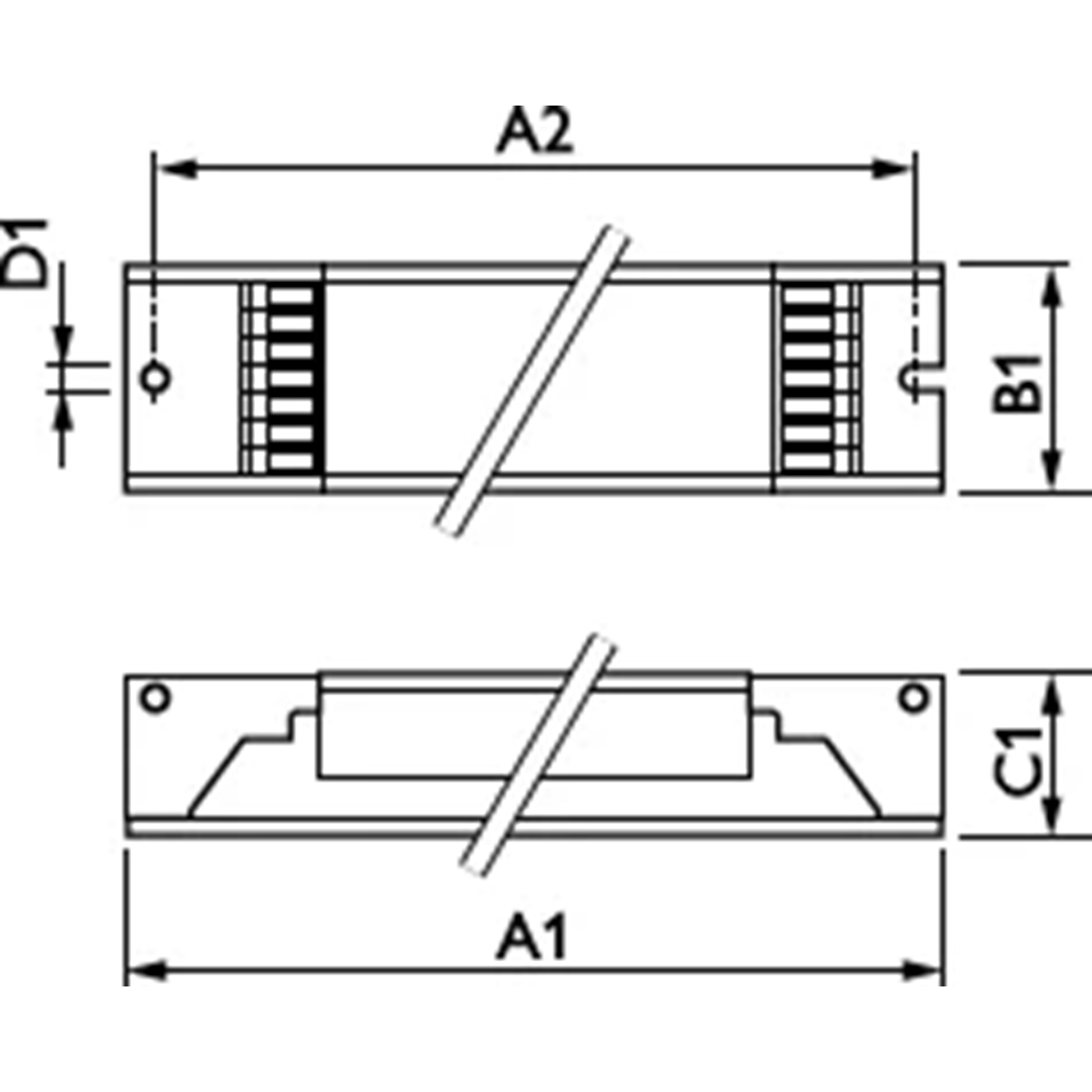

  • Length
    360 mm
  • Height
    22 mm
  • Multiwatt model
    No
  • Dimming 1-10 V
    Yes
  • Dimming DSI
    No
  • Dimming potentiometer (integrated)
    No
  • Dimming LineSwitch
    No
  • Dimming mains voltage modulation
    No
  • Dimming phase cut-on
    No
  • Dimming RF
    No
  • Dimming Touch and Dim
    No
  • Dimming with push-button
    No
  • For lamp type HI
    No
  • For lamp type HS
    No
  • For lamp type T7
    No
  • For lamp type T16-R
    No
  • For lamp type T38
    No
  • For lamp type T-U
    No
  • For lamp type TC-DD
    No
  • For lamp type TC-F
    No
  • For lamp type TC-QEL
    No
  • For lamp type TC-SEL
    No
  • For lamp type TC-TEL
    No
  • Suitable for number of lamps
    1 ... 1
  • Nominal voltage
    220 ... 240 V
  • With strain relief
    No
  • Protection class
    None
  • Width
    30 mm

Manufacturer details

Bulk packaging

A kind of package Paczka Karton Paleta
Quantity 1 pcs. 12 pcs. 1008 pcs.
Weight (kg) 0,272 3,261 -
Width (m) - 0,193 -
Length (m) - 0,371 -
Depth (m) - 0,067 -
