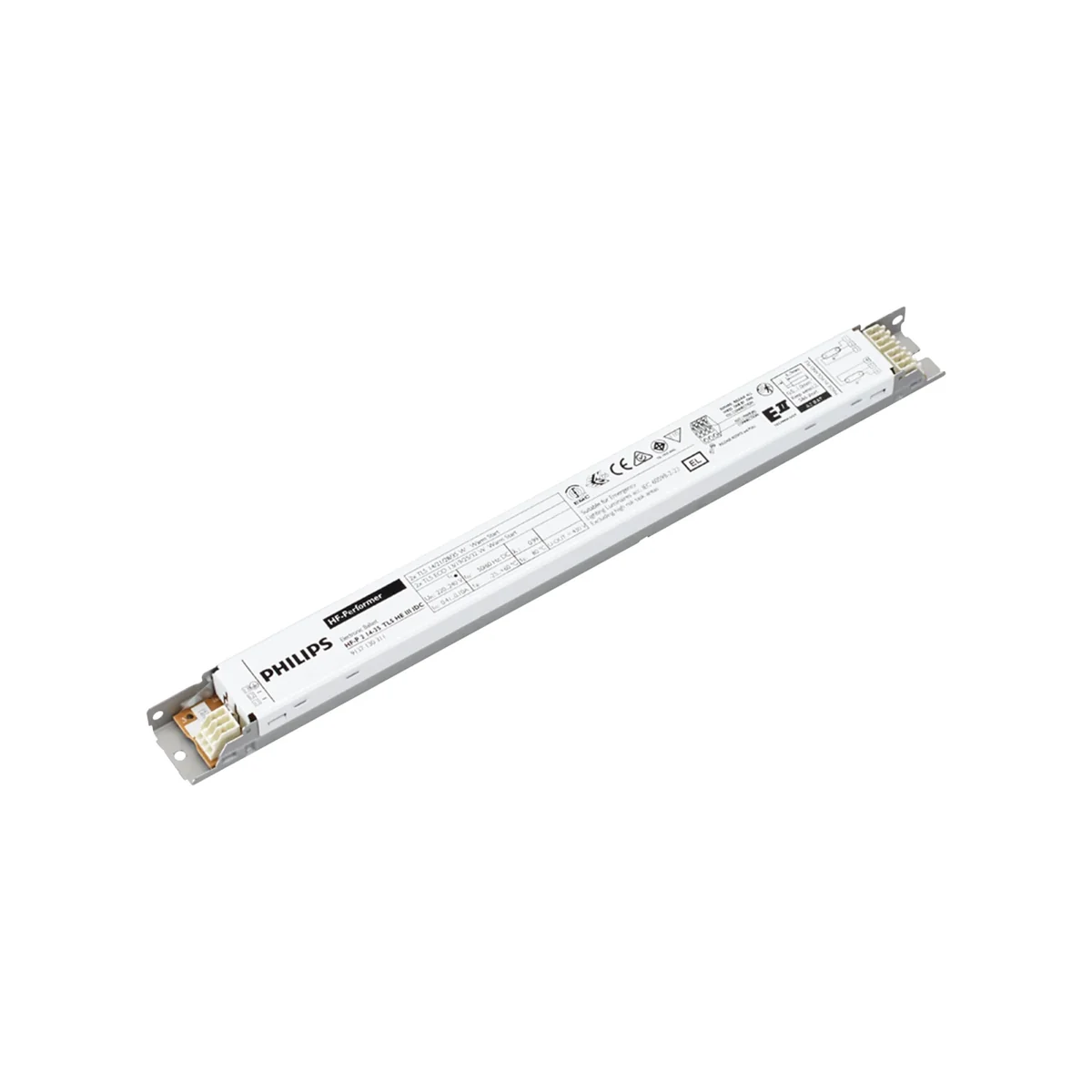

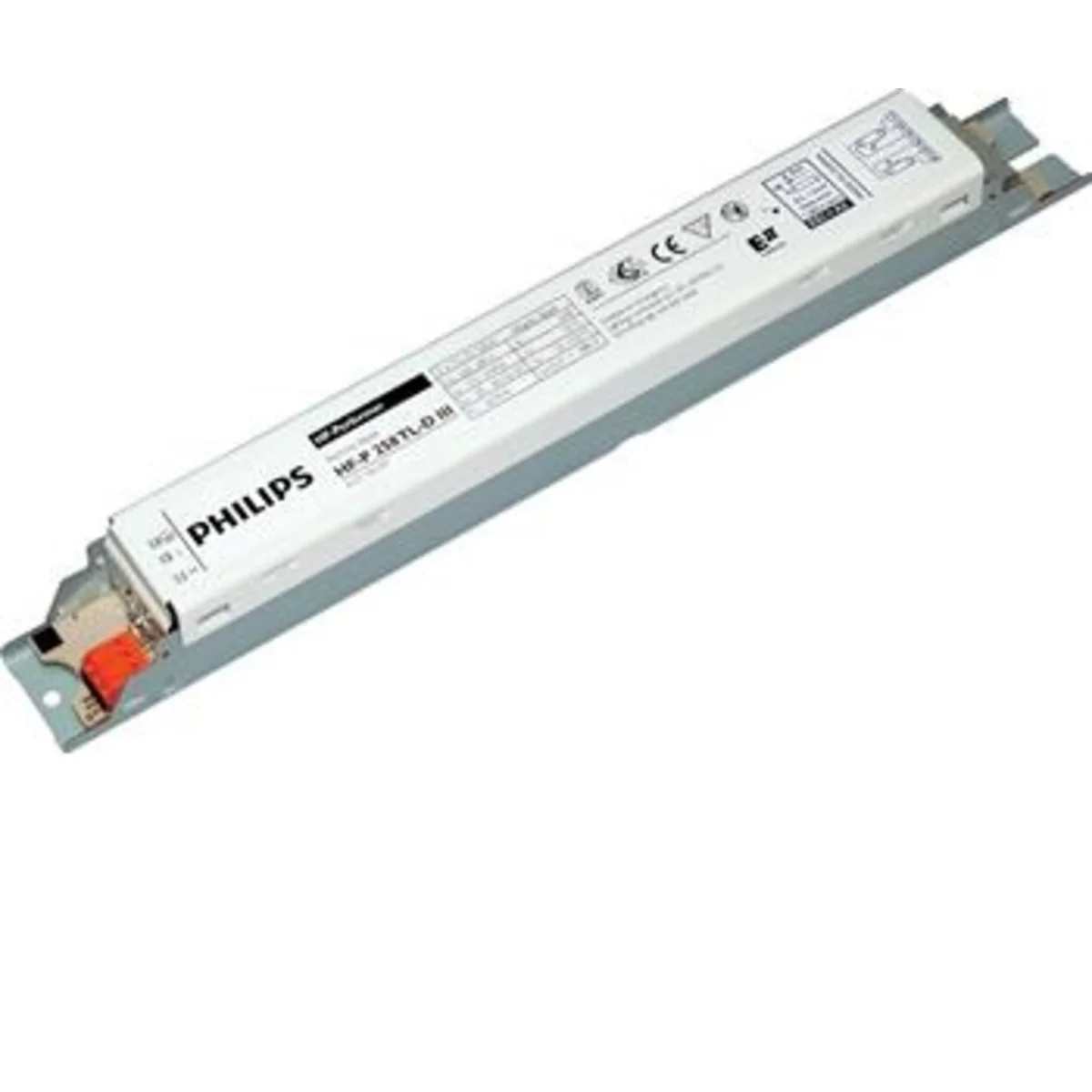

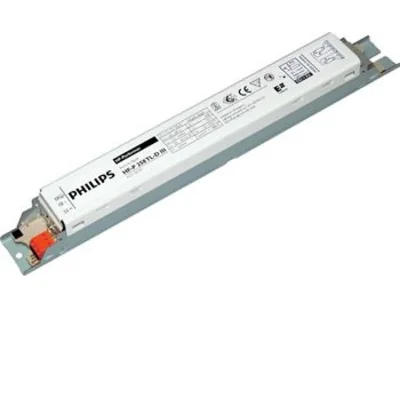

Electronic ballast 35W, 230V 913713031166
local index:
OCS003PHIL
Catalog No:
913713031166
EAN code:
8711500999238
Price:
19,51 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
The HF-Performer III TL5 is a high-frequency electronic ballast for TL5 and TL5 Eco lamps with balanced functionality and slim design. It is ideal for applications that require high energy efficiency. The HF-Performer III products are robustly constructed, meet all relevant international safety and performance standards and have a high Performance Index (CELMA EEI A2 BAT).
Technical data
-
Ignition time [s]1.2
-
Rated voltage [V]230
-
Power [W]35
-
lifetime [h]53000
Other technical data
-
ModelElectronic
-
Dimming 0-10 VNo
-
Dimming DALINo
-
Dimming DMXNo
-
Ściemniacz GPRSNo
-
Dimming manufacturer's proprietary systemNo
-
Dimming phase cut-offNo
-
Dimming programmableNo
-
Dimming Sine Wave ReductionNo
-
Dimming ZigbeeNo
-
No dim functionYes
-
For lamp type HMNo
-
For lamp type LSNo
-
For lamp type T16Yes
-
For lamp type T26No
-
For lamp type T-RNo
-
For lamp type TC-DNo
-
For lamp type TC-DELNo
-
For lamp type TC-LNo
-
For lamp type TC-SNo
-
For lamp type TC-TNo
-
Suitable for lamp power (2 lamps)14 ... 35 W
-
Suitable for lamp power14 ... 35 W
-
HousingMetal housing
-
Degree of protection (IP)IP20
-

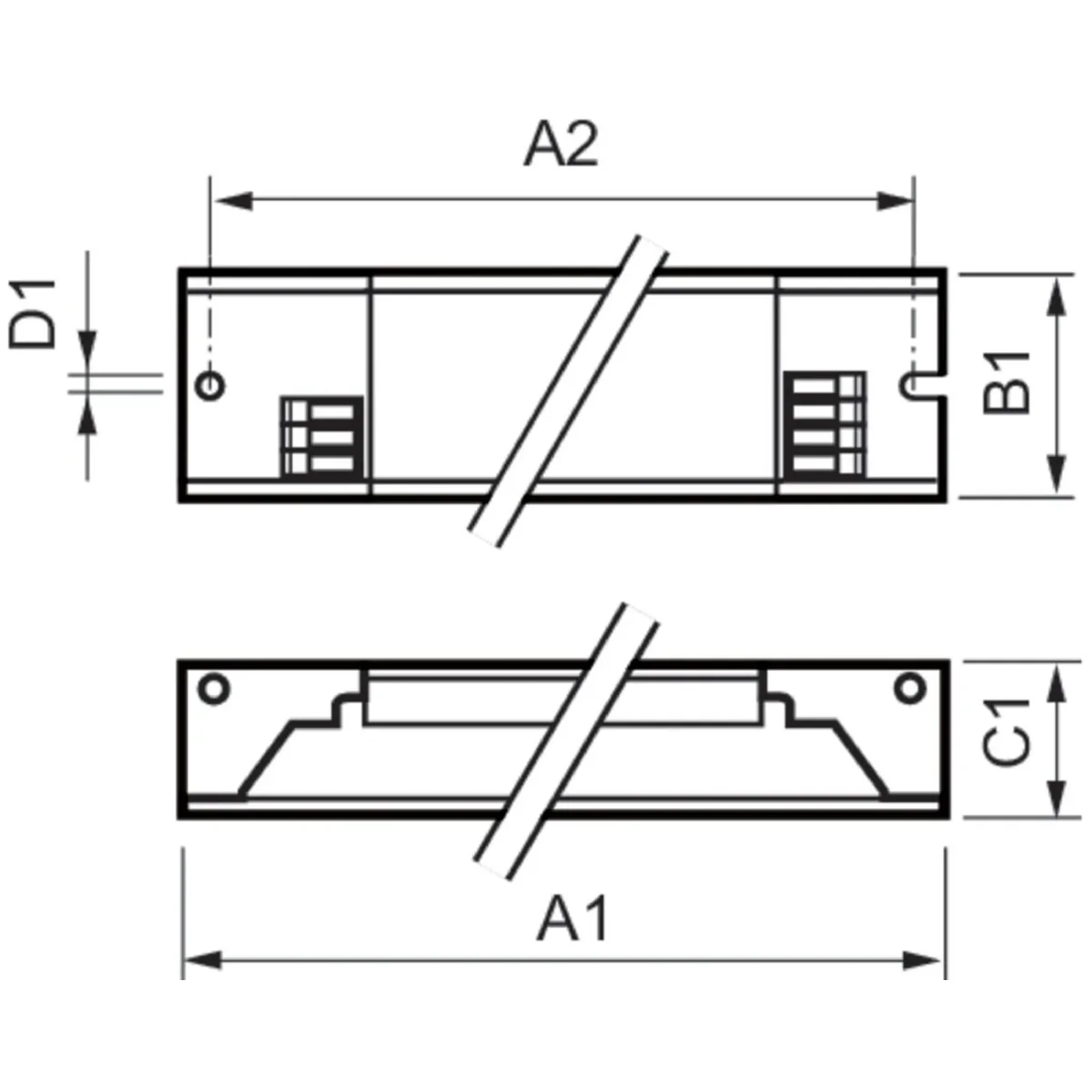

Length360 mm
-
Height22 mm
-
Multiwatt modelYes
-
Dimming 1-10 VNo
-
Dimming DSINo
-
Dimming potentiometer (integrated)No
-
Dimming LineSwitchNo
-
Dimming mains voltage modulationNo
-
Dimming phase cut-onNo
-
Dimming RFNo
-
Dimming Touch and DimNo
-
Dimming with push-buttonNo
-
For lamp type HINo
-
For lamp type HSNo
-
For lamp type T7No
-
For lamp type T16-RNo
-
For lamp type T38No
-
For lamp type T-UNo
-
For lamp type TC-DDNo
-
For lamp type TC-FNo
-
For lamp type TC-QELNo
-
For lamp type TC-SELNo
-
For lamp type TC-TELNo
-
Suitable for number of lamps2 ... 2
-
Nominal voltage220 ... 240 V
-
With strain reliefNo
-
Protection classNone
-
Width30 mm
Bulk packaging
| A kind of package | Paczka | Karton | Paleta |
| Quantity | 1 pcs. | 12 pcs. | 1008 pcs. |
| Weight (kg) | 0,257 | 3,081 | - |
| Width (m) | - | 0,193 | - |
| Length (m) | - | 0,368 | - |
| Depth (m) | - | 0,056 | - |
