Electronic ballast 24W, 230V 913700417966
local index:
OCS132PHIL
Catalog No:
913700417966
EAN code:
8711500536389
Price:
13,84 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product

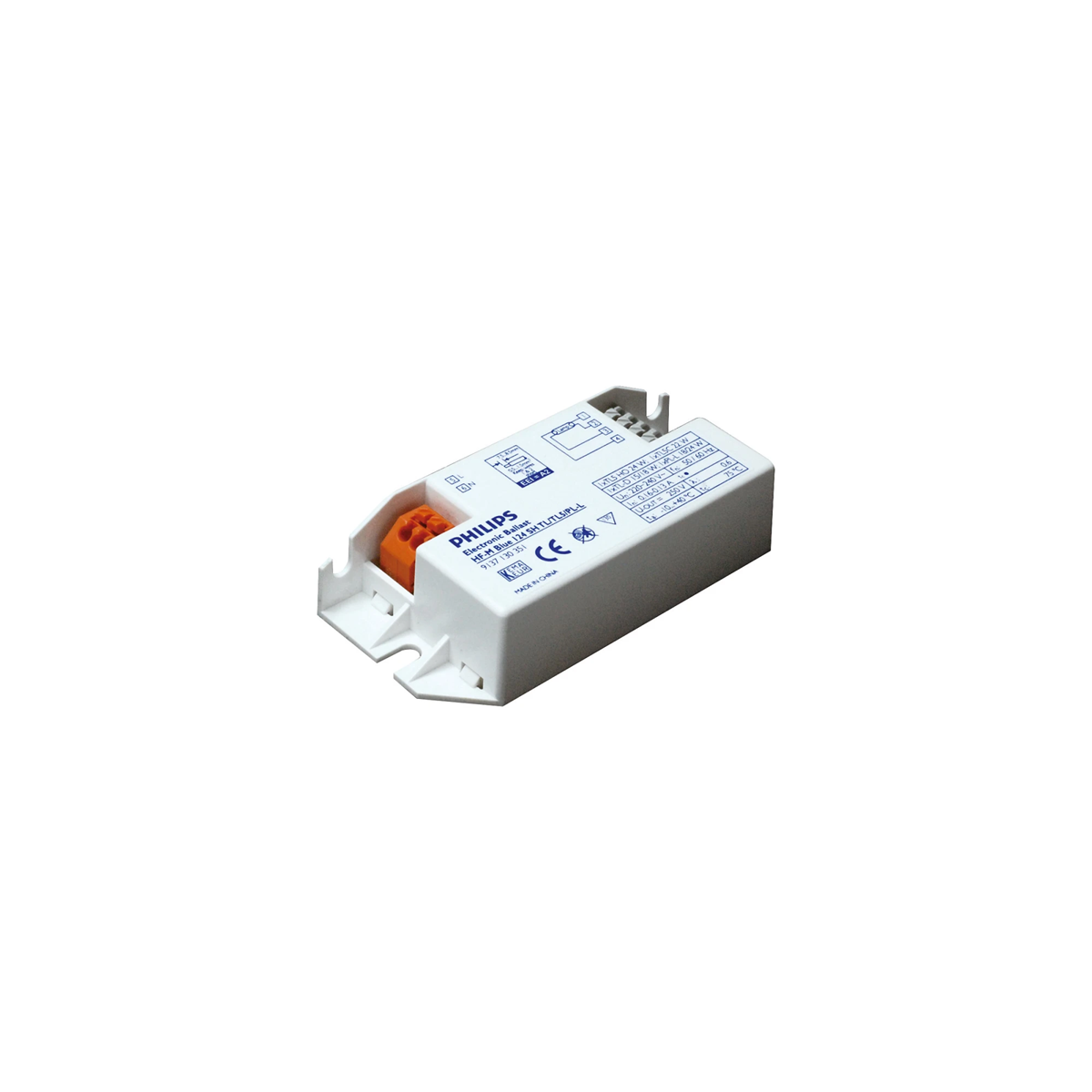

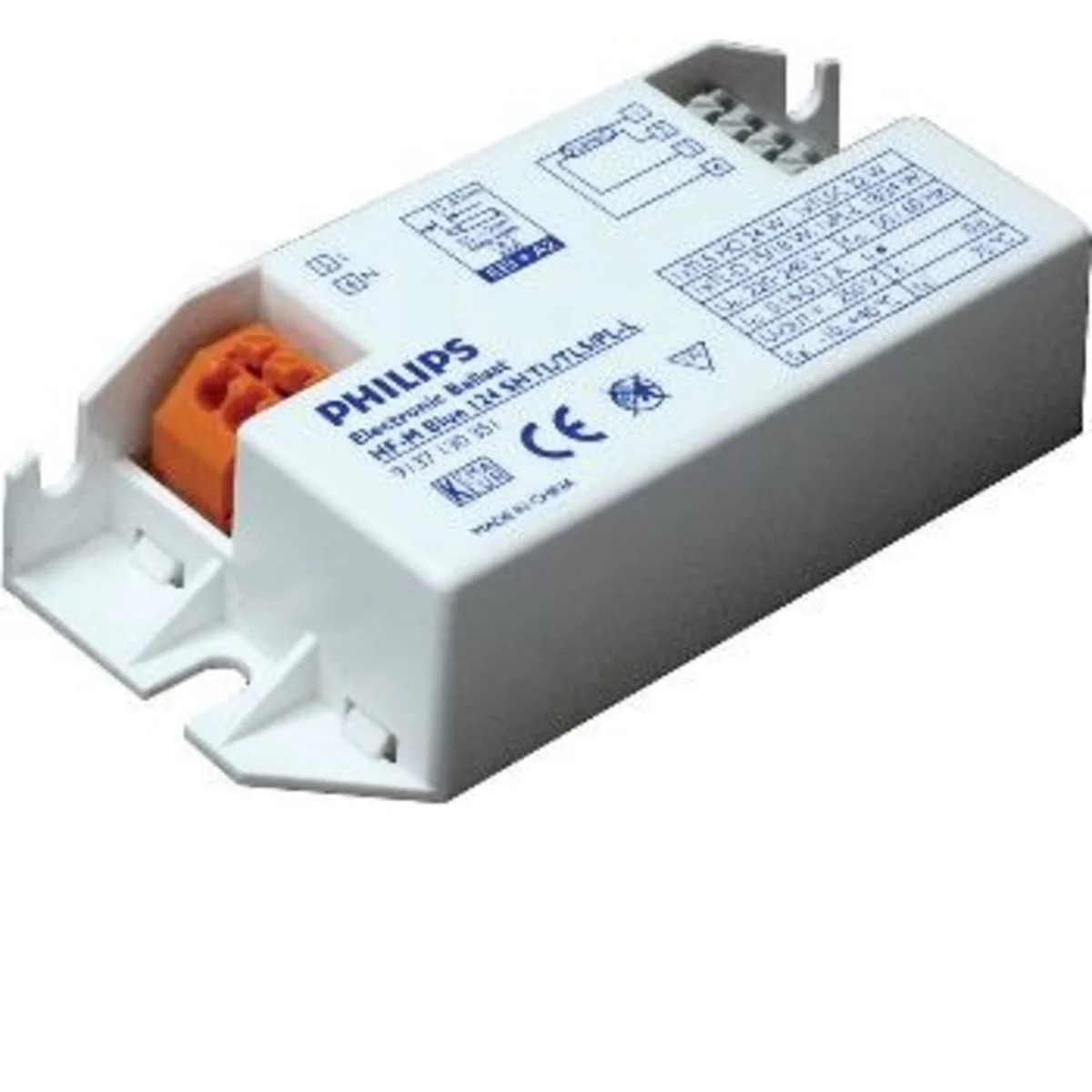

Product description
The HF-Matchbox Blue is an affordable, reliable, compact and lightweight HF ballast for systems below 25 W in combination with TL mini, TL-D, TL5 and TL5c, PL-T/C and PL-L/ S HF-M Blue products are robustly constructed, comply with all relevant international safety and performance standards and have an Performance Index (CELMA EEI) of A2.
Technical data
-
Ignition time [s]0.5
-
Rated voltage [V]230
-
Power [W]24
-
lifetime [h]25000
Other technical data
-
ModelElectronic
-
Dimming 0-10 VNo
-
Dimming DALINo
-
Dimming DMXNo
-
Ściemniacz GPRSNo
-
Dimming manufacturer's proprietary systemNo
-
Dimming phase cut-offNo
-
Dimming programmableNo
-
Dimming Sine Wave ReductionNo
-
Dimming ZigbeeNo
-
No dim functionYes
-
For lamp type HMNo
-
For lamp type LSNo
-
For lamp type T16Yes
-
For lamp type T26Yes
-
For lamp type T-RNo
-
For lamp type TC-DNo
-
For lamp type TC-DELNo
-
For lamp type TC-LYes
-
For lamp type TC-SNo
-
For lamp type TC-TNo
-
Suitable for lamp power (1 lamp)24 ... 24 W
-
Suitable for lamp power9 ... 13 W
-
HousingPlastic housing
-
Degree of protection (IP)IP20
-

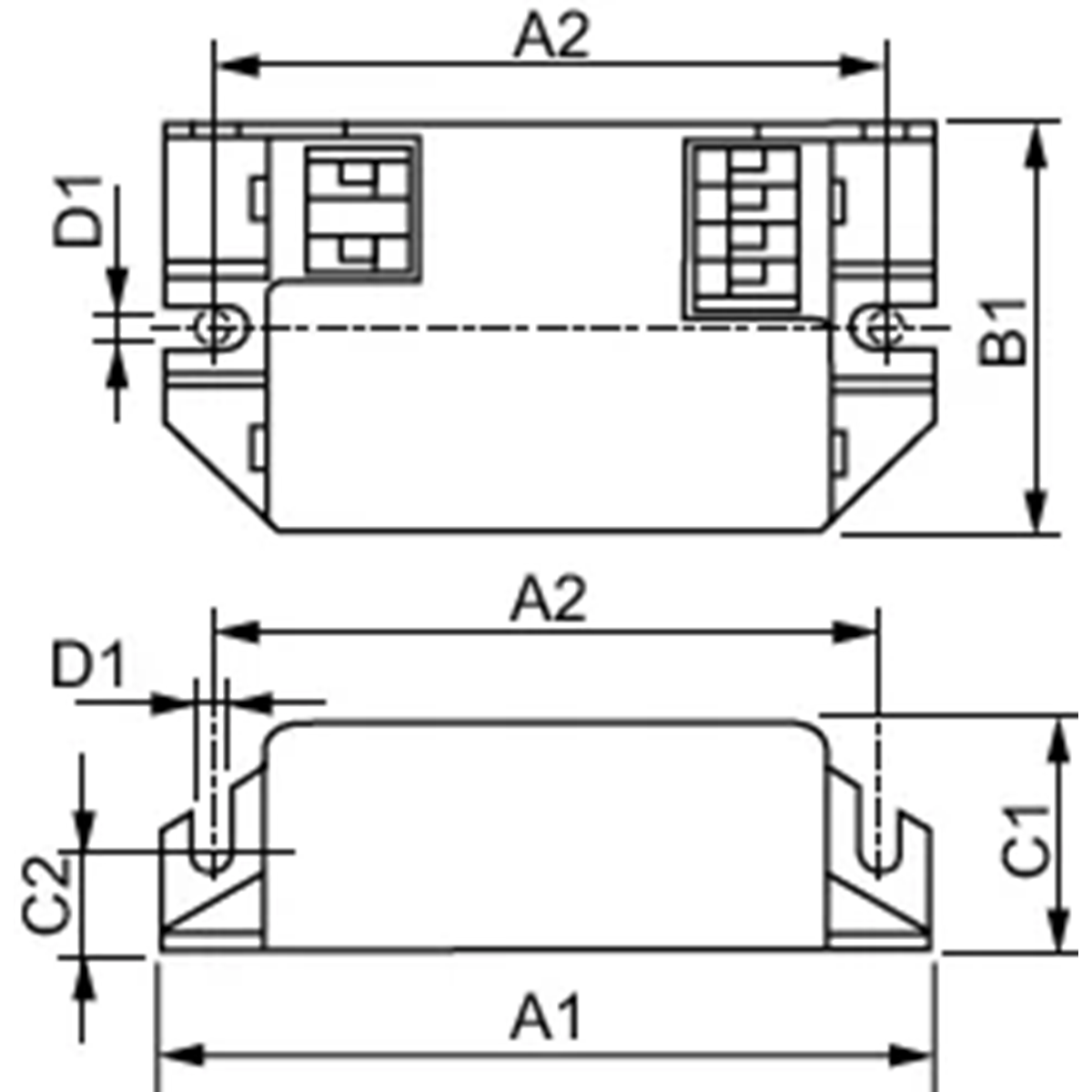

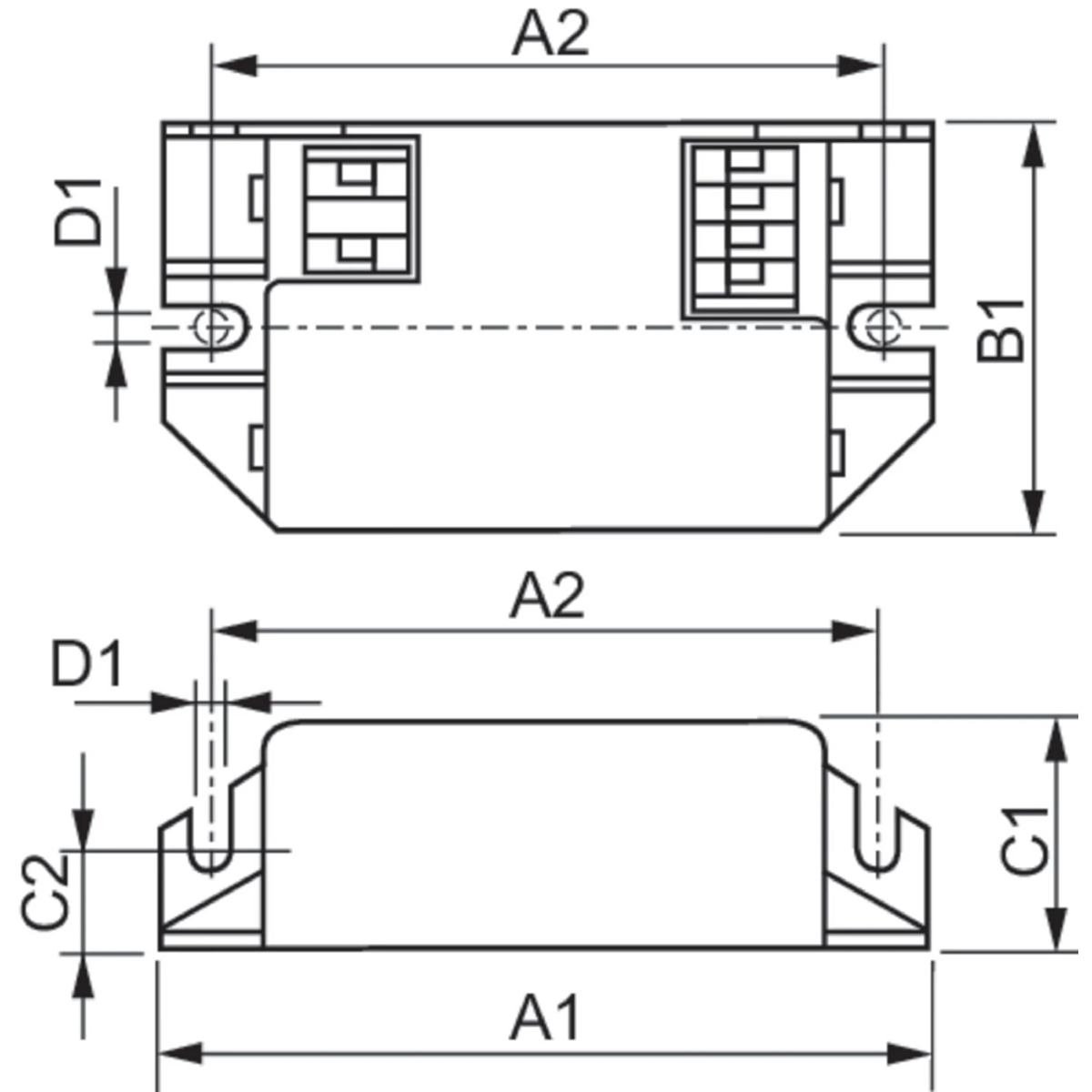

Length94 mm
-
Height22 mm
-
Multiwatt modelNo
-
Dimming 1-10 VNo
-
Dimming DSINo
-
Dimming potentiometer (integrated)No
-
Dimming LineSwitchNo
-
Dimming mains voltage modulationNo
-
Dimming phase cut-onNo
-
Dimming RFNo
-
Dimming Touch and DimNo
-
Dimming with push-buttonNo
-
For lamp type HINo
-
For lamp type HSNo
-
For lamp type T7No
-
For lamp type T16-RYes
-
For lamp type T38No
-
For lamp type T-UNo
-
For lamp type TC-DDNo
-
For lamp type TC-FNo
-
For lamp type TC-QELNo
-
For lamp type TC-SELNo
-
For lamp type TC-TELNo
-
Suitable for number of lamps1 ... 1
-
Nominal voltage230 ... 240 V
-
With strain reliefNo
-
Protection classNone
-
Width40 mm
Bulk packaging
| A kind of package | Paczka | Karton | Paleta |
| Quantity | 1 pcs. | 50 pcs. | 2500 pcs. |
| Weight (kg) | 0,043 | 2,150 | - |
| Width (m) | - | 0,200 | - |
| Length (m) | - | 0,230 | - |
| Depth (m) | - | 0,130 | - |
