Electronic ballast 18W,26W,32W,42W 4008321060846

Name: Electronic ballast 18W,26W,32W,42W
Brand: LEDVANCE
SKU: OCS031LEDV
Price: 111.27 PLN

local index:

OCS031LEDV

Catalog No:

4008321060846

EAN code:

4008321060846

Click on the photo to enlarge

Manufacturer: LEDVANCE

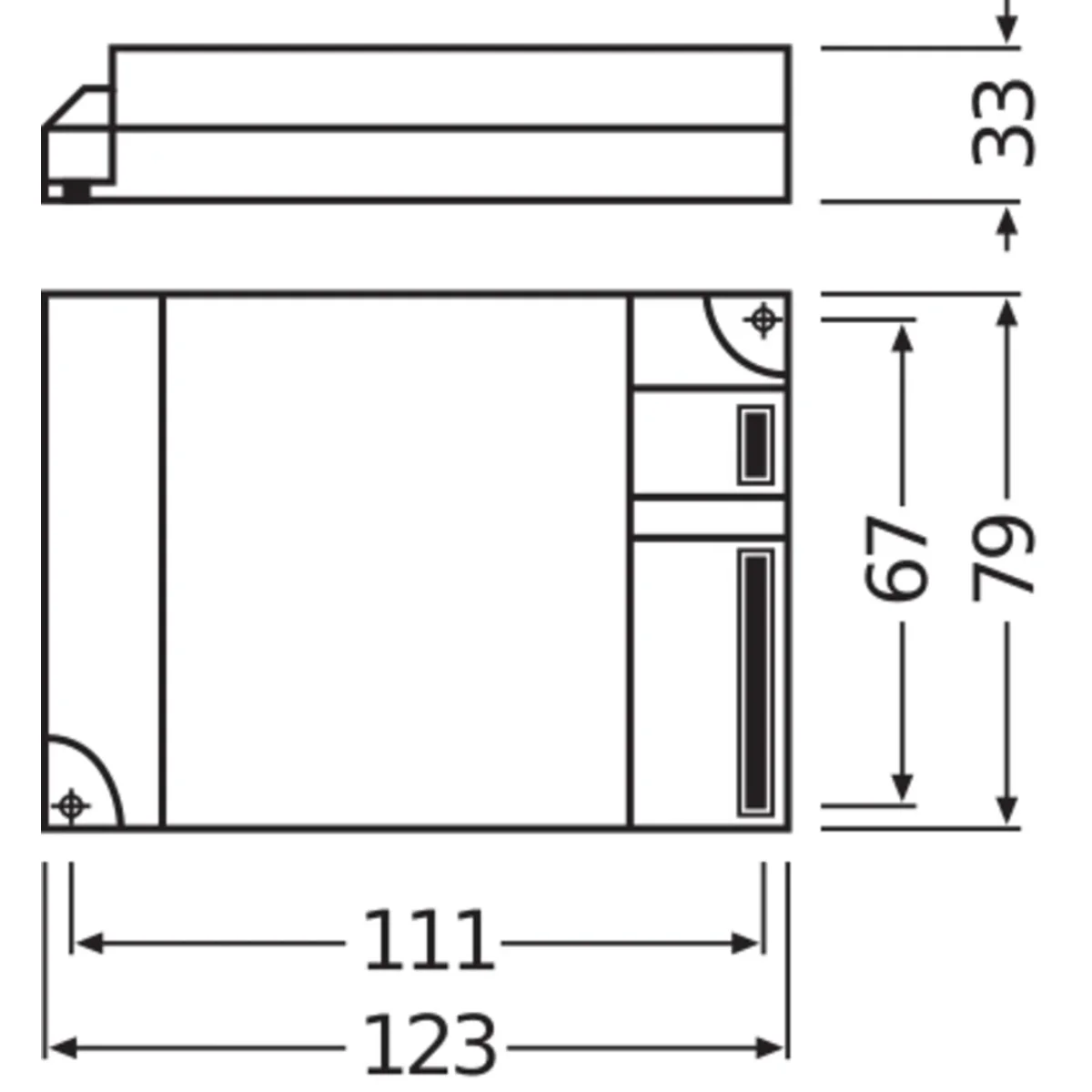

Length [mm]: 123

Distance of mounting holes, length [mm]: 111

Width [mm]: 79

See full description

Price:

111,27 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to a week (working days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging Files to download

Product description

Product Benefits
Same luminous flux with AC and DC
Perfect lamp start for motion sensor applications
Adjusting the luminous flux of amalgam lamps without flickering or reducing lifetime Very high efficiency due to self-shutdown technology Automatic restart after lamp replacement
Electronic power supplies compliant with the MINERGIE standard thanks to very low standby power consumption Configurable characteristics of the emergency power supply
Area of application
Intended for use in emergency lighting systems in accordance with EN 50172/DIN VDE 0108- 100
Installation in emergency lighting systems according to IEC 61347-2-3, Annex J
Industry
Large-area offices, corridors and warehouses
Public buildings
Designed for luminaires with protection class I< tr>

Adjustment range [%]	3-100
Lamp end of life, fuse off	EOL T.2

Technical data

Length [mm]

123
Width [mm]

79
Height [mm]

33
Maximum number of SEs (10A)

8

Distance of mounting holes, length [mm]

111
Darkening

Yes
Maximum number of SEs (16A)

13
PKWIU

27.11.50

Other technical data

Model

Electronic
Dimming 0-10 V

No
Dimming DALI

Yes
Dimming DMX

No
Ściemniacz GPRS

No
Dimming manufacturer's proprietary system

No
Dimming phase cut-off

No
Dimming programmable

No
Dimming Sine Wave Reduction

No
Dimming Zigbee

No
No dim function

No
For lamp type HM

No
For lamp type LS

No
For lamp type T16

No
For lamp type T26

No
For lamp type T-R

No
For lamp type TC-D

No
For lamp type TC-DEL

Yes
For lamp type TC-L

No
For lamp type TC-S

No
For lamp type TC-T

No
Suitable for number of lamps

2 ... 2
Nominal voltage

220 ... 240 V
Degree of protection (IP)

IP20
Length

123.0 mm

Multiwatt model

Yes
Dimming 1-10 V

Yes
Dimming DSI

No
Dimming potentiometer (integrated)

No
Dimming LineSwitch

No
Dimming mains voltage modulation

No
Dimming phase cut-on

No
Dimming RF

No
Dimming Touch and Dim

No
Dimming with push-button

No
For lamp type HI

No
For lamp type HS

No
For lamp type T7

No
For lamp type T16-R

No
For lamp type T38

No
For lamp type T-U

No
For lamp type TC-DD

No
For lamp type TC-F

No
For lamp type TC-QEL

No
For lamp type TC-SEL

No
For lamp type TC-TEL

Yes
Suitable for lamp power

18 ... 42 W
Housing

Metal housing
Protection class

I
Height

33.0 mm

Bulk packaging

A kind of package		Torebka	Karton
Quantity	1 pcs.	1 pcs.	20 pcs.
Weight (kg)	0,250	0,250	5,239
Volume (m3)	-	-	0,009
Width (m)	-	-	0,080
Length (m)	-	-	0,420
Depth (m)	-	-	0,260
