Electronic ballast 18W, 230V 913713031466
local index:
OCS183PHIL
Catalog No:
913713031466
EAN code:
8711500999627
Price:
19,83 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

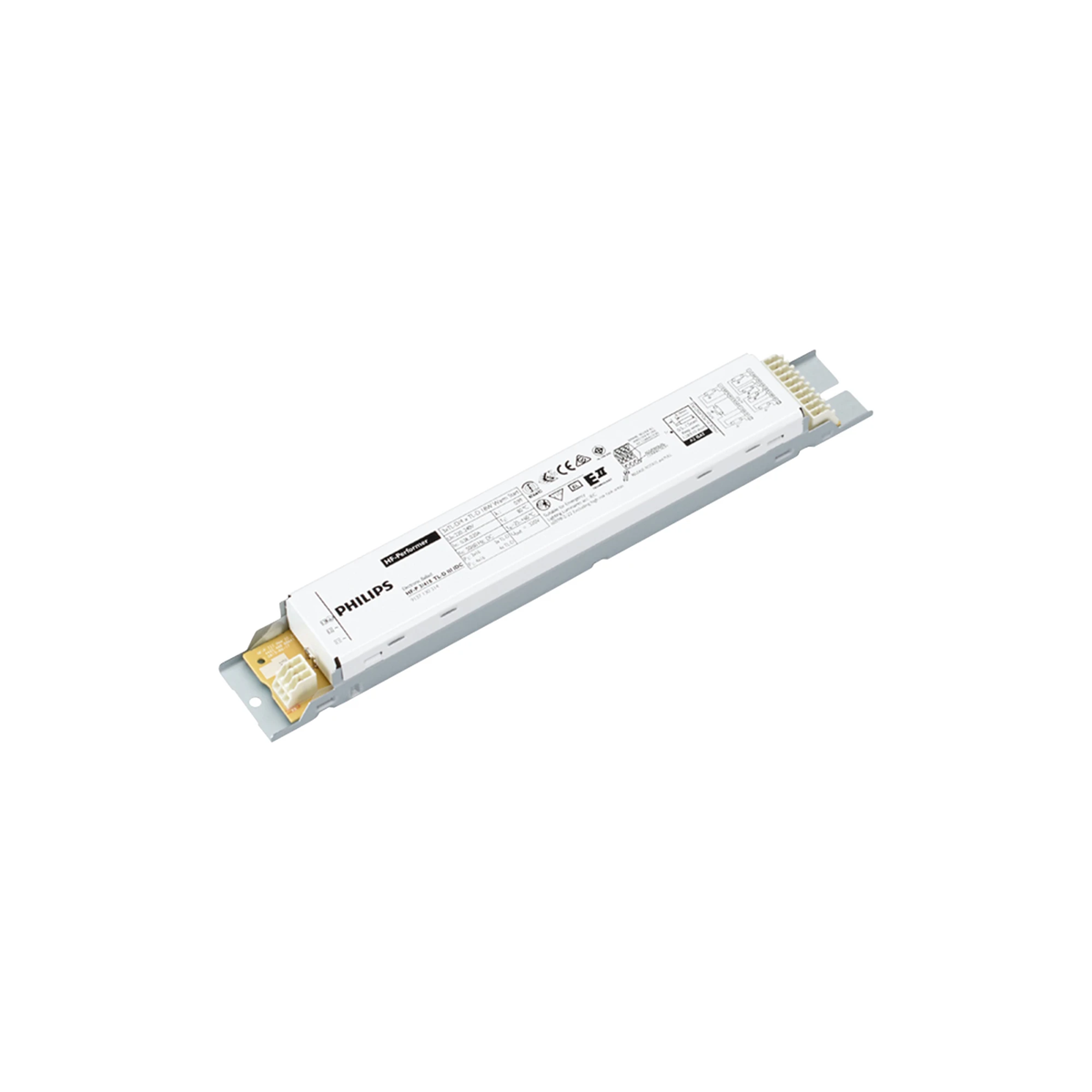

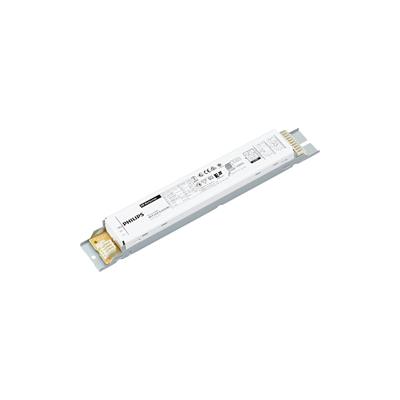

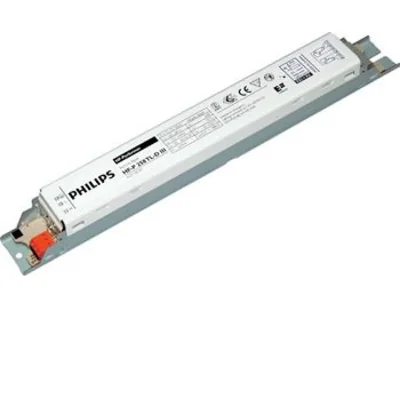

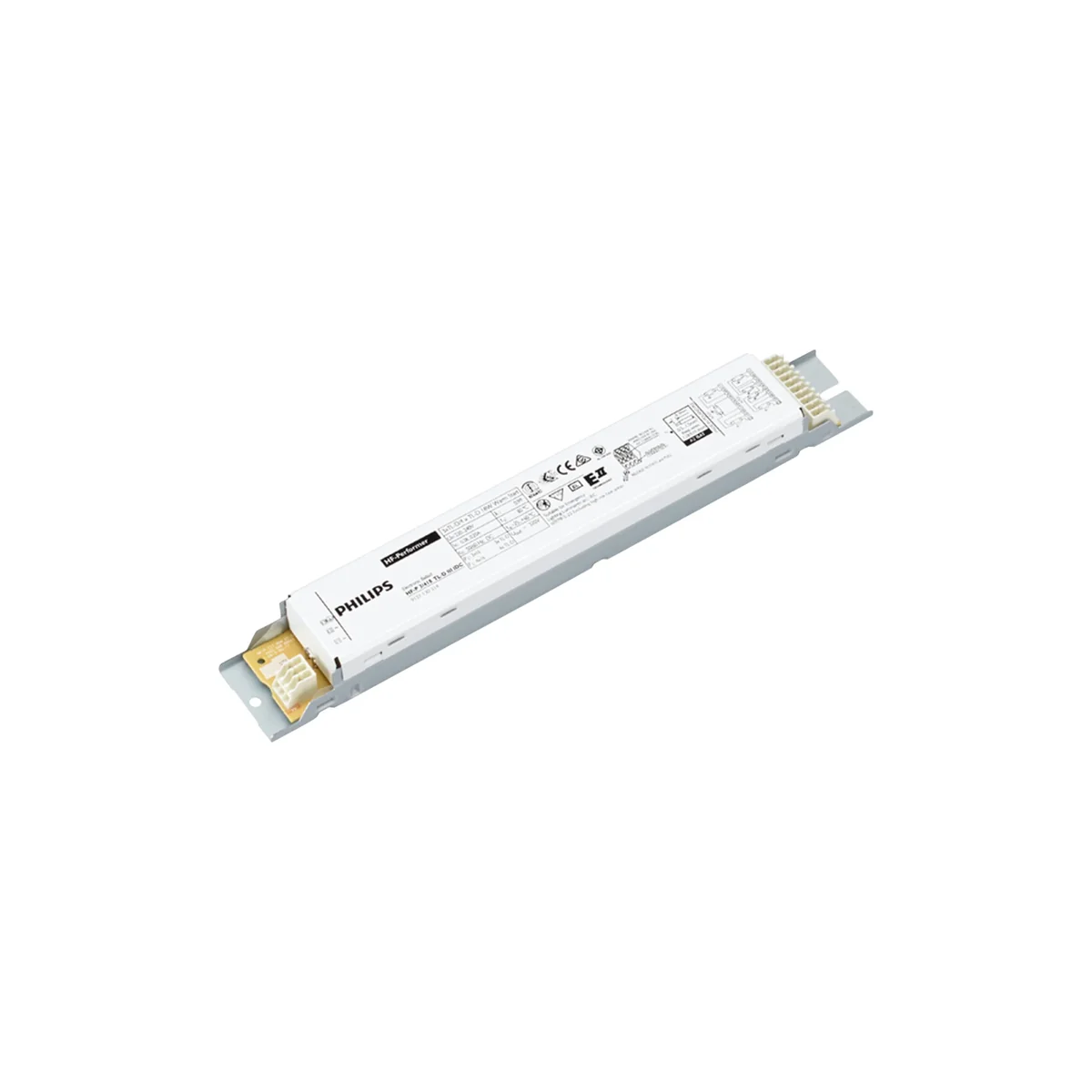

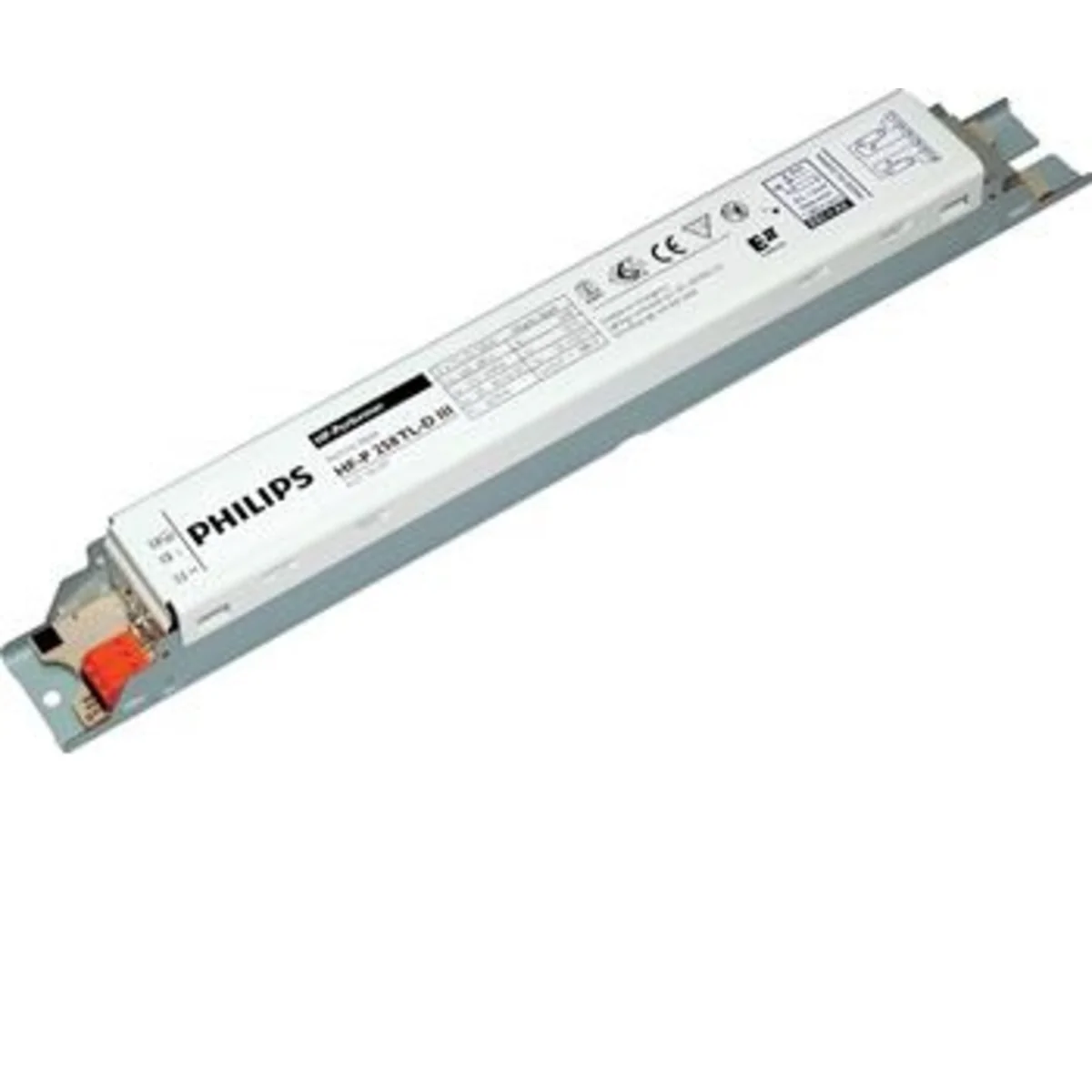

The HF-Performer III TLD is a high-frequency electronic ballast with balanced functionality and slim design for TLD fluorescent lamps. It is ideal for applications that require high energy efficiency. The HF-Performer III products are robustly constructed, meet all relevant international safety and performance standards and have a high Performance Index (CELMA EEI A2).
Technical data
-
Power [W]18
-
Rated voltage [V]230
Other technical data
-
ModelElectronic
-
Dimming 0-10 VNo
-
Dimming DALINo
-
Dimming DMXNo
-
Ściemniacz GPRSNo
-
Dimming manufacturer's proprietary systemNo
-
Dimming phase cut-offNo
-
Dimming programmableNo
-
Dimming Sine Wave ReductionNo
-
Dimming ZigbeeNo
-
No dim functionYes
-
For lamp type HMNo
-
For lamp type LSNo
-
For lamp type T16No
-
For lamp type T26Yes
-
For lamp type T-RNo
-
For lamp type TC-DNo
-
For lamp type TC-DELNo
-
For lamp type TC-LNo
-
For lamp type TC-SNo
-
For lamp type TC-TNo
-
Suitable for lamp power (3 lamps)18 ... 18 W
-
Suitable for number of lamps3 ... 4
-
Nominal voltage220 ... 240 V
-
With strain reliefNo
-
Protection classNone
-
Width40 mm
-
Multiwatt modelNo
-
Dimming 1-10 VNo
-
Dimming DSINo
-
Dimming potentiometer (integrated)No
-
Dimming LineSwitchNo
-
Dimming mains voltage modulationNo
-
Dimming phase cut-onNo
-
Dimming RFNo
-
Dimming Touch and DimNo
-
Dimming with push-buttonNo
-
For lamp type HINo
-
For lamp type HSNo
-
For lamp type T7No
-
For lamp type T16-RNo
-
For lamp type T38No
-
For lamp type T-UNo
-
For lamp type TC-DDNo
-
For lamp type TC-FNo
-
For lamp type TC-QELNo
-
For lamp type TC-SELNo
-
For lamp type TC-TELNo
-
Suitable for lamp power (4 lamps)18 ... 18 W
-
Suitable for lamp power18 ... 18 W
-
HousingMetal housing
-
Degree of protection (IP)IP20
-
Length280 mm
-
Height28 mm
Manufacturer details
-
ManufacturerSignify I.B.R.S. / C.C.R.I.
-
Address5600 VB Eindhoven Noméro 10461 Holandia
Bulk packaging
| A kind of package | Paczka | Karton | Paleta |
| Quantity | 1 pcs. | 10 pcs. | 1260 pcs. |
| Weight (kg) | 0,307 | 3,070 | - |
| Width (m) | - | 0,221 | - |
| Length (m) | - | 0,328 | - |
| Depth (m) | - | 0,087 | - |
