Name: ECO HLO 600 PANEL LED Panel 34W 400\\80lm 4000K IP20 120° 60x60cm square white
Brand: LEDVANCE
SKU: OWH008LEDV
Price: 119.14 PLN

Light color [K]

3500-4800 (natural)

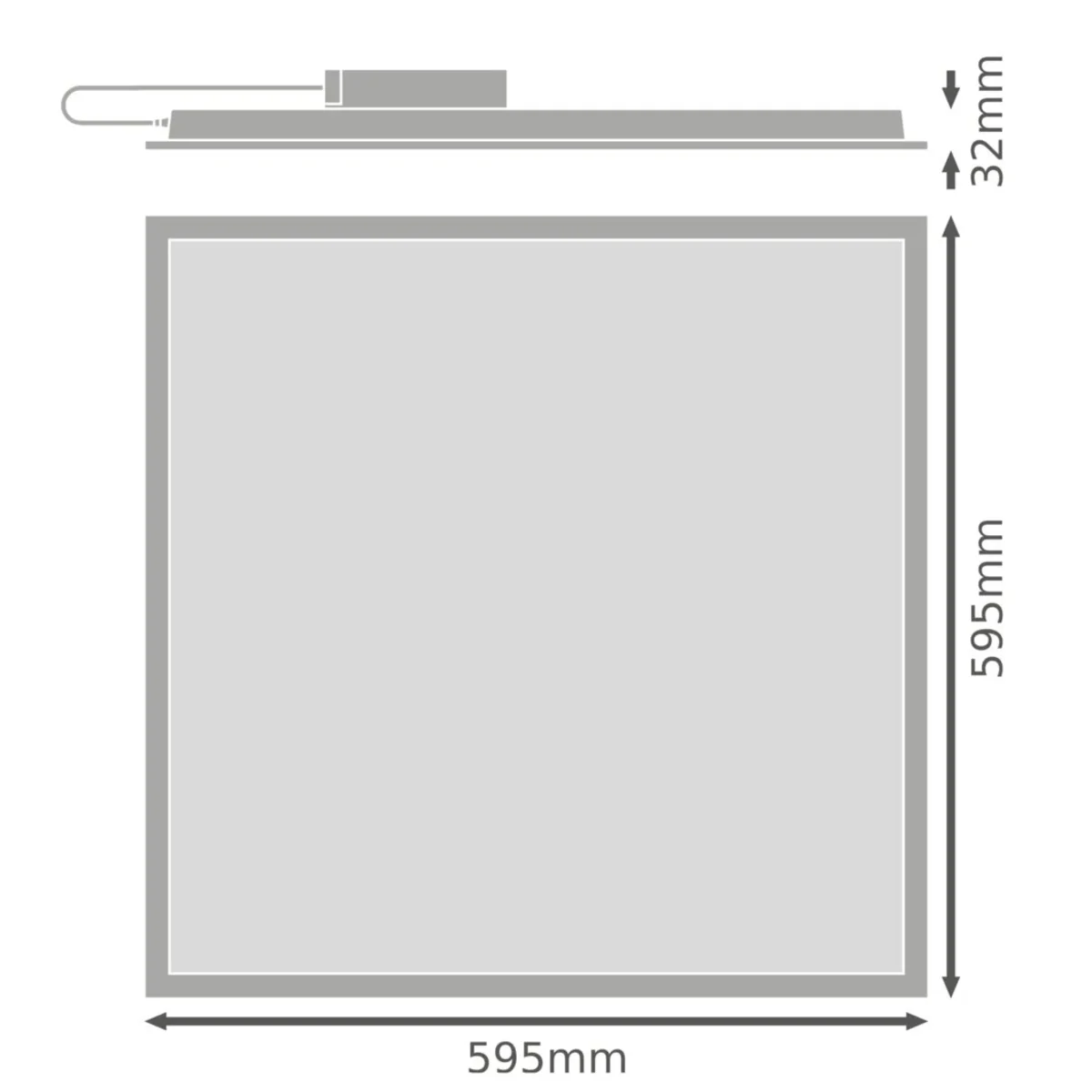

Length [mm]

595
beam angle [°]

120
Color

White
Power [W]

34
Rated voltage [V]

230
Luminous efficiency [lm/W]

120
Width [mm]

595
Type

Ceiling
Height [mm]

32
lifetime [h]

50000
Color Temperature [K]

4000
Replaceable light source

NO

Color Rendering Index [CRI]

>80
Number of light sources

1
Protection class

II
Shape

Square
Installation

Flush-mounted
Type

Recessed
Level of security

IP20
Darkening

NO
Switch

NO
Light source included

Yes
Degree of mechanical protection

IK02
Lifetime (number of on/off)

50000

Další technické údaje

Suitable for wall mounting

No
Suitable for ceiling mounting

Yes
Suitable for surface mounting

No
Suitable for workplace according to EN 12464-1

No
Housing material

Aluminium
Housing colour

White
Voltage type

AC
Nominal current

160.000 ... 160.000 mA
With control gear

Yes
Dimming 0-10 V

No
Dimming DALI-2

No
Dimming DMX

No
Dimming potentiometer (integrated)

No
Dimming manufacturer's proprietary system

No
Dimming phase cut-off

No
Dimming programmable

No
Dimming Sine Wave Reduction

No
Dimming Zigbee

No
No dim function

Yes
Light sharing

Symmetric
Light outlet

Direct
Rated life time L70/B50 at 25 °C

50000 h
Degree of protection (IP)

IP20
Protection class

II
Rated ambient temperature according to IEC 62722-2-1

0 ... +40 °C
Emergency power supply integrated

No
With light sensor

No
With air slots

No
Max. system power

34.00 W
Rated luminous flux according to IEC 62722-2-1

4080 lm
Colour temperature

4000 ... 4000 K
Power factor

0.90
Width

595.00 mm
Length

595.00 mm
Built-in width

575 mm
Type of wiring

Suitable for through wiring
Connection type

Push-in clamp
Colour of light adjustable

No
Beam angle adjustable

No
Compatible with Casambi

No
Compatible with Google Assistant

No
IFTTT support available

Yes

Suitable for suspended mounting

Yes
Suitable for built-in mounting

Yes
Suitable for light line configuration

No
With light source

Yes
Surface protection housing

Powder coating
Type of grid

Matt
Nominal voltage

220 ... 240 V
Type of control gear

Electronic ballast
Exchangeable control gear

Yes
Dimming 1-10 V

No
Dimming DALI

No
Dimming DSI

No
Dimming LineSwitch

No
Dimming mains voltage modulation

No
Dimming phase cut-on

No
Dimming RF

No
Dimming Touch and Dim

No
Dimming with push-button

No
Light distributor

Diffuser lens/optic/panel
Beam angle

Open beam/diffuse
Energy efficiency class of the light source according to EU regulation 2019/2015

D
Max. number of luminaires per miniature circuit breaker B16 (MCB)

12
Impact strength

IK02
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24

No
Suitable for emergency lighting

No
With movement sensor

No
Covering of the luminaire with thermally insulating material possible

No
Filament test according to IEC 60695-2-11

650 °C - 30 s
Luminaire efficacy

120 lm/W
Colour of light

White
Colour rendering index CRI

80-89
Constant light output (CLO)

No
Height/depth

32.00 mm
Built-in length

575 mm
Built-in height/depth

50 mm
Number of poles

2
Photobiological safety according to EN 62471

RG0
Luminous flux adjustable

No
Operation by Bluetooth

No
Compatible with Apple HomeKit

No
Compatible with Amazon Alexa

No
Meets min. EIA service life criterion L90 (at 50,000 hours at tq = 25°C)

No

Typ obalu	Skrzynia	Karton
Množství	1 kusů.	6 kusů.
Hmotnost (kg)	1,907	12,372
Objem (m3)	0,014	0,098
Šířka (m)	0,600	0,240
Délka (m)	0,040	0,620
Hloubka (m)	0,650	0,670

ECO HLO 600 PANEL LED Panel 34W 400\80lm 4000K IP20 120° 60x60cm square white 4099854187377
