el12 Lighting Light fixtures Indoor luminaires Recessed office and decorative

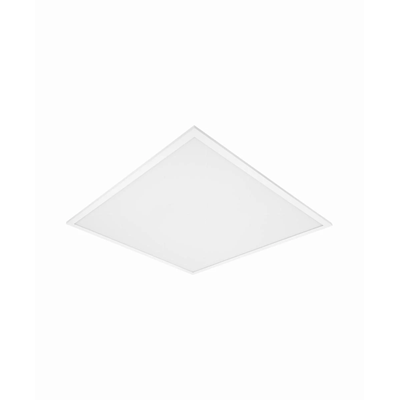

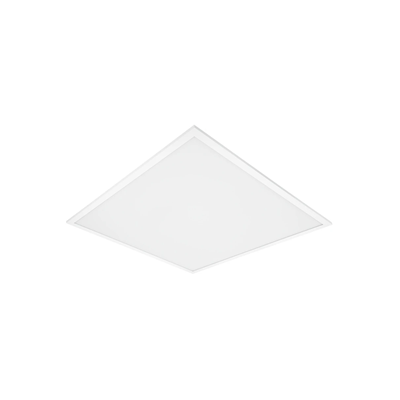

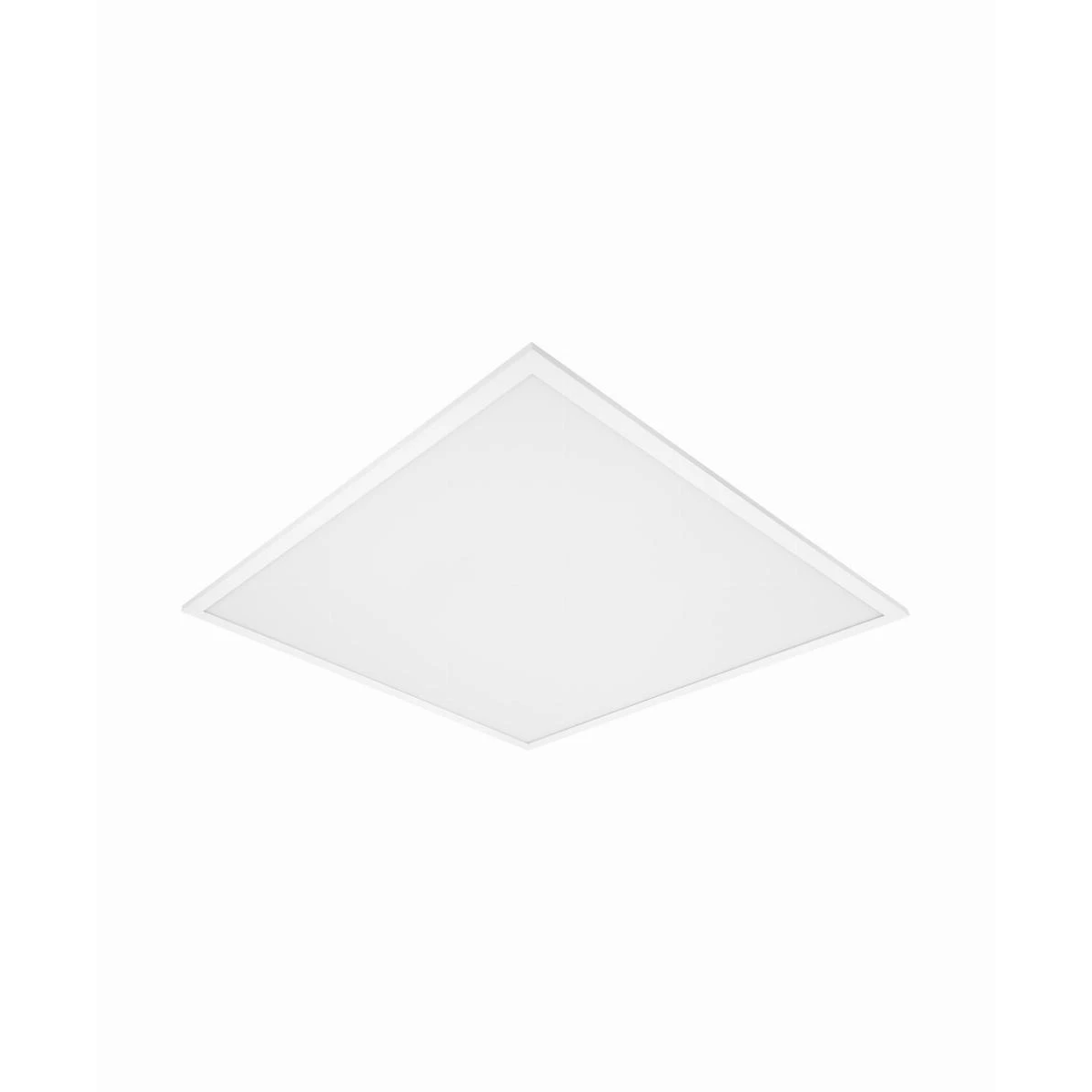

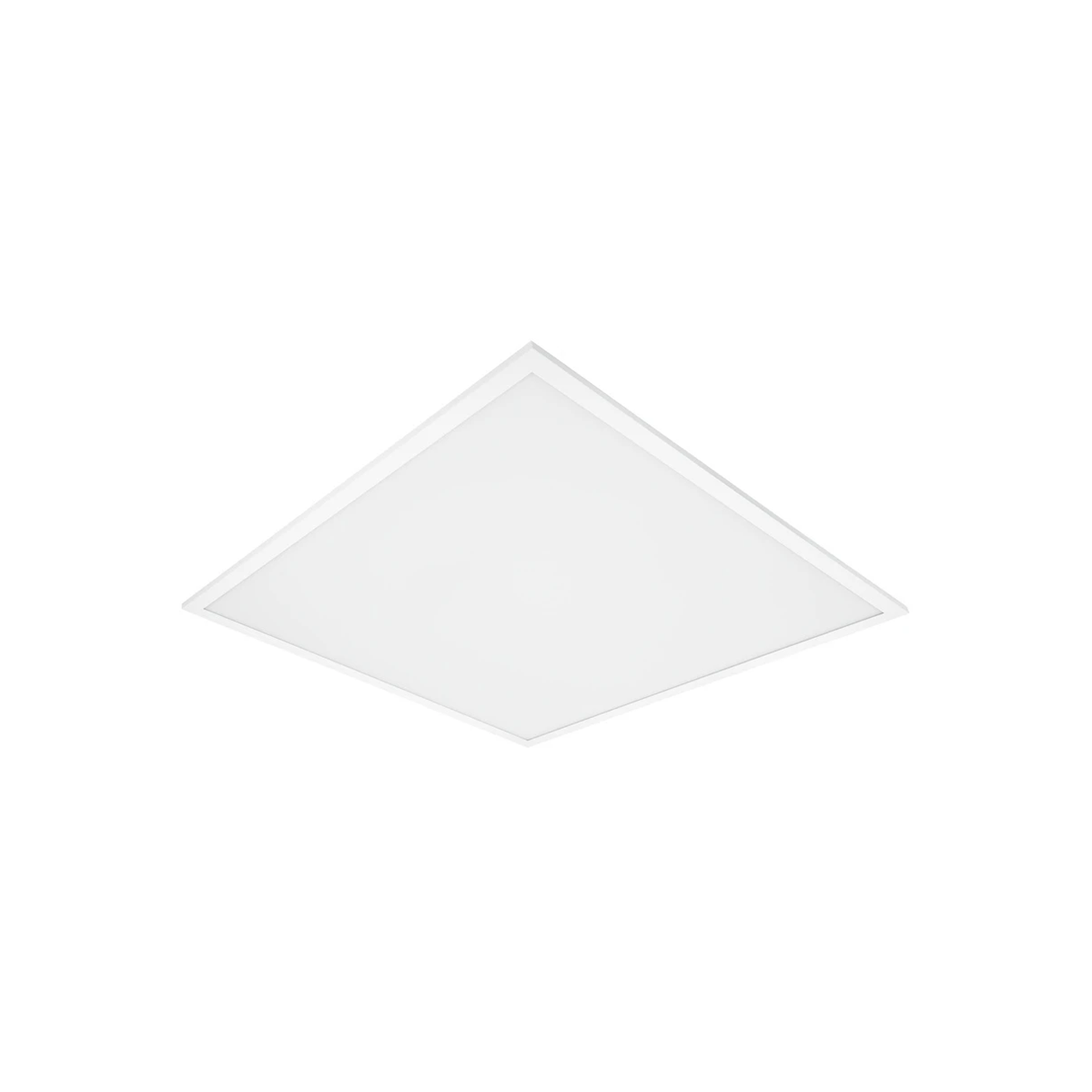

ECO CLASS PANEL 600 UGR<19 LED luminaire with glare reduction 36W 3240lm IP40 3000K WW 595mm square white 4058075386686

local index:
OWG165LEDV
Catalog No:
4058075386686
EAN code:
4058075386686
ECO CLASS PANEL 600 UGR<19 LED luminaire with glare reduction 36W 3240lm IP40 3000K WW 595mm square white
ECO CLASS PANEL 600 UGR<19 LED luminaire with glare reduction 36W 3240lm IP40 3000K WW 595mm square white
ECO CLASS PANEL 600 UGR<19 LED luminaire with glare reduction 36W 3240lm IP40 3000K WW 595mm square white
ECO CLASS PANEL 600 UGR<19 LED luminaire with glare reduction 36W 3240lm IP40 3000K WW 595mm square white
ECO CLASS PANEL 600 UGR<19 LED luminaire with glare reduction 36W 3240lm IP40 3000K WW 595mm square white
ECO CLASS PANEL 600 UGR<19 LED luminaire with glare reduction 36W 3240lm IP40 3000K WW 595mm square white
ECO CLASS PANEL 600 UGR<19 LED luminaire with glare reduction 36W 3240lm IP40 3000K WW 595mm square white
ECO CLASS PANEL 600 UGR<19 LED luminaire with glare reduction 36W 3240lm IP40 3000K WW 595mm square white

Click on the photo to enlarge

Manufacturer: LEDVANCE
Light color [K]: 2000-3500 (warm)
Length [mm]: 595
beam angle [°]: 90
See full description
Price:
34,17 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Out of stock
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print
Product description Technical data Manufacturer details

Product description

Square panel luminaire with glare reduction, ECO CLASS PANEL 600 UGR<19.

Product benefits< /strong>

  • Good glare reduction (UGR < 19)
  • Low light flicker thanks to special electronic ballast
  • Energy saving thanks to high luminous efficiency of the system : up to 90 lm/W
  • Quick integration with the ceiling thanks to the easy installation system

Area of applications

  • Direct replacement for fluorescent luminaires
  • Corridors
  • Offices
  • Conference rooms
  • Halls
  • Reception areas< /li>
  • Elevators
  • Suitable recessed ceiling luminaires, module 600 x 600 mm

Equipment / Accessories

  • Accessories are available for several types of mounting

Technical data

  • Light color [K]
    2000-3500 (warm)
  • beam angle [°]
    90
  • Color
    White
  • Power [W]
    36
  • Rated voltage [V]
    230
  • Luminous efficiency [lm/W]
    90
  • luminous flux [lm]
    3240
  • Durability [h]
    50000
  • Degree of mechanical protection
    IK02
  • Color Temperature [K]
    3000
  • PKWIU
    27.40.25
  • Length [mm]
    595
  • Protection class
    II
  • Housing material
    Aluminum
  • Installation
    Flush-mounted
  • Family
    ECO CLASS PANEL 600 UGR<19
  • Level of security
    IP40
  • Width [mm]
    595
  • Height [mm]
    34
  • Power factor [λ]
    ≥0.95
  • cri (ra)
    >80

Other technical data

  • Suitable for wall mounting
    Yes
  • Suitable for ceiling mounting
    Yes
  • Suitable for surface mounting
    No
  • Suitable for workplace according to EN 12464-1
    Yes
  • With light source
    No
  • Housing material
    Aluminium
  • Material cover
    Plastic, opal
  • Voltage type
    AC
  • Prąd znamionowy LED przy zasilaniu prądem stałym
    750 ... 750 mA
  • With control gear
    Yes
  • Dimming 1-10 V
    No
  • Dimming DMX
    No
  • Dimming potentiometer (integrated)
    No
  • Dimming LineSwitch
    No
  • Dimming mains voltage modulation
    No
  • Dimming phase cut-on
    No
  • Dimming RF
    No
  • Dimming Touch and Dim
    No
  • Dimming with push-button
    No
  • No dim function
    Yes
  • Light sharing
    Symmetric
  • Light outlet
    Direct
  • Żywotność znamionowa L70/B10 przy 25 °C
    50000 h
  • Degree of protection (IP)
    IP40
  • Protection class
    II
  • With movement sensor
    No
  • Covering of the luminaire with thermally insulating material possible
    No
  • Filament test according to IEC 60695-2-11
    650 °C - 30 s
  • Rated luminous flux according to IEC 62722-2-1
    3240 lm
  • Colour temperature
    3000 ... 3000 K
  • Luminaire efficacy
    90 lm/W
  • Width
    595.0 mm
  • Length
    595.0 mm
  • Built-in width
    580.0 mm
  • Type of wiring
    Ending
  • Suitable for suspended mounting
    Yes
  • Suitable for built-in mounting
    Yes
  • Suitable for light line configuration
    No
  • Lamp type
    LED not exchangeable
  • Suitable for number of light sources
    2
  • Housing colour
    White
  • Type of grid
    Other
  • Nominal voltage
    220 ... 240 V
  • Type of control gear
    Electronic ballast
  • Dimming 0-10 V
    No
  • Dimming DALI
    No
  • Dimming DSI
    No
  • Ściemniacz GPRS
    No
  • Dimming manufacturer's proprietary system
    No
  • Dimming phase cut-off
    No
  • Dimming programmable
    No
  • Dimming Sine Wave Reduction
    No
  • Dimming Zigbee
    No
  • Ściemniacz zależny od statecznika
    Yes
  • Light distributor
    Diffuser lens/optic/panel
  • Beam angle
    Extreme wide beam >80°
  • Klasa efektywności energetycznej zamontowanego źródła światła
    A++, A+, A (LED)
  • Rated life time L70/B50 at 25 °C
    50000 h
  • Impact strength
    IK02
  • Suitable for emergency lighting
    No
  • With light sensor
    No
  • With air slots
    No
  • Max. system power
    36.00 W
  • Colour of light
    White
  • Colour rendering index CRI
    80-89
  • Power factor
    0.95
  • Height/depth
    34.0 mm
  • Built-in length
    580.0 mm
  • Built-in height/depth
    50.0 mm
  • Number of poles
    2

Manufacturer details

  • Manufacturer
    LEDVANCE Sp z o.o
  • Address
    02-797 Warszawa Klimczaka 1 klatka E
  • Tax identification number
    1130104862
