el12 Lighting Light fixtures Indoor luminaires Recessed office and decorative

ECO CLASS PANEL 600 LED luminaire 40W 3400lm IP20 4000K NW 595mm square white 4058075285040

local index:
OWG161LEDV
Catalog No:
4058075285040
EAN code:
4058075285040

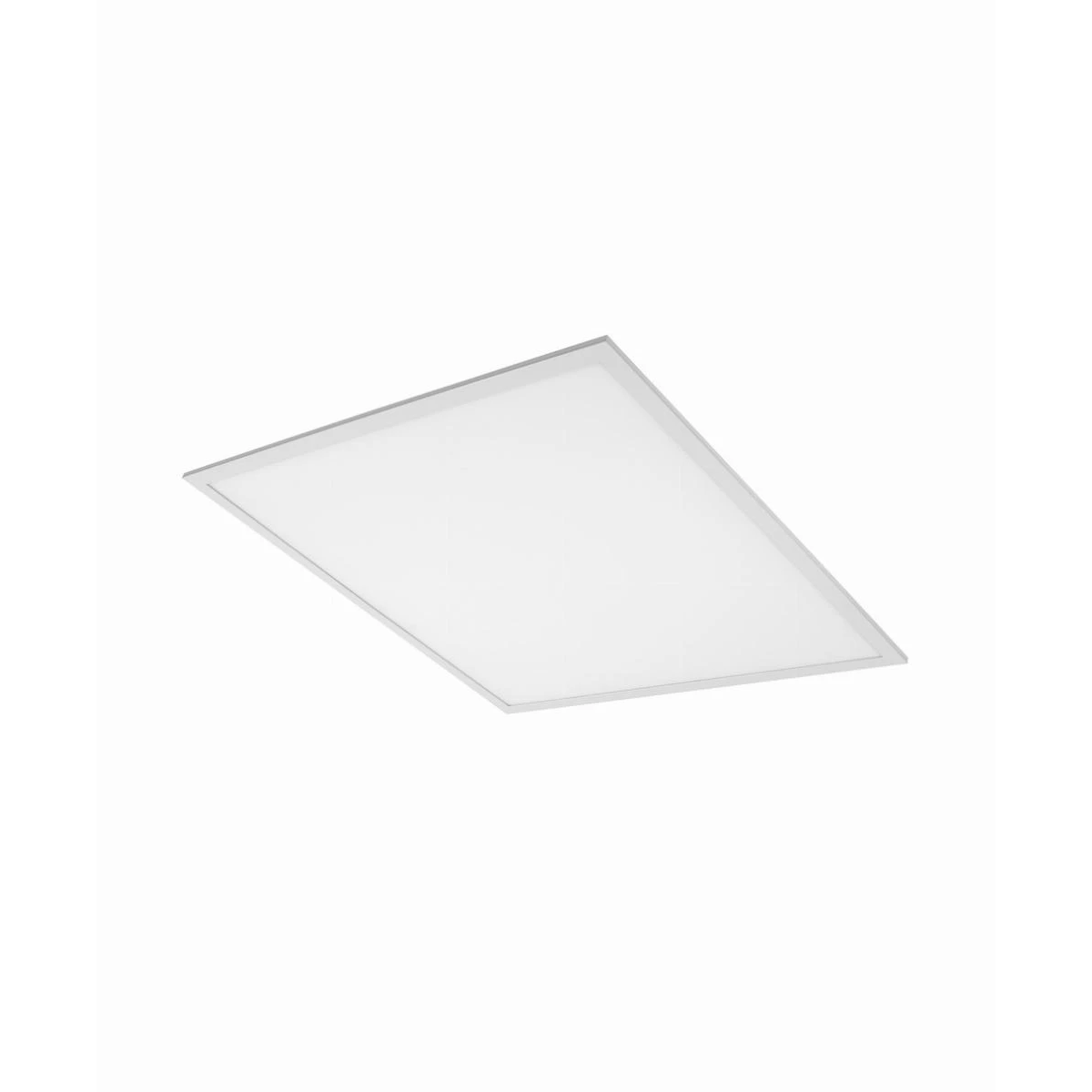

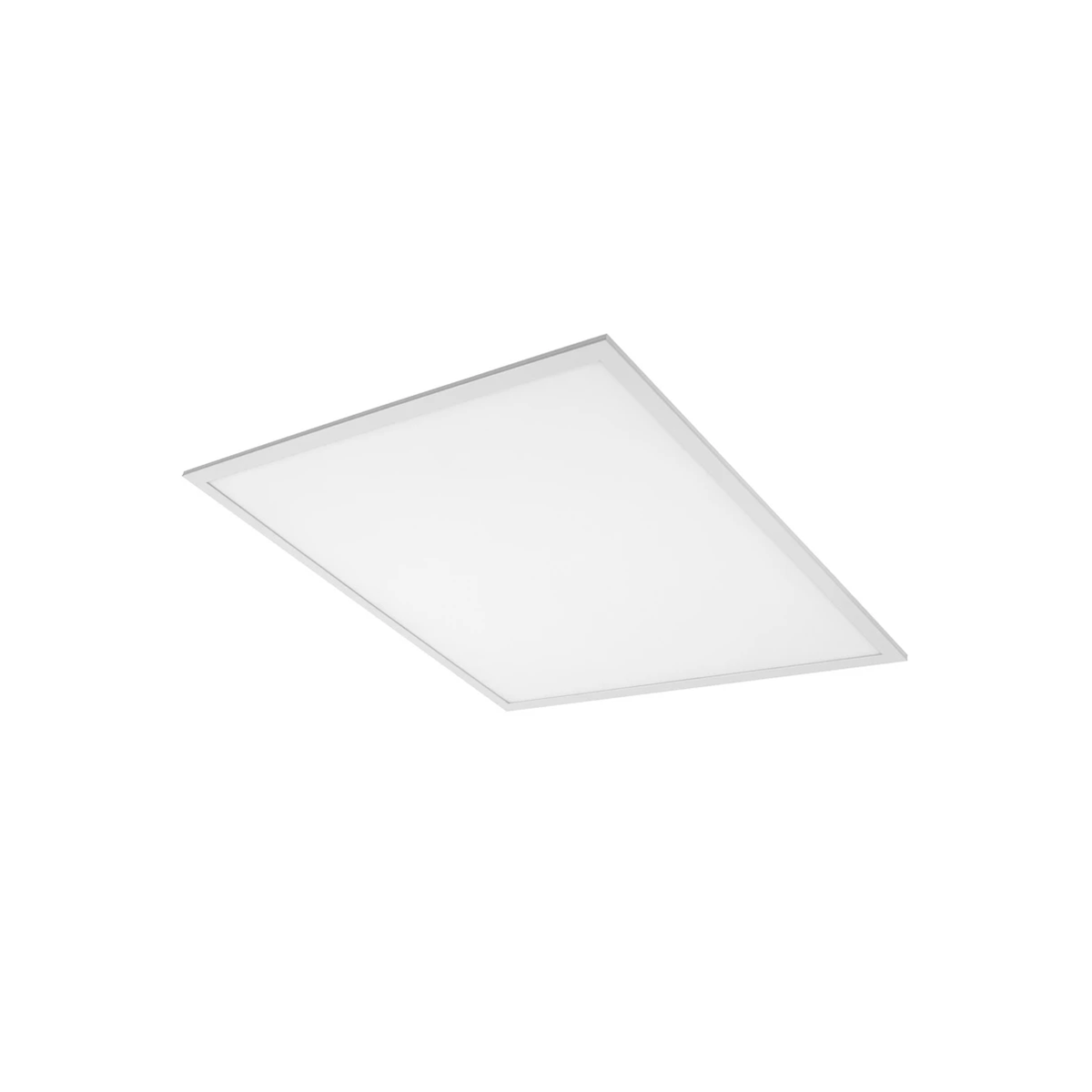

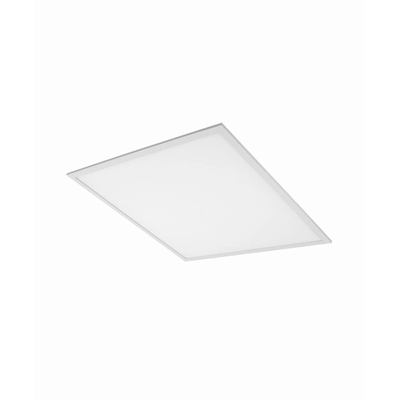

ECO CLASS PANEL 600 LED luminaire 40W 3400lm IP20 4000K NW 595mm square white
ECO CLASS PANEL 600 LED luminaire 40W 3400lm IP20 4000K NW 595mm square white

Click on the photo to enlarge

Manufacturer: LEDVANCE
Light color [K]: 3500-4800 (natural)
Length [mm]: 595
beam angle [°]: 115
See full description
Price:
54,49 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Out of stock
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print
Product description Technical data Manufacturer details

Product description

Square panel luminaire, ECO CLASS PANEL 600 series.

Product benefits

  • Low light flicker thanks to a special electronic ballast
  • Energy savings thanks to the high luminous efficiency of the system: up to 90 lm/W
  • Quick integration with the ceiling thanks to the easy installation system< /li>

Area of application

  • Direct replacement for fluorescent luminaires
  • Corridors
  • Offices
  • Conference rooms
  • Lobby
  • Reception desks
  • Elevators
  • Suitable ceiling recessed luminaires, module 600 x 600 mm

Equipment / Accessories

  • Accessories are available for several types of mounting

Technical data

  • Light color [K]
    3500-4800 (natural)
  • beam angle [°]
    115
  • Color
    White
  • Power [W]
    40
  • Rated voltage [V]
    230
  • Luminous efficiency [lm/W]
    85
  • luminous flux [lm]
    3400
  • Durability [h]
    50000
  • Degree of mechanical protection
    IK02
  • Color Temperature [K]
    4000
  • Light-emitting surface material
    PMMA
  • Length [mm]
    595
  • Protection class
    II
  • Housing material
    Aluminum
  • Installation
    Flush-mounted
  • Family
    ECO CLASS PANEL 600
  • Level of security
    IP20
  • Width [mm]
    595
  • Height [mm]
    9
  • Power factor [λ]
    ≥0.90
  • cri (ra)
    >80
  • PKWIU
    27.40.25

Other technical data

  • Suitable for wall mounting
    No
  • Suitable for ceiling mounting
    Yes
  • Suitable for surface mounting
    No
  • Suitable for workplace according to EN 12464-1
    No
  • With light source
    No
  • Housing material
    Aluminium
  • Material cover
    Plastic, opal
  • Voltage type
    AC
  • Prąd znamionowy LED przy zasilaniu prądem stałym
    1200 ... 1200 mA
  • With control gear
    Yes
  • Dimming 1-10 V
    No
  • Dimming DMX
    No
  • Dimming potentiometer (integrated)
    No
  • Dimming LineSwitch
    No
  • Dimming mains voltage modulation
    No
  • Dimming phase cut-on
    No
  • Dimming RF
    No
  • Dimming Touch and Dim
    No
  • Dimming with push-button
    No
  • No dim function
    No
  • Light sharing
    Symmetric
  • Klasa efektywności energetycznej zamontowanego źródła światła
    A++, A+, A (LED)
  • Rated life time L70/B50 at 25 °C
    50000 h
  • Impact strength
    IK02
  • Suitable for emergency lighting
    No
  • With light sensor
    No
  • With air slots
    No
  • Max. system power
    40.00 W
  • Colour of light
    White
  • Colour rendering index CRI
    80-89
  • Power factor
    0.90
  • Height/depth
    8.2 mm
  • Built-in length
    580.0 mm
  • Built-in height/depth
    10.0 mm
  • Number of poles
    2
  • Suitable for suspended mounting
    Yes
  • Suitable for built-in mounting
    Yes
  • Suitable for light line configuration
    No
  • Lamp type
    LED not exchangeable
  • Suitable for number of light sources
    2
  • Housing colour
    White
  • Type of grid
    Matt
  • Nominal voltage
    220 ... 240 V
  • Type of control gear
    Electronic ballast
  • Dimming 0-10 V
    No
  • Dimming DALI
    No
  • Dimming DSI
    No
  • Ściemniacz GPRS
    No
  • Dimming manufacturer's proprietary system
    No
  • Dimming phase cut-off
    No
  • Dimming programmable
    No
  • Dimming Sine Wave Reduction
    No
  • Dimming Zigbee
    No
  • Ściemniacz zależny od statecznika
    Yes
  • Light distributor
    Diffuser lens/optic/panel
  • Light outlet
    Direct
  • Żywotność znamionowa L70/B10 przy 25 °C
    50000 h
  • Degree of protection (IP)
    IP20
  • Protection class
    II
  • With movement sensor
    No
  • Covering of the luminaire with thermally insulating material possible
    No
  • Filament test according to IEC 60695-2-11
    650 °C - 30 s
  • Rated luminous flux according to IEC 62722-2-1
    3400 lm
  • Colour temperature
    4000 ... 4000 K
  • Luminaire efficacy
    85 lm/W
  • Width
    595.0 mm
  • Length
    595.0 mm
  • Built-in width
    580.0 mm
  • Type of wiring
    Ending
